Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 22:29
Analysis date: 2016-05-25 22:29
M2040 XRayHRQualification
Summary
| Module | Module | M2040 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 10/1/5 | |
| PixelDefects | Total Pixel Defects | 6470 | |
| BumpBondingDefects | Bump Bonding Defects | 55 | |
| NoisyPixels | Noisy Pixels | 6308 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 1 | |
| Efficiency | Efficiency 50/120 | 99.85/99.03 | % |
| Noise | Mean Noise | 255 | e- |

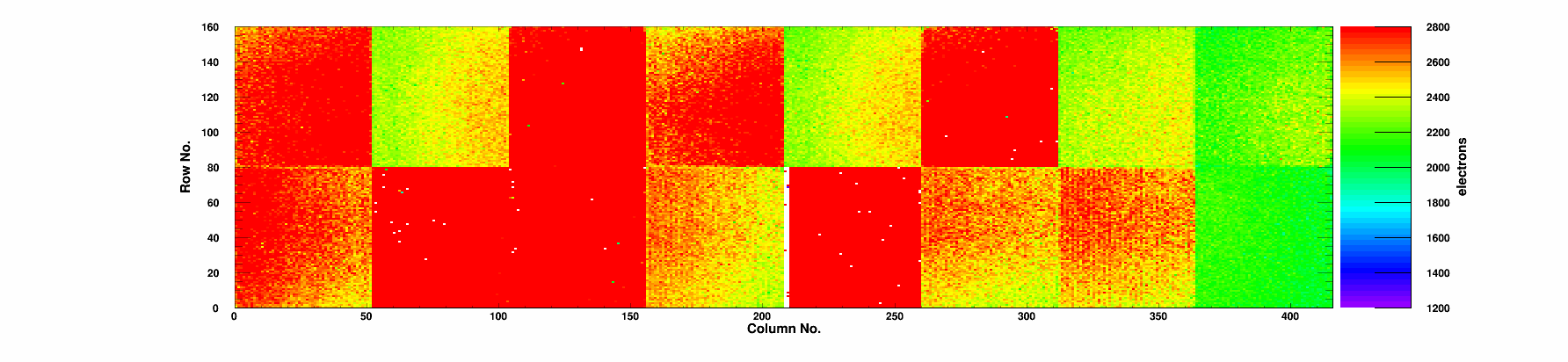

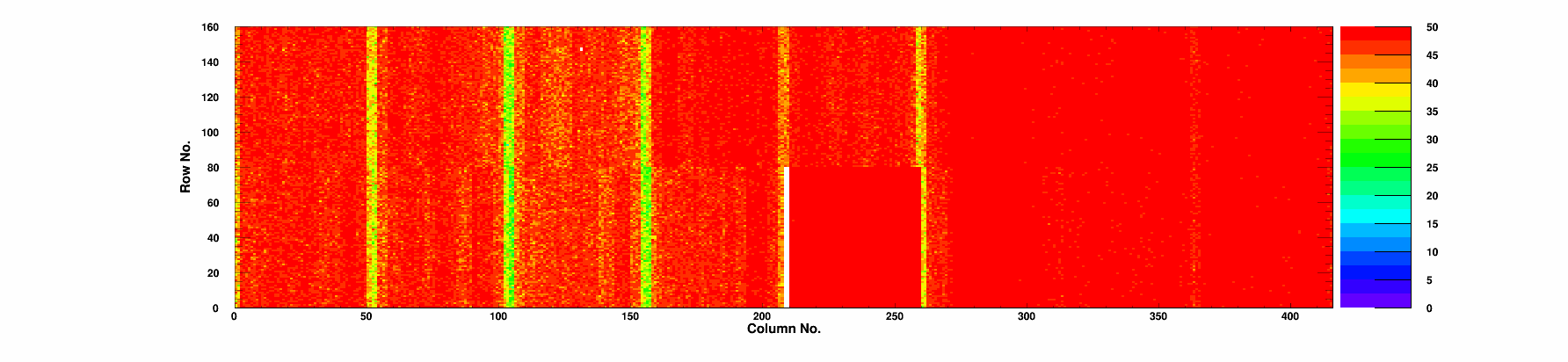

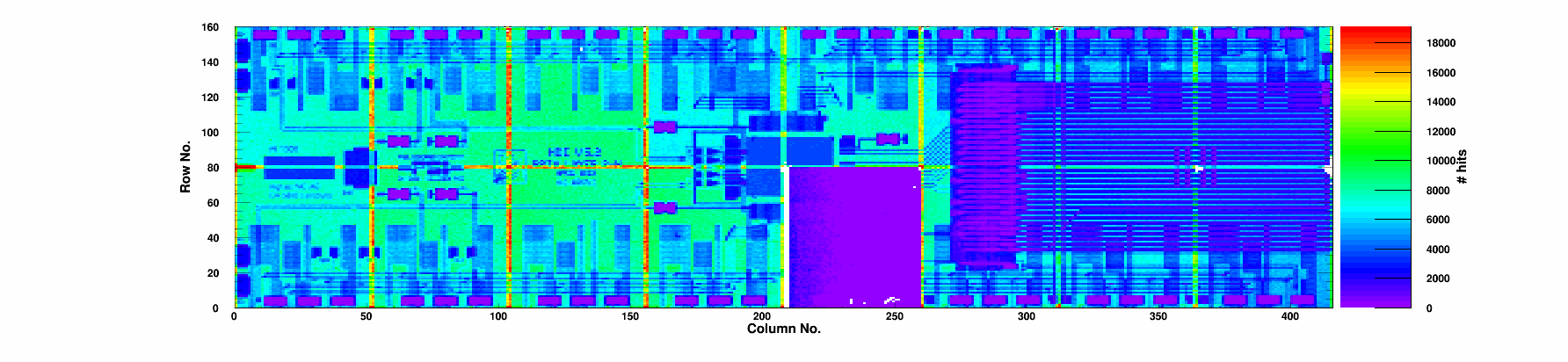

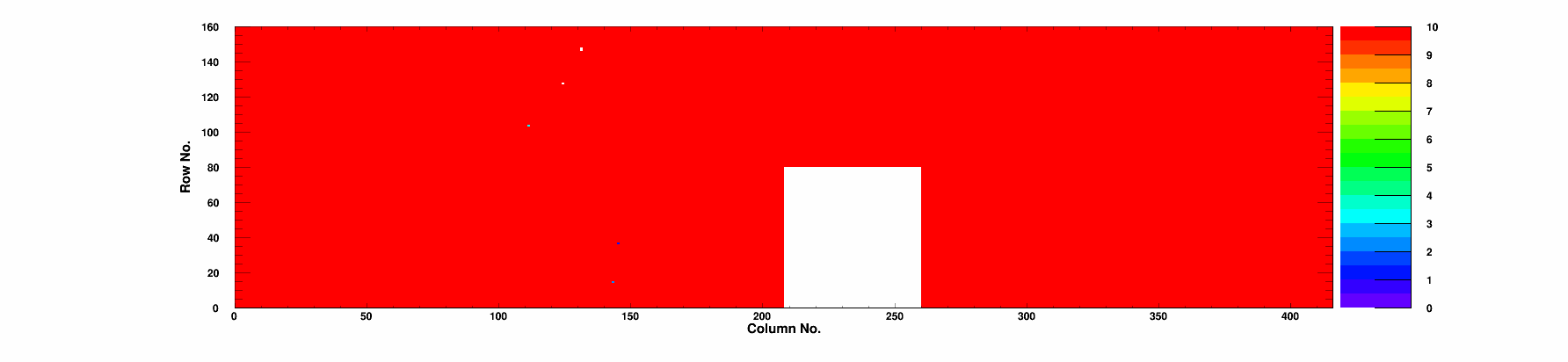

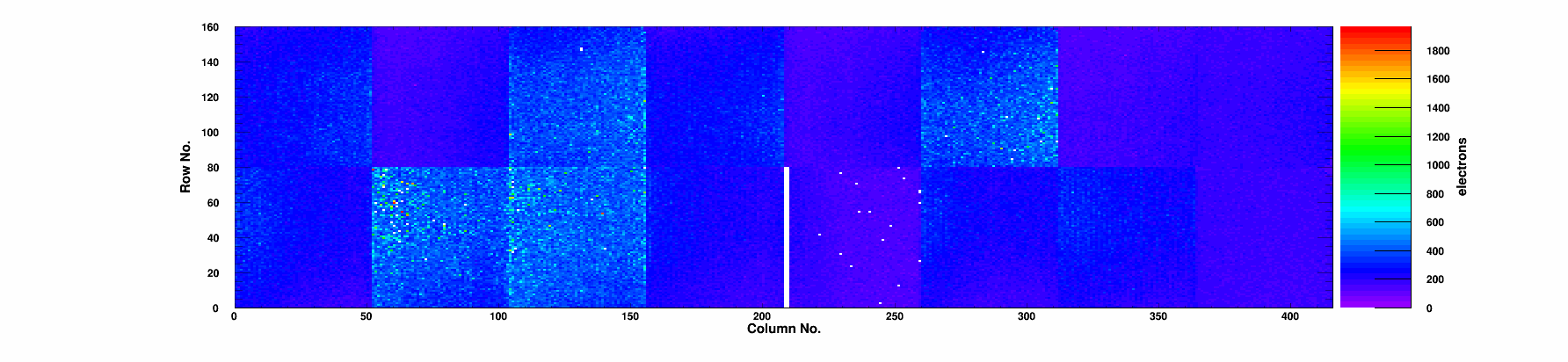

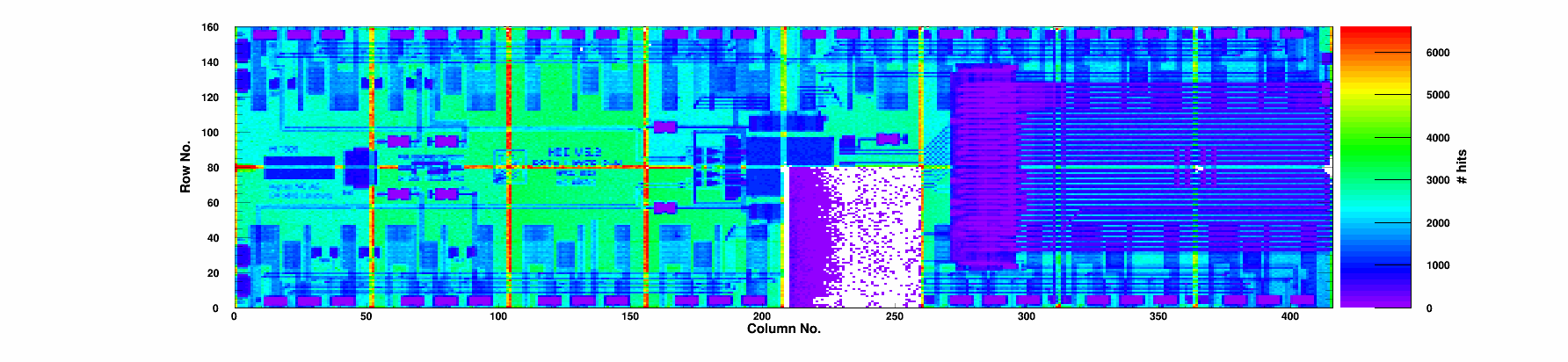

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
10 | 0 | 99.87 | 99.08 | 0.52 | 83.1 | 10 | 27.9 | 0/0 | 0 | 2227 | 183 | 0 |
|
Chip 1
|
A
|
2 | 0 | 99.85 | 99.04 | 0.78 | 85.2 | 2 | 28.3 | 0/0 | 0 | 2359 | 161 | 0 |
|
Chip 2
|
C
|
1103 | 0 | 99.84 | 99.04 | 0.76 | 79.5 | 8 | 26.2 | 0/0 | 0 | 3282 | 363 | 1095 |
|
Chip 3
|
A
|
3 | 0 | 99.84 | 99.06 | 0.62 | 145.2 | 3 | 50.4 | 0/0 | 0 | 2390 | 177 | 0 |
|
Chip 4
|
A
|
23 | 0 | 99.86 | 99.08 | 1.04 | 133.6 | 0 | 45.1 | 0/0 | 0 | 2781 | 262 | 23 |
|
Chip 5
|
C
|
1215 | 0 | 99.86 | 99.10 | 0.72 | 190.3 | 4 | 66.8 | 0/0 | 0 | 3212 | 371 | 1211 |
|
Chip 6
|
A
|
2 | 0 | 99.86 | 99.03 | 0.68 | 166.0 | 2 | 57.5 | 0/0 | 0 | 2409 | 184 | 0 |
|
Chip 7
|
B
|
54 | 0 | 99.85 | 99.10 | 0.8 | 152.9 | 0 | 51.7 | 0/0 | 0 | 2857 | 275 | 54 |
|
Chip 8
|
A
|
28 | 0 | 99.85 | 99.04 | 0.57 | 154.4 | 0 | 52.0 | 0/0 | 0 | 2722 | 254 | 28 |
|
Chip 9
|
C
|
1645 | 0 | 99.85 | 99.07 | 0.48 | 166.0 | 0 | 57.1 | 0/0 | 0 | 3514 | 398 | 1645 |
|
Chip 10
|
C
|
2170 | 0 | 99.86 | 99.14 | 0.73 | 186.7 | 0 | 65.7 | 0/0 | 0 | 3473 | 416 | 2170 |
|
Chip 11
|
A
|
9 | 0 | 99.86 | 99.08 | 0.87 | 162.6 | 4 | 56.1 | 0/0 | 0 | 2517 | 226 | 5 |
|
Chip 12
|
C
|
160 | 1 | 99.80 | 98.39 | 0.51 | 8.1 | 0 | 0.7 | 0/0 | 46+0/23 | 4541 | 154 | 53 |
|
Chip 13
|
A
|
10 | 0 | 99.82 | 99.08 | 0.73 | 88.7 | 0 | 29.3 | 0/0 | 0 | 2540 | 231 | 10 |
|
Chip 14
|
A
|
14 | 0 | 99.84 | 99.02 | 1.19 | 94.6 | 0 | 31.4 | 0/0 | 0 | 2582 | 253 | 14 |
|
Chip 15
|
A
|
22 | 0 | 99.85 | 99.06 | 0.48 | 84.4 | 22 | 28.2 | 0/0 | 0 | 2121 | 169 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-07-13 | |
| TestTime | Test Time | 11:39 | |
| TestDuration | Duration | 1:58:44 | |
| pXar | pXar version | v2.2.5+45~gbf85984 | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 3 | |
| nWarnings | # Warnings | 4 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 1 | |
| message_tokenchain_count | Token Chain Length | 2 | |
| message_readback_count | Readback start marker | 4 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
