Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 22:29
Chip 8
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.85/99.04
EfficiencyFit Efficiency Fit chi2/ndf: 0.57, # points: 51
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C8
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.57
NumberFitPoints # fit points 51
p0 p0 99.91
p1 p1 5.02e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.85
InterpolatedEfficiency120 Interpol. Efficiency 120 99.04
Efficiency Map 50: C8
Efficiency Map 100: C8
Efficiency Map 150: C8
Efficiency Map 200: C8
Efficiency Map 250: C8
Efficiency Distr. 50: C8
Plot
N N 4160
mu μ 99.82
sigma σ 0.61
Efficiency Distr. 100: C8
Plot
N N 4160
mu μ 99.11
sigma σ 1.44
Efficiency Distr. 150: C8
Plot
N N 4160
mu μ 97.47
sigma σ 2.80
Efficiency Distr. 200: C8
Plot
N N 4160
mu μ 93.91
sigma σ 5.22
Efficiency Distr. 250: C8
Plot
N N 4160
mu μ 93.10
sigma σ 5.72

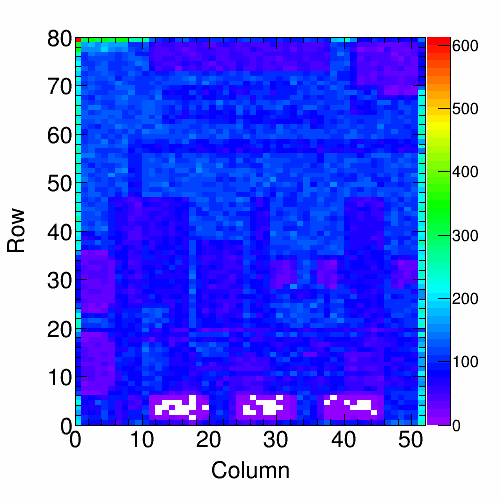

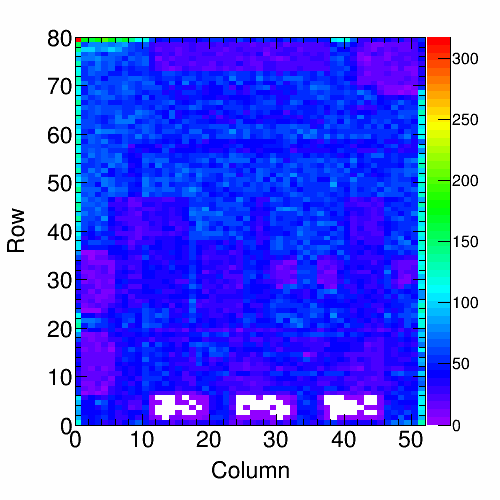

Background Map 50: C8
Plot
RealHitrate Real Hitrate 53.20 MHz/cm2

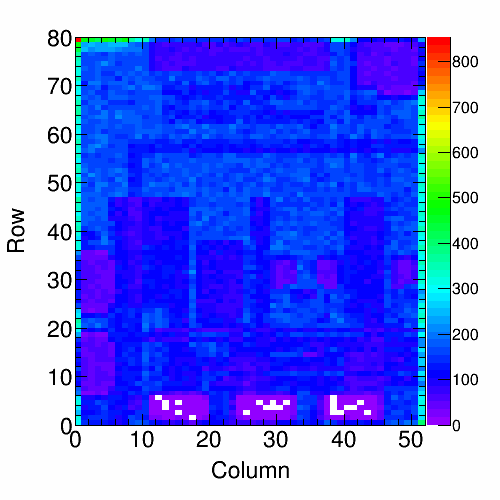

Background Map 100: C8
Plot
RealHitrate Real Hitrate 107.95 MHz/cm2

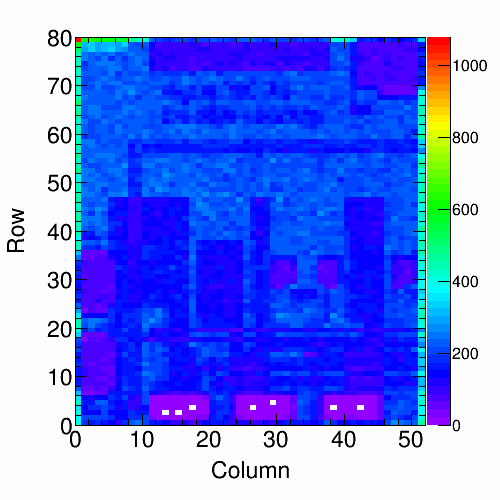

Background Map 150: C8
Plot
RealHitrate Real Hitrate 157.02 MHz/cm2
Background Map 200: C8
Plot
RealHitrate Real Hitrate 212.33 MHz/cm2
Background Map 250: C8
Plot
RealHitrate Real Hitrate 220.96 MHz/cm2
Retrim Hot Pix 150: C8
Masked Hot Pixels 150: C8
Masked Hot Pixels 50: C8

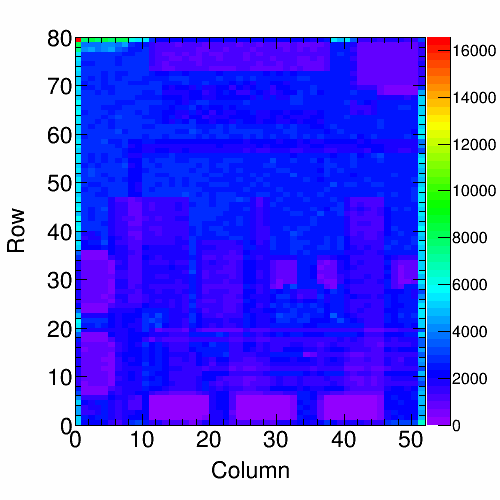

Hit Map 150: C8
Plot
RealHitrate Real Hitrate 154.38 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C8
Hit Map 50: C8
Plot
RealHitrate Real Hitrate 51.98 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C8
Col. Read. Unif. 150: C8
Plot
N N 21961726
mu μ 479996
sigma σ 117981.06
Col. Read. Unif. 50: C8
Plot
N N 7379238
mu μ 161666
sigma σ 41946.95
Read. Unif. over Time 150: C8
Plot
N N 24959795
mu μ 25314
sigma_th σ_th 159.10
Time unif. distribution 150: C8
Plot
chi2/ndf chi2/ndf 5.89
sigma σ 176.09
sigma_th σ_th 159.13
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C8
Plot
N N 8406613
mu μ 8526
sigma_th σ_th 92.34
Time unif. distribution 50: C8
Plot
chi2/ndf chi2/ndf 1.81
sigma σ 95.17
sigma_th σ_th 92.34
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C8

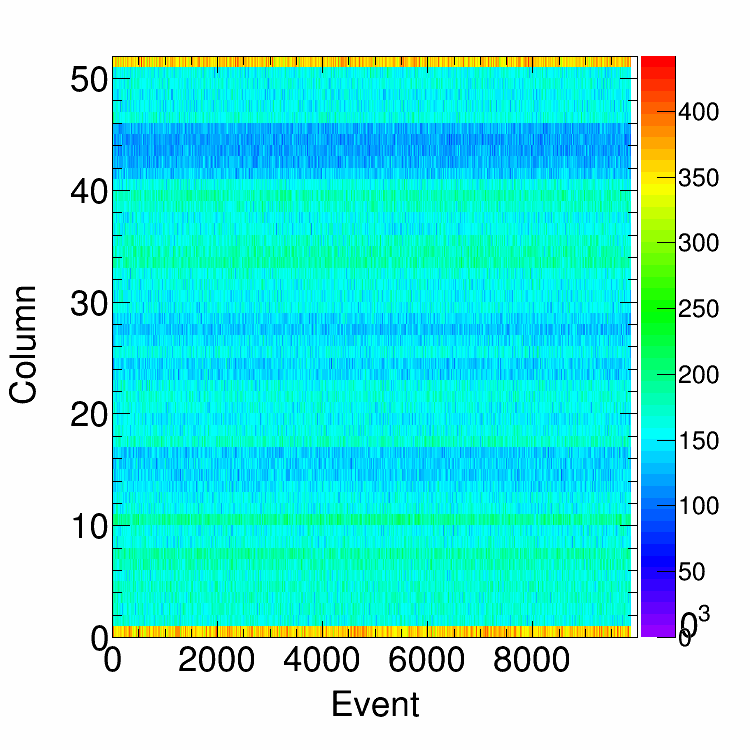

Col. Uniformity per Event: C8 150
Plot
mu μ 25.74
sigma fit error of μ 2.20
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C8 50
Plot
mu μ 25.57
sigma fit error of μ 2.20
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C8 100
Plot
N N 4160
mu μ 253.53
sigma RMS 49.40
threshold thr 2722.44
fit fit Gaussian
fit_peak μ fit 250.72
fit_sigma σ fit 44.78
MeasuredHitrate Measured hitrate: 109.4
Alive Map: C8
DC Efficiency Distribution: C8
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.85
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.04
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C8
