Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 22:29
Chip 12
Grading
ROCGrade Final ROC Grade C
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 46
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/23
BadDoubleColumns # Bad Double Columns 1
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.8/98.39
EfficiencyFit Efficiency Fit chi2/ndf: 0.51, # points: 7
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade C
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/C
ColumnUniformityGrade Column Uniformity Grade C
NoiseGrade Noise Grade A
Efficiency Interpolation: C12
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 1
Chi2NDF chi2/ndf 0.51
NumberFitPoints # fit points 7
p0 p0 99.90
p1 p1 8.76e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.80
InterpolatedEfficiency120 Interpol. Efficiency 120 98.39
Efficiency Map 50: C12
Efficiency Map 100: C12
Efficiency Map 150: C12
Efficiency Map 200: C12
Efficiency Map 250: C12
Efficiency Distr. 50: C12
Plot
N N 4160
mu μ 96.15
sigma σ 19.23
Efficiency Distr. 100: C12
Plot
N N 4160
mu μ 96.13
sigma σ 19.23
Efficiency Distr. 150: C12
Plot
N N 4160
mu μ 96.12
sigma σ 19.23
Efficiency Distr. 200: C12
Plot
N N 4160
mu μ 96.08
sigma σ 19.22
Efficiency Distr. 250: C12
Plot
N N 4160
mu μ 96.06
sigma σ 19.22

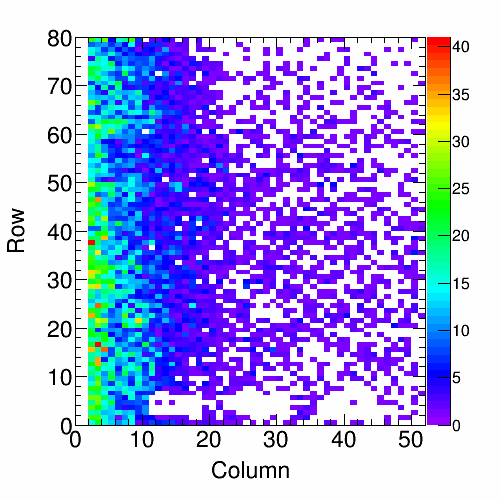

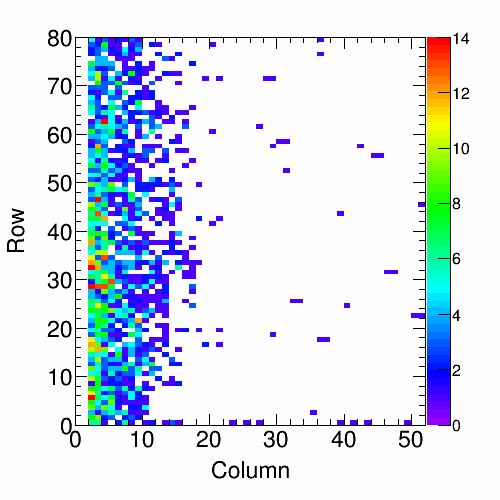

Background Map 50: C12
Plot
RealHitrate Real Hitrate 0.80 MHz/cm2

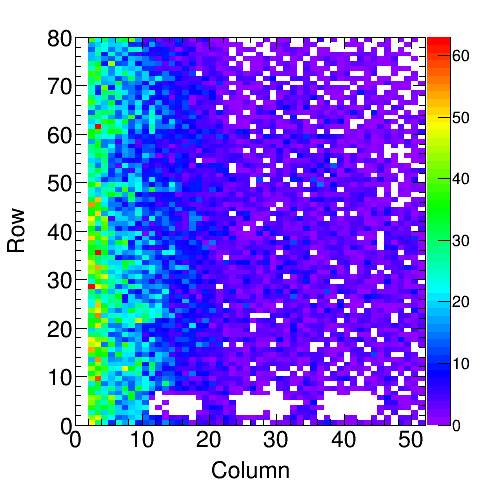

Background Map 100: C12
Plot
RealHitrate Real Hitrate 4.18 MHz/cm2
Background Map 150: C12
Plot
RealHitrate Real Hitrate 8.52 MHz/cm2

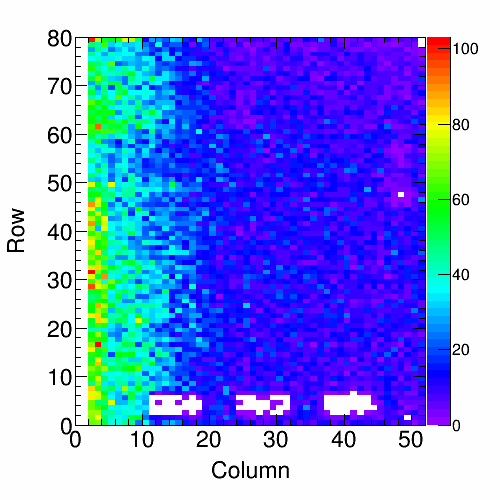

Background Map 200: C12
Plot
RealHitrate Real Hitrate 14.96 MHz/cm2
Background Map 250: C12
Plot
RealHitrate Real Hitrate 20.91 MHz/cm2
Retrim Hot Pix 150: C12
Masked Hot Pixels 150: C12
Masked Hot Pixels 50: C12

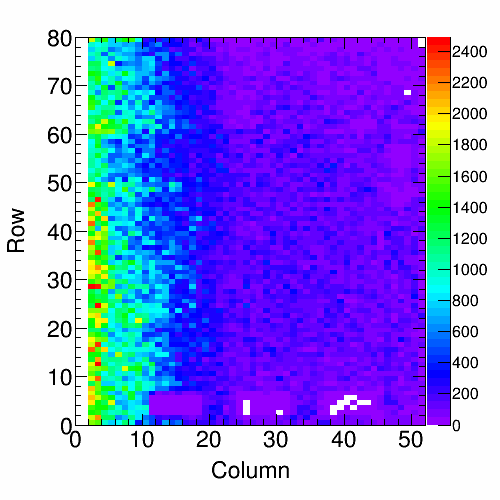

Hit Map 150: C12
Plot
RealHitrate Real Hitrate 8.13 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 177
BB Defects 150: C12

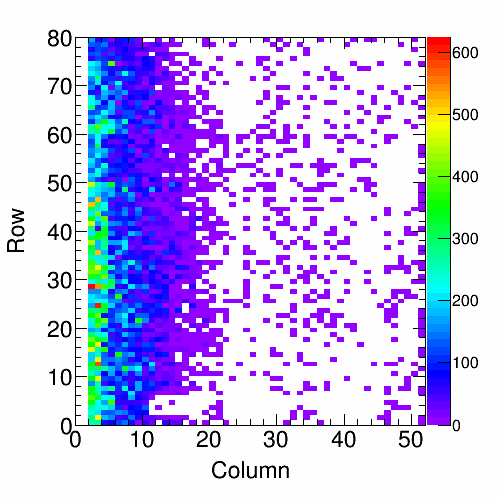

Hit Map 50: C12
Plot
RealHitrate Real Hitrate 0.72 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 2357
BB Defects 50: C12
Col. Read. Unif. 150: C12
Plot
N N 1302290
mu μ 25273
sigma σ 29675.40
Col. Read. Unif. 50: C12
Plot
N N 116719
mu μ 2246
sigma σ 4893.11
Read. Unif. over Time 150: C12
Plot
N N 1314203
mu μ 1333
sigma_th σ_th 36.51
Time unif. distribution 150: C12
Plot
chi2/ndf chi2/ndf 1.23
sigma σ 36.66
sigma_th σ_th 36.51
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C12
Plot
N N 116787
mu μ 118
sigma_th σ_th 10.88
Time unif. distribution 50: C12
Plot
chi2/ndf chi2/ndf 5.50
sigma σ 11.10
sigma_th σ_th 10.88
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C12

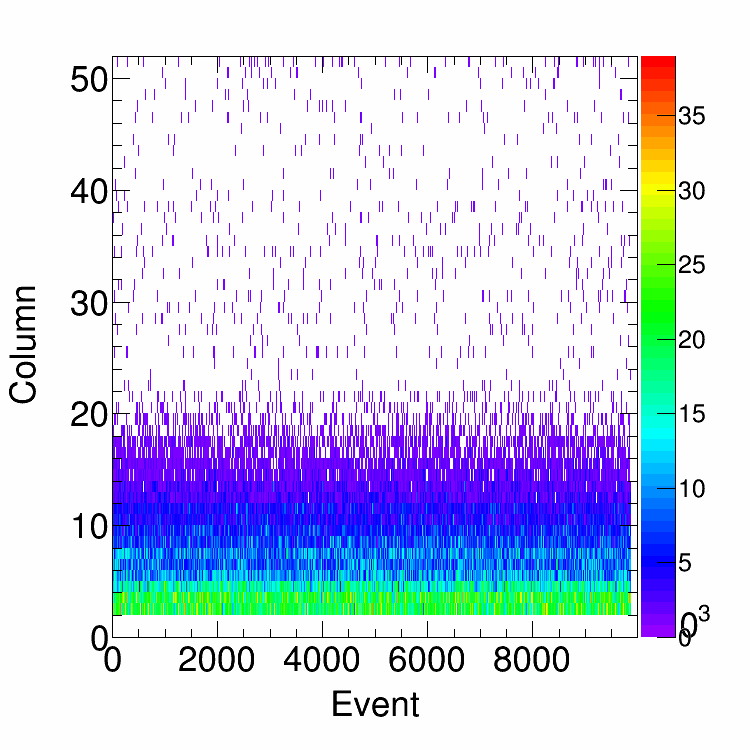

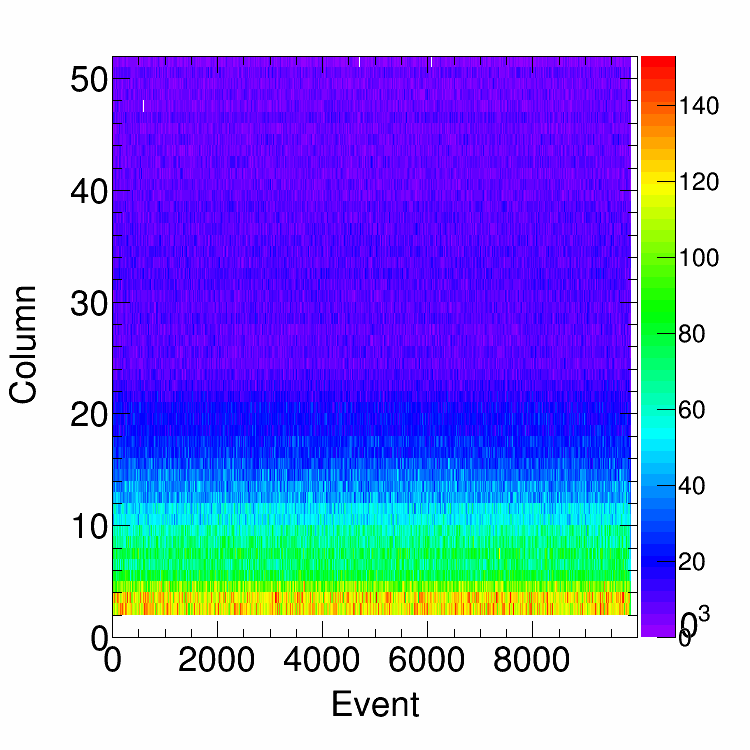

Col. Uniformity per Event: C12 150
Plot
mu μ 13.97
sigma fit error of μ 1.76
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C12 50
Plot
mu μ 6.48
sigma fit error of μ 0.95
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 23
S-Curve widths: Noise (e^{-}) C12 100
Plot
N N 3983
mu μ 154.10
sigma RMS 25.30
threshold thr 4540.99
fit fit Gaussian
fit_peak μ fit 153.05
fit_sigma σ fit 23.60
MeasuredHitrate Measured hitrate: 4.2
under <= 124.00
over >= 53.00
Alive Map: C12
DC Efficiency Distribution: C12
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.02
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 86.94
NBadDoubleColumns Bad Double Columns 1
CalDel scan: C12
