Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 22:29
Chip 10
Grading
ROCGrade Final ROC Grade C
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.86/99.14
EfficiencyFit Efficiency Fit chi2/ndf: 0.73, # points: 47
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade C
Efficiency Interpolation: C10
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.73
NumberFitPoints # fit points 47
p0 p0 99.92
p1 p1 4.52e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.14

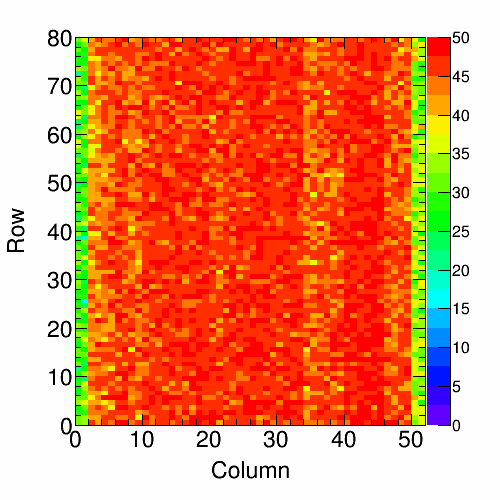

Efficiency Map 50: C10

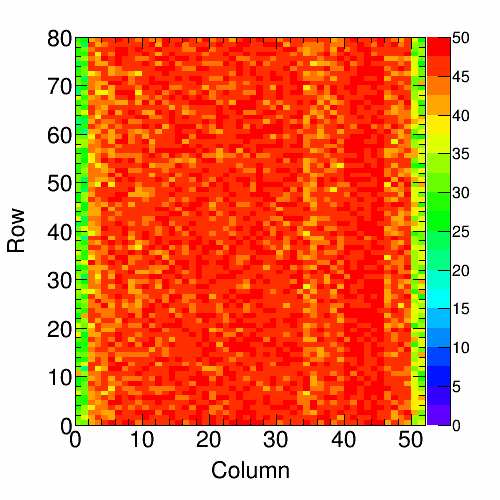

Efficiency Map 100: C10
Efficiency Map 150: C10
Efficiency Map 200: C10
Efficiency Map 250: C10
Efficiency Distr. 50: C10
Plot
N N 4160
mu μ 99.74
sigma σ 0.76
Efficiency Distr. 100: C10
Plot
N N 4160
mu μ 98.54
sigma σ 2.19
Efficiency Distr. 150: C10
Plot
N N 4160
mu μ 95.58
sigma σ 4.97
Efficiency Distr. 200: C10
Plot
N N 4160
mu μ 89.79
sigma σ 8.87
Efficiency Distr. 250: C10
Plot
N N 4160
mu μ 89.11
sigma σ 9.22

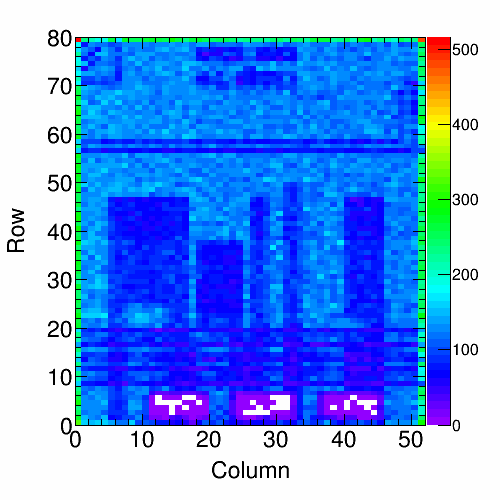

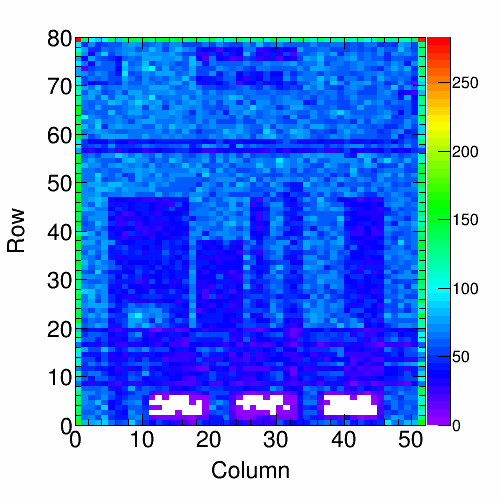

Background Map 50: C10
Plot
RealHitrate Real Hitrate 66.74 MHz/cm2
Background Map 100: C10
Plot
RealHitrate Real Hitrate 131.66 MHz/cm2

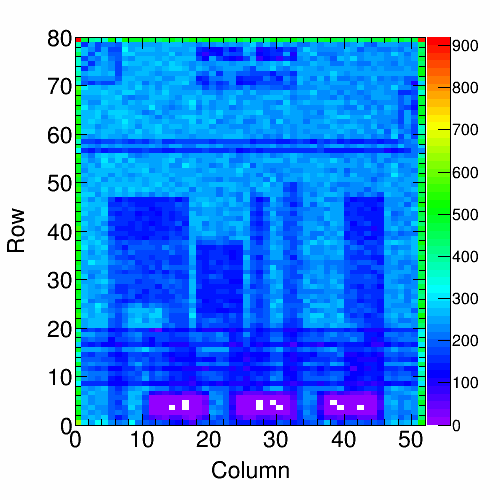

Background Map 150: C10
Plot
RealHitrate Real Hitrate 189.70 MHz/cm2
Background Map 200: C10
Plot
RealHitrate Real Hitrate 254.90 MHz/cm2
Background Map 250: C10
Plot
RealHitrate Real Hitrate 261.01 MHz/cm2

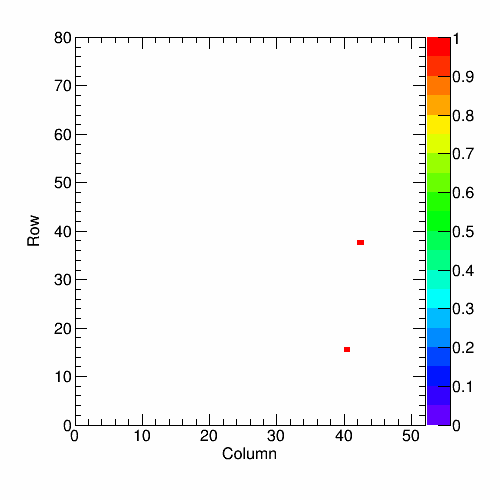

Retrim Hot Pix 150: C10
Masked Hot Pixels 150: C10
Masked Hot Pixels 50: C10

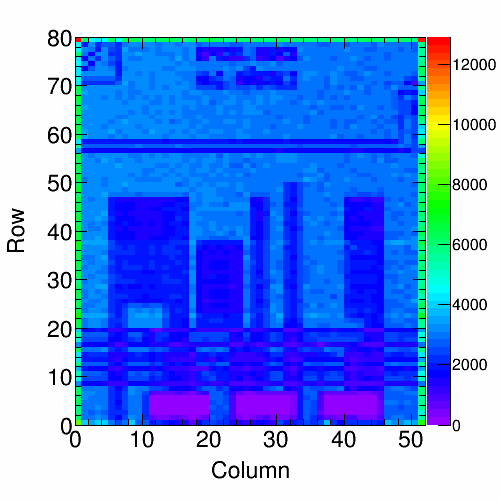

Hit Map 150: C10
Plot
RealHitrate Real Hitrate 186.73 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C10

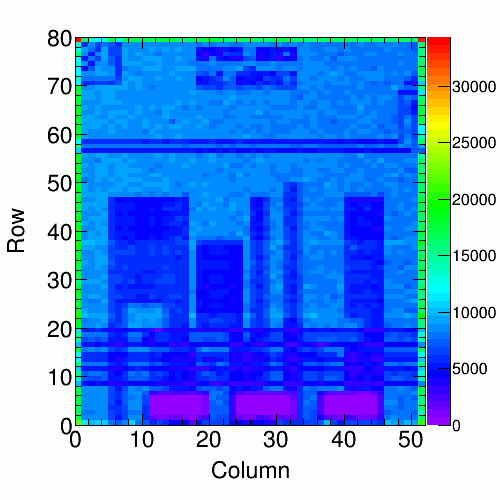

Hit Map 50: C10
Plot
RealHitrate Real Hitrate 65.74 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C10
Col. Read. Unif. 150: C10
Plot
N N 26361257
mu μ 580605
sigma σ 154217.42
Col. Read. Unif. 50: C10
Plot
N N 9255810
mu μ 204452
sigma σ 56934.94
Read. Unif. over Time 150: C10
Plot
N N 30191470
mu μ 30620
sigma_th σ_th 174.99
Time unif. distribution 150: C10
Plot
chi2/ndf chi2/ndf 18.84
sigma σ 211.37
sigma_th σ_th 175.01
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C10
Plot
N N 10631517
mu μ 10782
sigma_th σ_th 103.84
Time unif. distribution 50: C10
Plot
chi2/ndf chi2/ndf 4.56
sigma σ 114.76
sigma_th σ_th 103.84
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C10
Col. Uniformity per Event: C10 150
Plot
mu μ 25.59
sigma fit error of μ 2.24
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C10 50
Plot
mu μ 25.71
sigma fit error of μ 2.24
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C10 100
Plot
N N 4133
mu μ 415.94
sigma RMS 83.56
threshold thr 3473.01
fit fit Gaussian
fit_peak μ fit 403.77
fit_sigma σ fit 60.05
MeasuredHitrate Measured hitrate: 132.5
under <= 6.00
over >= 21.00
Alive Map: C10
DC Efficiency Distribution: C10
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.86
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.13
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C10
