Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 22:29
Chip 7
Grading
ROCGrade Final ROC Grade B
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.85/99.1
EfficiencyFit Efficiency Fit chi2/ndf: 0.80, # points: 53
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C7
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.80
NumberFitPoints # fit points 53
p0 p0 99.90
p1 p1 4.63e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.85
InterpolatedEfficiency120 Interpol. Efficiency 120 99.10

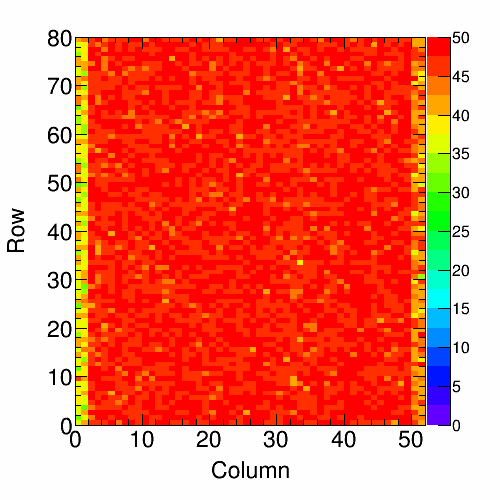

Efficiency Map 50: C7

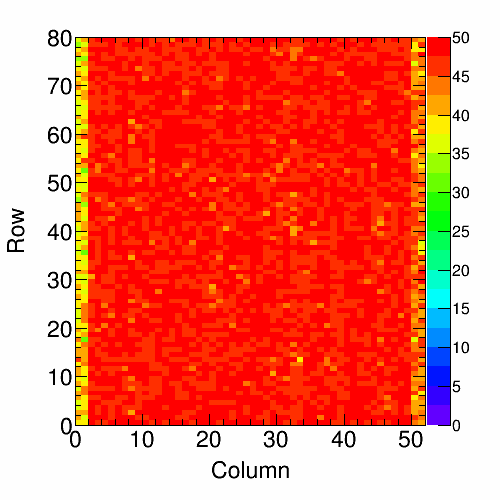

Efficiency Map 100: C7
Efficiency Map 150: C7
Efficiency Map 200: C7
Efficiency Map 250: C7
Efficiency Distr. 50: C7
Plot
N N 4160
mu μ 99.83
sigma σ 0.58
Efficiency Distr. 100: C7
Plot
N N 4160
mu μ 99.16
sigma σ 1.41
Efficiency Distr. 150: C7
Plot
N N 4160
mu μ 97.75
sigma σ 2.59
Efficiency Distr. 200: C7
Plot
N N 4160
mu μ 94.31
sigma σ 4.95
Efficiency Distr. 250: C7
Plot
N N 4160
mu μ 93.63
sigma σ 5.30

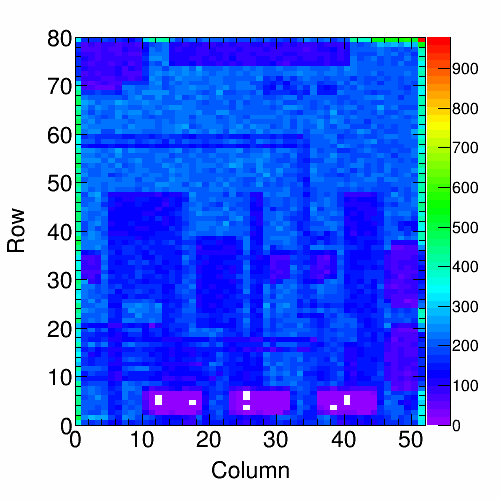

Background Map 50: C7
Plot
RealHitrate Real Hitrate 52.84 MHz/cm2
Background Map 100: C7
Plot
RealHitrate Real Hitrate 107.79 MHz/cm2
Background Map 150: C7
Plot
RealHitrate Real Hitrate 155.37 MHz/cm2
Background Map 200: C7
Plot
RealHitrate Real Hitrate 210.70 MHz/cm2
Background Map 250: C7
Plot
RealHitrate Real Hitrate 218.50 MHz/cm2
Retrim Hot Pix 150: C7
Masked Hot Pixels 150: C7
Masked Hot Pixels 50: C7

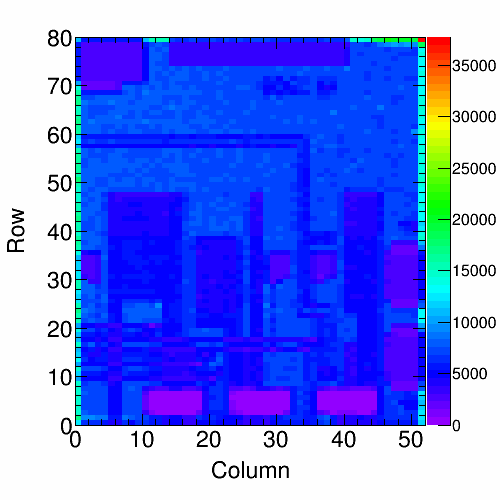

Hit Map 150: C7
Plot
RealHitrate Real Hitrate 152.95 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C7

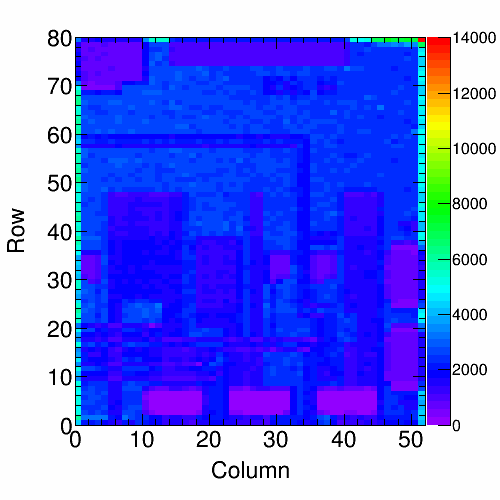

Hit Map 50: C7
Plot
RealHitrate Real Hitrate 51.70 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C7
Col. Read. Unif. 150: C7
Plot
N N 21838913
mu μ 475561
sigma σ 107182.25
Col. Read. Unif. 50: C7
Plot
N N 7367419
mu μ 160781
sigma σ 38073.08
Read. Unif. over Time 150: C7
Plot
N N 24729163
mu μ 25080
sigma_th σ_th 158.37
Time unif. distribution 150: C7
Plot
chi2/ndf chi2/ndf 4.64
sigma σ 174.08
sigma_th σ_th 158.39
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C7
Plot
N N 8360596
mu μ 8479
sigma_th σ_th 92.08
Time unif. distribution 50: C7
Plot
chi2/ndf chi2/ndf 1.35
sigma σ 96.42
sigma_th σ_th 92.09
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C7
Col. Uniformity per Event: C7 150
Plot
mu μ 25.55
sigma fit error of μ 2.19
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C7 50
Plot
mu μ 25.64
sigma fit error of μ 2.20
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C7 100
Plot
N N 4160
mu μ 274.86
sigma RMS 46.18
threshold thr 2856.74
fit fit Gaussian
fit_peak μ fit 272.42
fit_sigma σ fit 41.31
MeasuredHitrate Measured hitrate: 109.0
Alive Map: C7
DC Efficiency Distribution: C7
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.86
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.07
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C7
