Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 22:29
Chip 14
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.84/99.02
EfficiencyFit Efficiency Fit chi2/ndf: 1.19, # points: 91
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C14
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 1.19
NumberFitPoints # fit points 91
p0 p0 99.90
p1 p1 5.11e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.84
InterpolatedEfficiency120 Interpol. Efficiency 120 99.02
Efficiency Map 50: C14
Efficiency Map 100: C14
Efficiency Map 150: C14
Efficiency Map 200: C14
Efficiency Map 250: C14
Efficiency Distr. 50: C14
Plot
N N 4160
mu μ 99.92
sigma σ 0.39
Efficiency Distr. 100: C14
Plot
N N 4160
mu μ 99.74
sigma σ 0.73
Efficiency Distr. 150: C14
Plot
N N 4160
mu μ 99.41
sigma σ 1.12
Efficiency Distr. 200: C14
Plot
N N 4160
mu μ 98.56
sigma σ 1.91
Efficiency Distr. 250: C14
Plot
N N 4160
mu μ 98.44
sigma σ 1.99

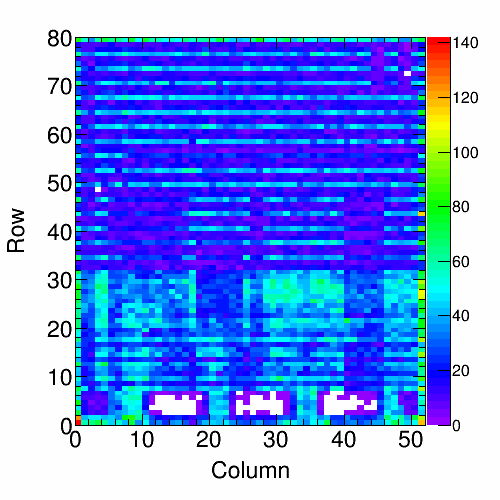

Background Map 50: C14
Plot
RealHitrate Real Hitrate 31.43 MHz/cm2

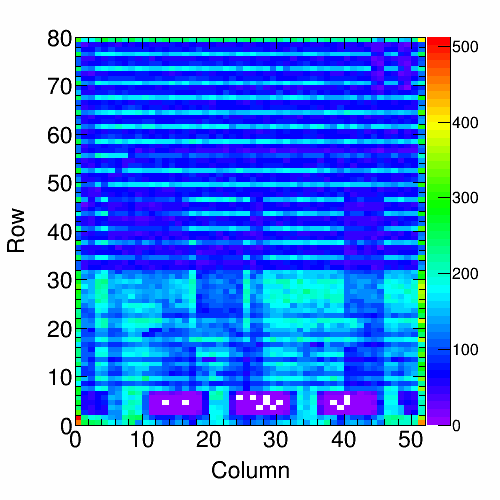

Background Map 100: C14
Plot
RealHitrate Real Hitrate 64.06 MHz/cm2
Background Map 150: C14
Plot
RealHitrate Real Hitrate 93.77 MHz/cm2

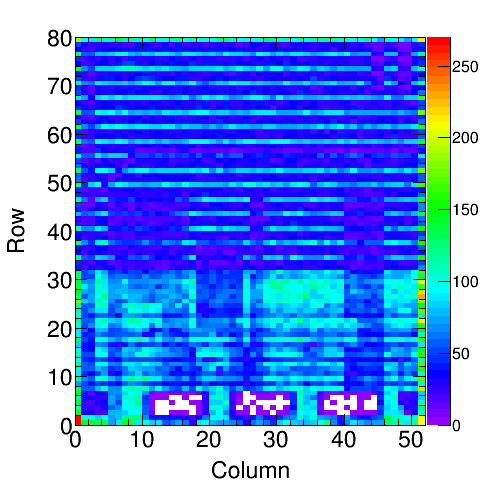

Background Map 200: C14
Plot
RealHitrate Real Hitrate 128.22 MHz/cm2
Background Map 250: C14
Plot
RealHitrate Real Hitrate 132.70 MHz/cm2
Retrim Hot Pix 150: C14
Masked Hot Pixels 150: C14
Masked Hot Pixels 50: C14

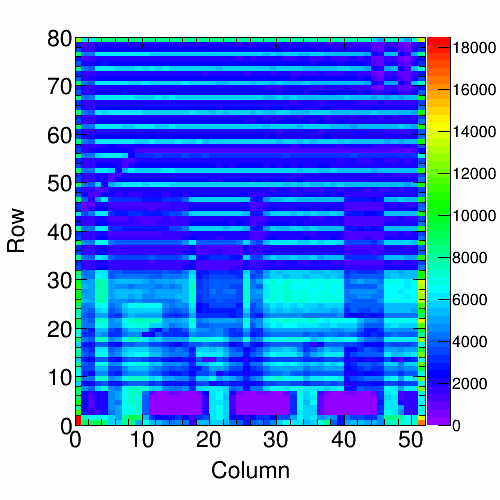

Hit Map 150: C14
Plot
RealHitrate Real Hitrate 94.60 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C14

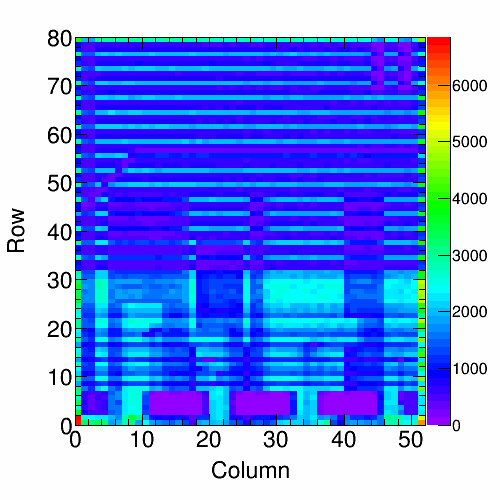

Hit Map 50: C14
Plot
RealHitrate Real Hitrate 31.41 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C14
Col. Read. Unif. 150: C14
Plot
N N 13601593
mu μ 294134
sigma σ 66586.86
Col. Read. Unif. 50: C14
Plot
N N 4514932
mu μ 97674
sigma σ 23283.23
Read. Unif. over Time 150: C14
Plot
N N 15294977
mu μ 15512
sigma_th σ_th 124.55
Time unif. distribution 150: C14
Plot
chi2/ndf chi2/ndf 0.83
sigma σ 128.90
sigma_th σ_th 124.57
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C14
Plot
N N 5079025
mu μ 5151
sigma_th σ_th 71.77
Time unif. distribution 50: C14
Plot
chi2/ndf chi2/ndf 1.22
sigma σ 74.20
sigma_th σ_th 71.77
expectation Red curve (expected) Poisson

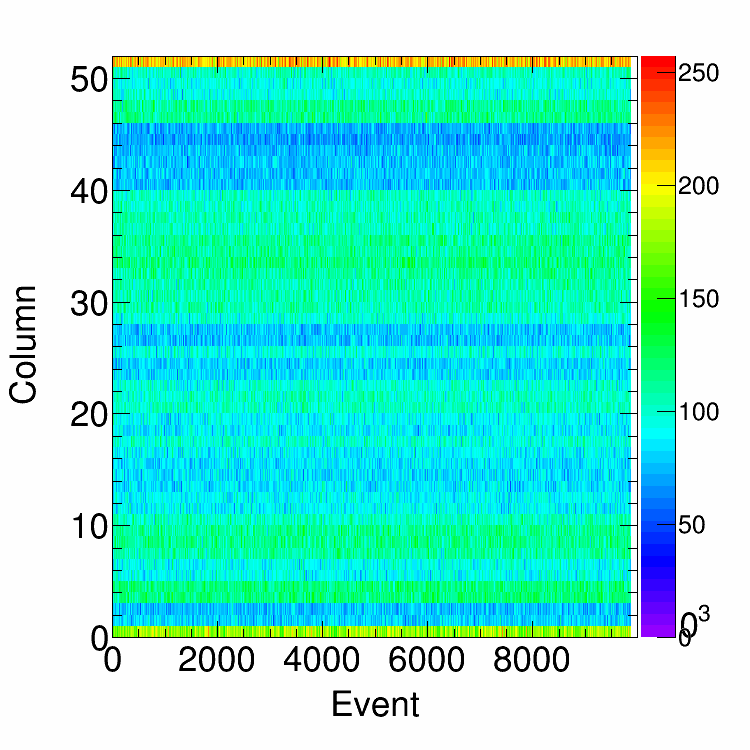

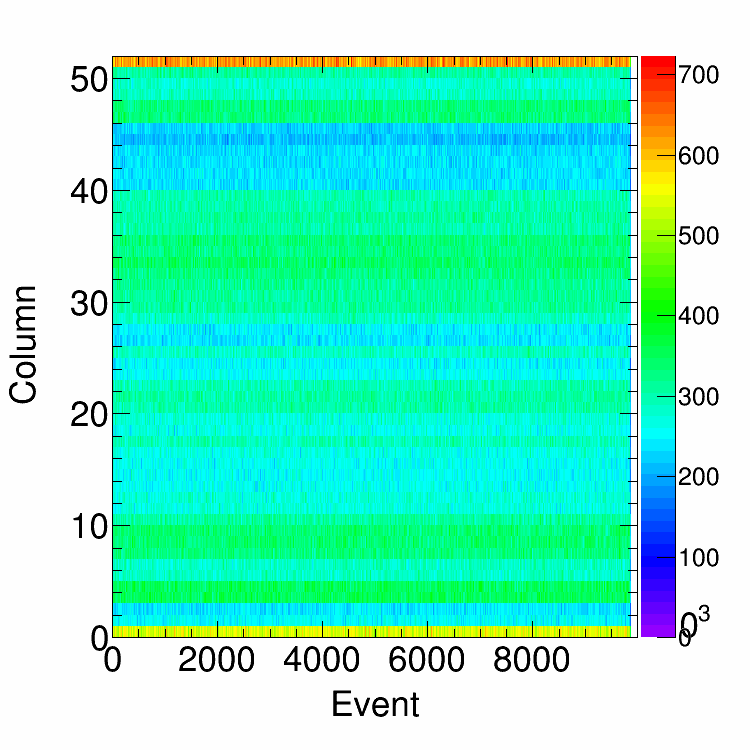

Col. Uniformity Ratio: C14
Col. Uniformity per Event: C14 150
Plot
mu μ 26.00
sigma fit error of μ 2.16
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C14 50
Plot
mu μ 26.27
sigma fit error of μ 2.17
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C14 100
Plot
N N 4160
mu μ 253.28
sigma RMS 44.57
threshold thr 2581.72
fit fit Gaussian
fit_peak μ fit 253.18
fit_sigma σ fit 41.03
MeasuredHitrate Measured hitrate: 65.5
Alive Map: C14
DC Efficiency Distribution: C14
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.86
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.02
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C14
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
