Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 22:29
Chip 1
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 2/2
Efficiency Efficiency 50/120 99.85/99.04
EfficiencyFit Efficiency Fit chi2/ndf: 0.78, # points: 96
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C1
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.78
NumberFitPoints # fit points 96
p0 p0 99.92
p1 p1 5.08e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.85
InterpolatedEfficiency120 Interpol. Efficiency 120 99.04
Efficiency Map 50: C1
Efficiency Map 100: C1
Efficiency Map 150: C1
Efficiency Map 200: C1
Efficiency Map 250: C1
Efficiency Distr. 50: C1
Plot
N N 4160
mu μ 99.95
sigma σ 0.33
Efficiency Distr. 100: C1
Plot
N N 4160
mu μ 99.78
sigma σ 0.67
Efficiency Distr. 150: C1
Plot
N N 4160
mu μ 99.53
sigma σ 1.02
Efficiency Distr. 200: C1
Plot
N N 4160
mu μ 98.94
sigma σ 1.61
Efficiency Distr. 250: C1
Plot
N N 4160
mu μ 98.81
sigma σ 1.70

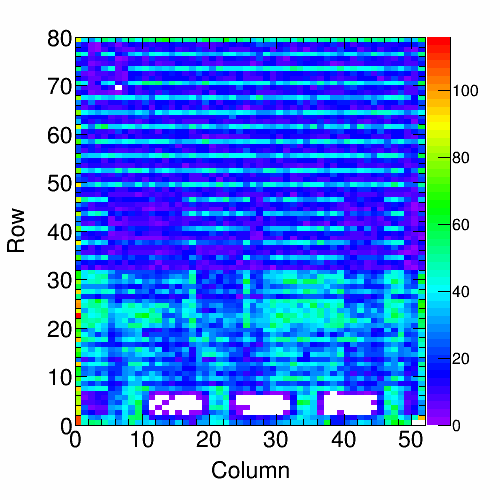

Background Map 50: C1
Plot
RealHitrate Real Hitrate 28.47 MHz/cm2
Background Map 100: C1
Plot
RealHitrate Real Hitrate 58.28 MHz/cm2

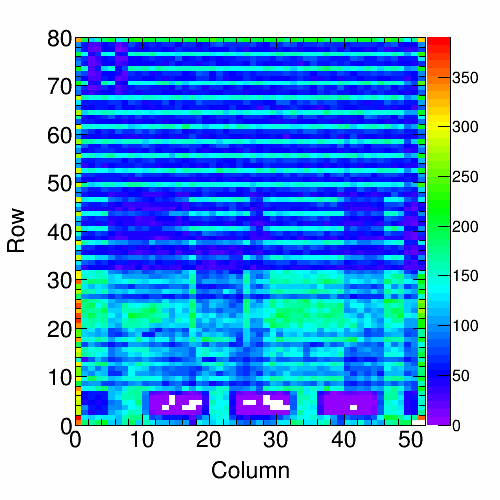

Background Map 150: C1
Plot
RealHitrate Real Hitrate 85.54 MHz/cm2

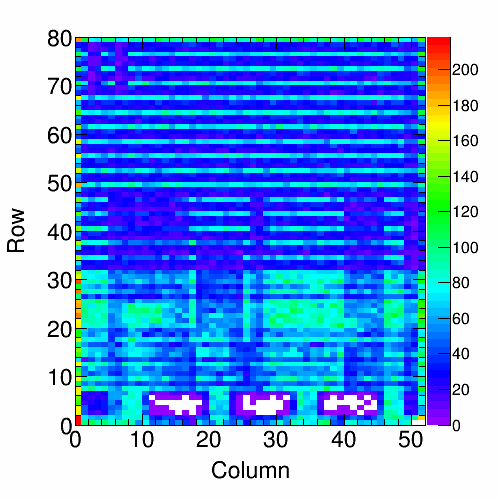

Background Map 200: C1
Plot
RealHitrate Real Hitrate 116.25 MHz/cm2

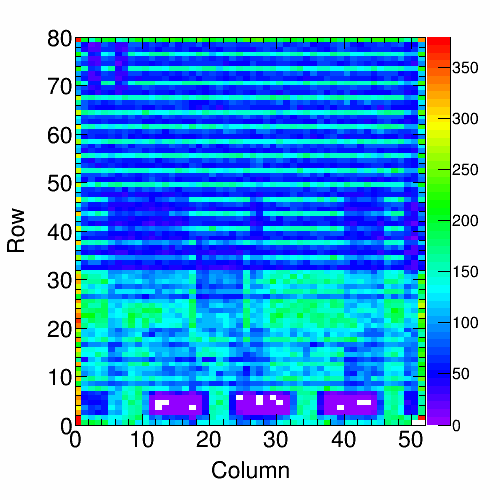

Background Map 250: C1
Plot
RealHitrate Real Hitrate 121.09 MHz/cm2
Retrim Hot Pix 150: C1
Masked Hot Pixels 150: C1
Masked Hot Pixels 50: C1

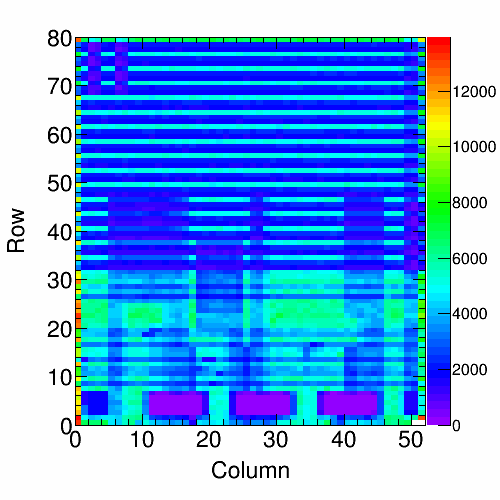

Hit Map 150: C1
Plot
RealHitrate Real Hitrate 85.22 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 2
BB Defects 150: C1

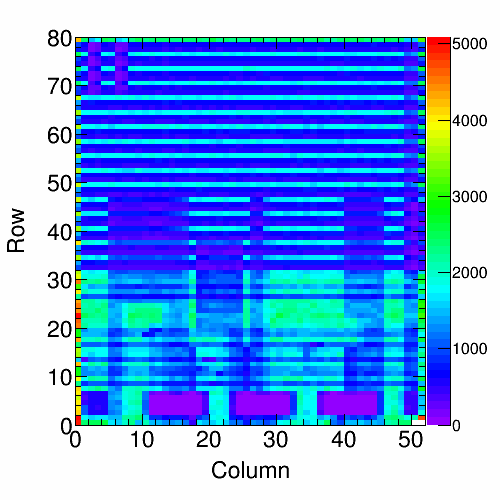

Hit Map 50: C1
Plot
RealHitrate Real Hitrate 28.34 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 2
BB Defects 50: C1
Col. Read. Unif. 150: C1
Plot
N N 12295256
mu μ 264965
sigma σ 61038.71
Col. Read. Unif. 50: C1
Plot
N N 4090416
mu μ 88147
sigma σ 21712.89
Read. Unif. over Time 150: C1
Plot
N N 13778179
mu μ 13974
sigma_th σ_th 118.21
Time unif. distribution 150: C1
Plot
chi2/ndf chi2/ndf 3.08
sigma σ 127.27
sigma_th σ_th 118.23
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C1
Plot
N N 4583641
mu μ 4649
sigma_th σ_th 68.18
Time unif. distribution 50: C1
Plot
chi2/ndf chi2/ndf 1.98
sigma σ 67.71
sigma_th σ_th 68.18
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C1

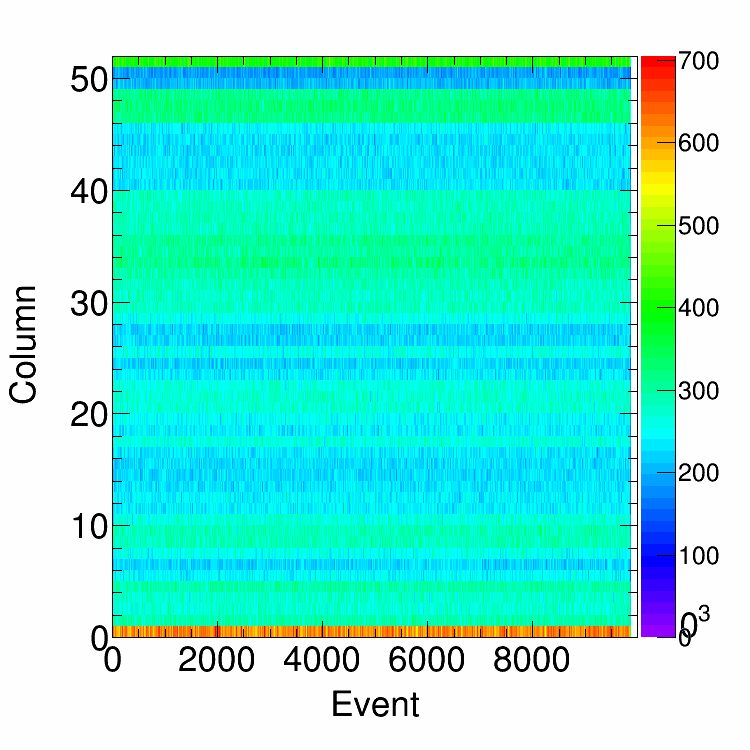

Col. Uniformity per Event: C1 150
Plot
mu μ 25.56
sigma fit error of μ 2.17
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

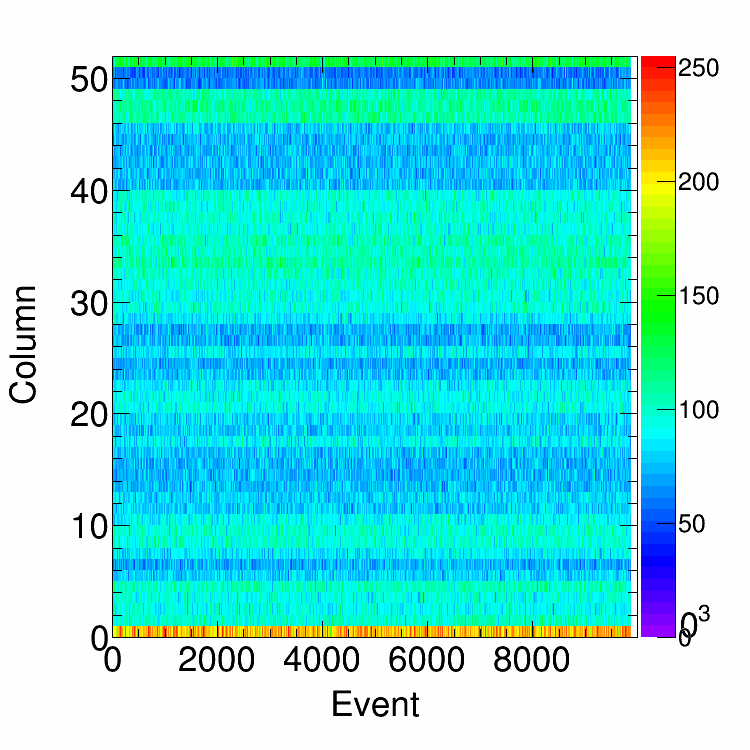

Col. Uniformity per Event: C1 50
Plot
mu μ 25.66
sigma fit error of μ 2.18
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C1 100
Plot
N N 4160
mu μ 160.96
sigma RMS 23.54
threshold thr 2358.58
fit fit Gaussian
fit_peak μ fit 160.51
fit_sigma σ fit 22.59
MeasuredHitrate Measured hitrate: 59.9
Alive Map: C1
DC Efficiency Distribution: C1
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.04
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C1
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
