Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 22:29
Chip 6
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 2/2
Efficiency Efficiency 50/120 99.86/99.03
EfficiencyFit Efficiency Fit chi2/ndf: 0.68, # points: 52
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C6
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.68
NumberFitPoints # fit points 52
p0 p0 99.92
p1 p1 5.17e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.03

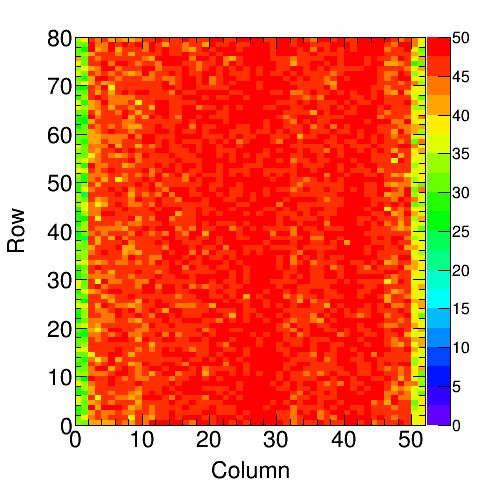

Efficiency Map 50: C6
Efficiency Map 100: C6
Efficiency Map 150: C6
Efficiency Map 200: C6
Efficiency Map 250: C6
Efficiency Distr. 50: C6
Plot
N N 4160
mu μ 99.78
sigma σ 0.68
Efficiency Distr. 100: C6
Plot
N N 4160
mu μ 98.79
sigma σ 1.90
Efficiency Distr. 150: C6
Plot
N N 4160
mu μ 96.70
sigma σ 4.01
Efficiency Distr. 200: C6
Plot
N N 4160
mu μ 92.33
sigma σ 7.60
Efficiency Distr. 250: C6
Plot
N N 4160
mu μ 91.64
sigma σ 8.07

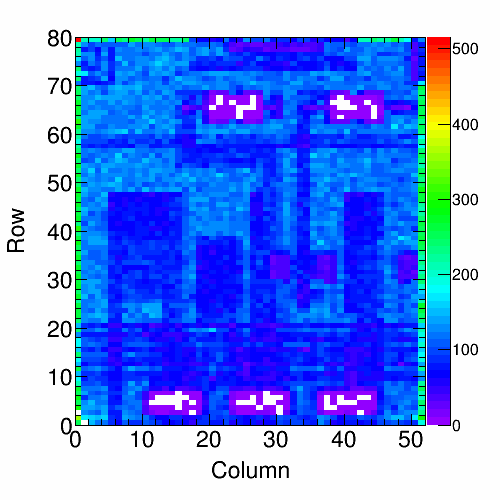

Background Map 50: C6
Plot
RealHitrate Real Hitrate 58.71 MHz/cm2
Background Map 100: C6
Plot
RealHitrate Real Hitrate 116.83 MHz/cm2

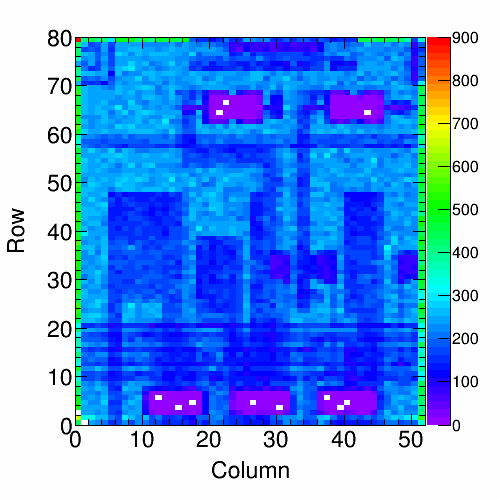

Background Map 150: C6
Plot
RealHitrate Real Hitrate 168.54 MHz/cm2

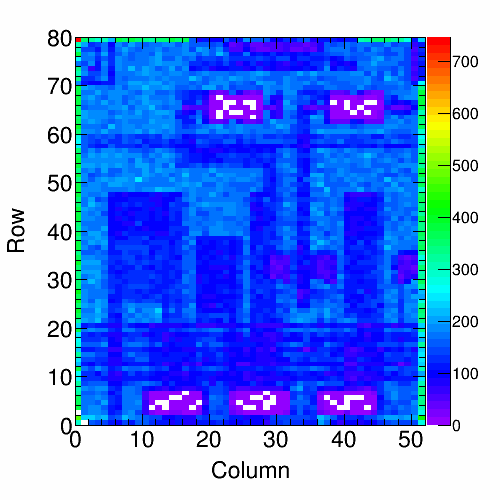

Background Map 200: C6
Plot
RealHitrate Real Hitrate 226.83 MHz/cm2
Background Map 250: C6
Plot
RealHitrate Real Hitrate 234.31 MHz/cm2
Retrim Hot Pix 150: C6
Masked Hot Pixels 150: C6
Masked Hot Pixels 50: C6

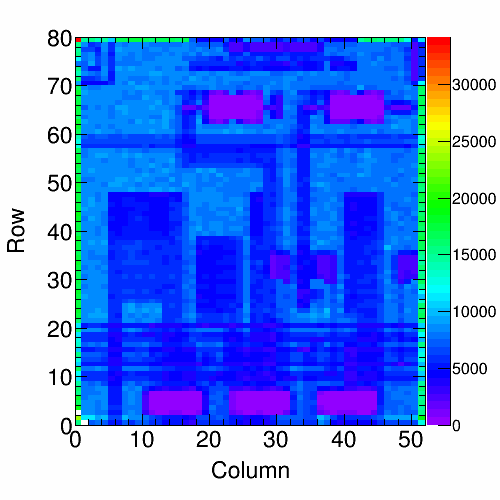

Hit Map 150: C6
Plot
RealHitrate Real Hitrate 166.03 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 2
BB Defects 150: C6

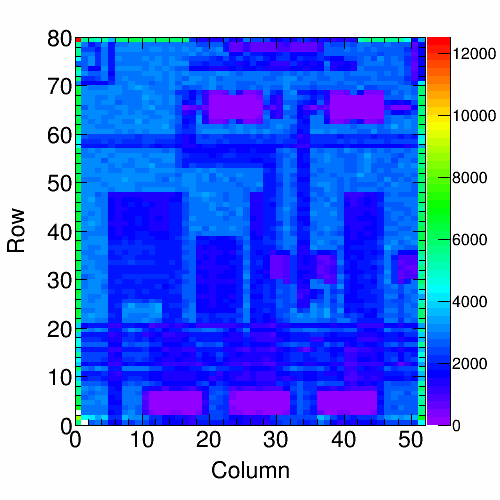

Hit Map 50: C6
Plot
RealHitrate Real Hitrate 57.46 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 2
BB Defects 50: C6

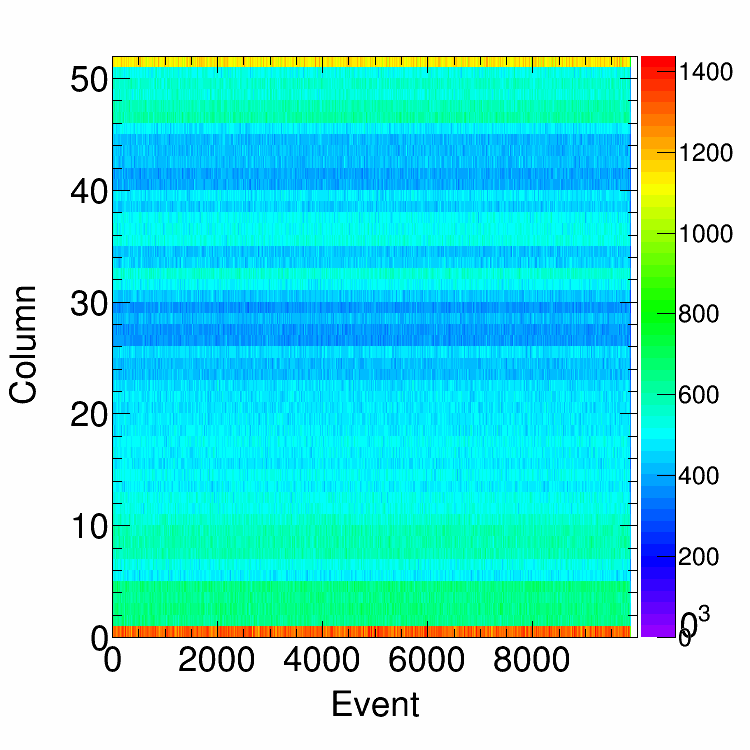

Col. Read. Unif. 150: C6
Plot
N N 23292429
mu μ 516218
sigma σ 156228.58

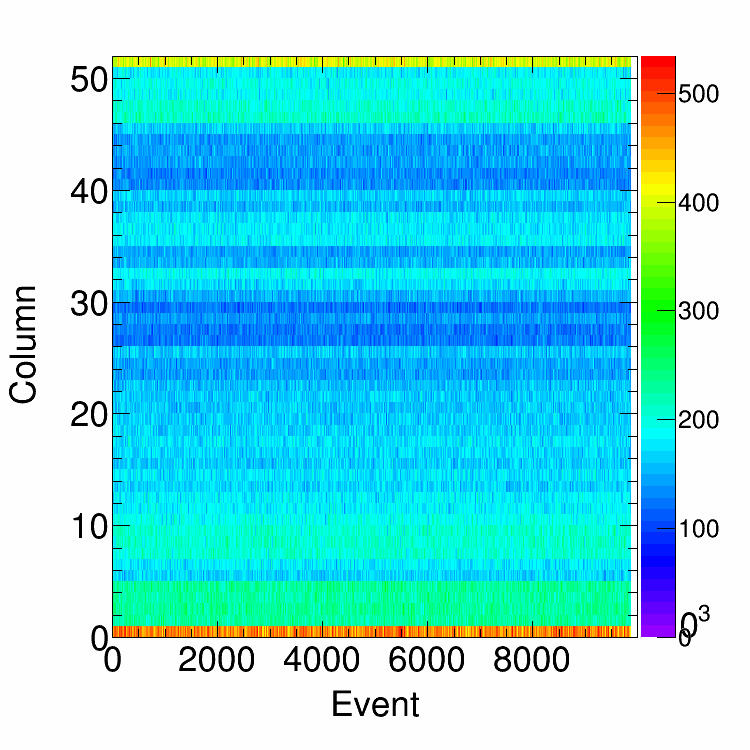

Col. Read. Unif. 50: C6
Plot
N N 8031088
mu μ 178695
sigma σ 57474.17
Read. Unif. over Time 150: C6
Plot
N N 26843337
mu μ 27224
sigma_th σ_th 165.00
Time unif. distribution 150: C6
Plot
chi2/ndf chi2/ndf 4.76
sigma σ 179.23
sigma_th σ_th 165.02
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C6
Plot
N N 9292120
mu μ 9424
sigma_th σ_th 97.08
Time unif. distribution 50: C6
Plot
chi2/ndf chi2/ndf 1.68
sigma σ 103.43
sigma_th σ_th 97.08
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C6
Col. Uniformity per Event: C6 150
Plot
mu μ 25.31
sigma fit error of μ 2.28
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C6 50
Plot
mu μ 24.72
sigma fit error of μ 2.28
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C6 100
Plot
N N 4160
mu μ 183.65
sigma RMS 31.95
threshold thr 2409.15
fit fit Gaussian
fit_peak μ fit 183.10
fit_sigma σ fit 29.12
MeasuredHitrate Measured hitrate: 118.1
Alive Map: C6
DC Efficiency Distribution: C6
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.86
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.02
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C6
