Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 22:29
Chip 11
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 4/4
Efficiency Efficiency 50/120 99.86/99.08
EfficiencyFit Efficiency Fit chi2/ndf: 0.87, # points: 48
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C11
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.87
NumberFitPoints # fit points 48
p0 p0 99.92
p1 p1 4.83e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.08

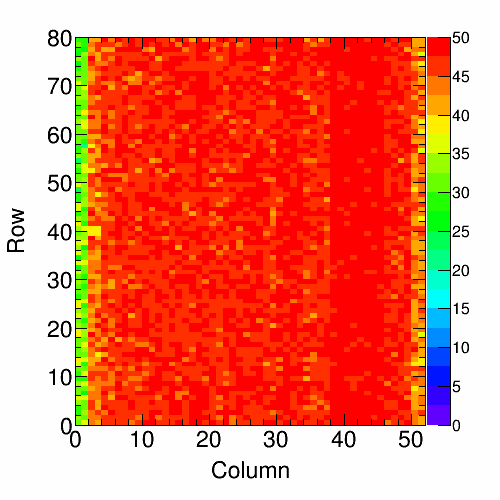

Efficiency Map 50: C11
Efficiency Map 100: C11
Efficiency Map 150: C11
Efficiency Map 200: C11
Efficiency Map 250: C11
Efficiency Distr. 50: C11
Plot
N N 4160
mu μ 99.80
sigma σ 0.64
Efficiency Distr. 100: C11
Plot
N N 4160
mu μ 98.94
sigma σ 1.78
Efficiency Distr. 150: C11
Plot
N N 4160
mu μ 96.97
sigma σ 3.96
Efficiency Distr. 200: C11
Plot
N N 4160
mu μ 92.93
sigma σ 7.36
Efficiency Distr. 250: C11
Plot
N N 4160
mu μ 92.53
sigma σ 7.44

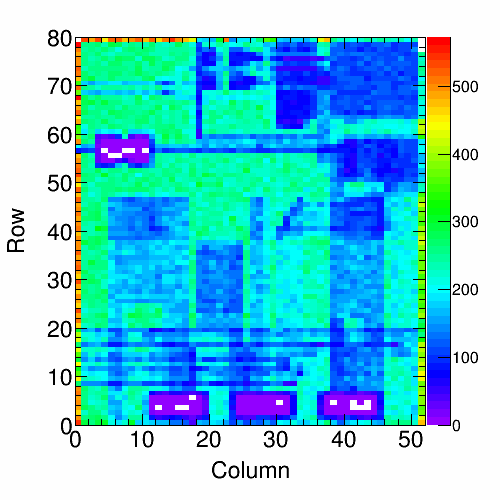

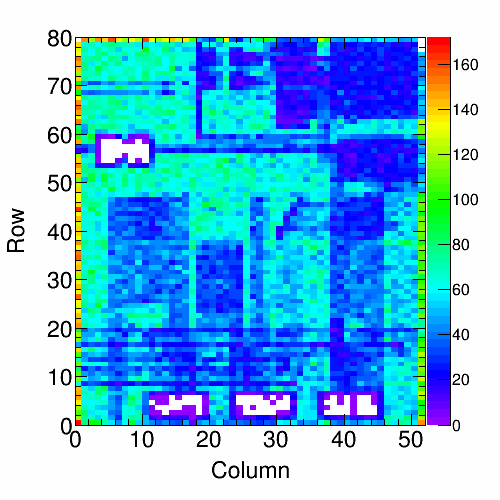

Background Map 50: C11
Plot
RealHitrate Real Hitrate 56.86 MHz/cm2

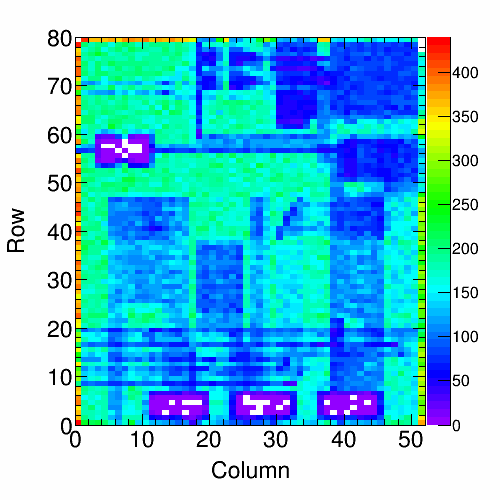

Background Map 100: C11
Plot
RealHitrate Real Hitrate 113.80 MHz/cm2

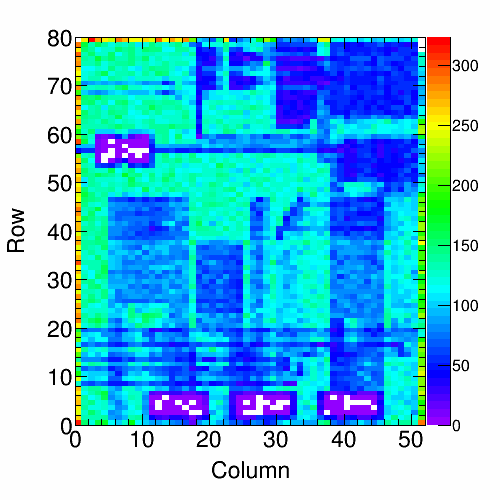

Background Map 150: C11
Plot
RealHitrate Real Hitrate 163.35 MHz/cm2

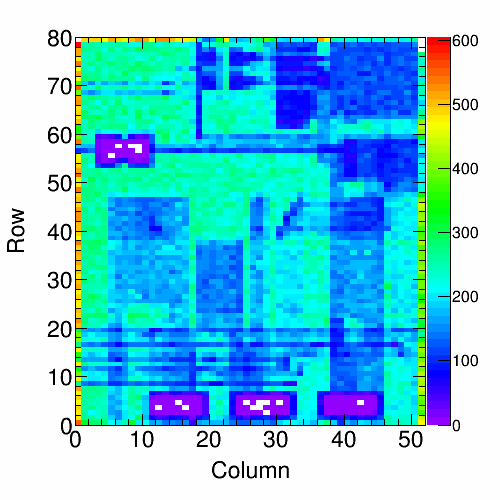

Background Map 200: C11
Plot
RealHitrate Real Hitrate 220.42 MHz/cm2
Background Map 250: C11
Plot
RealHitrate Real Hitrate 226.22 MHz/cm2
Retrim Hot Pix 150: C11
Masked Hot Pixels 150: C11
Masked Hot Pixels 50: C11

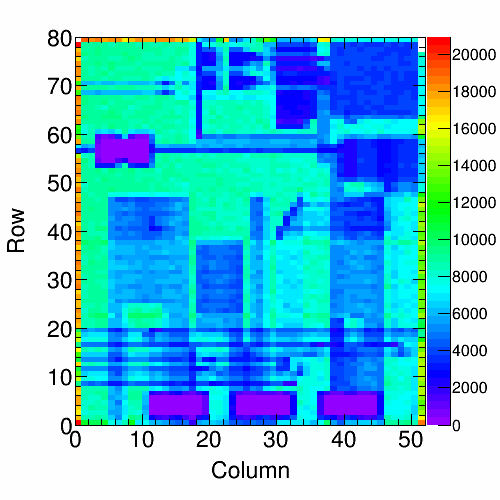

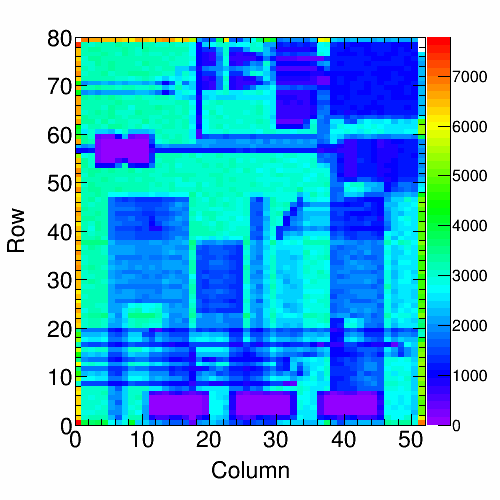

Hit Map 150: C11
Plot
RealHitrate Real Hitrate 162.58 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 4
BB Defects 150: C11
Hit Map 50: C11
Plot
RealHitrate Real Hitrate 56.08 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 4
BB Defects 50: C11
Col. Read. Unif. 150: C11
Plot
N N 22941543
mu μ 505488
sigma σ 148935.15
Col. Read. Unif. 50: C11
Plot
N N 7893232
mu μ 174405
sigma σ 55125.65
Read. Unif. over Time 150: C11
Plot
N N 26285399
mu μ 26659
sigma_th σ_th 163.27
Time unif. distribution 150: C11
Plot
chi2/ndf chi2/ndf 3.79
sigma σ 174.41
sigma_th σ_th 163.30
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C11
Plot
N N 9069066
mu μ 9198
sigma_th σ_th 95.91
Time unif. distribution 50: C11
Plot
chi2/ndf chi2/ndf 0.74
sigma σ 96.63
sigma_th σ_th 95.91
expectation Red curve (expected) Poisson

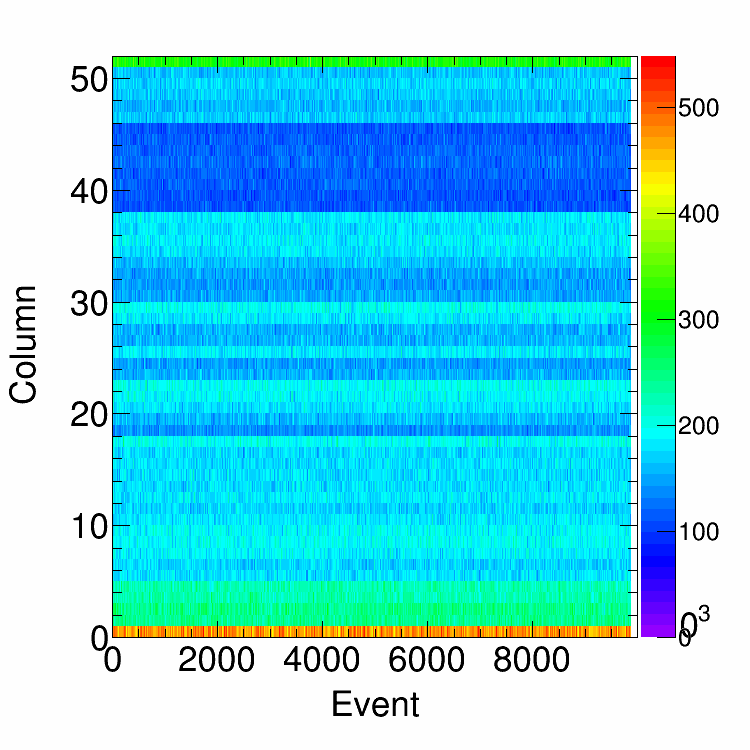

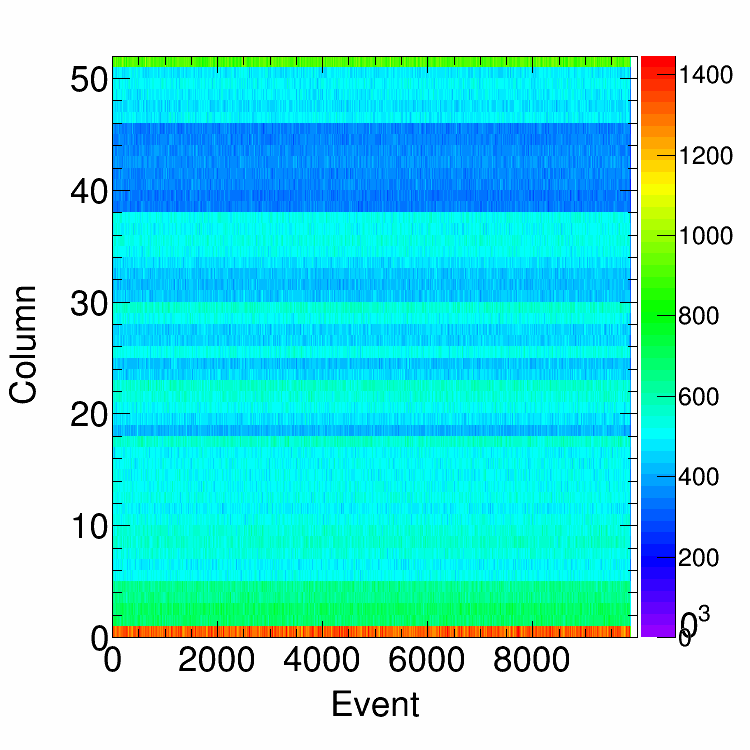

Col. Uniformity Ratio: C11
Col. Uniformity per Event: C11 150
Plot
mu μ 24.17
sigma fit error of μ 2.22
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C11 50
Plot
mu μ 23.87
sigma fit error of μ 2.24
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C11 100
Plot
N N 4160
mu μ 226.37
sigma RMS 40.63
threshold thr 2517.11
fit fit Gaussian
fit_peak μ fit 224.95
fit_sigma σ fit 36.38
MeasuredHitrate Measured hitrate: 114.3
Alive Map: C11
DC Efficiency Distribution: C11
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.86
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.09
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C11
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
