Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 22:29
Chip 4
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/1
Efficiency Efficiency 50/120 99.86/99.08
EfficiencyFit Efficiency Fit chi2/ndf: 1.04, # points: 61
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C4
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 1.04
NumberFitPoints # fit points 61
p0 p0 99.92
p1 p1 4.82e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.08

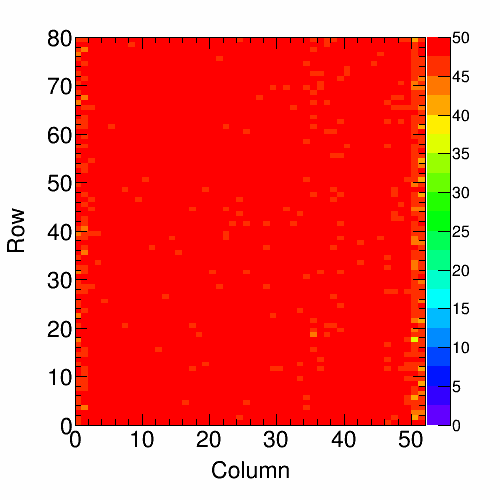

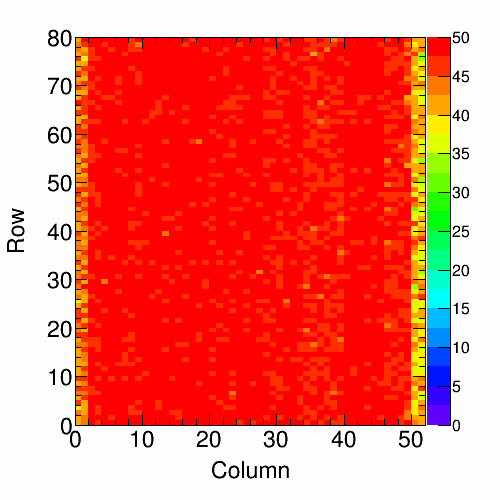

Efficiency Map 50: C4
Efficiency Map 100: C4
Efficiency Map 150: C4
Efficiency Map 200: C4
Efficiency Map 250: C4
Efficiency Distr. 50: C4
Plot
N N 4160
mu μ 99.86
sigma σ 0.55
Efficiency Distr. 100: C4
Plot
N N 4160
mu μ 99.42
sigma σ 1.16
Efficiency Distr. 150: C4
Plot
N N 4160
mu μ 98.25
sigma σ 2.47
Efficiency Distr. 200: C4
Plot
N N 4160
mu μ 95.87
sigma σ 4.84
Efficiency Distr. 250: C4
Plot
N N 4160
mu μ 95.51
sigma σ 4.97

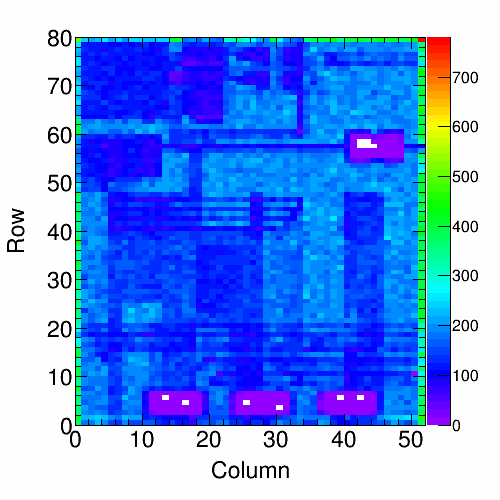

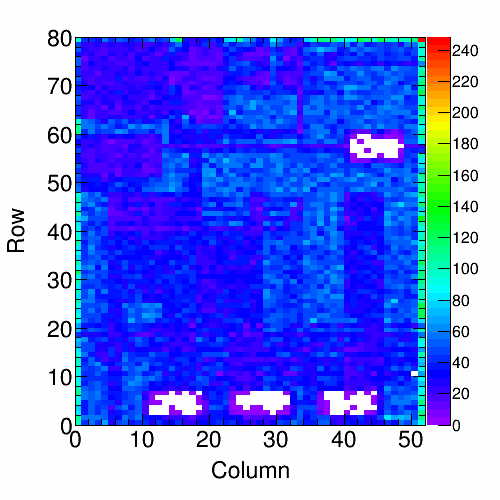

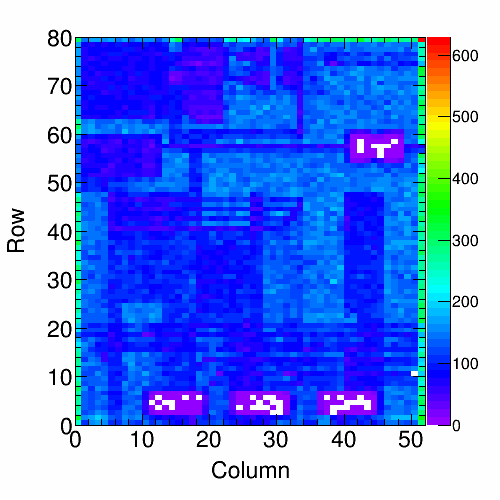

Background Map 50: C4
Plot
RealHitrate Real Hitrate 46.08 MHz/cm2

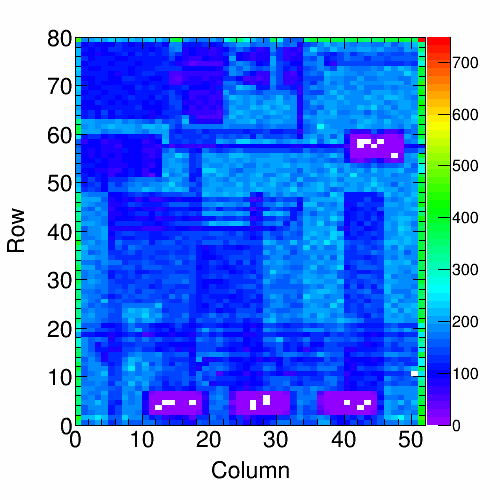

Background Map 100: C4
Plot
RealHitrate Real Hitrate 93.62 MHz/cm2
Background Map 150: C4
Plot
RealHitrate Real Hitrate 136.10 MHz/cm2
Background Map 200: C4
Plot
RealHitrate Real Hitrate 183.91 MHz/cm2
Background Map 250: C4
Plot
RealHitrate Real Hitrate 189.91 MHz/cm2
Retrim Hot Pix 150: C4
Masked Hot Pixels 150: C4
Masked Hot Pixels 50: C4

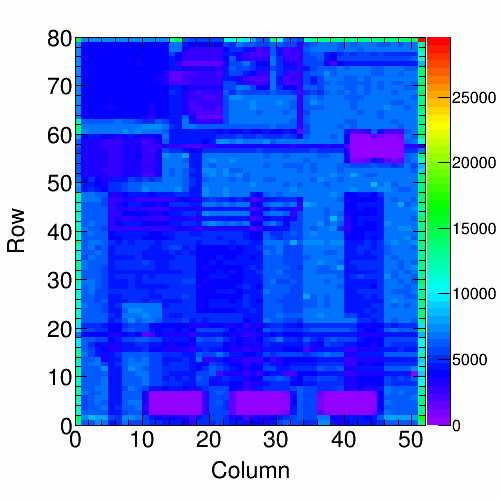

Hit Map 150: C4
Plot
RealHitrate Real Hitrate 133.62 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C4

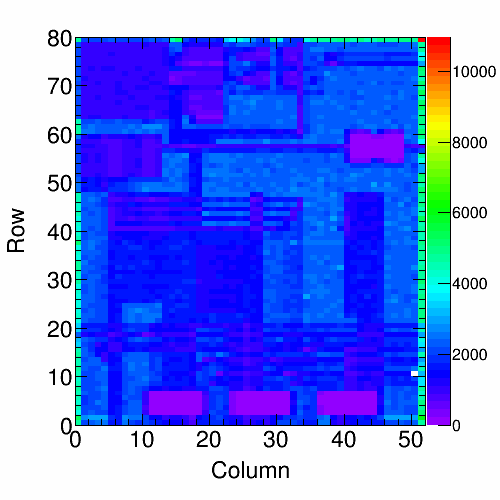

Hit Map 50: C4
Plot
RealHitrate Real Hitrate 45.15 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 1
BB Defects 50: C4
Col. Read. Unif. 150: C4
Plot
N N 18806801
mu μ 415457
sigma σ 119872.66
Col. Read. Unif. 50: C4
Plot
N N 6337607
mu μ 140410
sigma σ 43148.78
Read. Unif. over Time 150: C4
Plot
N N 21603746
mu μ 21910
sigma_th σ_th 148.02
Time unif. distribution 150: C4
Plot
chi2/ndf chi2/ndf 3.75
sigma σ 161.10
sigma_th σ_th 148.04
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C4
Plot
N N 7301309
mu μ 7405
sigma_th σ_th 86.05
Time unif. distribution 50: C4
Plot
chi2/ndf chi2/ndf 1.30
sigma σ 90.76
sigma_th σ_th 86.05
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C4

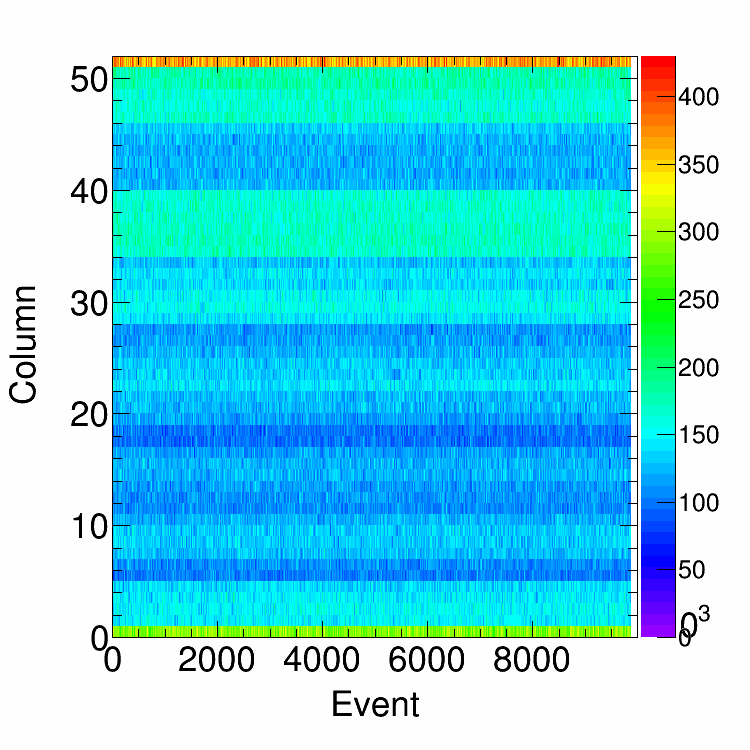

Col. Uniformity per Event: C4 150
Plot
mu μ 27.17
sigma fit error of μ 2.23
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

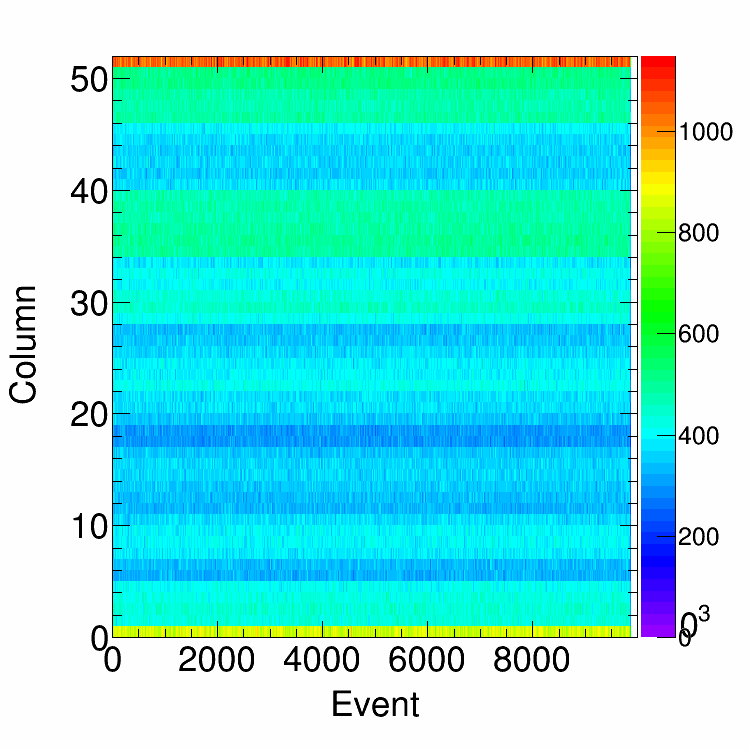

Col. Uniformity per Event: C4 50
Plot
mu μ 27.25
sigma fit error of μ 2.23
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C4 100
Plot
N N 4160
mu μ 262.46
sigma RMS 43.89
threshold thr 2780.80
fit fit Gaussian
fit_peak μ fit 260.54
fit_sigma σ fit 40.03
MeasuredHitrate Measured hitrate: 94.8
Alive Map: C4
DC Efficiency Distribution: C4
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.07
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C4
