Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 22:29
Chip 3
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 3/3
Efficiency Efficiency 50/120 99.84/99.06
EfficiencyFit Efficiency Fit chi2/ndf: 0.62, # points: 57
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C3
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.62
NumberFitPoints # fit points 57
p0 p0 99.90
p1 p1 4.86e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.84
InterpolatedEfficiency120 Interpol. Efficiency 120 99.06
Efficiency Map 50: C3
Efficiency Map 100: C3
Efficiency Map 150: C3
Efficiency Map 200: C3
Efficiency Map 250: C3
Efficiency Distr. 50: C3
Plot
N N 4160
mu μ 99.84
sigma σ 0.60
Efficiency Distr. 100: C3
Plot
N N 4160
mu μ 99.22
sigma σ 1.38
Efficiency Distr. 150: C3
Plot
N N 4160
mu μ 97.92
sigma σ 2.74
Efficiency Distr. 200: C3
Plot
N N 4160
mu μ 95.10
sigma σ 5.09
Efficiency Distr. 250: C3
Plot
N N 4160
mu μ 94.81
sigma σ 5.40

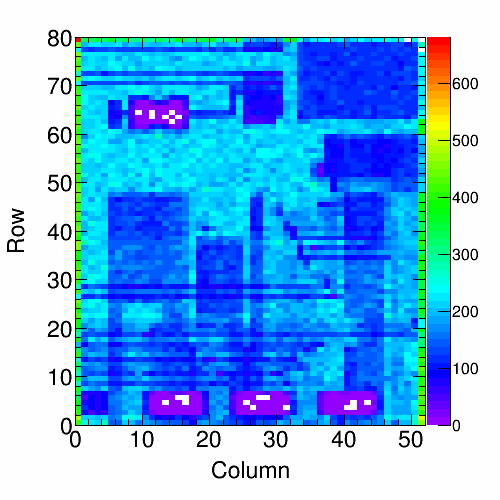

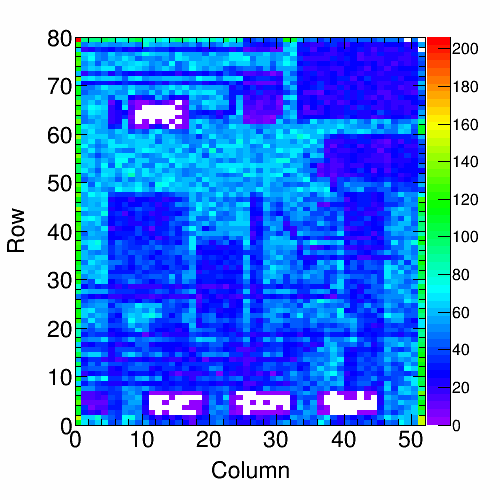

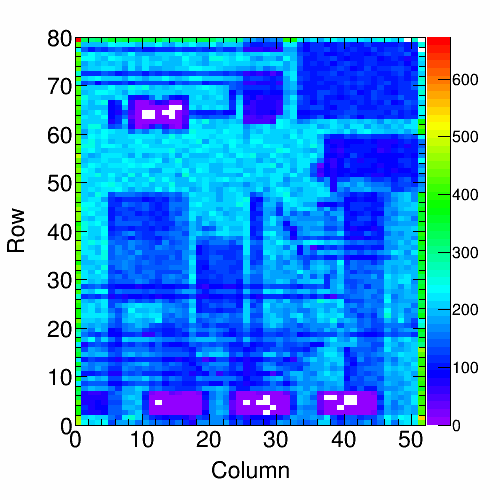

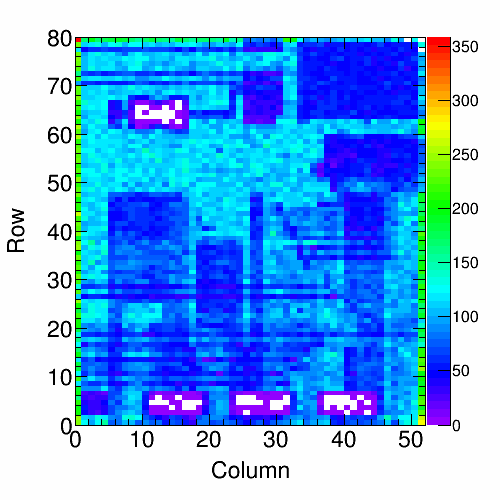

Background Map 50: C3
Plot
RealHitrate Real Hitrate 51.13 MHz/cm2
Background Map 100: C3
Plot
RealHitrate Real Hitrate 101.34 MHz/cm2
Background Map 150: C3
Plot
RealHitrate Real Hitrate 145.53 MHz/cm2
Background Map 200: C3
Plot
RealHitrate Real Hitrate 196.12 MHz/cm2
Background Map 250: C3
Plot
RealHitrate Real Hitrate 201.06 MHz/cm2
Retrim Hot Pix 150: C3
Masked Hot Pixels 150: C3
Masked Hot Pixels 50: C3

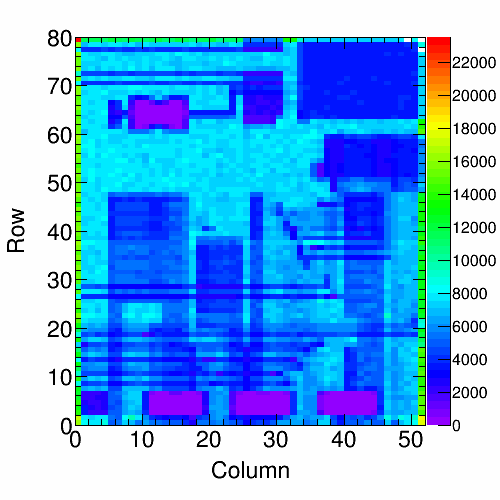

Hit Map 150: C3
Plot
RealHitrate Real Hitrate 145.19 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 3
BB Defects 150: C3

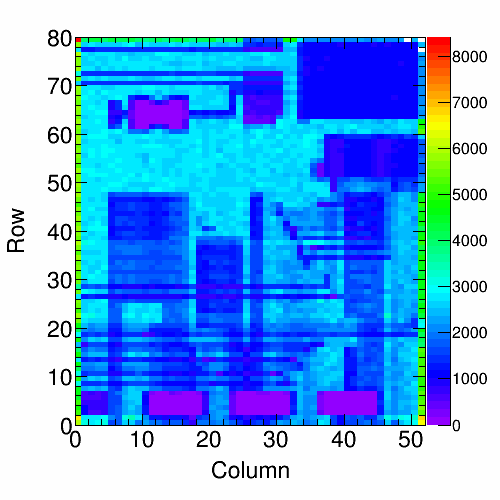

Hit Map 50: C3
Plot
RealHitrate Real Hitrate 50.44 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 3
BB Defects 50: C3

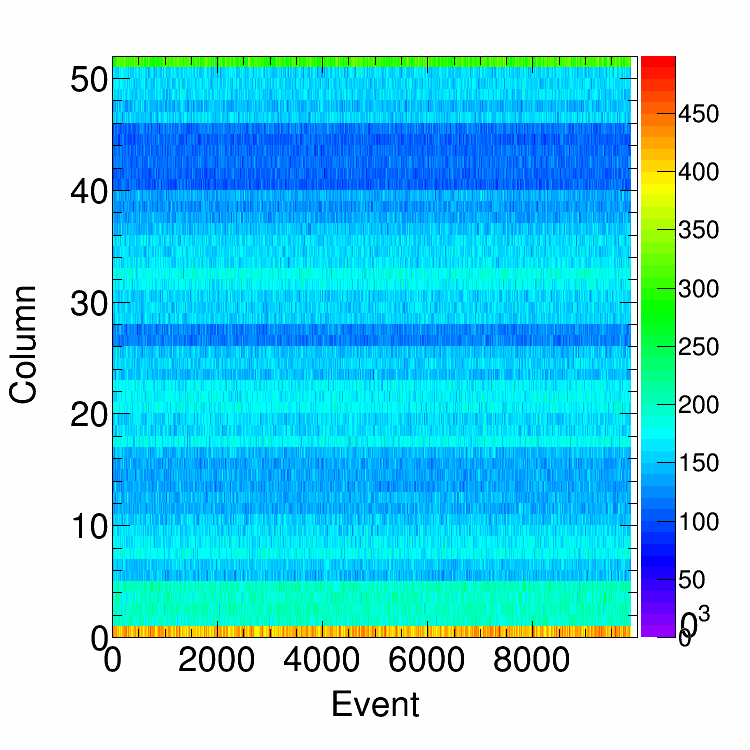

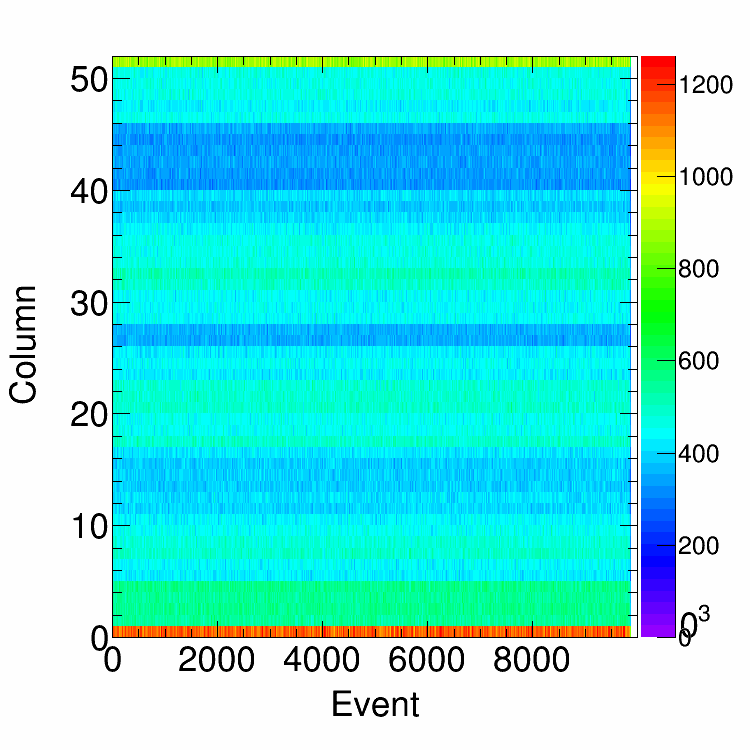

Col. Read. Unif. 150: C3
Plot
N N 20482978
mu μ 451425
sigma σ 127165.28
Col. Read. Unif. 50: C3
Plot
N N 7098460
mu μ 156878
sigma σ 47418.57
Read. Unif. over Time 150: C3
Plot
N N 23474098
mu μ 23807
sigma_th σ_th 154.30
Time unif. distribution 150: C3
Plot
chi2/ndf chi2/ndf 5.34
sigma σ 173.96
sigma_th σ_th 154.32
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C3
Plot
N N 8157630
mu μ 8273
sigma_th σ_th 90.96
Time unif. distribution 50: C3
Plot
chi2/ndf chi2/ndf 2.68
sigma σ 98.93
sigma_th σ_th 90.96
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C3
Col. Uniformity per Event: C3 150
Plot
mu μ 24.73
sigma fit error of μ 2.21
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C3 50
Plot
mu μ 24.47
sigma fit error of μ 2.21
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C3 100
Plot
N N 4160
mu μ 176.63
sigma RMS 29.03
threshold thr 2390.17
fit fit Gaussian
fit_peak μ fit 175.87
fit_sigma σ fit 26.77
MeasuredHitrate Measured hitrate: 104.1
Alive Map: C3
DC Efficiency Distribution: C3
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.85
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.05
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C3
