Test Date: 2016-02-09 11:35
Analysis date: 2016-05-26 09:51
Analysis date: 2016-05-26 09:51
M2153 XRayHRQualification
Summary
| Module | Module | M2153 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 113 | |
| BumpBondingDefects | Bump Bonding Defects | 109 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.29 | % |
| Noise | Mean Noise | 163 | e- |

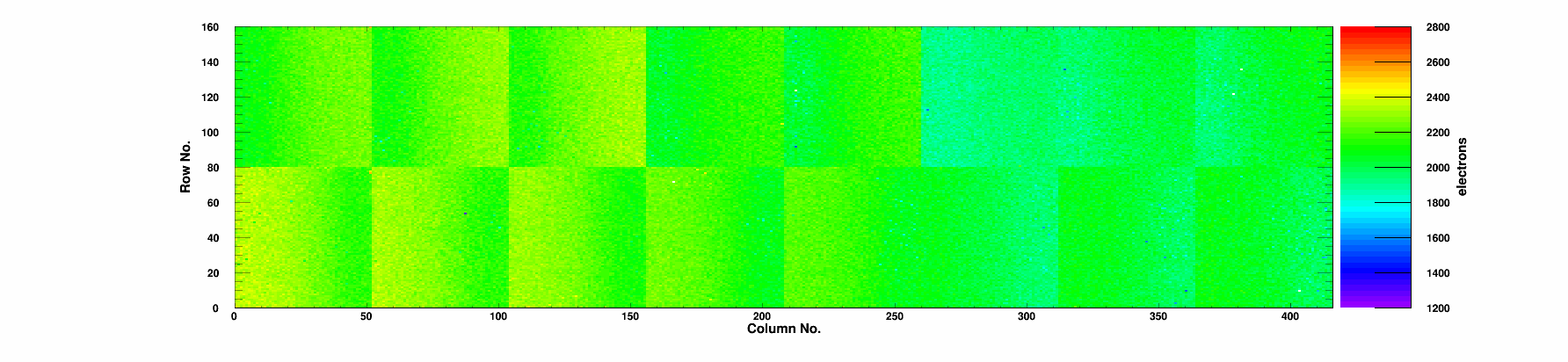

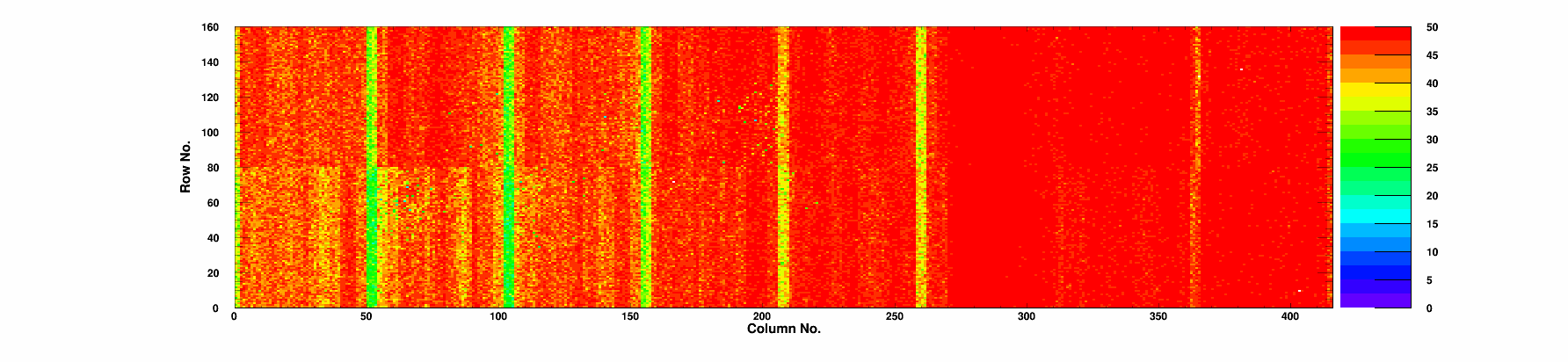

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
2 | 0 | 99.85 | 99.04 | 1.16 | 31.4 | 92.6 | 0 | 0/0 | 0 | 2022 | 176 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.88 | 99.36 | 0.41 | 28.7 | 87.0 | 0 | 0/0 | 0 | 1994 | 163 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.84 | 99.03 | 0.61 | 24.1 | 74.8 | 0 | 0/0 | 0 | 1941 | 156 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.37 | 0.67 | 45.7 | 133.3 | 0 | 0/0 | 0 | 2111 | 163 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.30 | 1.3 | 47.4 | 138.5 | 0 | 0/0 | 0 | 2112 | 160 | 0 |
|
Chip 5
|
A
|
2 | 0 | 99.87 | 99.35 | 0.89 | 62.9 | 176.1 | 2 | 0/0 | 0 | 2234 | 160 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.36 | 0.78 | 57.3 | 163.6 | 0 | 0/0 | 0 | 2210 | 159 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.34 | 0.53 | 59.7 | 170.9 | 0 | 0/0 | 0 | 2185 | 158 | 0 |
|
Chip 8
|
A
|
3 | 0 | 99.89 | 99.41 | 0.49 | 68.1 | 195.1 | 3 | 0/0 | 0 | 2259 | 170 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.34 | 1.7 | 68.4 | 195.1 | 0 | 0/0 | 0 | 2237 | 163 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.88 | 99.34 | 0.73 | 65.2 | 182.6 | 1 | 0/0 | 0 | 2220 | 157 | 0 |
|
Chip 11
|
B
|
93 | 0 | 99.88 | 99.34 | 0.71 | 52.9 | 152.4 | 92 | 0/0 | 0 | 2129 | 162 | 1 |
|
Chip 12
|
A
|
1 | 0 | 99.88 | 99.40 | 0.46 | 48.4 | 140.3 | 1 | 0/0 | 0 | 2147 | 161 | 0 |
|
Chip 13
|
A
|
3 | 0 | 99.88 | 99.39 | 0.34 | 27.6 | 84.1 | 3 | 0/0 | 0 | 2007 | 162 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 99.00 | 0.77 | 31.2 | 93.7 | 0 | 0/0 | 0 | 2028 | 163 | 0 |
|
Chip 15
|
A
|
8 | 0 | 99.88 | 99.29 | 0.87 | 31.9 | 93.9 | 7 | 0/0 | 0 | 1994 | 170 | 1 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-02-09 | |
| TestTime | Test Time | 11:35 | |
| TestDuration | Duration | 1:27:30 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
