Test Date: 2016-02-09 11:35
Analysis date: 2016-05-26 09:51
Chip 0
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.85/99.04
EfficiencyFit Efficiency Fit chi2/ndf: 1.16, # points: 130
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C0
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 1.16
NumberFitPoints # fit points 130
p0 p0 99.91
p1 p1 5.00e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.85
InterpolatedEfficiency120 Interpol. Efficiency 120 99.04

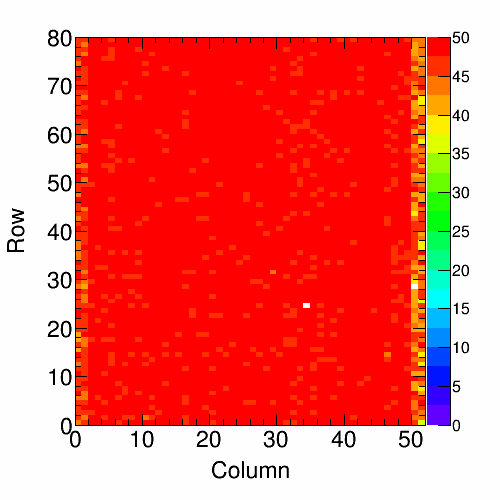

Efficiency Map 50: C0
Efficiency Map 75: C0
Efficiency Map 100: C0
Efficiency Map 125: C0
Efficiency Map 150: C0
Efficiency Map 200: C0
Efficiency Map 250: C0
Efficiency Distr. 50: C0
Plot
N N 4160
mu μ 99.87
sigma σ 2.23
Efficiency Distr. 75: C0
Plot
N N 4160
mu μ 99.81
sigma σ 2.25
Efficiency Distr. 100: C0
Plot
N N 4160
mu μ 99.70
sigma σ 2.30
Efficiency Distr. 125: C0
Plot
N N 4160
mu μ 99.53
sigma σ 2.38
Efficiency Distr. 150: C0
Plot
N N 4160
mu μ 99.31
sigma σ 2.47
Efficiency Distr. 200: C0
Plot
N N 4160
mu μ 98.57
sigma σ 2.89
Efficiency Distr. 250: C0
Plot
N N 4160
mu μ 97.30
sigma σ 3.95

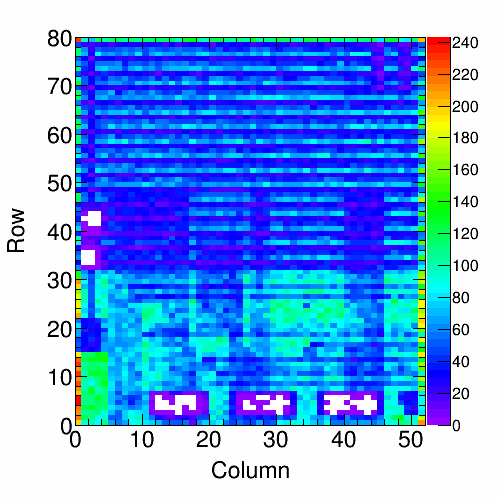

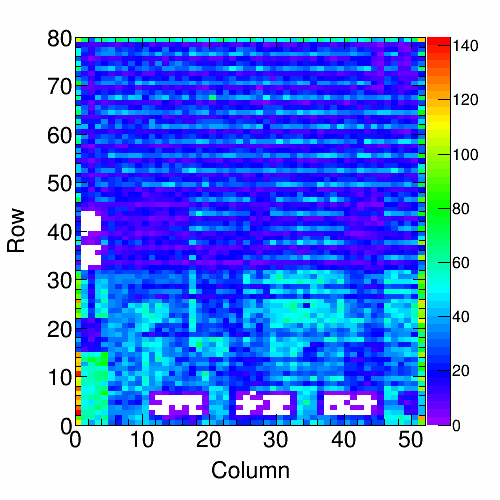

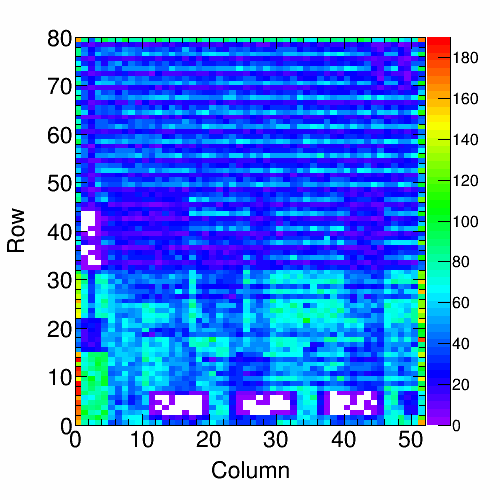

Background Map 50: C0
Plot
RealHitrate Real Hitrate 32.71 MHz/cm2
Background Map 75: C0
Plot
RealHitrate Real Hitrate 47.86 MHz/cm2

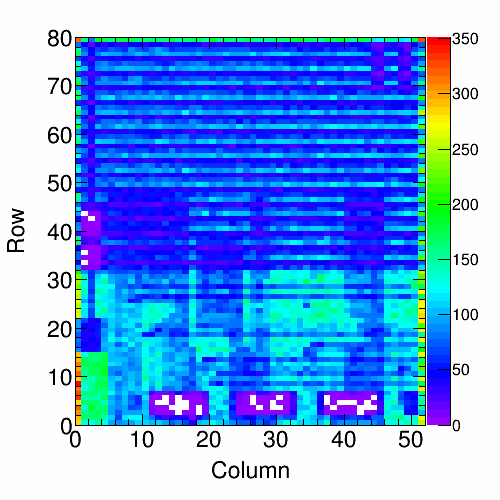

Background Map 100: C0
Plot
RealHitrate Real Hitrate 65.52 MHz/cm2
Background Map 125: C0
Plot
RealHitrate Real Hitrate 79.52 MHz/cm2

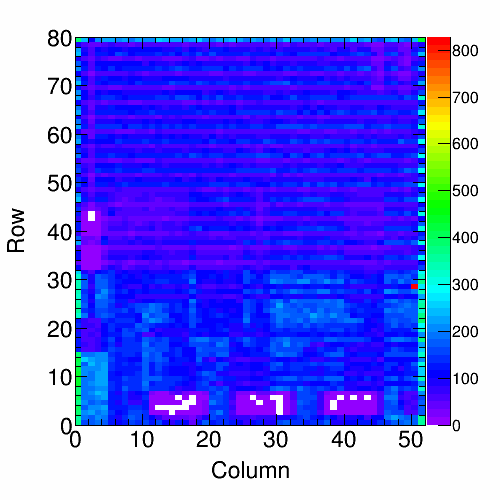

Background Map 150: C0
Plot
RealHitrate Real Hitrate 94.81 MHz/cm2
Background Map 200: C0
Plot
RealHitrate Real Hitrate 127.36 MHz/cm2

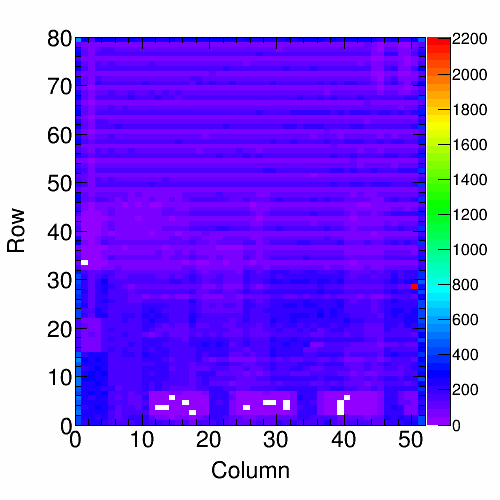

Background Map 250: C0
Plot
RealHitrate Real Hitrate 157.01 MHz/cm2
Retrim Hot Pix 150: C0
Masked Hot Pixels 50: C0
Masked Hot Pixels 150: C0

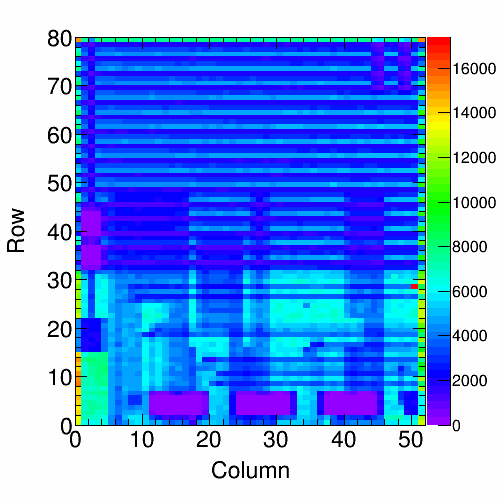

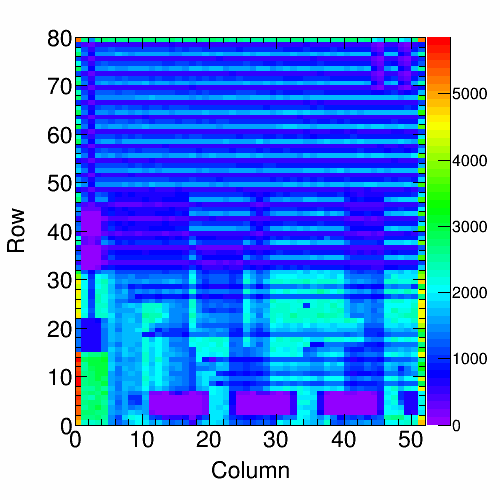

Hit Map 50: C0
Plot
RealHitrate Real Hitrate 31.45 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C0
Hit Map 150: C0
Plot
RealHitrate Real Hitrate 92.63 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C0
Col. Read. Unif. 50: C0
Plot
N N 4446753
mu μ 97756
sigma σ 26515.96
Col. Read. Unif. 150: C0
Plot
N N 13148715
mu μ 288295
sigma σ 73201.11
Read. Unif. over Time 50: C0
Plot
N N 5083333
mu μ 5156
sigma_th σ_th 71.80
Time unif. distribution 50: C0
Plot
chi2/ndf chi2/ndf 2.60
sigma σ 78.29
sigma_th σ_th 71.82
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C0
Plot
N N 14991355
mu μ 15189
sigma_th σ_th 123.24
Time unif. distribution 150: C0
Plot
chi2/ndf chi2/ndf 6.56
sigma σ 140.86
sigma_th σ_th 123.27
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C0

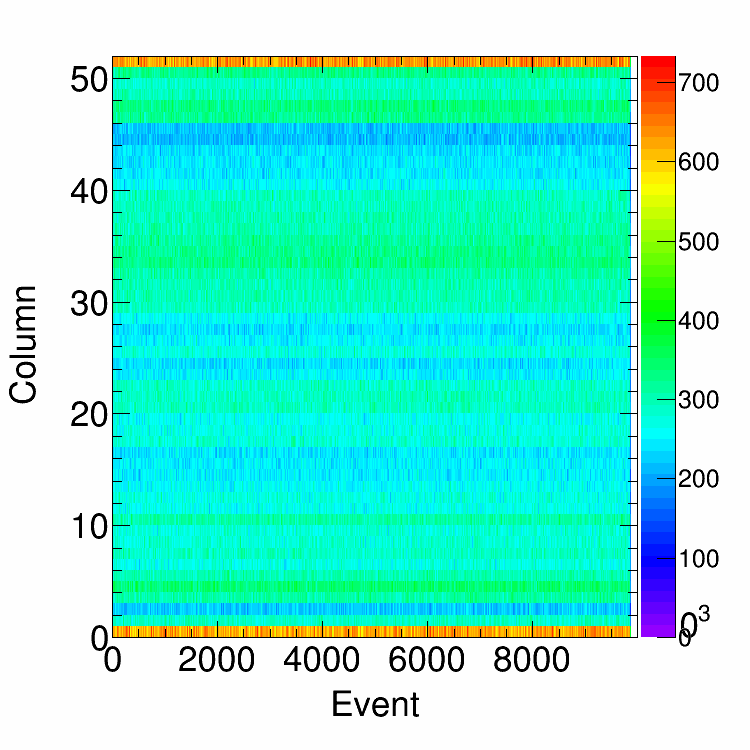

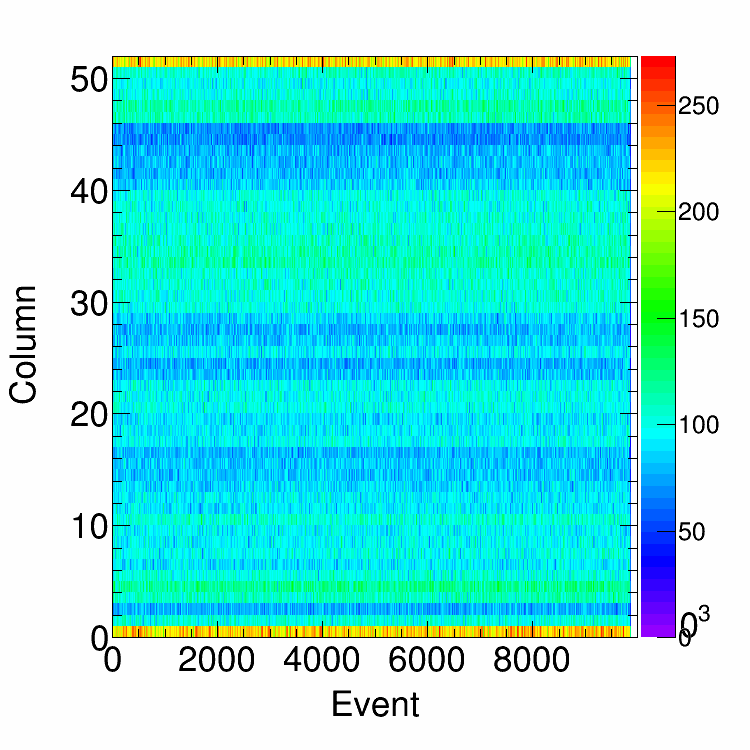

Col. Uniformity per Event: C0 50
Plot
mu μ 25.88
sigma fit error of μ 2.21
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C0 150
Plot
mu μ 26.07
sigma fit error of μ 2.20
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C0 100
Plot
N N 4159
mu μ 175.89
sigma RMS 15.42
threshold thr 2021.63
fit fit Gaussian
fit_peak μ fit 175.68
fit_sigma σ fit 14.92
MeasuredHitrate Measured hitrate: 65.4
under <= 1.00

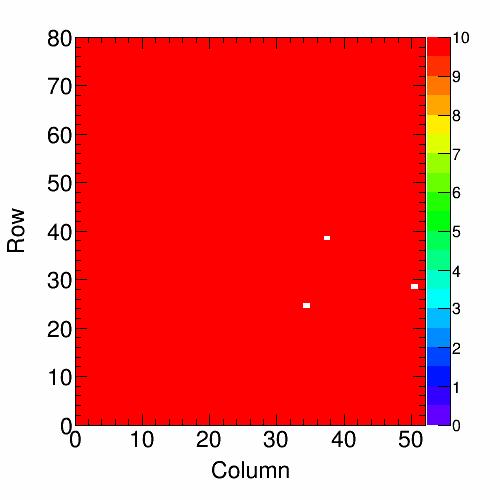

Alive Map: C0
DC Efficiency Distribution: C0
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.85
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.04
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C0
