Test Date: 2016-02-09 11:35
Analysis date: 2016-05-26 09:51
Chip 3
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.87/99.37
EfficiencyFit Efficiency Fit chi2/ndf: 0.67, # points: 114
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C3
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.67
NumberFitPoints # fit points 114
p0 p0 99.91
p1 p1 3.14e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.87
InterpolatedEfficiency120 Interpol. Efficiency 120 99.37
Efficiency Map 50: C3
Efficiency Map 75: C3
Efficiency Map 100: C3
Efficiency Map 125: C3
Efficiency Map 150: C3
Efficiency Map 200: C3
Efficiency Map 250: C3
Efficiency Distr. 50: C3
Plot
N N 4160
mu μ 99.88
sigma σ 0.50
Efficiency Distr. 75: C3
Plot
N N 4160
mu μ 99.78
sigma σ 0.67
Efficiency Distr. 100: C3
Plot
N N 4160
mu μ 99.55
sigma σ 1.03
Efficiency Distr. 125: C3
Plot
N N 4160
mu μ 99.24
sigma σ 1.42
Efficiency Distr. 150: C3
Plot
N N 4160
mu μ 98.82
sigma σ 1.87
Efficiency Distr. 200: C3
Plot
N N 4160
mu μ 97.16
sigma σ 3.64
Efficiency Distr. 250: C3
Plot
N N 4160
mu μ 94.71
sigma σ 5.88

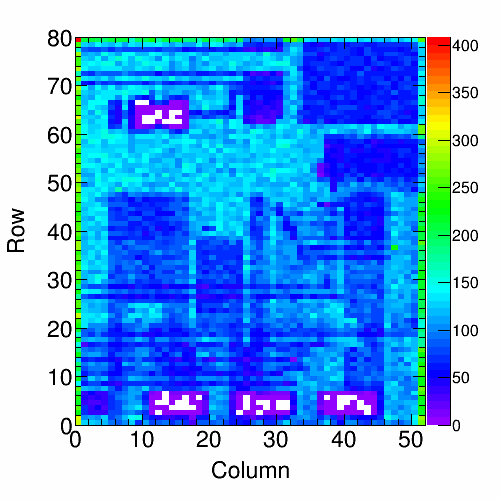

Background Map 50: C3
Plot
RealHitrate Real Hitrate 47.51 MHz/cm2

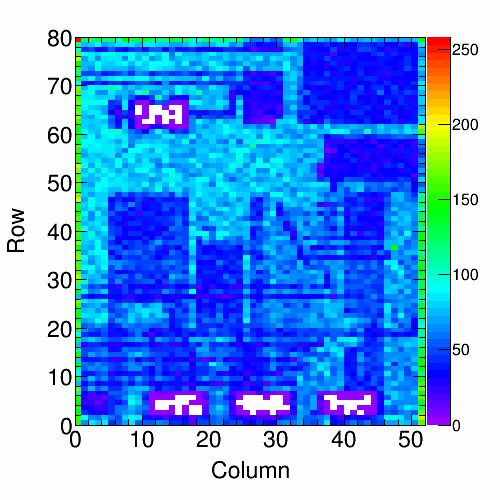

Background Map 75: C3
Plot
RealHitrate Real Hitrate 69.52 MHz/cm2
Background Map 100: C3
Plot
RealHitrate Real Hitrate 94.68 MHz/cm2
Background Map 125: C3
Plot
RealHitrate Real Hitrate 114.94 MHz/cm2
Background Map 150: C3
Plot
RealHitrate Real Hitrate 136.37 MHz/cm2
Background Map 200: C3
Plot
RealHitrate Real Hitrate 185.02 MHz/cm2
Background Map 250: C3
Plot
RealHitrate Real Hitrate 225.29 MHz/cm2
Retrim Hot Pix 150: C3
Masked Hot Pixels 50: C3
Masked Hot Pixels 150: C3

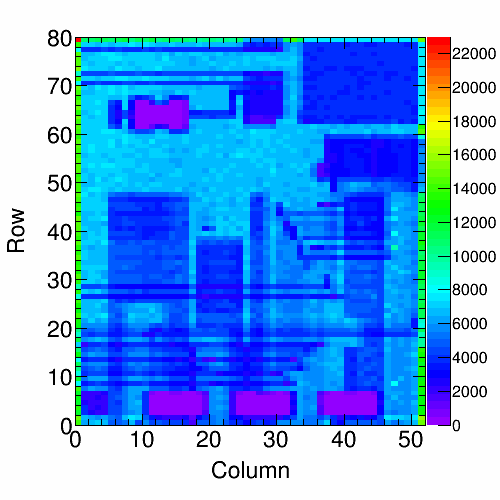

Hit Map 50: C3
Plot
RealHitrate Real Hitrate 45.71 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C3
Hit Map 150: C3
Plot
RealHitrate Real Hitrate 133.29 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C3
Col. Read. Unif. 50: C3
Plot
N N 6430339
mu μ 142107
sigma σ 43202.37
Col. Read. Unif. 150: C3
Plot
N N 18819221
mu μ 414819
sigma σ 117924.60
Read. Unif. over Time 50: C3
Plot
N N 7389572
mu μ 7494
sigma_th σ_th 86.57
Time unif. distribution 50: C3
Plot
chi2/ndf chi2/ndf 1.33
sigma σ 91.90
sigma_th σ_th 86.59
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C3
Plot
N N 21570563
mu μ 21855
sigma_th σ_th 147.83
Time unif. distribution 150: C3
Plot
chi2/ndf chi2/ndf 2.54
sigma σ 158.12
sigma_th σ_th 147.86
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C3

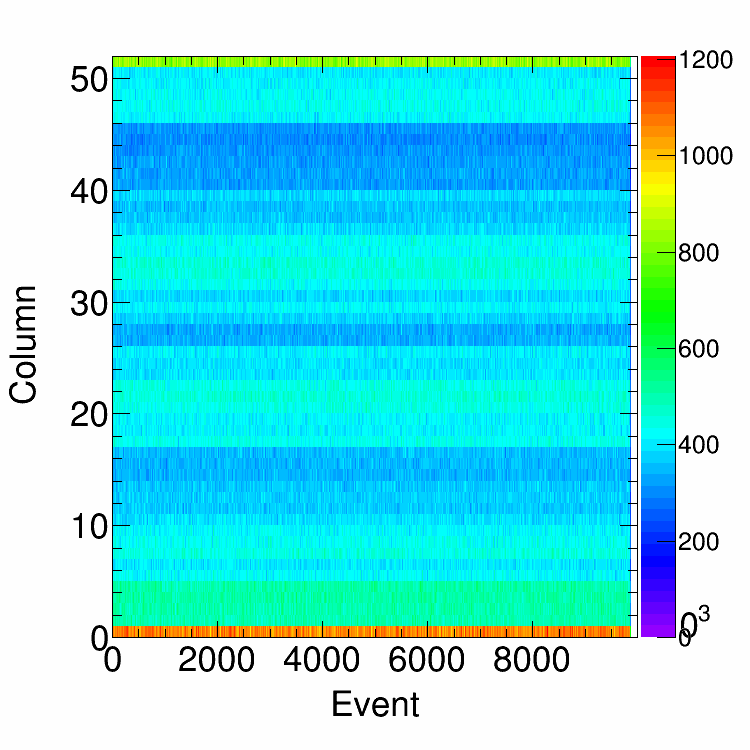

Col. Uniformity per Event: C3 50
Plot
mu μ 24.63
sigma fit error of μ 2.22
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

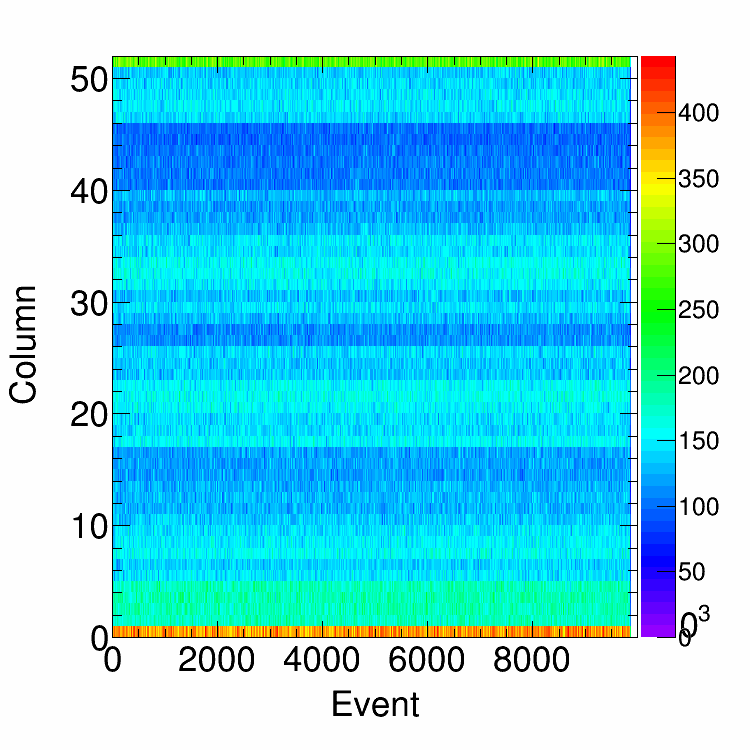

Col. Uniformity per Event: C3 150
Plot
mu μ 25.00
sigma fit error of μ 2.22
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C3 100
Plot
N N 4160
mu μ 163.19
sigma RMS 15.03
threshold thr 2110.72
fit fit Gaussian
fit_peak μ fit 162.71
fit_sigma σ fit 14.38
MeasuredHitrate Measured hitrate: 95.1
Alive Map: C3
DC Efficiency Distribution: C3
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.35
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C3
