Test Date: 2016-02-09 11:35
Analysis date: 2016-05-26 09:51
Chip 6
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.88/99.36
EfficiencyFit Efficiency Fit chi2/ndf: 0.78, # points: 95
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C6
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.78
NumberFitPoints # fit points 95
p0 p0 99.92
p1 p1 3.21e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.88
InterpolatedEfficiency120 Interpol. Efficiency 120 99.36

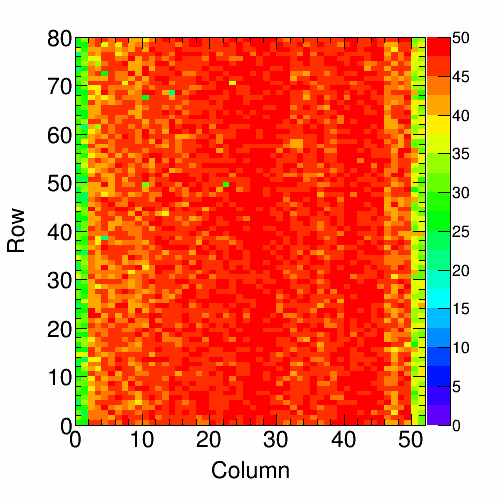

Efficiency Map 50: C6
Efficiency Map 75: C6
Efficiency Map 100: C6
Efficiency Map 125: C6
Efficiency Map 150: C6
Efficiency Map 200: C6
Efficiency Map 250: C6
Efficiency Distr. 50: C6
Plot
N N 4160
mu μ 99.83
sigma σ 0.65
Efficiency Distr. 75: C6
Plot
N N 4160
mu μ 99.62
sigma σ 0.99
Efficiency Distr. 100: C6
Plot
N N 4160
mu μ 99.19
sigma σ 1.52
Efficiency Distr. 125: C6
Plot
N N 4160
mu μ 98.65
sigma σ 2.21
Efficiency Distr. 150: C6
Plot
N N 4160
mu μ 97.81
sigma σ 3.17
Efficiency Distr. 200: C6
Plot
N N 4160
mu μ 94.54
sigma σ 6.39
Efficiency Distr. 250: C6
Plot
N N 4160
mu μ 90.30
sigma σ 9.35

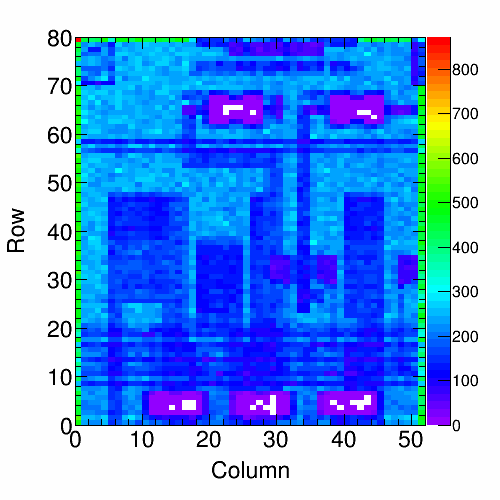

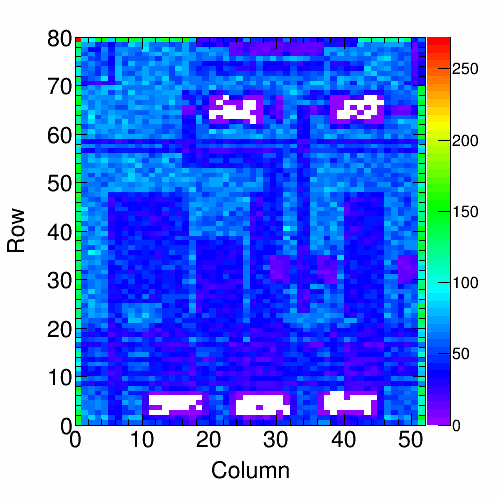

Background Map 50: C6
Plot
RealHitrate Real Hitrate 58.83 MHz/cm2

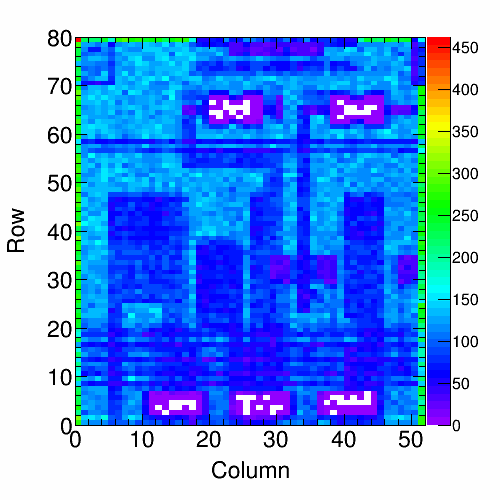

Background Map 75: C6
Plot
RealHitrate Real Hitrate 85.94 MHz/cm2

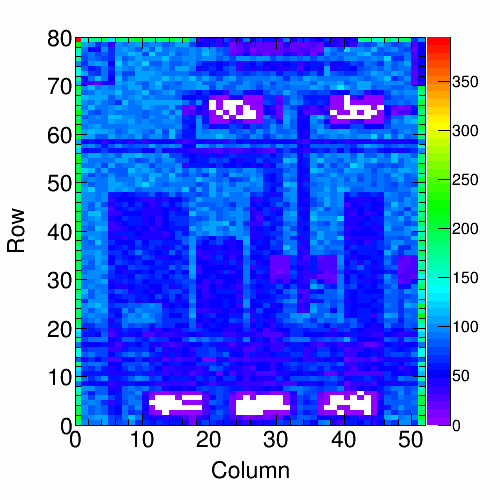

Background Map 100: C6
Plot
RealHitrate Real Hitrate 117.11 MHz/cm2

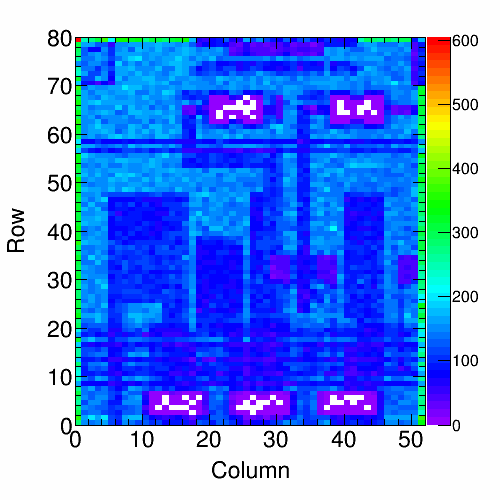

Background Map 125: C6
Plot
RealHitrate Real Hitrate 141.97 MHz/cm2
Background Map 150: C6
Plot
RealHitrate Real Hitrate 168.74 MHz/cm2
Background Map 200: C6
Plot
RealHitrate Real Hitrate 225.51 MHz/cm2
Background Map 250: C6
Plot
RealHitrate Real Hitrate 276.31 MHz/cm2
Retrim Hot Pix 150: C6
Masked Hot Pixels 50: C6
Masked Hot Pixels 150: C6
Hit Map 50: C6
Plot
RealHitrate Real Hitrate 57.26 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C6
Hit Map 150: C6
Plot
RealHitrate Real Hitrate 163.63 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C6
Col. Read. Unif. 50: C6
Plot
N N 8003116
mu μ 177998
sigma σ 57830.30
Col. Read. Unif. 150: C6
Plot
N N 22970178
mu μ 509255
sigma σ 156921.63
Read. Unif. over Time 50: C6
Plot
N N 9255879
mu μ 9387
sigma_th σ_th 96.89
Time unif. distribution 50: C6
Plot
chi2/ndf chi2/ndf 0.79
sigma σ 100.00
sigma_th σ_th 96.91
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C6
Plot
N N 26481250
mu μ 26830
sigma_th σ_th 163.80
Time unif. distribution 150: C6
Plot
chi2/ndf chi2/ndf 6.58
sigma σ 180.56
sigma_th σ_th 163.83
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C6

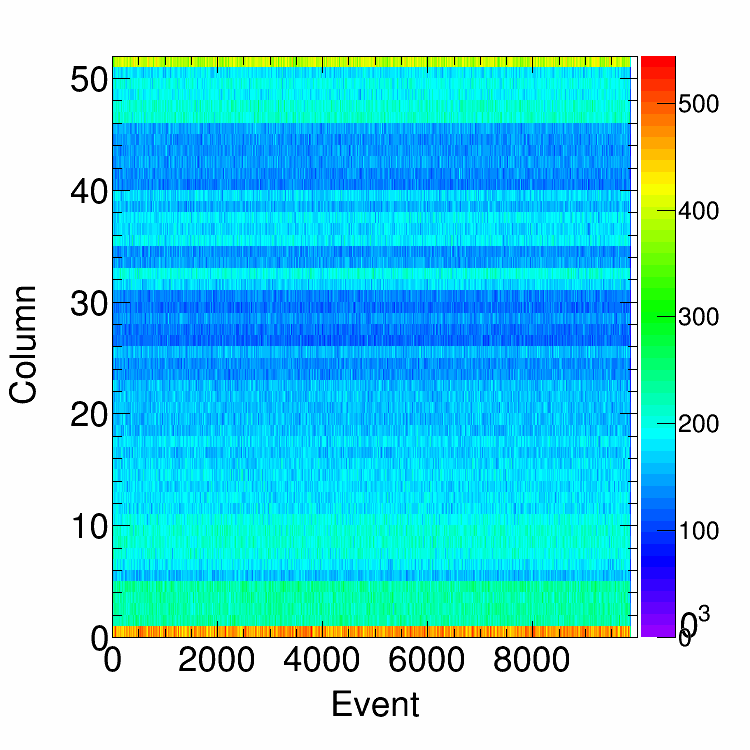

Col. Uniformity per Event: C6 50
Plot
mu μ 24.96
sigma fit error of μ 2.27
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

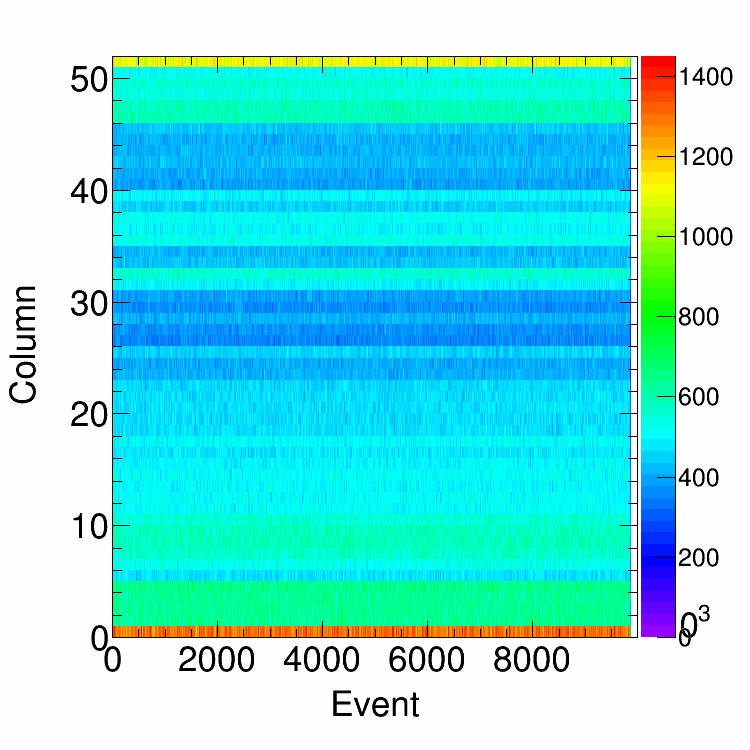

Col. Uniformity per Event: C6 150
Plot
mu μ 25.23
sigma fit error of μ 2.27
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C6 100
Plot
N N 4160
mu μ 159.33
sigma RMS 16.42
threshold thr 2210.29
fit fit Gaussian
fit_peak μ fit 159.11
fit_sigma σ fit 16.23
MeasuredHitrate Measured hitrate: 116.9
Alive Map: C6
DC Efficiency Distribution: C6
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.36
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C6
