Test Date: 2016-02-09 11:35
Analysis date: 2016-05-26 09:51
Chip 11
Grading
ROCGrade Final ROC Grade B
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 92/92
Efficiency Efficiency 50/120 99.88/99.34
EfficiencyFit Efficiency Fit chi2/ndf: 0.71, # points: 100
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (B)/B
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C11
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.71
NumberFitPoints # fit points 100
p0 p0 99.92
p1 p1 3.32e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.88
InterpolatedEfficiency120 Interpol. Efficiency 120 99.34
Efficiency Map 50: C11
Efficiency Map 75: C11
Efficiency Map 100: C11
Efficiency Map 125: C11
Efficiency Map 150: C11
Efficiency Map 200: C11
Efficiency Map 250: C11
Efficiency Distr. 50: C11
Plot
N N 4160
mu μ 99.82
sigma σ 1.64
Efficiency Distr. 75: C11
Plot
N N 4160
mu μ 99.67
sigma σ 1.74
Efficiency Distr. 100: C11
Plot
N N 4160
mu μ 99.33
sigma σ 1.98
Efficiency Distr. 125: C11
Plot
N N 4160
mu μ 98.84
sigma σ 2.35
Efficiency Distr. 150: C11
Plot
N N 4160
mu μ 98.15
sigma σ 2.88
Efficiency Distr. 200: C11
Plot
N N 4160
mu μ 95.54
sigma σ 4.82
Efficiency Distr. 250: C11
Plot
N N 4160
mu μ 91.88
sigma σ 7.20

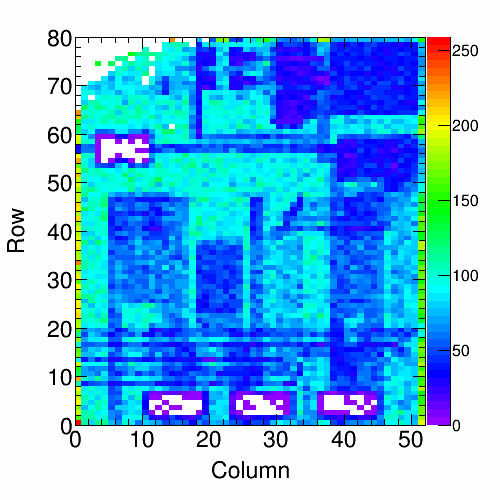

Background Map 50: C11
Plot
RealHitrate Real Hitrate 54.82 MHz/cm2

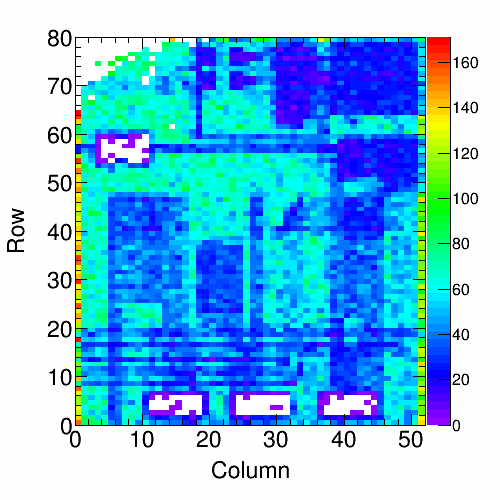

Background Map 75: C11
Plot
RealHitrate Real Hitrate 79.98 MHz/cm2

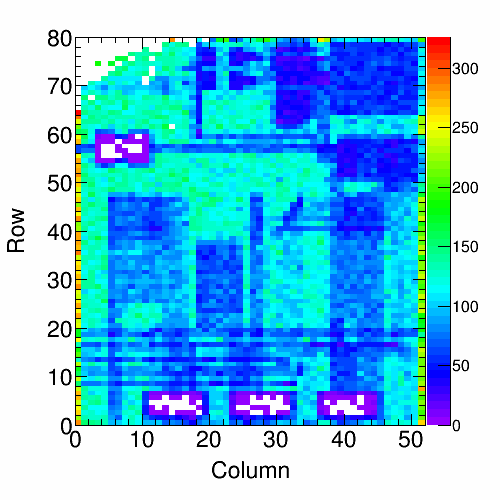

Background Map 100: C11
Plot
RealHitrate Real Hitrate 108.74 MHz/cm2
Background Map 125: C11
Plot
RealHitrate Real Hitrate 131.88 MHz/cm2
Background Map 150: C11
Plot
RealHitrate Real Hitrate 156.19 MHz/cm2
Background Map 200: C11
Plot
RealHitrate Real Hitrate 209.23 MHz/cm2

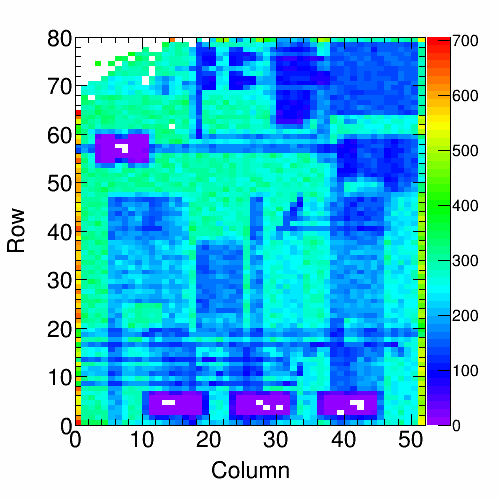

Background Map 250: C11
Plot
RealHitrate Real Hitrate 257.10 MHz/cm2
Retrim Hot Pix 150: C11
Masked Hot Pixels 50: C11
Masked Hot Pixels 150: C11

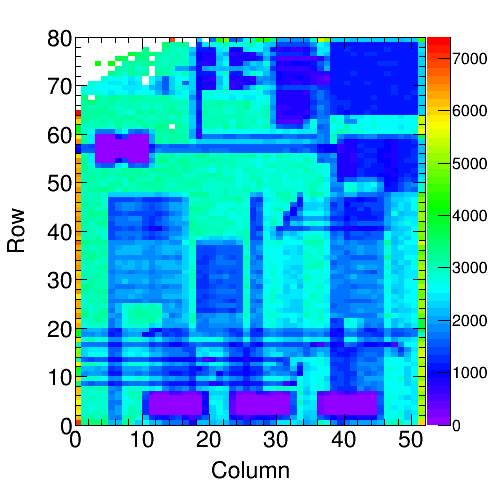

Hit Map 50: C11
Plot
RealHitrate Real Hitrate 52.92 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 93
BB Defects 50: C11
Hit Map 150: C11
Plot
RealHitrate Real Hitrate 152.36 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 93
BB Defects 150: C11

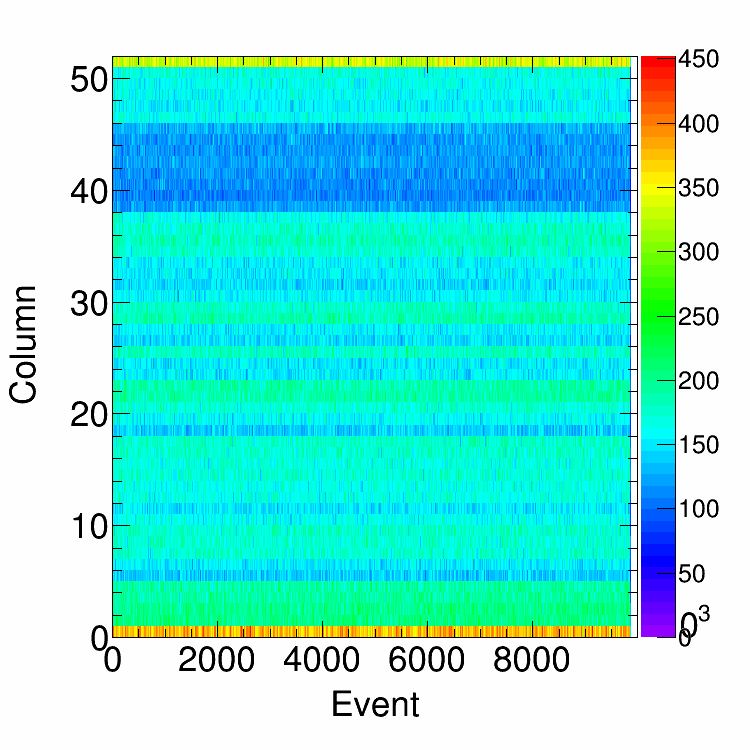

Col. Read. Unif. 50: C11
Plot
N N 7489286
mu μ 164518
sigma σ 43902.72
Col. Read. Unif. 150: C11
Plot
N N 21638380
mu μ 474179
sigma σ 118124.09
Read. Unif. over Time 50: C11
Plot
N N 8554927
mu μ 8676
sigma_th σ_th 93.15
Time unif. distribution 50: C11
Plot
chi2/ndf chi2/ndf 1.61
sigma σ 95.41
sigma_th σ_th 93.17
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C11
Plot
N N 24657333
mu μ 24982
sigma_th σ_th 158.06
Time unif. distribution 150: C11
Plot
chi2/ndf chi2/ndf 12.55
sigma σ 185.37
sigma_th σ_th 158.09
expectation Red curve (expected) Poisson

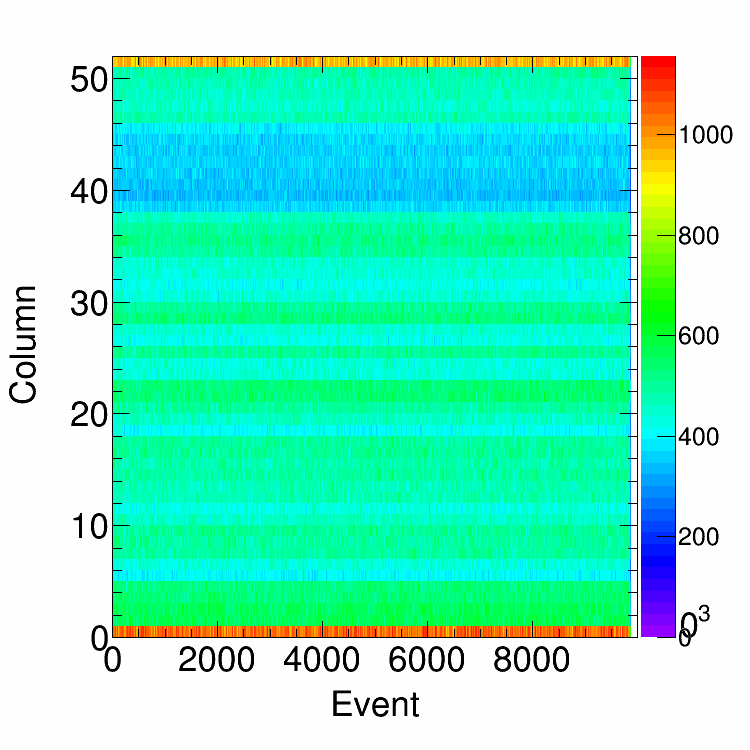

Col. Uniformity Ratio: C11
Col. Uniformity per Event: C11 50
Plot
mu μ 24.83
sigma fit error of μ 2.19
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C11 150
Plot
mu μ 25.12
sigma fit error of μ 2.20
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C11 100
Plot
N N 4159
mu μ 161.93
sigma RMS 15.91
threshold thr 2129.24
fit fit Gaussian
fit_peak μ fit 161.65
fit_sigma σ fit 15.12
MeasuredHitrate Measured hitrate: 108.7
over >= 1.00
Alive Map: C11
DC Efficiency Distribution: C11
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.33
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C11
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
