Test Date: 2016-02-09 11:35
Analysis date: 2016-05-26 09:51
Chip 14
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.84/99.0
EfficiencyFit Efficiency Fit chi2/ndf: 0.77, # points: 119
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C14
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.77
NumberFitPoints # fit points 119
p0 p0 99.91
p1 p1 5.29e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.84
InterpolatedEfficiency120 Interpol. Efficiency 120 99.00
Efficiency Map 50: C14
Efficiency Map 75: C14
Efficiency Map 100: C14
Efficiency Map 125: C14
Efficiency Map 150: C14
Efficiency Map 200: C14
Efficiency Map 250: C14
Efficiency Distr. 50: C14
Plot
N N 4160
mu μ 99.92
sigma σ 0.39
Efficiency Distr. 75: C14
Plot
N N 4160
mu μ 99.86
sigma σ 0.53
Efficiency Distr. 100: C14
Plot
N N 4160
mu μ 99.72
sigma σ 0.75
Efficiency Distr. 125: C14
Plot
N N 4160
mu μ 99.57
sigma σ 0.94
Efficiency Distr. 150: C14
Plot
N N 4160
mu μ 99.32
sigma σ 1.22
Efficiency Distr. 200: C14
Plot
N N 4160
mu μ 98.46
sigma σ 1.90
Efficiency Distr. 250: C14
Plot
N N 4160
mu μ 97.09
sigma σ 2.96

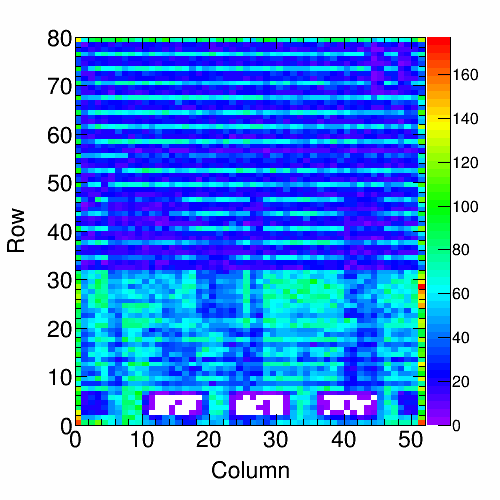

Background Map 50: C14
Plot
RealHitrate Real Hitrate 32.55 MHz/cm2

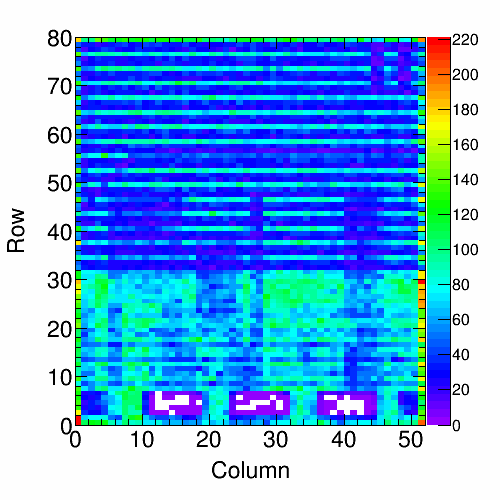

Background Map 75: C14
Plot
RealHitrate Real Hitrate 47.86 MHz/cm2

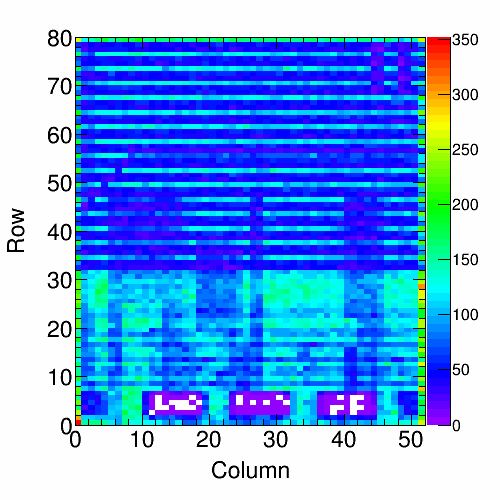

Background Map 100: C14
Plot
RealHitrate Real Hitrate 66.44 MHz/cm2
Background Map 125: C14
Plot
RealHitrate Real Hitrate 80.47 MHz/cm2
Background Map 150: C14
Plot
RealHitrate Real Hitrate 96.21 MHz/cm2

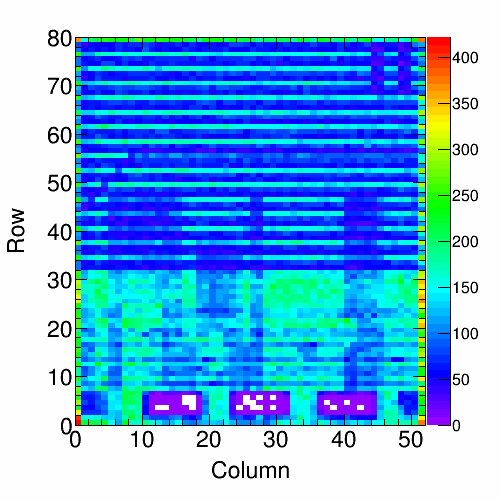

Background Map 200: C14
Plot
RealHitrate Real Hitrate 131.02 MHz/cm2

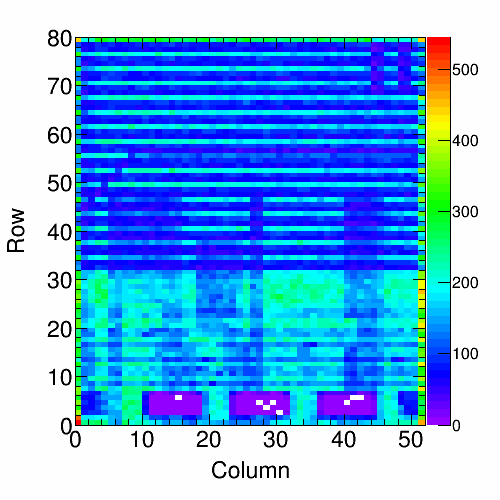

Background Map 250: C14
Plot
RealHitrate Real Hitrate 161.84 MHz/cm2
Retrim Hot Pix 150: C14
Masked Hot Pixels 50: C14
Masked Hot Pixels 150: C14

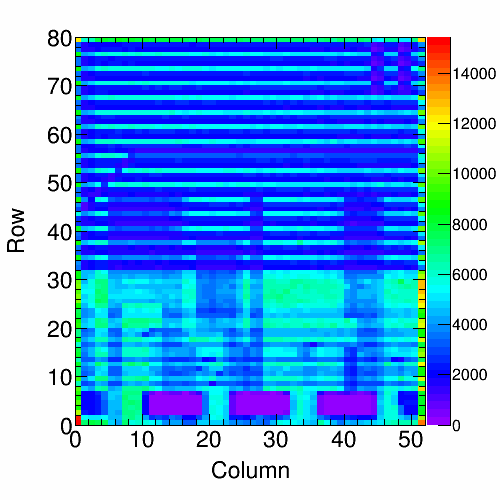

Hit Map 50: C14
Plot
RealHitrate Real Hitrate 31.22 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C14
Hit Map 150: C14
Plot
RealHitrate Real Hitrate 93.73 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C14
Col. Read. Unif. 50: C14
Plot
N N 4482796
mu μ 97044
sigma σ 22464.21
Col. Read. Unif. 150: C14
Plot
N N 13476940
mu μ 291713
sigma σ 64808.08
Read. Unif. over Time 50: C14
Plot
N N 5046307
mu μ 5118
sigma_th σ_th 71.54
Time unif. distribution 50: C14
Plot
chi2/ndf chi2/ndf 0.82
sigma σ 74.39
sigma_th σ_th 71.56
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C14
Plot
N N 15169058
mu μ 15369
sigma_th σ_th 123.97
Time unif. distribution 150: C14
Plot
chi2/ndf chi2/ndf 5.16
sigma σ 136.89
sigma_th σ_th 123.99
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C14

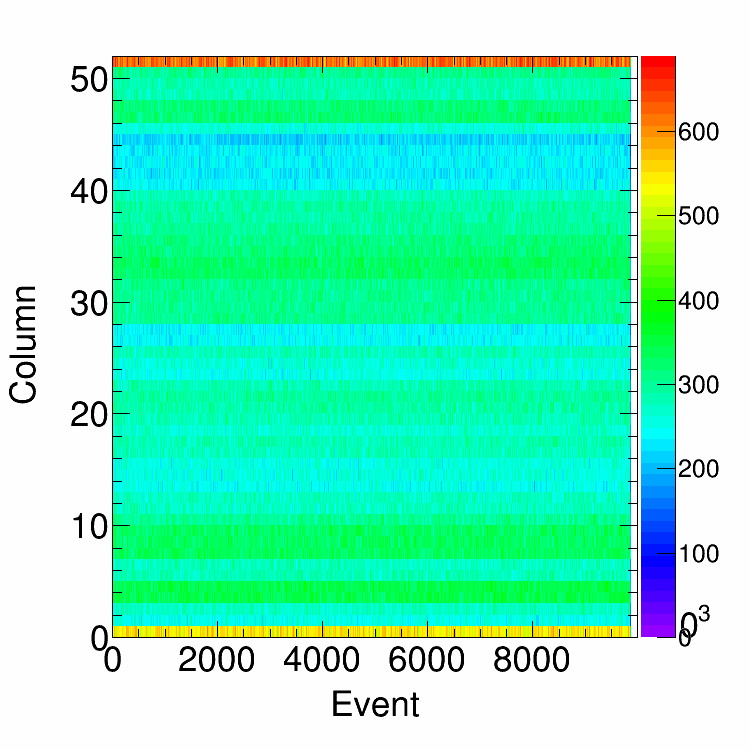

Col. Uniformity per Event: C14 50
Plot
mu μ 25.98
sigma fit error of μ 2.17
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

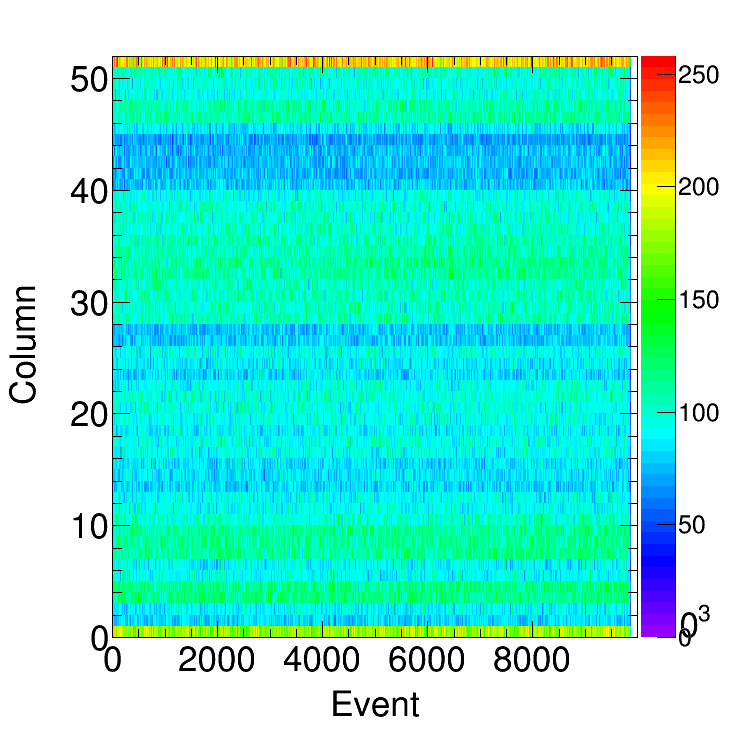

Col. Uniformity per Event: C14 150
Plot
mu μ 25.88
sigma fit error of μ 2.19
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C14 100
Plot
N N 4160
mu μ 163.00
sigma RMS 14.51
threshold thr 2027.75
fit fit Gaussian
fit_peak μ fit 162.53
fit_sigma σ fit 13.93
MeasuredHitrate Measured hitrate: 66.1
Alive Map: C14
DC Efficiency Distribution: C14
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.86
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 98.99
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C14
