Test Date: 2016-02-09 11:35
Analysis date: 2016-05-26 09:51
Chip 15
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 7/7
Efficiency Efficiency 50/120 99.88/99.29
EfficiencyFit Efficiency Fit chi2/ndf: 0.87, # points: 122
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C15
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.87
NumberFitPoints # fit points 122
p0 p0 99.92
p1 p1 3.64e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.88
InterpolatedEfficiency120 Interpol. Efficiency 120 99.29
Efficiency Map 50: C15
Efficiency Map 75: C15
Efficiency Map 100: C15
Efficiency Map 125: C15
Efficiency Map 150: C15
Efficiency Map 200: C15
Efficiency Map 250: C15
Efficiency Distr. 50: C15
Plot
N N 4160
mu μ 99.91
sigma σ 1.59
Efficiency Distr. 75: C15
Plot
N N 4160
mu μ 99.86
sigma σ 1.62
Efficiency Distr. 100: C15
Plot
N N 4160
mu μ 99.77
sigma σ 1.68
Efficiency Distr. 125: C15
Plot
N N 4160
mu μ 99.64
sigma σ 1.76
Efficiency Distr. 150: C15
Plot
N N 4160
mu μ 99.49
sigma σ 1.87
Efficiency Distr. 200: C15
Plot
N N 4160
mu μ 98.86
sigma σ 2.32
Efficiency Distr. 250: C15
Plot
N N 4160
mu μ 97.96
sigma σ 3.02

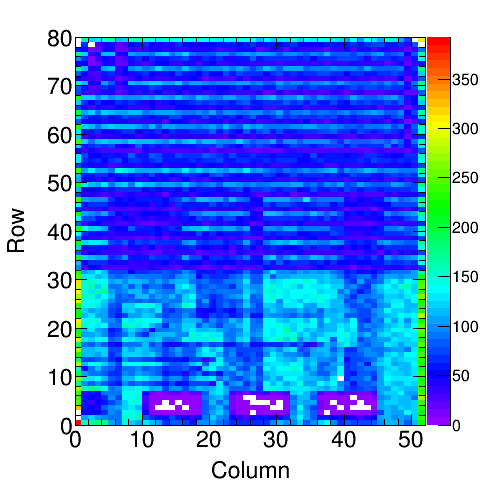

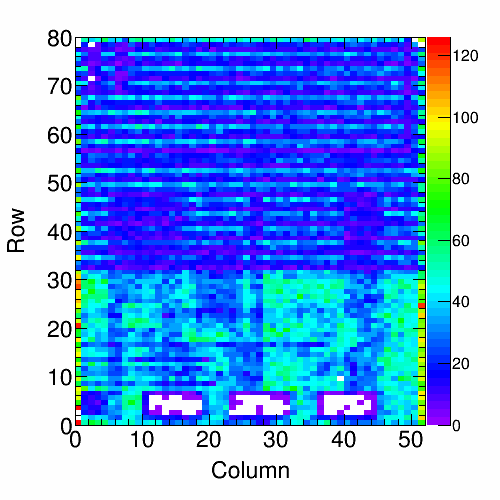

Background Map 50: C15
Plot
RealHitrate Real Hitrate 33.17 MHz/cm2

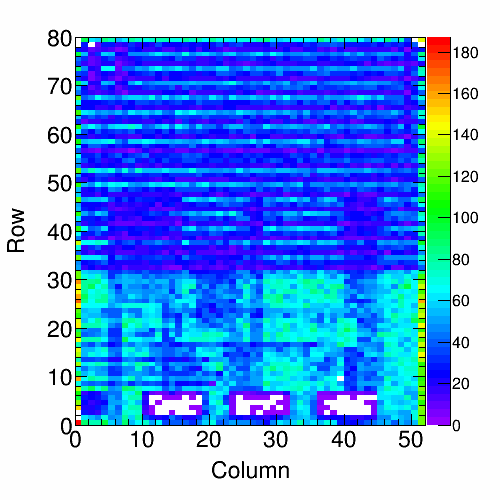

Background Map 75: C15
Plot
RealHitrate Real Hitrate 48.51 MHz/cm2

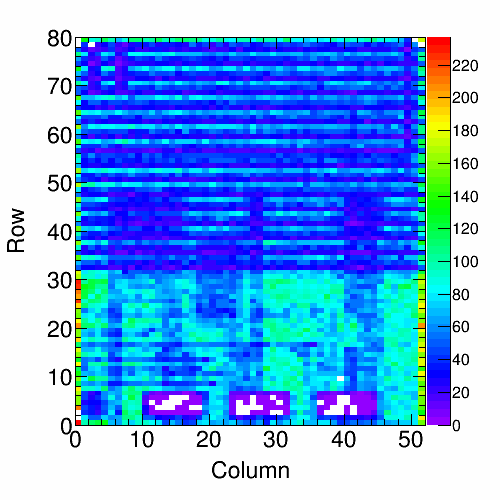

Background Map 100: C15
Plot
RealHitrate Real Hitrate 66.51 MHz/cm2
Background Map 125: C15
Plot
RealHitrate Real Hitrate 80.48 MHz/cm2

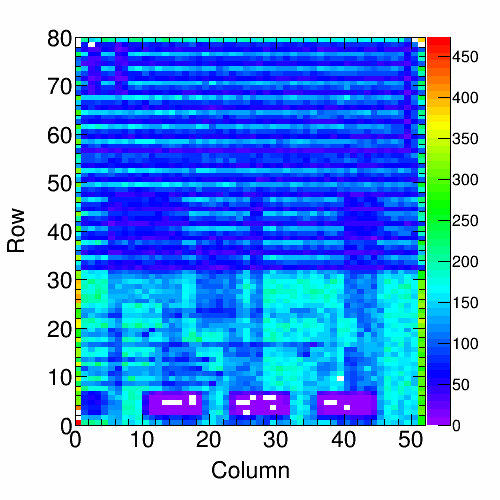

Background Map 150: C15
Plot
RealHitrate Real Hitrate 96.06 MHz/cm2
Background Map 200: C15
Plot
RealHitrate Real Hitrate 129.45 MHz/cm2
Background Map 250: C15
Plot
RealHitrate Real Hitrate 159.90 MHz/cm2
Retrim Hot Pix 150: C15
Masked Hot Pixels 50: C15
Masked Hot Pixels 150: C15

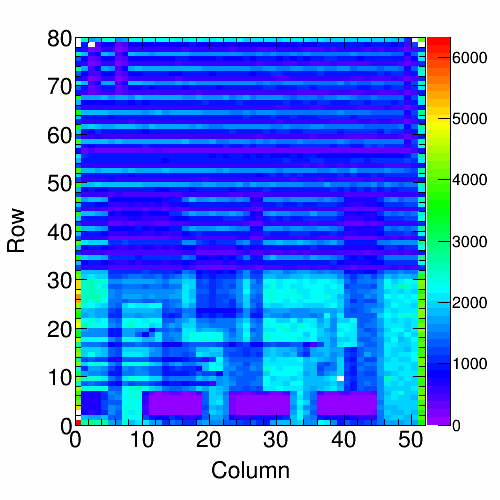

Hit Map 50: C15
Plot
RealHitrate Real Hitrate 31.86 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 8
BB Defects 50: C15
Hit Map 150: C15
Plot
RealHitrate Real Hitrate 93.88 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 8
BB Defects 150: C15
Col. Read. Unif. 50: C15
Plot
N N 4490656
mu μ 99030
sigma σ 26854.38
Col. Read. Unif. 150: C15
Plot
N N 13294324
mu μ 292161
sigma σ 74146.97
Read. Unif. over Time 50: C15
Plot
N N 5149539
mu μ 5223
sigma_th σ_th 72.27
Time unif. distribution 50: C15
Plot
chi2/ndf chi2/ndf 2.45
sigma σ 80.12
sigma_th σ_th 72.28
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C15
Plot
N N 15192386
mu μ 15392
sigma_th σ_th 124.07
Time unif. distribution 150: C15
Plot
chi2/ndf chi2/ndf 6.25
sigma σ 140.05
sigma_th σ_th 124.09
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C15

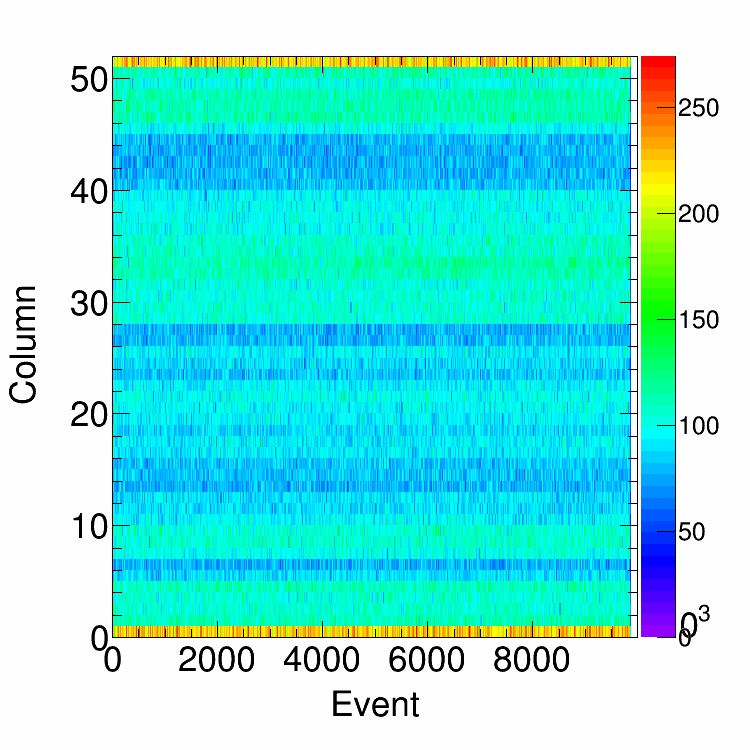

Col. Uniformity per Event: C15 50
Plot
mu μ 26.22
sigma fit error of μ 2.21
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C15 150
Plot
mu μ 26.06
sigma fit error of μ 2.21
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C15 100
Plot
N N 4159
mu μ 170.04
sigma RMS 14.90
threshold thr 1993.94
fit fit Gaussian
fit_peak μ fit 169.72
fit_sigma σ fit 14.34
MeasuredHitrate Measured hitrate: 66.3
over >= 1.00
Alive Map: C15
DC Efficiency Distribution: C15
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.89
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.29
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C15
