Test Date: 2016-01-12 12:57
Analysis date: 2016-05-26 07:50
Analysis date: 2016-05-26 07:50
M2132 XRayHRQualification
Summary
| Module | Module | M2132 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 70 | |
| BumpBondingDefects | Bump Bonding Defects | 65 | |
| NoisyPixels | Noisy Pixels | 4 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

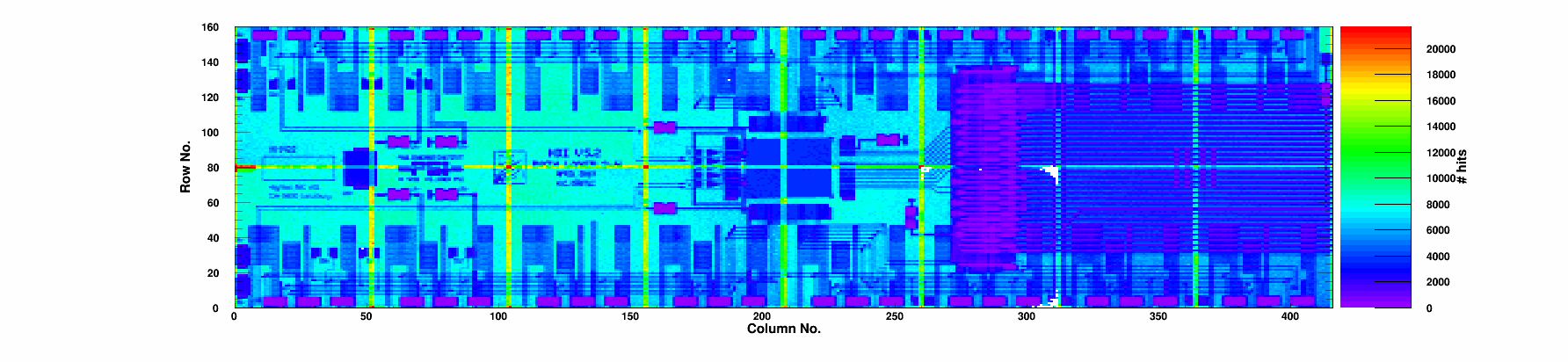

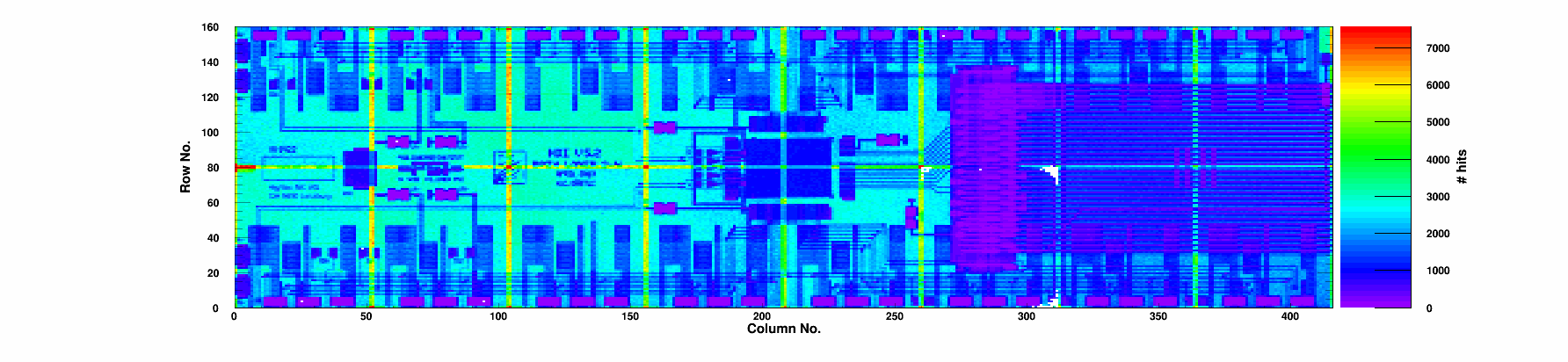

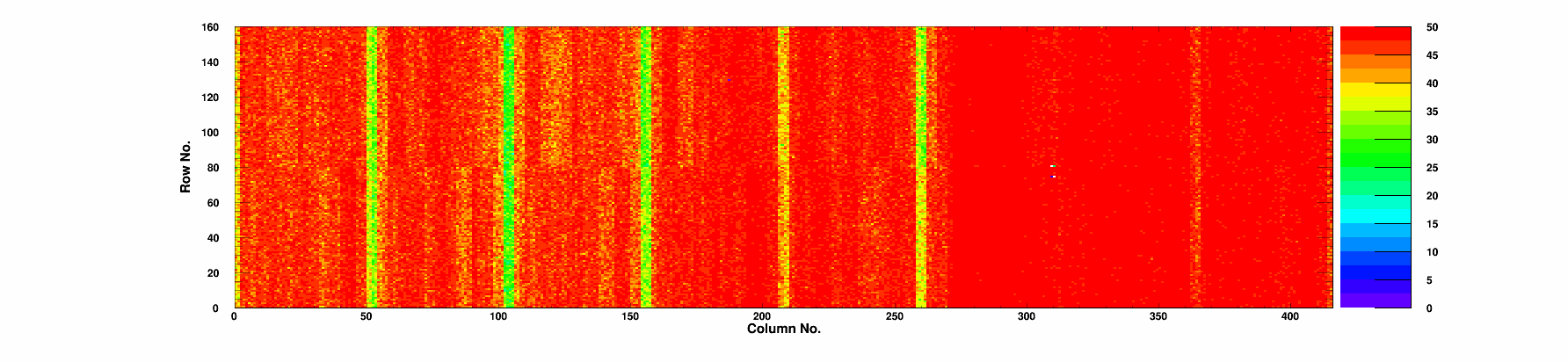

| Efficiency | Efficiency 50/120 | 99.87/99.29 | % |
| Noise | Mean Noise | 155 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.86 | 99.28 | 0.49 | 97.7 | 0 | 32.7 | 0/0 | 0 | 2025 | 167 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.88 | 99.37 | 0.45 | 89.5 | 0 | 29.3 | 0/0 | 0 | 2010 | 154 | 0 |
|
Chip 2
|
A
|
2 | 0 | 99.82 | 99.00 | 0.67 | 84.3 | 0 | 27.4 | 0/0 | 0 | 1915 | 159 | 2 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.29 | 0.54 | 137.1 | 0 | 46.7 | 0/0 | 0 | 2100 | 147 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.87 | 99.35 | 0.48 | 145.8 | 0 | 50.0 | 0/0 | 0 | 2106 | 156 | 1 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.37 | 0.5 | 182.1 | 0 | 63.7 | 0/0 | 0 | 2233 | 153 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.89 | 99.37 | 0.79 | 167.3 | 0 | 57.9 | 0/0 | 0 | 2203 | 157 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.88 | 99.36 | 0.54 | 161.8 | 0 | 55.5 | 0/0 | 0 | 2166 | 149 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.87 | 99.38 | 0.54 | 163.7 | 1 | 56.3 | 0/0 | 0 | 2172 | 153 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.21 | 0.77 | 160.5 | 0 | 55.0 | 0/0 | 0 | 2156 | 162 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.36 | 0.69 | 172.4 | 0 | 60.0 | 0/0 | 0 | 2198 | 154 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.33 | 0.48 | 136.3 | 0 | 46.4 | 0/0 | 0 | 2124 | 149 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.37 | 0.5 | 142.7 | 0 | 48.4 | 0/0 | 0 | 2122 | 161 | 0 |
|
Chip 13
|
B
|
66 | 0 | 99.87 | 99.24 | 0.97 | 81.8 | 64 | 26.5 | 0/0 | 0 | 1972 | 163 | 1 |
|
Chip 14
|
A
|
0 | 0 | 99.87 | 99.31 | 0.43 | 84.6 | 0 | 27.7 | 0/0 | 0 | 2002 | 149 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.83 | 99.06 | 0.9 | 89.9 | 0 | 30.0 | 0/0 | 0 | 2019 | 156 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-01-12 | |
| TestTime | Test Time | 12:57 | |
| TestDuration | Duration | 1:30:41 | |
| pXar | pXar version | prod-12 | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 25 | |
| nWarnings | # Warnings | 2 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 1 | |
| channel_2_count | Channel 2 | 2 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 1 | |
| message_readback_count | Readback start marker | 2 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
