Test Date: 2016-01-12 12:57
Analysis date: 2016-05-26 07:50
Chip 14
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.87/99.31
EfficiencyFit Efficiency Fit chi2/ndf: 0.43, # points: 125
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C14
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.43
NumberFitPoints # fit points 125
p0 p0 99.92
p1 p1 3.54e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.87
InterpolatedEfficiency120 Interpol. Efficiency 120 99.31
Efficiency Map 50: C14
Efficiency Map 75: C14
Efficiency Map 100: C14
Efficiency Map 125: C14
Efficiency Map 150: C14
Efficiency Map 200: C14
Efficiency Map 250: C14
Efficiency Distr. 50: C14
Plot
N N 4160
mu μ 99.93
sigma σ 0.39
Efficiency Distr. 75: C14
Plot
N N 4160
mu μ 99.89
sigma σ 0.46
Efficiency Distr. 100: C14
Plot
N N 4160
mu μ 99.82
sigma σ 0.60
Efficiency Distr. 125: C14
Plot
N N 4160
mu μ 99.75
sigma σ 0.71
Efficiency Distr. 150: C14
Plot
N N 4160
mu μ 99.61
sigma σ 0.91
Efficiency Distr. 200: C14
Plot
N N 4160
mu μ 99.19
sigma σ 1.34
Efficiency Distr. 250: C14
Plot
N N 4160
mu μ 98.56
sigma σ 1.92

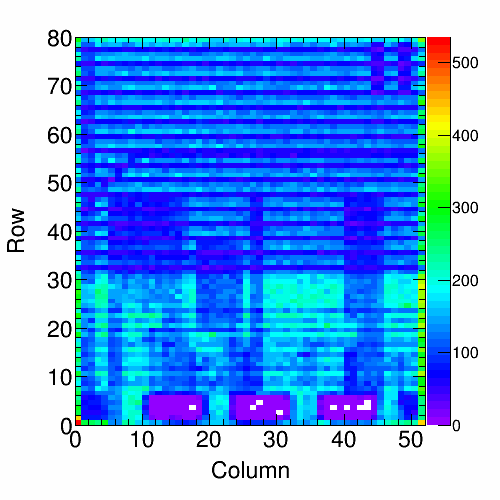

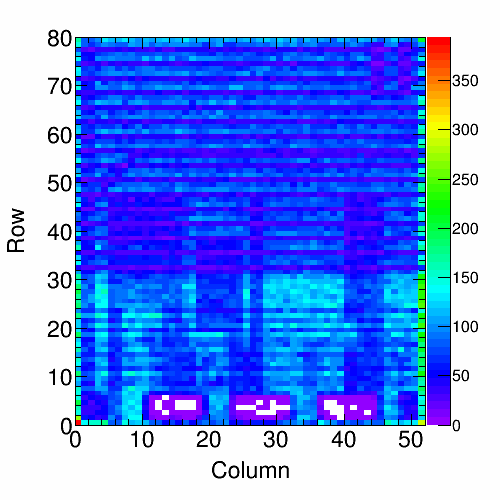

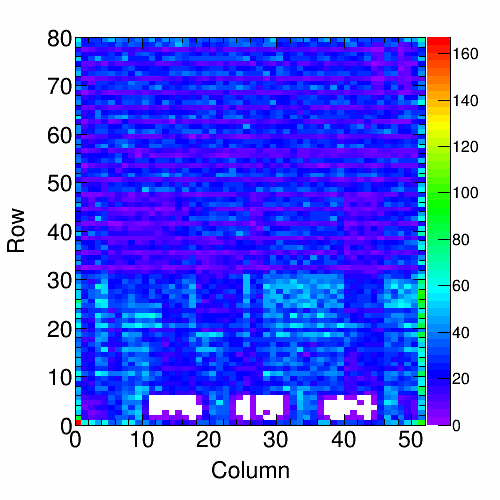

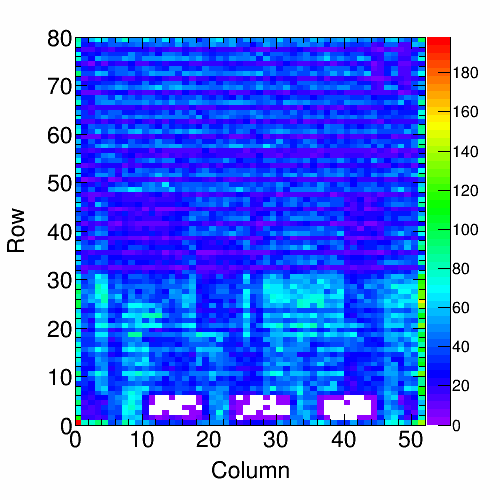

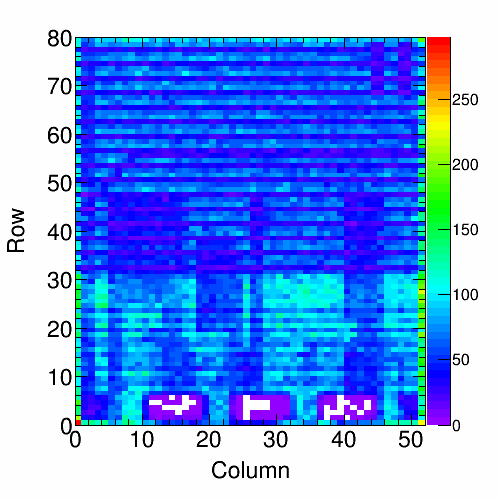

Background Map 50: C14
Plot
RealHitrate Real Hitrate 28.98 MHz/cm2
Background Map 75: C14
Plot
RealHitrate Real Hitrate 42.38 MHz/cm2
Background Map 100: C14
Plot
RealHitrate Real Hitrate 59.10 MHz/cm2
Background Map 125: C14
Plot
RealHitrate Real Hitrate 72.33 MHz/cm2
Background Map 150: C14
Plot
RealHitrate Real Hitrate 86.57 MHz/cm2
Background Map 200: C14
Plot
RealHitrate Real Hitrate 117.79 MHz/cm2
Background Map 250: C14
Plot
RealHitrate Real Hitrate 145.17 MHz/cm2
Retrim Hot Pix 0: C14
Retrim Hot Pix 150: C14
Masked Hot Pixels 150: C14
Masked Hot Pixels 50: C14

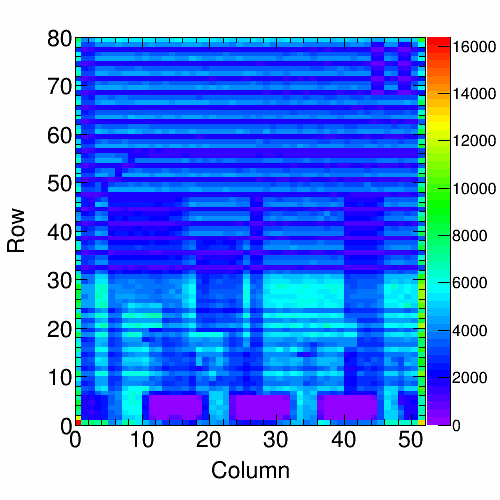

Hit Map 150: C14
Plot
RealHitrate Real Hitrate 84.56 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C14
Hit Map 50: C14
Plot
RealHitrate Real Hitrate 27.69 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C14
Col. Read. Unif. 150: C14
Plot
N N 12158797
mu μ 262925
sigma σ 59023.63
Col. Read. Unif. 50: C14
Plot
N N 3980809
mu μ 86104
sigma σ 20378.17
Read. Unif. over Time 150: C14
Plot
N N 13672091
mu μ 13866
sigma_th σ_th 117.75
Time unif. distribution 150: C14
Plot
chi2/ndf chi2/ndf 6.47
sigma σ 130.40
sigma_th σ_th 117.77
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C14
Plot
N N 4477392
mu μ 4541
sigma_th σ_th 67.39
Time unif. distribution 50: C14
Plot
chi2/ndf chi2/ndf 0.77
sigma σ 69.92
sigma_th σ_th 67.39
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C14

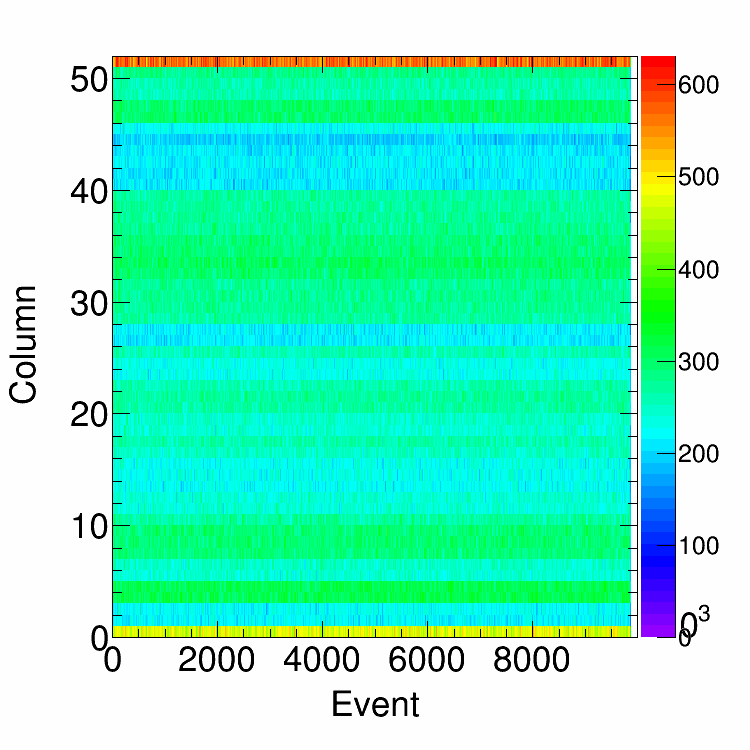

Col. Uniformity per Event: C14 150
Plot
mu μ 26.28
sigma fit error of μ 2.16
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

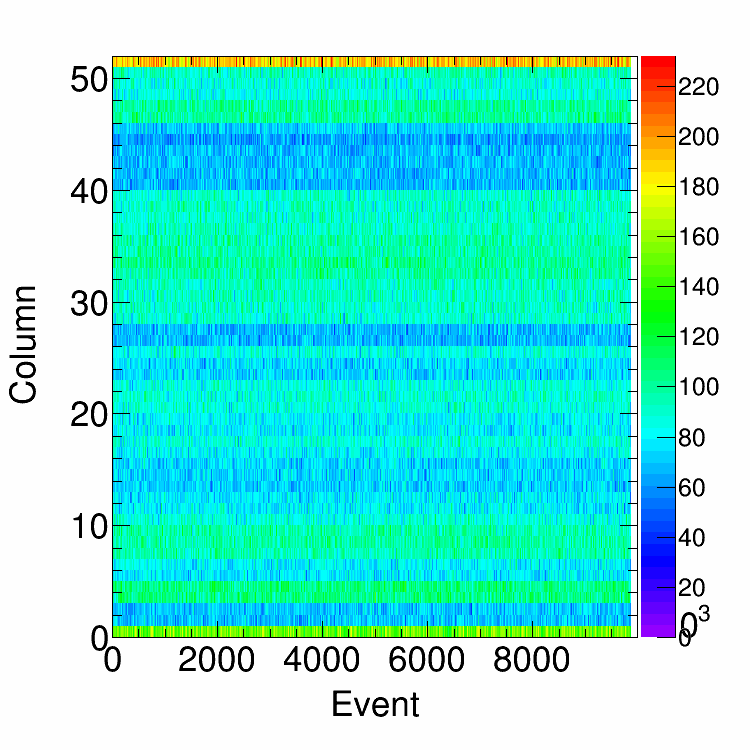

Col. Uniformity per Event: C14 50
Plot
mu μ 26.27
sigma fit error of μ 2.17
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C14 100
Plot
N N 4160
mu μ 149.28
sigma RMS 13.31
threshold thr 2002.35
fit fit Gaussian
fit_peak μ fit 149.23
fit_sigma σ fit 13.40
MeasuredHitrate Measured hitrate: 59.6
Alive Map: C14
DC Efficiency Distribution: C14
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.29
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C14
