Test Date: 2016-01-12 12:57
Analysis date: 2016-05-26 07:50
Chip 12
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.87/99.37
EfficiencyFit Efficiency Fit chi2/ndf: 0.50, # points: 108
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C12
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.50
NumberFitPoints # fit points 108
p0 p0 99.91
p1 p1 3.15e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.87
InterpolatedEfficiency120 Interpol. Efficiency 120 99.37

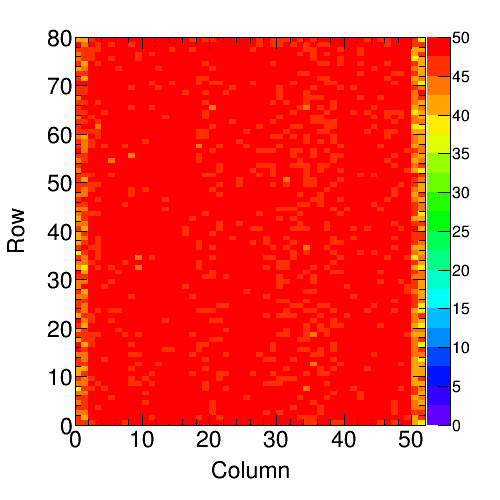

Efficiency Map 50: C12
Efficiency Map 75: C12
Efficiency Map 100: C12
Efficiency Map 125: C12
Efficiency Map 150: C12
Efficiency Map 200: C12
Efficiency Map 250: C12
Efficiency Distr. 50: C12
Plot
N N 4160
mu μ 99.87
sigma σ 0.51
Efficiency Distr. 75: C12
Plot
N N 4160
mu μ 99.74
sigma σ 0.74
Efficiency Distr. 100: C12
Plot
N N 4160
mu μ 99.49
sigma σ 1.08
Efficiency Distr. 125: C12
Plot
N N 4160
mu μ 99.15
sigma σ 1.47
Efficiency Distr. 150: C12
Plot
N N 4160
mu μ 98.60
sigma σ 2.01
Efficiency Distr. 200: C12
Plot
N N 4160
mu μ 96.68
sigma σ 3.75
Efficiency Distr. 250: C12
Plot
N N 4160
mu μ 93.87
sigma σ 6.02

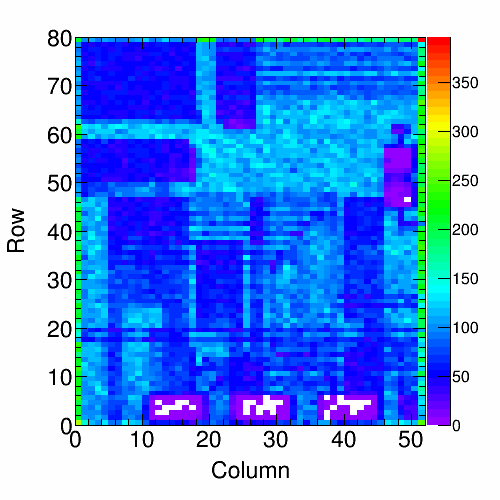

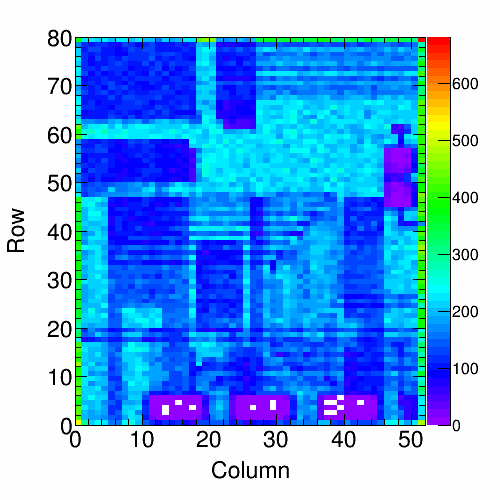

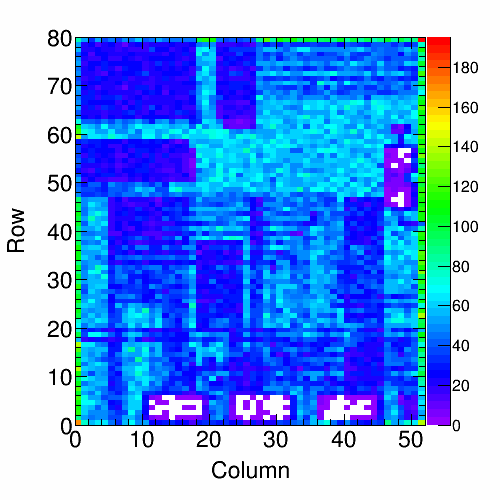

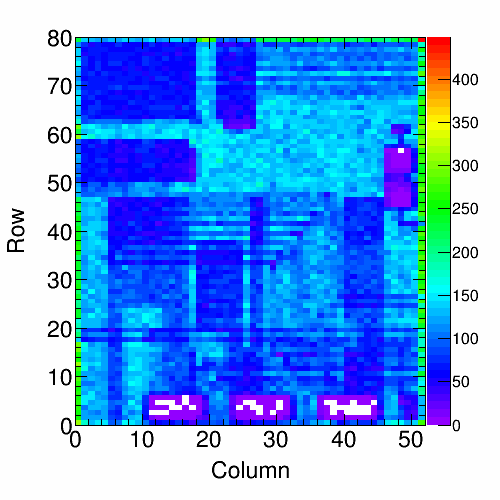

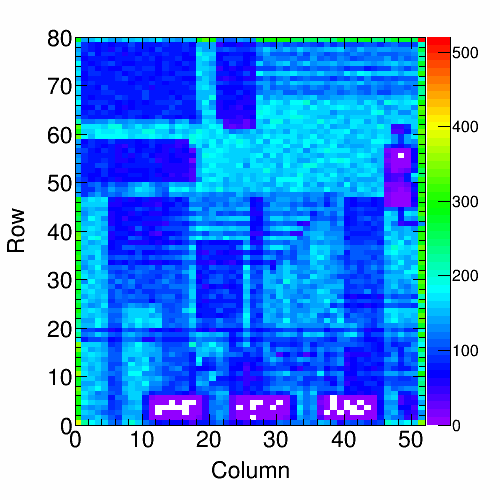

Background Map 50: C12
Plot
RealHitrate Real Hitrate 49.92 MHz/cm2
Background Map 75: C12
Plot
RealHitrate Real Hitrate 72.73 MHz/cm2
Background Map 100: C12
Plot
RealHitrate Real Hitrate 100.06 MHz/cm2
Background Map 125: C12
Plot
RealHitrate Real Hitrate 121.31 MHz/cm2
Background Map 150: C12
Plot
RealHitrate Real Hitrate 144.45 MHz/cm2
Background Map 200: C12
Plot
RealHitrate Real Hitrate 194.32 MHz/cm2
Background Map 250: C12
Plot
RealHitrate Real Hitrate 239.47 MHz/cm2
Retrim Hot Pix 0: C12
Retrim Hot Pix 150: C12
Masked Hot Pixels 150: C12
Masked Hot Pixels 50: C12
Hit Map 150: C12
Plot
RealHitrate Real Hitrate 142.74 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C12
Hit Map 50: C12
Plot
RealHitrate Real Hitrate 48.44 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C12
Col. Read. Unif. 150: C12
Plot
N N 20216809
mu μ 443853
sigma σ 119518.16
Col. Read. Unif. 50: C12
Plot
N N 6848360
mu μ 150653
sigma σ 43353.03
Read. Unif. over Time 150: C12
Plot
N N 23080339
mu μ 23408
sigma_th σ_th 153.00
Time unif. distribution 150: C12
Plot
chi2/ndf chi2/ndf 6.66
sigma σ 172.81
sigma_th σ_th 153.01
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C12
Plot
N N 7833940
mu μ 7945
sigma_th σ_th 89.14
Time unif. distribution 50: C12
Plot
chi2/ndf chi2/ndf 0.79
sigma σ 91.94
sigma_th σ_th 89.14
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C12

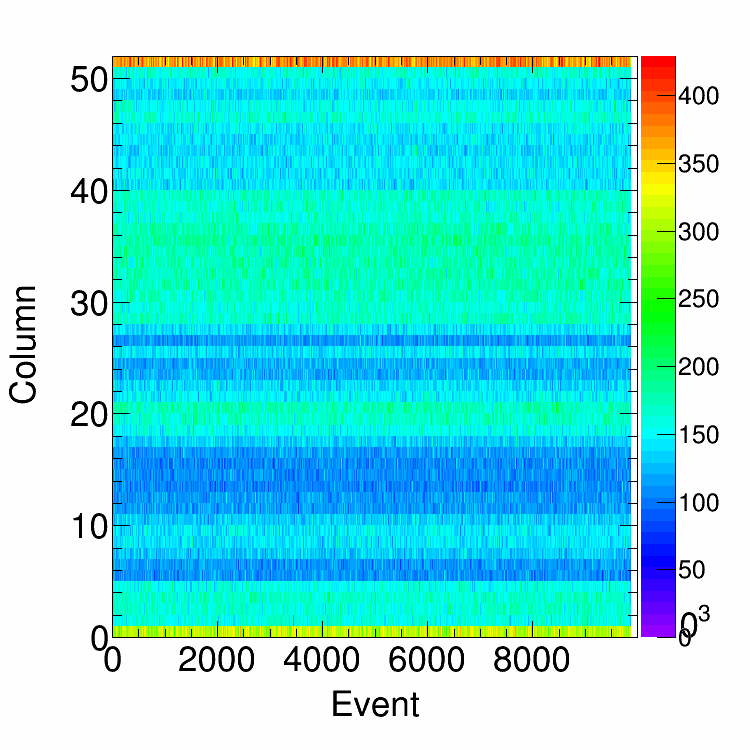

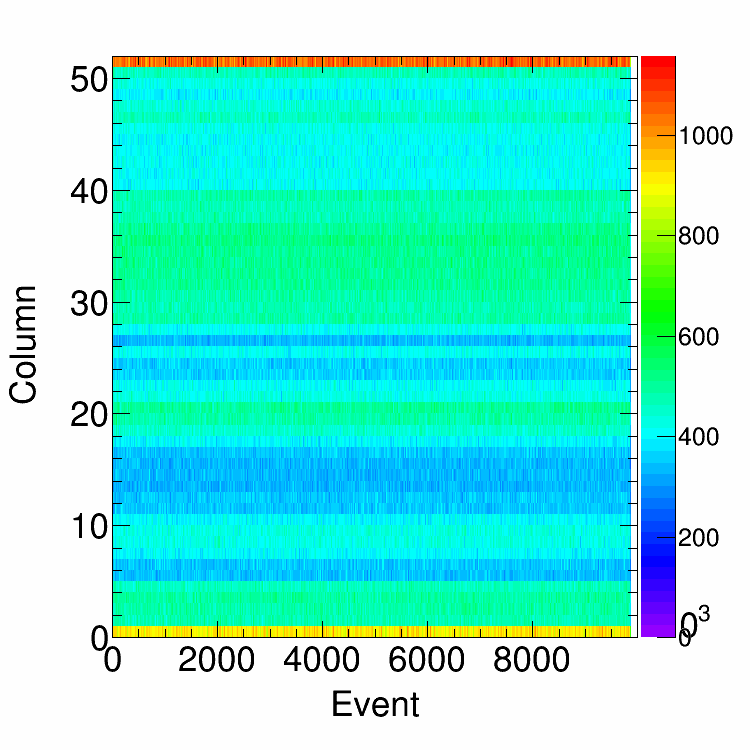

Col. Uniformity per Event: C12 150
Plot
mu μ 26.74
sigma fit error of μ 2.20
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C12 50
Plot
mu μ 27.04
sigma fit error of μ 2.17
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C12 100
Plot
N N 4160
mu μ 161.36
sigma RMS 15.18
threshold thr 2122.13
fit fit Gaussian
fit_peak μ fit 161.19
fit_sigma σ fit 14.88
MeasuredHitrate Measured hitrate: 99.7
Alive Map: C12
DC Efficiency Distribution: C12
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.36
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C12
