Test Date: 2016-01-12 12:57
Analysis date: 2016-05-26 07:50
Chip 8
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 1/2
Efficiency Efficiency 50/120 99.87/99.38
EfficiencyFit Efficiency Fit chi2/ndf: 0.54, # points: 97
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C8
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.54
NumberFitPoints # fit points 97
p0 p0 99.91
p1 p1 3.10e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.87
InterpolatedEfficiency120 Interpol. Efficiency 120 99.38

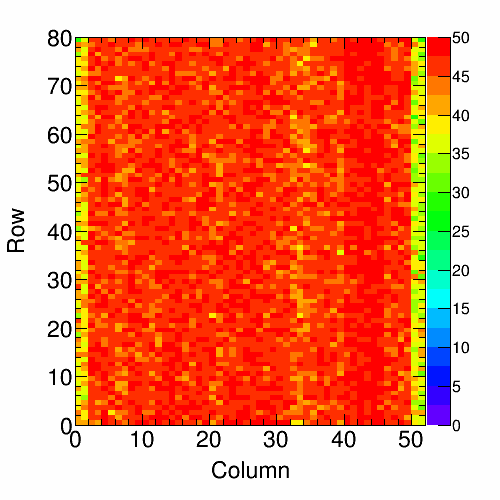

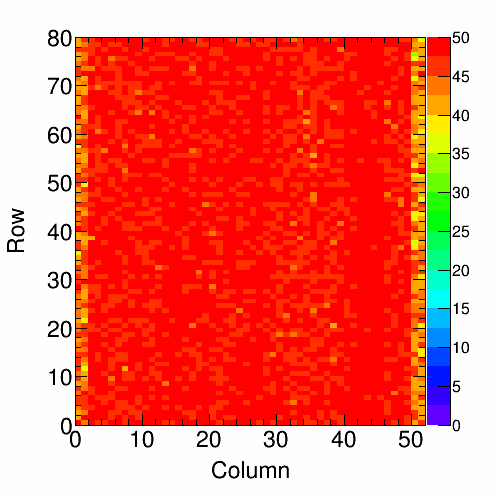

Efficiency Map 50: C8
Efficiency Map 75: C8
Efficiency Map 100: C8
Efficiency Map 125: C8
Efficiency Map 150: C8
Efficiency Map 200: C8
Efficiency Map 250: C8
Efficiency Distr. 50: C8
Plot
N N 4160
mu μ 99.85
sigma σ 0.56
Efficiency Distr. 75: C8
Plot
N N 4160
mu μ 99.70
sigma σ 0.77
Efficiency Distr. 100: C8
Plot
N N 4160
mu μ 99.35
sigma σ 1.19
Efficiency Distr. 125: C8
Plot
N N 4160
mu μ 98.86
sigma σ 1.66
Efficiency Distr. 150: C8
Plot
N N 4160
mu μ 98.17
sigma σ 2.28
Efficiency Distr. 200: C8
Plot
N N 4160
mu μ 95.45
sigma σ 4.13
Efficiency Distr. 250: C8
Plot
N N 4160
mu μ 91.37
sigma σ 6.33

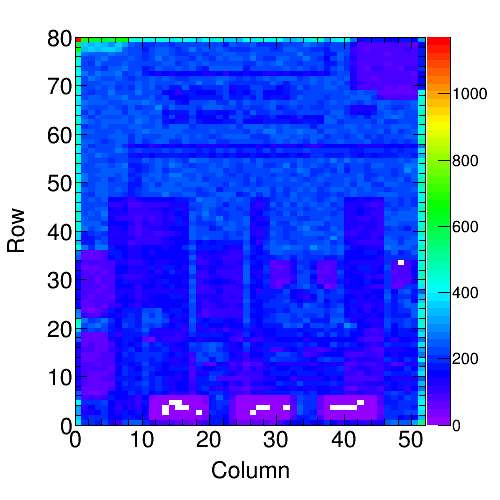

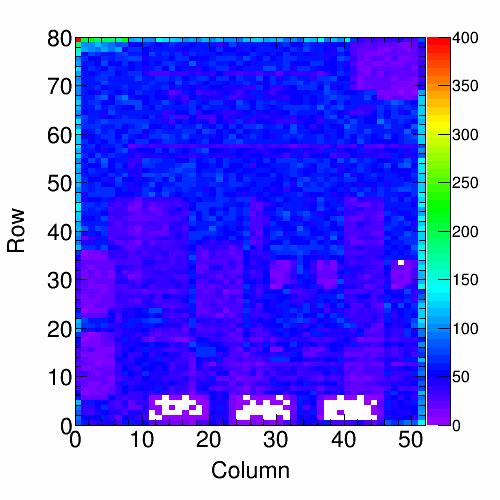

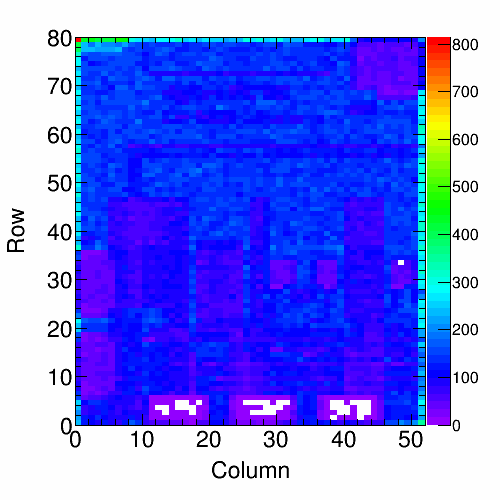

Background Map 50: C8
Plot
RealHitrate Real Hitrate 57.15 MHz/cm2

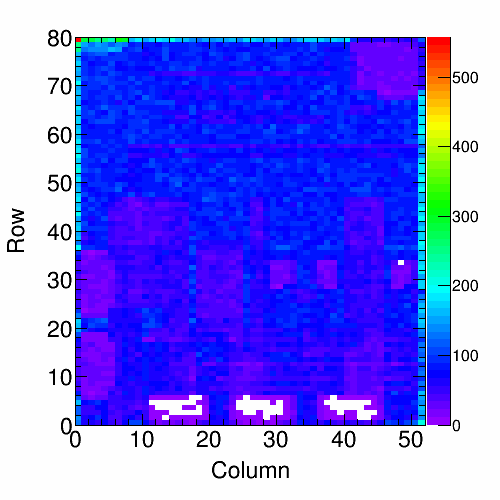

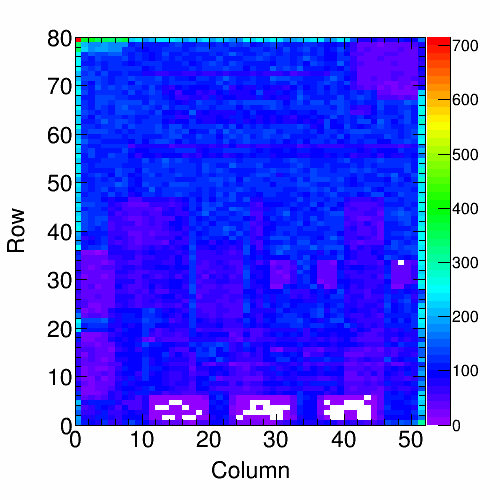

Background Map 75: C8
Plot
RealHitrate Real Hitrate 83.38 MHz/cm2
Background Map 100: C8
Plot
RealHitrate Real Hitrate 114.54 MHz/cm2
Background Map 125: C8
Plot
RealHitrate Real Hitrate 138.64 MHz/cm2
Background Map 150: C8
Plot
RealHitrate Real Hitrate 164.59 MHz/cm2
Background Map 200: C8
Plot
RealHitrate Real Hitrate 222.14 MHz/cm2

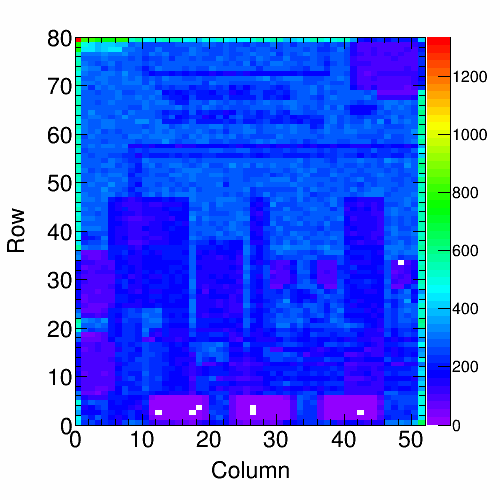

Background Map 250: C8
Plot
RealHitrate Real Hitrate 273.10 MHz/cm2
Retrim Hot Pix 0: C8
Retrim Hot Pix 150: C8
Masked Hot Pixels 150: C8
Masked Hot Pixels 50: C8

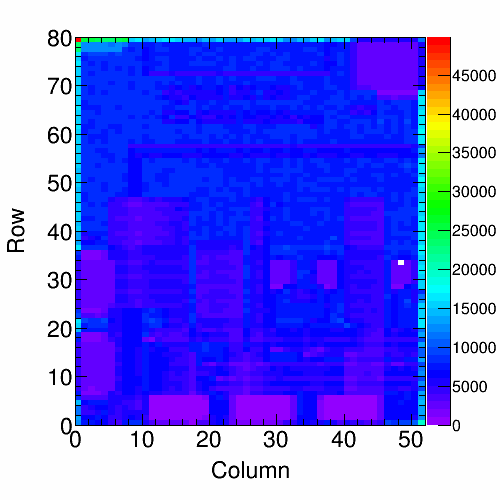

Hit Map 150: C8
Plot
RealHitrate Real Hitrate 163.67 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 1
BB Defects 150: C8

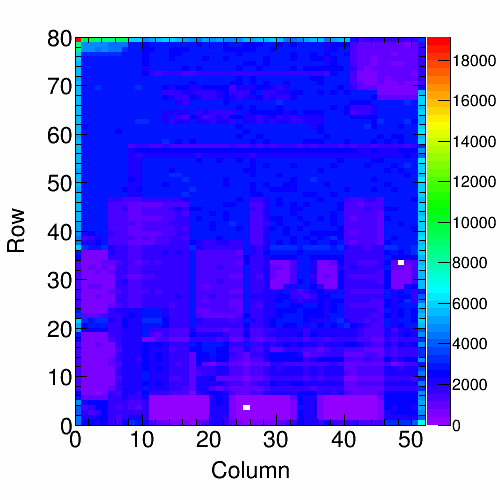

Hit Map 50: C8
Plot
RealHitrate Real Hitrate 56.27 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 2
BB Defects 50: C8
Col. Read. Unif. 150: C8
Plot
N N 23406191
mu μ 508925
sigma σ 116158.71
Col. Read. Unif. 50: C8
Plot
N N 8036704
mu μ 175005
sigma σ 41691.49
Read. Unif. over Time 150: C8
Plot
N N 26464097
mu μ 26840
sigma_th σ_th 163.83
Time unif. distribution 150: C8
Plot
chi2/ndf chi2/ndf 3.57
sigma σ 175.70
sigma_th σ_th 163.85
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C8
Plot
N N 9100285
mu μ 9229
sigma_th σ_th 96.07
Time unif. distribution 50: C8
Plot
chi2/ndf chi2/ndf 1.01
sigma σ 100.39
sigma_th σ_th 96.08
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C8

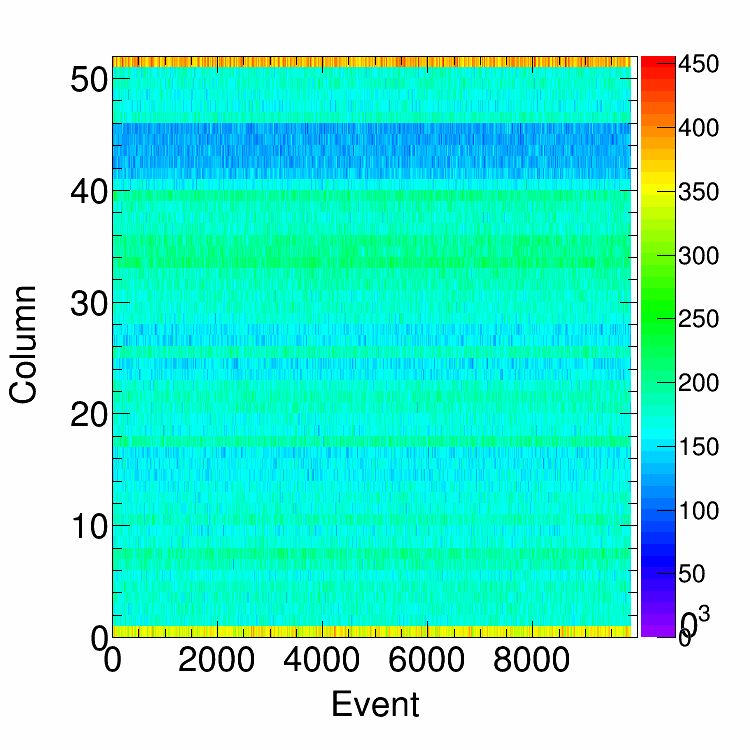

Col. Uniformity per Event: C8 150
Plot
mu μ 25.69
sigma fit error of μ 2.18
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C8 50
Plot
mu μ 26.00
sigma fit error of μ 2.17
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C8 100
Plot
N N 4160
mu μ 152.81
sigma RMS 15.04
threshold thr 2172.26
fit fit Gaussian
fit_peak μ fit 152.76
fit_sigma σ fit 14.97
MeasuredHitrate Measured hitrate: 114.6
Alive Map: C8
DC Efficiency Distribution: C8
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.37
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C8
