Test Date: 2016-01-12 12:57
Analysis date: 2016-05-26 07:50
Chip 0
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.86/99.28
EfficiencyFit Efficiency Fit chi2/ndf: 0.49, # points: 122
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C0
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.49
NumberFitPoints # fit points 122
p0 p0 99.91
p1 p1 3.65e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.28
Efficiency Map 50: C0
Efficiency Map 75: C0
Efficiency Map 100: C0
Efficiency Map 125: C0
Efficiency Map 150: C0
Efficiency Map 200: C0
Efficiency Map 250: C0
Efficiency Distr. 50: C0
Plot
N N 4160
mu μ 99.93
sigma σ 0.38
Efficiency Distr. 75: C0
Plot
N N 4160
mu μ 99.86
sigma σ 0.53
Efficiency Distr. 100: C0
Plot
N N 4160
mu μ 99.77
sigma σ 0.69
Efficiency Distr. 125: C0
Plot
N N 4160
mu μ 99.63
sigma σ 0.90
Efficiency Distr. 150: C0
Plot
N N 4160
mu μ 99.44
sigma σ 1.13
Efficiency Distr. 200: C0
Plot
N N 4160
mu μ 98.76
sigma σ 1.85
Efficiency Distr. 250: C0
Plot
N N 4160
mu μ 97.81
sigma σ 2.70

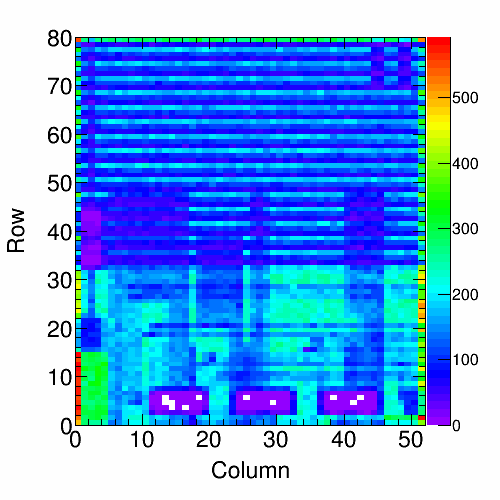

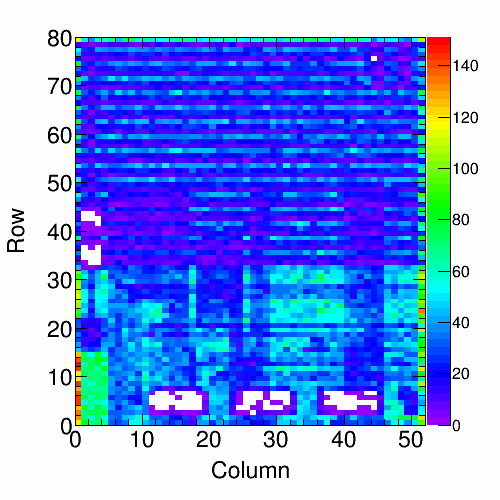

Background Map 50: C0
Plot
RealHitrate Real Hitrate 34.35 MHz/cm2

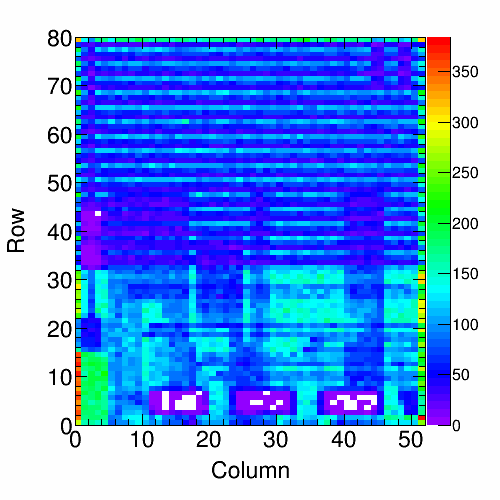

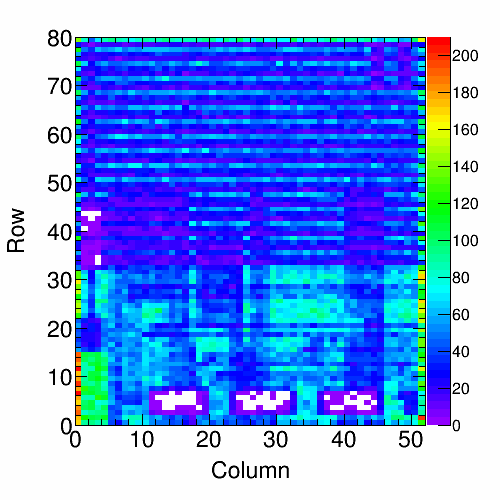

Background Map 75: C0
Plot
RealHitrate Real Hitrate 49.95 MHz/cm2

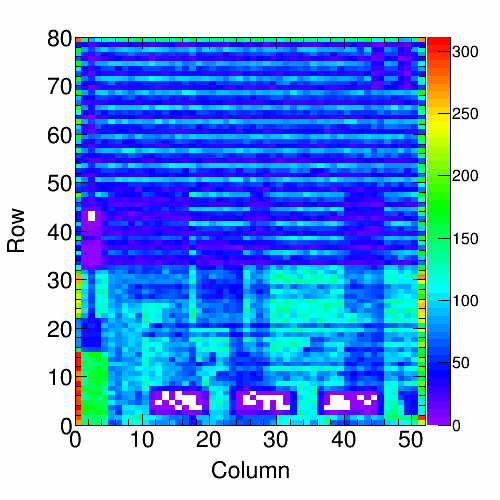

Background Map 100: C0
Plot
RealHitrate Real Hitrate 68.63 MHz/cm2
Background Map 125: C0
Plot
RealHitrate Real Hitrate 82.69 MHz/cm2
Background Map 150: C0
Plot
RealHitrate Real Hitrate 99.01 MHz/cm2
Background Map 200: C0
Plot
RealHitrate Real Hitrate 134.12 MHz/cm2
Background Map 250: C0
Plot
RealHitrate Real Hitrate 166.58 MHz/cm2
Retrim Hot Pix 0: C0
Retrim Hot Pix 150: C0
Masked Hot Pixels 150: C0
Masked Hot Pixels 50: C0

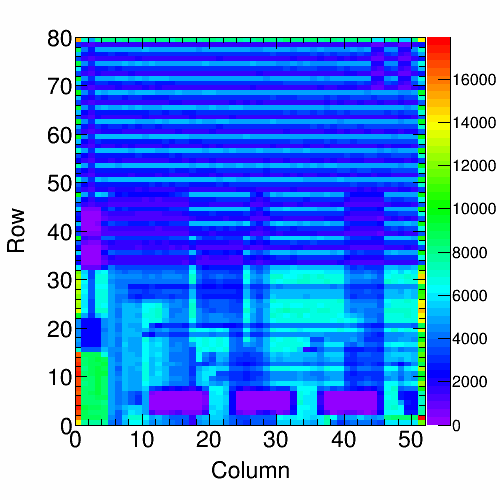

Hit Map 150: C0
Plot
RealHitrate Real Hitrate 97.71 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C0

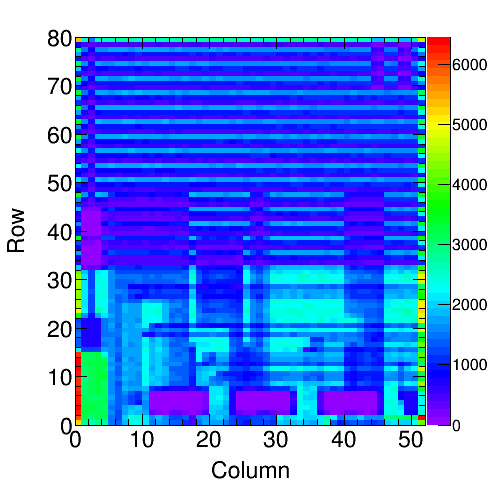

Hit Map 50: C0
Plot
RealHitrate Real Hitrate 32.70 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C0
Col. Read. Unif. 150: C0
Plot
N N 13827734
mu μ 303824
sigma σ 81566.82
Col. Read. Unif. 50: C0
Plot
N N 4610935
mu μ 101677
sigma σ 29156.99
Read. Unif. over Time 150: C0
Plot
N N 15798864
mu μ 16023
sigma_th σ_th 126.58
Time unif. distribution 150: C0
Plot
chi2/ndf chi2/ndf 5.75
sigma σ 143.06
sigma_th σ_th 126.60
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C0
Plot
N N 5287184
mu μ 5362
sigma_th σ_th 73.23
Time unif. distribution 50: C0
Plot
chi2/ndf chi2/ndf 2.25
sigma σ 79.50
sigma_th σ_th 73.23
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C0

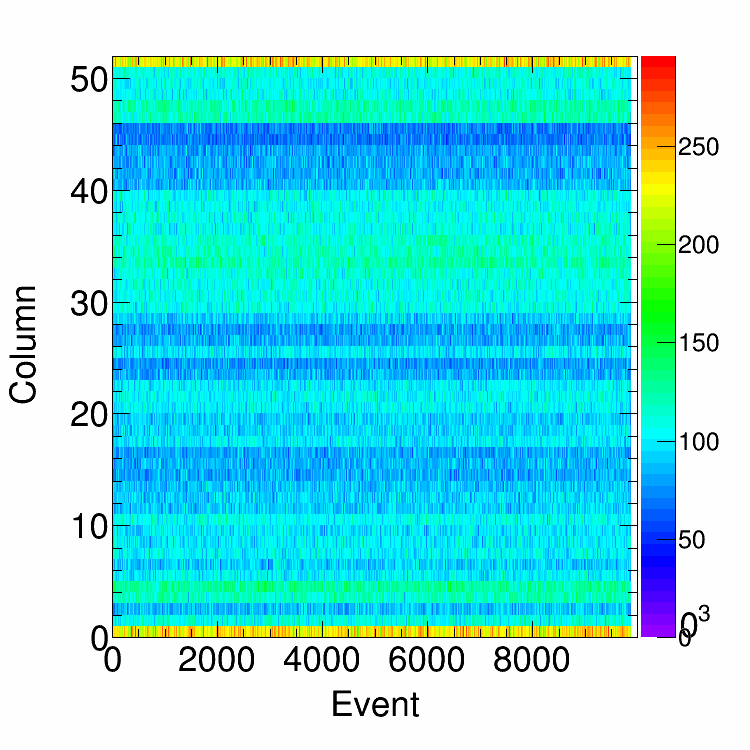

Col. Uniformity per Event: C0 150
Plot
mu μ 26.37
sigma fit error of μ 2.21
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C0 50
Plot
mu μ 26.07
sigma fit error of μ 2.23
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C0 100
Plot
N N 4160
mu μ 166.86
sigma RMS 13.96
threshold thr 2024.91
fit fit Gaussian
fit_peak μ fit 166.70
fit_sigma σ fit 13.87
MeasuredHitrate Measured hitrate: 68.7
Alive Map: C0
DC Efficiency Distribution: C0
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.28
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C0
