Test Date: 2016-01-12 12:57
Analysis date: 2016-05-26 07:50
Analysis date: 2016-05-26 07:50
Chip 9
Grading
| ROCGrade | Final ROC Grade | A | |
| NumberOfHotPixels | # Hot Pixels 150/50 | 0/0 | |
| NumberOfNonUniformColumns | # Non-Uniform Columns 150/50 | 0 | |
| NumberOfNonUniformEvents | # Non-Uniform ROC Events 150/50 | 0/0 | |
| NumberOfNonUniformColumnEvents | # Non-Uniform Col. Events 150/50 | 0/0 | |
| BadDoubleColumns | # Bad Double Columns | 0 | |
| BumpBondingDefects | # Bump Bonding Defects 150/50 | 0/1 | |
| Efficiency | Efficiency 50/120 | 99.87/99.21 | |
| EfficiencyFit | Efficiency Fit | chi2/ndf: 0.77, # points: 101 | |
| EfficiencyGrade | Efficiency Grade 50/120 | (A)/A | |
| BadDoubleColumnsGrade | Bad DC Grade | A | |
| HotPixelsGrade | Hot Pixels Grade 150/50 | A/A | |
| HitMapGrade | Hit Map Grade 150/50 | A/(A) | |
| ReadoutUniformityOverTimeGrade | ROC Read. Unif. Grade 150/50 | A/A | |
| ColumnReadoutUniformityOverTimeGrade | Column Read. Unif. Grade 150/50 | A/A | |
| ColumnUniformityGrade | Column Uniformity Grade | A | |
| NoiseGrade | Noise Grade | A |
Efficiency Interpolation: C9
| fitfunction | Fit | [0]-[1]*x^3 | |
| BadDoubleColumns | # Bad DCs (excluded from fit) | 0 | |
| Chi2NDF | chi2/ndf | 0.77 | |
| NumberFitPoints | # fit points | 101 | |
| p0 | p0 | 99.92 | |
| p1 | p1 | 4.12e-07 | |
| InterpolatedEfficiency50 | Interpol. Efficiency 50 | 99.87 | |
| InterpolatedEfficiency120 | Interpol. Efficiency 120 | 99.21 |

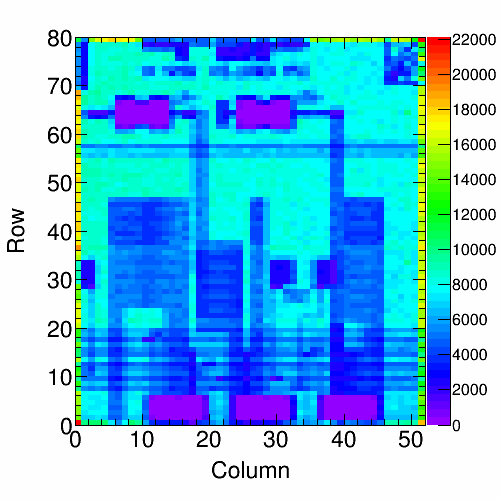

Hit Map 150: C9
| RealHitrate | Real Hitrate | 160.53 | MHz/cm2 |
| NumberOfDefectivePixels | # Defective Pixels | 0 |
Hit Map 50: C9
| RealHitrate | Real Hitrate | 54.99 | MHz/cm2 |
| NumberOfDefectivePixels | # Defective Pixels | 1 |
Col. Read. Unif. 150: C9
Col. Read. Unif. 50: C9
Read. Unif. over Time 150: C9
Time unif. distribution 150: C9
| chi2/ndf | chi2/ndf | 14.49 | |
| sigma | σ | 191.43 | |
| sigma_th | σ_th | 162.27 | |
| expectation | Red curve (expected) | Poisson |
Read. Unif. over Time 50: C9
Time unif. distribution 50: C9
| chi2/ndf | chi2/ndf | 2.14 | |
| sigma | σ | 102.40 | |
| sigma_th | σ_th | 94.97 | |
| expectation | Red curve (expected) | Poisson |
Col. Uniformity per Event: C9 150
| mu | μ | 26.20 | |
| sigma | fit error of μ | 2.26 | |
| NumberOfNonUniformColumnEvents | Non uniform 10.000 event bins | 0 |
Col. Uniformity per Event: C9 50
| mu | μ | 26.16 | |
| sigma | fit error of μ | 2.28 | |
| NumberOfNonUniformColumnEvents | Non uniform 10.000 event bins | 0 |
S-Curve widths: Noise (e^{-}) C9 100
| N | N | 4160 | |
| mu | μ | 161.69 | |
| sigma | RMS | 15.35 | |
| threshold | thr | 2155.66 | |
| fit | fit | Gaussian | |
| fit_peak | μ fit | 161.55 | |
| fit_sigma | σ fit | 15.19 | |
| MeasuredHitrate | Measured hitrate: | 112.2 |
DC Efficiency Distribution: C9
| MeanEfficiency_50 | Mean Efficiency 50 MHz/cm2 | 99.87 | |
| MeanEfficiency_120 | Mean Efficiency 120 MHz/cm2 | 99.20 | |
| NBadDoubleColumns | Bad Double Columns | 0 |
