Test Date: 2016-01-12 12:57
Analysis date: 2016-05-26 07:50
Chip 6
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/1
Efficiency Efficiency 50/120 99.89/99.37
EfficiencyFit Efficiency Fit chi2/ndf: 0.79, # points: 94
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C6
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.79
NumberFitPoints # fit points 94
p0 p0 99.93
p1 p1 3.27e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.89
InterpolatedEfficiency120 Interpol. Efficiency 120 99.37

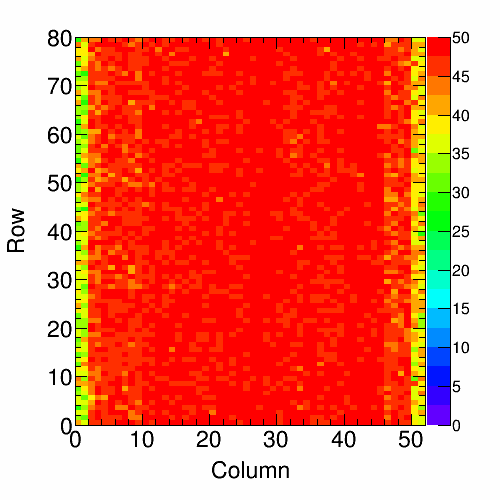

Efficiency Map 50: C6
Efficiency Map 75: C6
Efficiency Map 100: C6
Efficiency Map 125: C6
Efficiency Map 150: C6
Efficiency Map 200: C6
Efficiency Map 250: C6
Efficiency Distr. 50: C6
Plot
N N 4160
mu μ 99.83
sigma σ 0.60
Efficiency Distr. 75: C6
Plot
N N 4160
mu μ 99.63
sigma σ 0.92
Efficiency Distr. 100: C6
Plot
N N 4160
mu μ 99.17
sigma σ 1.50
Efficiency Distr. 125: C6
Plot
N N 4160
mu μ 98.57
sigma σ 2.30
Efficiency Distr. 150: C6
Plot
N N 4160
mu μ 97.63
sigma σ 3.31
Efficiency Distr. 200: C6
Plot
N N 4160
mu μ 94.12
sigma σ 6.90
Efficiency Distr. 250: C6
Plot
N N 4160
mu μ 89.54
sigma σ 10.31

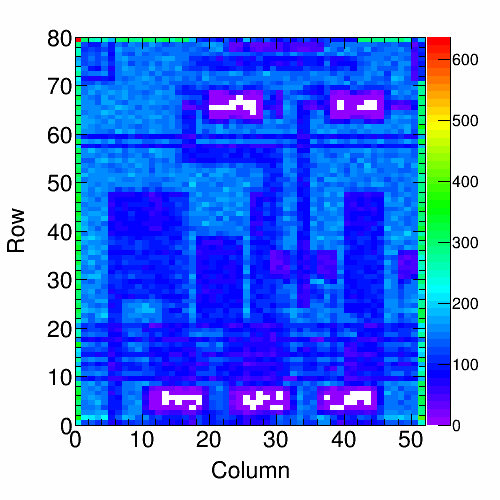

Background Map 50: C6
Plot
RealHitrate Real Hitrate 59.53 MHz/cm2

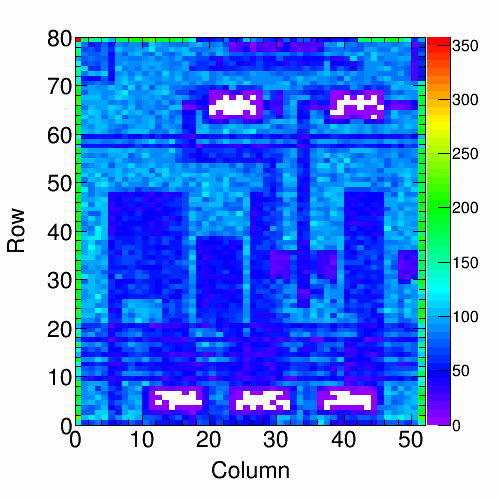

Background Map 75: C6
Plot
RealHitrate Real Hitrate 86.47 MHz/cm2

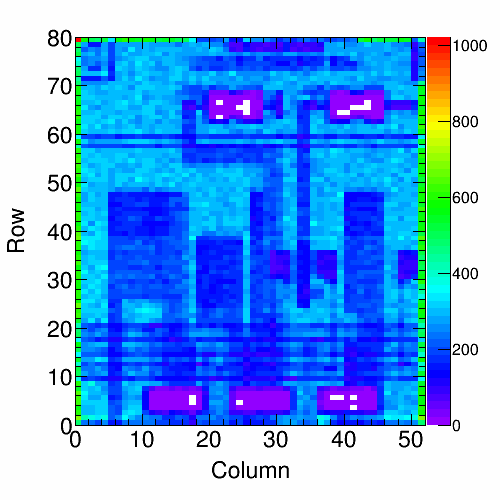

Background Map 100: C6
Plot
RealHitrate Real Hitrate 118.49 MHz/cm2
Background Map 125: C6
Plot
RealHitrate Real Hitrate 142.94 MHz/cm2
Background Map 150: C6
Plot
RealHitrate Real Hitrate 170.02 MHz/cm2
Background Map 200: C6
Plot
RealHitrate Real Hitrate 230.07 MHz/cm2
Background Map 250: C6
Plot
RealHitrate Real Hitrate 281.90 MHz/cm2
Retrim Hot Pix 0: C6
Retrim Hot Pix 150: C6
Masked Hot Pixels 150: C6
Masked Hot Pixels 50: C6

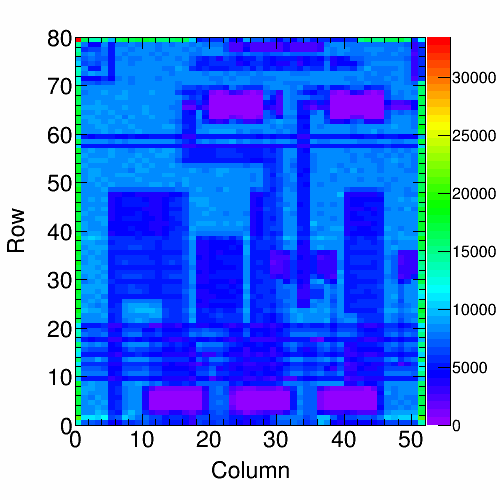

Hit Map 150: C6
Plot
RealHitrate Real Hitrate 167.30 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C6

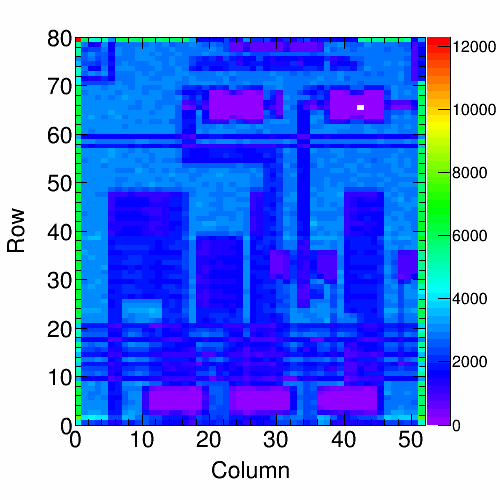

Hit Map 50: C6
Plot
RealHitrate Real Hitrate 57.87 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 1
BB Defects 50: C6
Col. Read. Unif. 150: C6
Plot
N N 23416946
mu μ 520210
sigma σ 162580.11
Col. Read. Unif. 50: C6
Plot
N N 8070860
mu μ 179956
sigma σ 59613.97
Read. Unif. over Time 150: C6
Plot
N N 27050901
mu μ 27435
sigma_th σ_th 165.64
Time unif. distribution 150: C6
Plot
chi2/ndf chi2/ndf 4.80
sigma σ 179.46
sigma_th σ_th 165.66
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C6
Plot
N N 9357699
mu μ 9491
sigma_th σ_th 97.42
Time unif. distribution 50: C6
Plot
chi2/ndf chi2/ndf 1.73
sigma σ 101.33
sigma_th σ_th 97.42
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C6

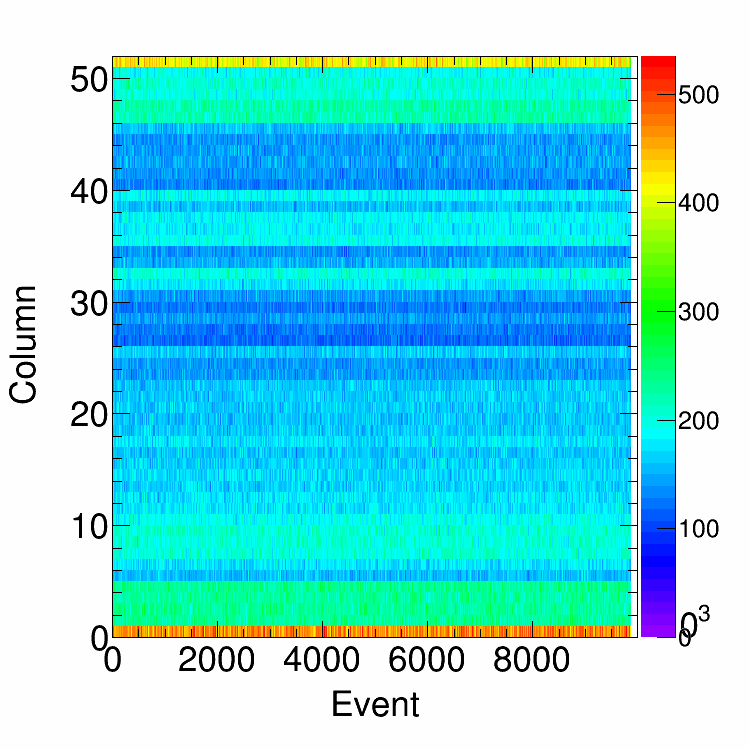

Col. Uniformity per Event: C6 150
Plot
mu μ 25.32
sigma fit error of μ 2.27
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

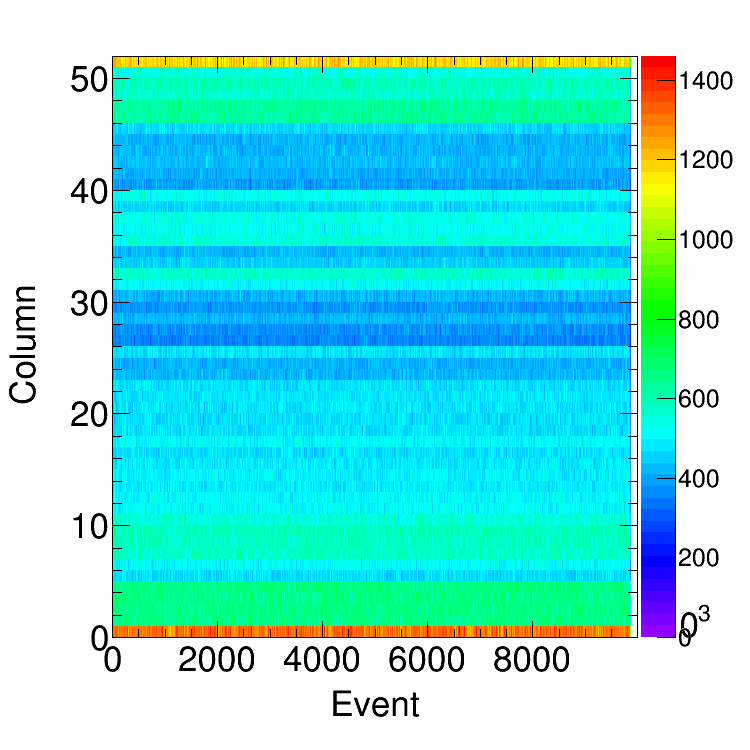

Col. Uniformity per Event: C6 50
Plot
mu μ 25.27
sigma fit error of μ 2.30
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C6 100
Plot
N N 4160
mu μ 156.61
sigma RMS 15.60
threshold thr 2203.48
fit fit Gaussian
fit_peak μ fit 156.21
fit_sigma σ fit 14.99
MeasuredHitrate Measured hitrate: 118.0
Alive Map: C6
DC Efficiency Distribution: C6
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.89
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.38
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C6
