Test Date: 2016-01-12 12:57
Analysis date: 2016-05-26 07:50
Chip 15
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.83/99.06
EfficiencyFit Efficiency Fit chi2/ndf: 0.90, # points: 127
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C15
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.90
NumberFitPoints # fit points 127
p0 p0 99.89
p1 p1 4.82e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.83
InterpolatedEfficiency120 Interpol. Efficiency 120 99.06
Efficiency Map 50: C15
Efficiency Map 75: C15
Efficiency Map 100: C15
Efficiency Map 125: C15
Efficiency Map 150: C15
Efficiency Map 200: C15
Efficiency Map 250: C15
Efficiency Distr. 50: C15
Plot
N N 4160
mu μ 99.91
sigma σ 0.41
Efficiency Distr. 75: C15
Plot
N N 4160
mu μ 99.85
sigma σ 0.55
Efficiency Distr. 100: C15
Plot
N N 4160
mu μ 99.73
sigma σ 0.75
Efficiency Distr. 125: C15
Plot
N N 4160
mu μ 99.61
sigma σ 0.94
Efficiency Distr. 150: C15
Plot
N N 4160
mu μ 99.39
sigma σ 1.20
Efficiency Distr. 200: C15
Plot
N N 4160
mu μ 98.69
sigma σ 1.94
Efficiency Distr. 250: C15
Plot
N N 4160
mu μ 97.64
sigma σ 2.93

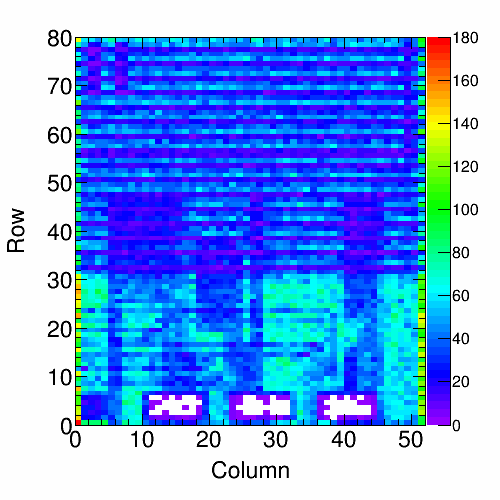

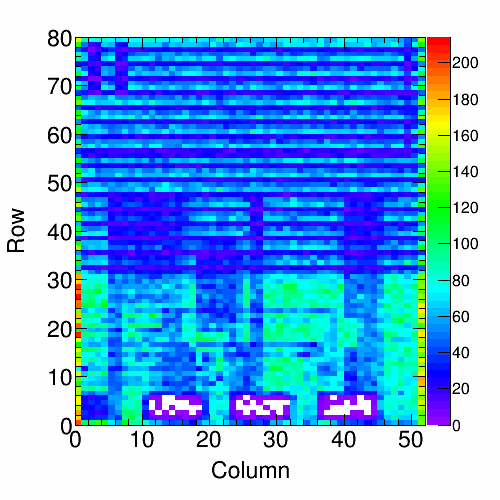

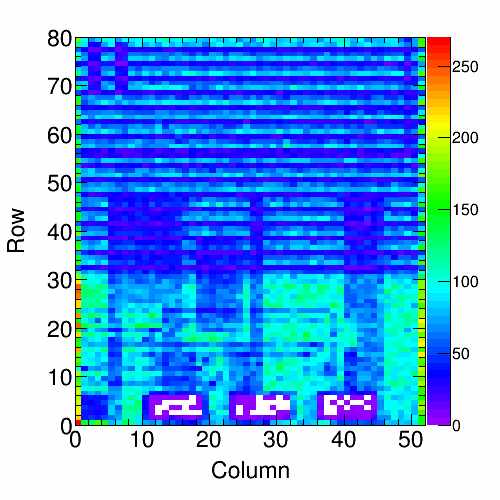

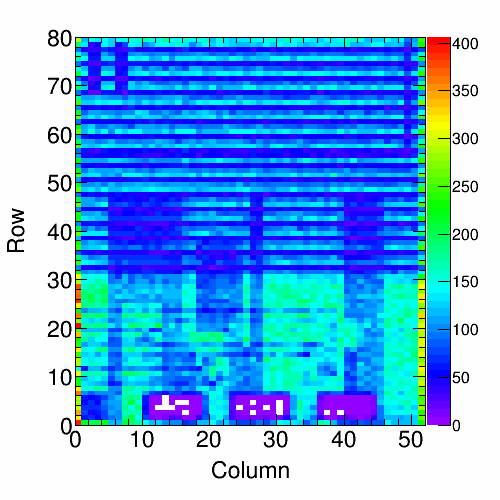

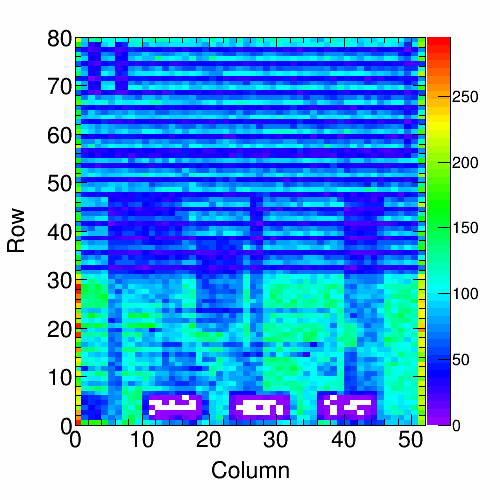

Background Map 50: C15
Plot
RealHitrate Real Hitrate 31.53 MHz/cm2
Background Map 75: C15
Plot
RealHitrate Real Hitrate 46.06 MHz/cm2
Background Map 100: C15
Plot
RealHitrate Real Hitrate 63.02 MHz/cm2
Background Map 125: C15
Plot
RealHitrate Real Hitrate 76.82 MHz/cm2
Background Map 150: C15
Plot
RealHitrate Real Hitrate 91.29 MHz/cm2
Background Map 200: C15
Plot
RealHitrate Real Hitrate 123.41 MHz/cm2
Background Map 250: C15
Plot
RealHitrate Real Hitrate 152.51 MHz/cm2
Retrim Hot Pix 0: C15
Retrim Hot Pix 150: C15
Masked Hot Pixels 150: C15
Masked Hot Pixels 50: C15

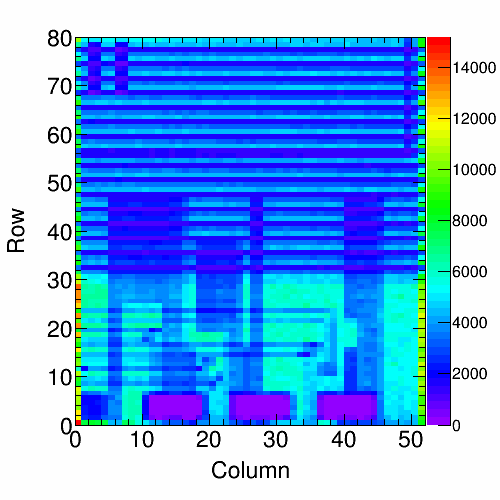

Hit Map 150: C15
Plot
RealHitrate Real Hitrate 89.90 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C15

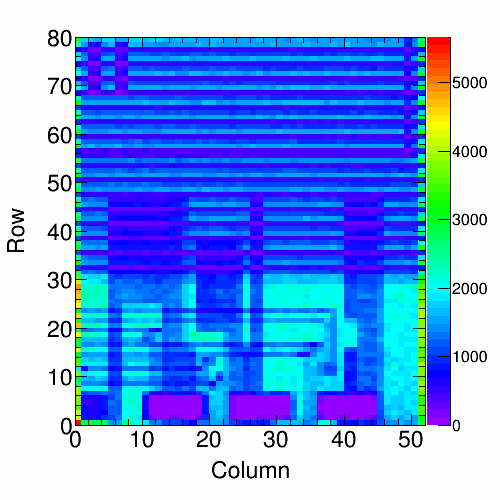

Hit Map 50: C15
Plot
RealHitrate Real Hitrate 30.04 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C15
Col. Read. Unif. 150: C15
Plot
N N 12689257
mu μ 279531
sigma σ 74939.60
Col. Read. Unif. 50: C15
Plot
N N 4226778
mu μ 93429
sigma σ 26679.82
Read. Unif. over Time 150: C15
Plot
N N 14535587
mu μ 14742
sigma_th σ_th 121.42
Time unif. distribution 150: C15
Plot
chi2/ndf chi2/ndf 8.51
sigma σ 139.00
sigma_th σ_th 121.43
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C15
Plot
N N 4858324
mu μ 4927
sigma_th σ_th 70.19
Time unif. distribution 50: C15
Plot
chi2/ndf chi2/ndf 1.12
sigma σ 75.27
sigma_th σ_th 70.20
expectation Red curve (expected) Poisson

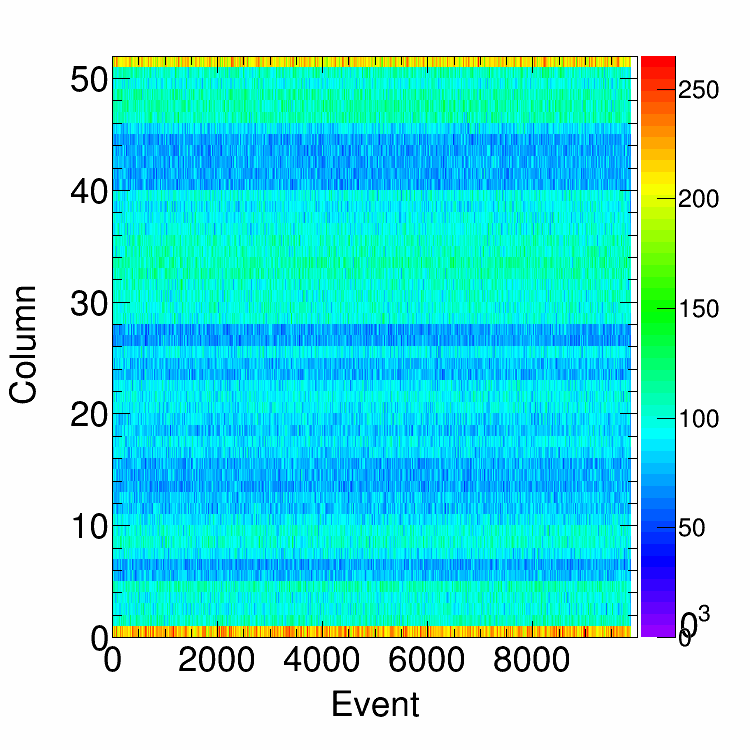

Col. Uniformity Ratio: C15
Col. Uniformity per Event: C15 150
Plot
mu μ 25.98
sigma fit error of μ 2.21
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C15 50
Plot
mu μ 26.15
sigma fit error of μ 2.23
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C15 100
Plot
N N 4160
mu μ 155.72
sigma RMS 13.84
threshold thr 2019.05
fit fit Gaussian
fit_peak μ fit 155.58
fit_sigma σ fit 13.60
MeasuredHitrate Measured hitrate: 62.9
Alive Map: C15
DC Efficiency Distribution: C15
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.85
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.06
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C15
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
