Test Date: 2016-01-12 12:57
Analysis date: 2016-05-26 07:50
Chip 2
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/1
Efficiency Efficiency 50/120 99.82/99.0
EfficiencyFit Efficiency Fit chi2/ndf: 0.67, # points: 104
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C2
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.67
NumberFitPoints # fit points 104
p0 p0 99.88
p1 p1 5.13e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.82
InterpolatedEfficiency120 Interpol. Efficiency 120 99.00

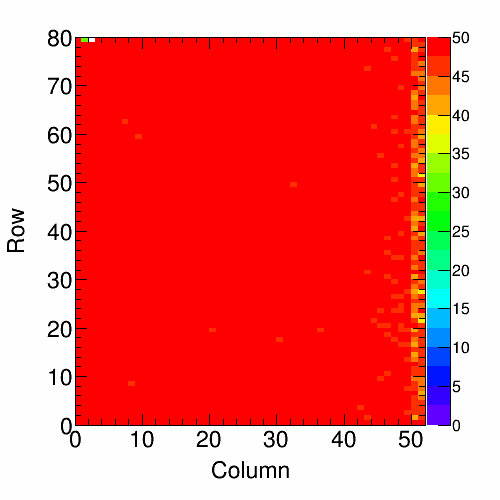

Efficiency Map 50: C2
Efficiency Map 75: C2
Efficiency Map 100: C2
Efficiency Map 125: C2

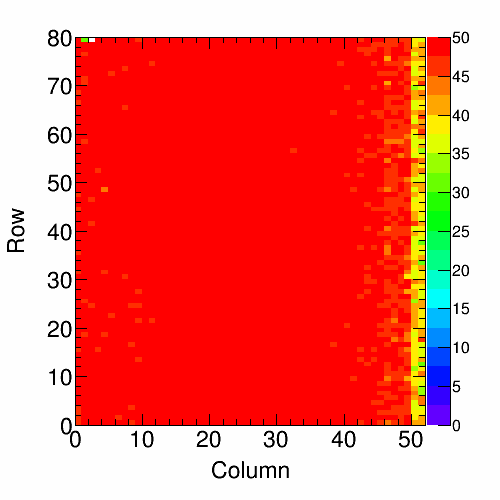

Efficiency Map 150: C2

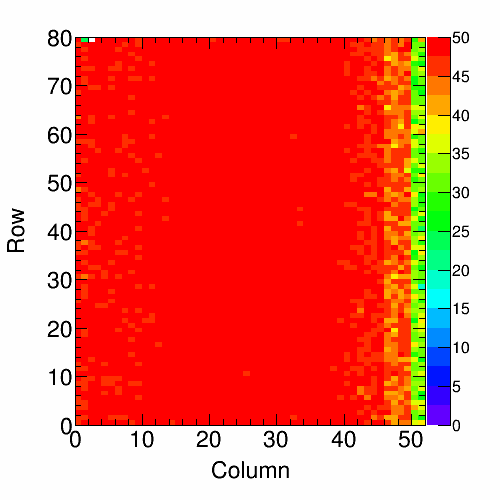

Efficiency Map 200: C2
Efficiency Map 250: C2
Efficiency Distr. 50: C2
Plot
N N 4160
mu μ 99.89
sigma σ 1.61
Efficiency Distr. 75: C2
Plot
N N 4160
mu μ 99.80
sigma σ 1.74
Efficiency Distr. 100: C2
Plot
N N 4160
mu μ 99.61
sigma σ 1.92
Efficiency Distr. 125: C2
Plot
N N 4160
mu μ 99.37
sigma σ 2.22
Efficiency Distr. 150: C2
Plot
N N 4160
mu μ 99.00
sigma σ 2.87
Efficiency Distr. 200: C2
Plot
N N 4160
mu μ 97.84
sigma σ 5.02
Efficiency Distr. 250: C2
Plot
N N 4160
mu μ 96.24
sigma σ 7.68

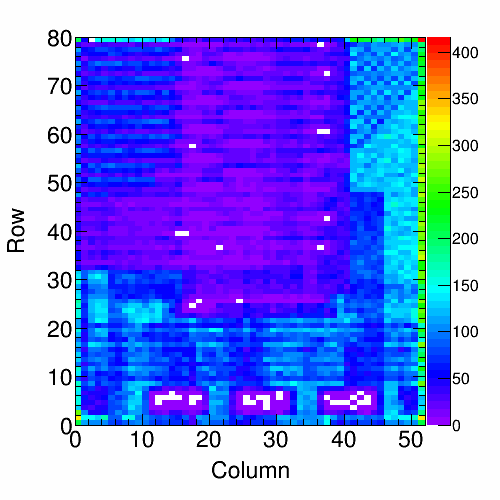

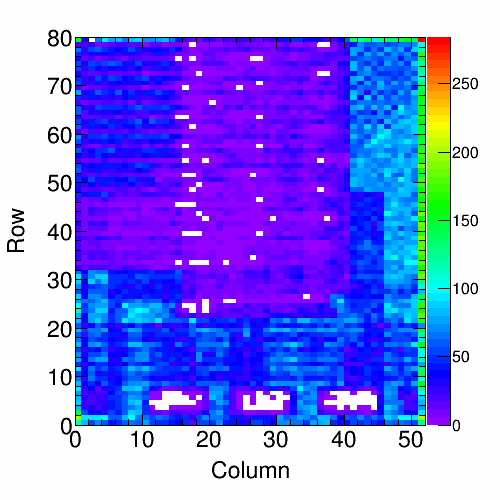

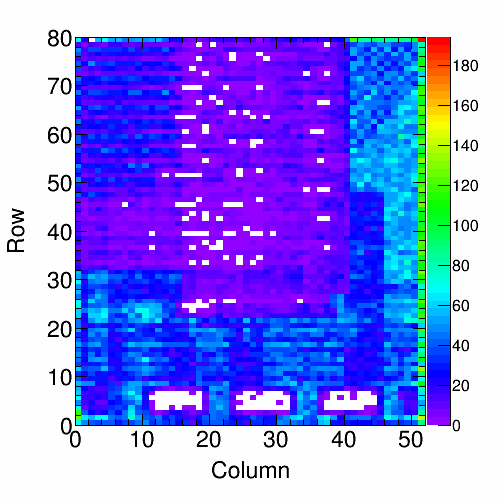

Background Map 50: C2
Plot
RealHitrate Real Hitrate 28.69 MHz/cm2

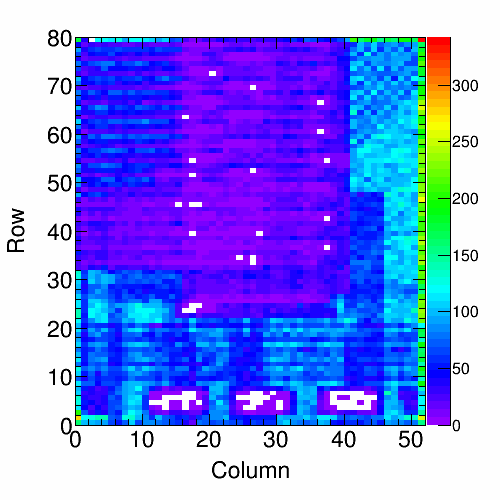

Background Map 75: C2
Plot
RealHitrate Real Hitrate 42.39 MHz/cm2

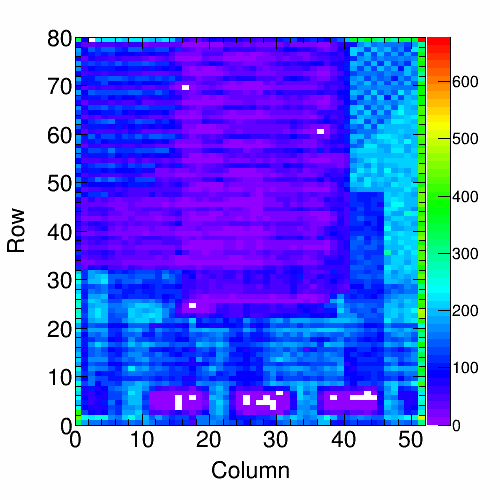

Background Map 100: C2
Plot
RealHitrate Real Hitrate 59.19 MHz/cm2

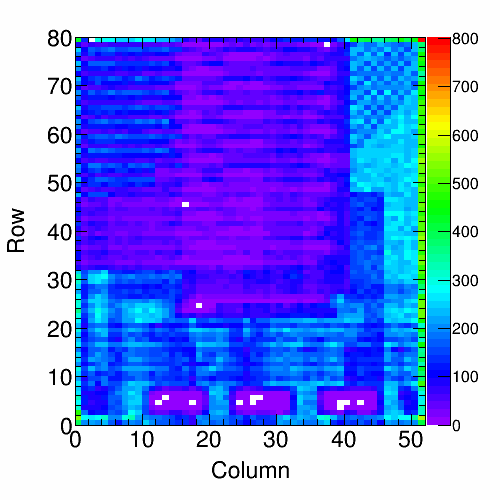

Background Map 125: C2
Plot
RealHitrate Real Hitrate 72.41 MHz/cm2
Background Map 150: C2
Plot
RealHitrate Real Hitrate 86.43 MHz/cm2
Background Map 200: C2
Plot
RealHitrate Real Hitrate 118.39 MHz/cm2
Background Map 250: C2
Plot
RealHitrate Real Hitrate 145.86 MHz/cm2
Retrim Hot Pix 0: C2
Retrim Hot Pix 150: C2
Masked Hot Pixels 150: C2
Masked Hot Pixels 50: C2

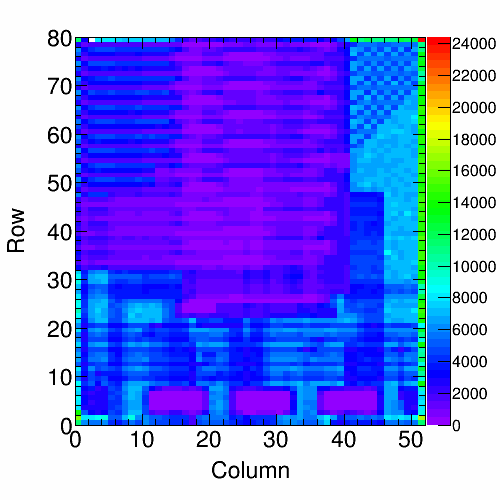

Hit Map 150: C2
Plot
RealHitrate Real Hitrate 84.32 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 1
BB Defects 150: C2

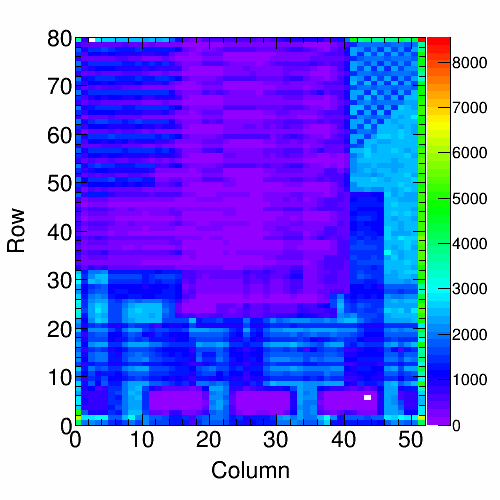

Hit Map 50: C2
Plot
RealHitrate Real Hitrate 27.39 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 2
BB Defects 50: C2
Col. Read. Unif. 150: C2
Plot
N N 11435137
mu μ 262179
sigma σ 160278.89
Col. Read. Unif. 50: C2
Plot
N N 3679372
mu μ 85184
sigma σ 58305.49
Read. Unif. over Time 150: C2
Plot
N N 13633331
mu μ 13827
sigma_th σ_th 117.59
Time unif. distribution 150: C2
Plot
chi2/ndf chi2/ndf 2.22
sigma σ 125.25
sigma_th σ_th 117.60
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C2
Plot
N N 4429567
mu μ 4492
sigma_th σ_th 67.03
Time unif. distribution 50: C2
Plot
chi2/ndf chi2/ndf 0.80
sigma σ 69.10
sigma_th σ_th 67.03
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C2

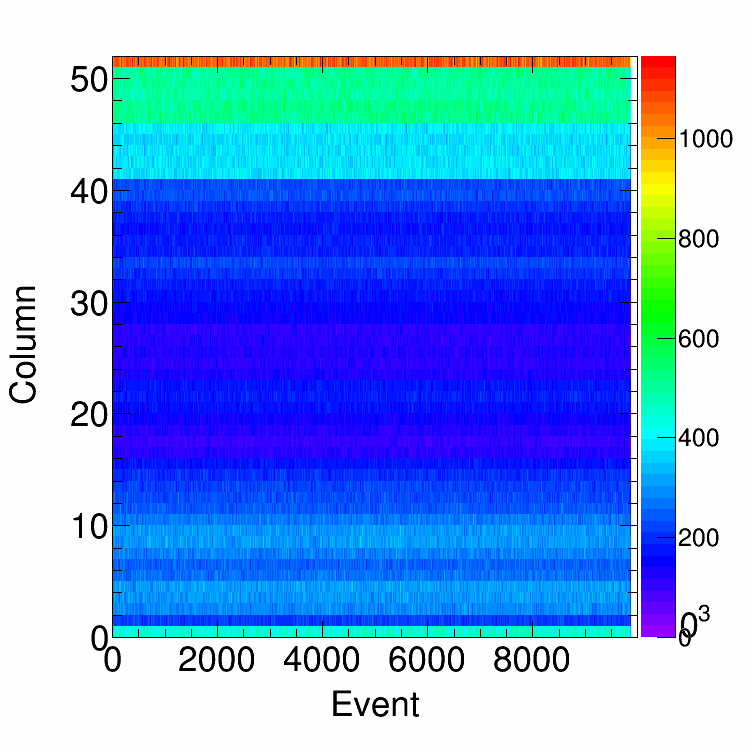

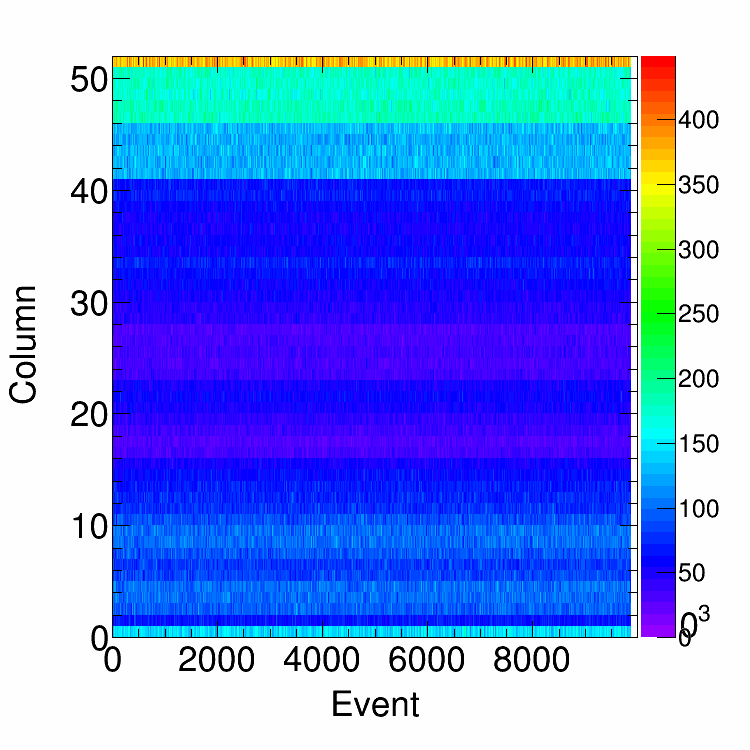

Col. Uniformity per Event: C2 150
Plot
mu μ 29.78
sigma fit error of μ 2.45
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C2 50
Plot
mu μ 30.93
sigma fit error of μ 2.47
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C2 100
Plot
N N 4158
mu μ 159.07
sigma RMS 13.91
threshold thr 1914.80
fit fit Gaussian
fit_peak μ fit 158.76
fit_sigma σ fit 13.56
MeasuredHitrate Measured hitrate: 58.9
over >= 2.00
Alive Map: C2
DC Efficiency Distribution: C2
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.84
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 98.87
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C2
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
