Test Date: 2016-01-12 12:57
Analysis date: 2016-05-26 07:50
Chip 10
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.88/99.36
EfficiencyFit Efficiency Fit chi2/ndf: 0.69, # points: 91
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C10
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.69
NumberFitPoints # fit points 91
p0 p0 99.92
p1 p1 3.23e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.88
InterpolatedEfficiency120 Interpol. Efficiency 120 99.36
Efficiency Map 50: C10
Efficiency Map 75: C10
Efficiency Map 100: C10
Efficiency Map 125: C10
Efficiency Map 150: C10
Efficiency Map 200: C10
Efficiency Map 250: C10
Efficiency Distr. 50: C10
Plot
N N 4160
mu μ 99.82
sigma σ 0.61
Efficiency Distr. 75: C10
Plot
N N 4160
mu μ 99.60
sigma σ 0.93
Efficiency Distr. 100: C10
Plot
N N 4160
mu μ 99.14
sigma σ 1.53
Efficiency Distr. 125: C10
Plot
N N 4160
mu μ 98.51
sigma σ 2.15
Efficiency Distr. 150: C10
Plot
N N 4160
mu μ 97.69
sigma σ 3.06
Efficiency Distr. 200: C10
Plot
N N 4160
mu μ 94.27
sigma σ 6.13
Efficiency Distr. 250: C10
Plot
N N 4160
mu μ 89.54
sigma σ 9.25

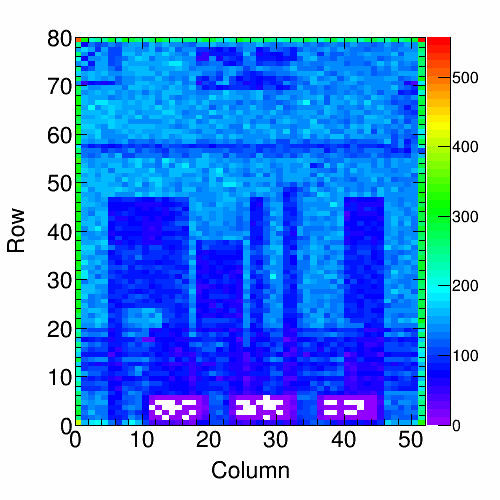

Background Map 50: C10
Plot
RealHitrate Real Hitrate 61.13 MHz/cm2

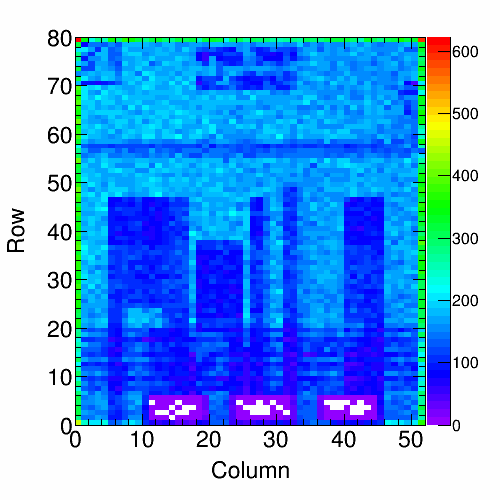

Background Map 75: C10
Plot
RealHitrate Real Hitrate 89.19 MHz/cm2

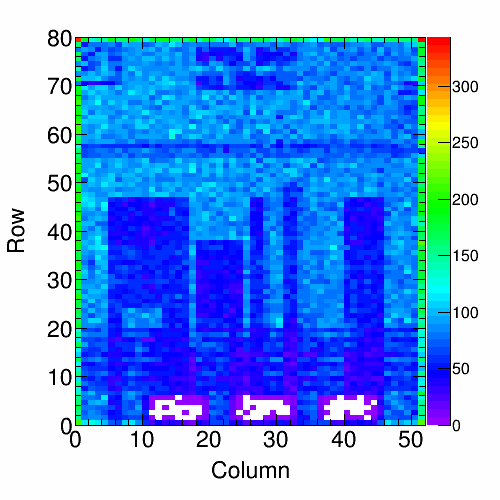

Background Map 100: C10
Plot
RealHitrate Real Hitrate 122.01 MHz/cm2

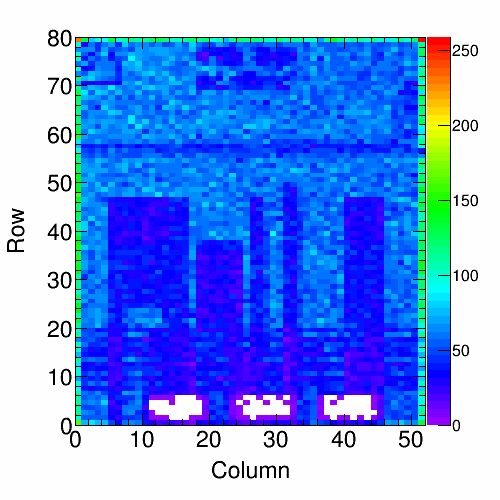

Background Map 125: C10
Plot
RealHitrate Real Hitrate 146.74 MHz/cm2

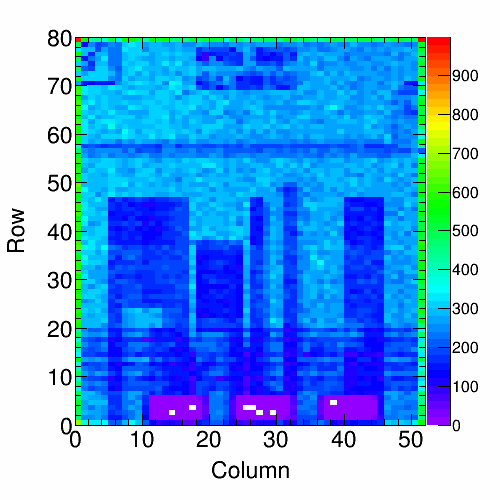

Background Map 150: C10
Plot
RealHitrate Real Hitrate 174.21 MHz/cm2

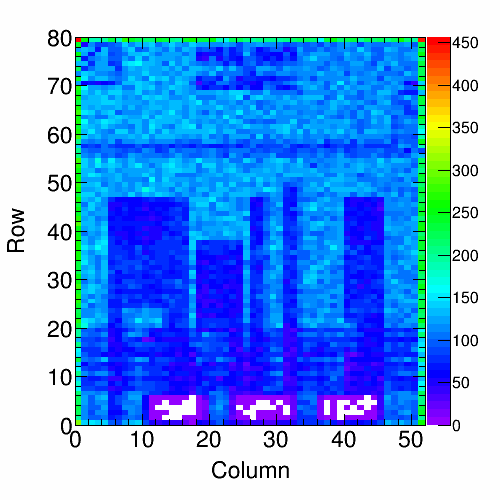

Background Map 200: C10
Plot
RealHitrate Real Hitrate 233.95 MHz/cm2
Background Map 250: C10
Plot
RealHitrate Real Hitrate 287.43 MHz/cm2
Retrim Hot Pix 0: C10
Retrim Hot Pix 150: C10
Masked Hot Pixels 150: C10
Masked Hot Pixels 50: C10

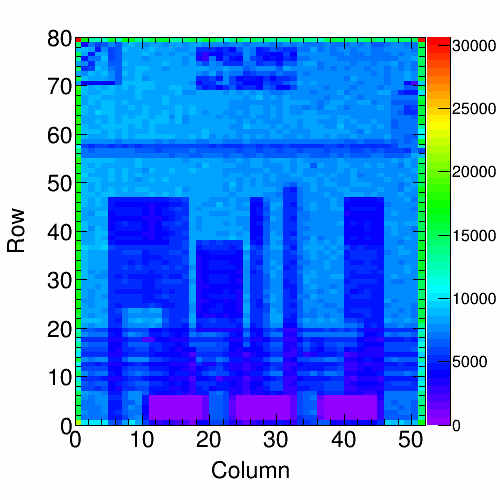

Hit Map 150: C10
Plot
RealHitrate Real Hitrate 172.42 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C10

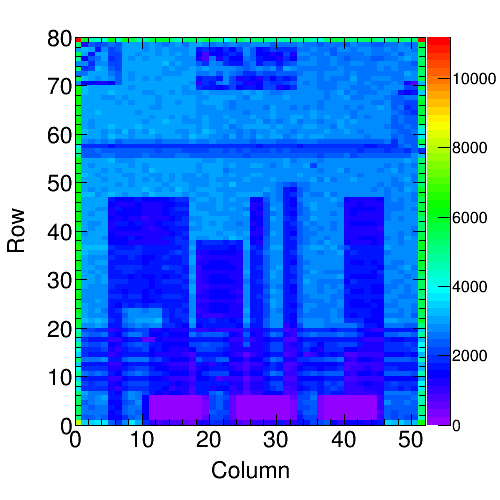

Hit Map 50: C10
Plot
RealHitrate Real Hitrate 60.04 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C10
Col. Read. Unif. 150: C10
Plot
N N 24301383
mu μ 536125
sigma σ 145356.08
Col. Read. Unif. 50: C10
Plot
N N 8441093
mu μ 186718
sigma σ 53151.70
Read. Unif. over Time 150: C10
Plot
N N 27878494
mu μ 28274
sigma_th σ_th 168.15
Time unif. distribution 150: C10
Plot
chi2/ndf chi2/ndf 12.27
sigma σ 195.70
sigma_th σ_th 168.17
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C10
Plot
N N 9709345
mu μ 9847
sigma_th σ_th 99.23
Time unif. distribution 50: C10
Plot
chi2/ndf chi2/ndf 2.80
sigma σ 106.85
sigma_th σ_th 99.24
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C10

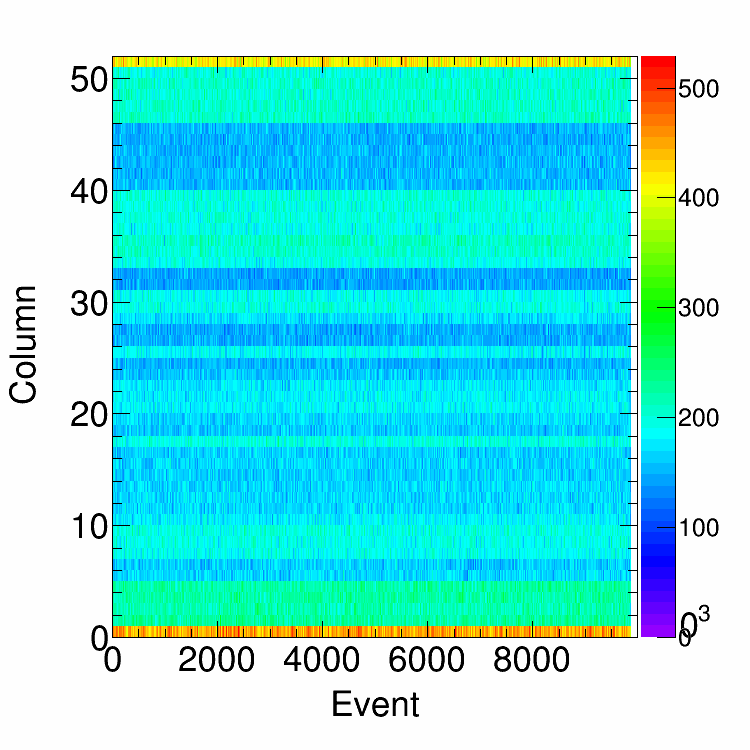

Col. Uniformity per Event: C10 150
Plot
mu μ 25.56
sigma fit error of μ 2.25
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C10 50
Plot
mu μ 25.80
sigma fit error of μ 2.24
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C10 100
Plot
N N 4160
mu μ 153.76
sigma RMS 16.07
threshold thr 2198.16
fit fit Gaussian
fit_peak μ fit 153.83
fit_sigma σ fit 15.94
MeasuredHitrate Measured hitrate: 121.6
Alive Map: C10
DC Efficiency Distribution: C10
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.36
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C10
