Test Date: 2016-01-12 12:57
Analysis date: 2016-05-26 07:50
Chip 1
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.88/99.37
EfficiencyFit Efficiency Fit chi2/ndf: 0.45, # points: 126
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C1
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.45
NumberFitPoints # fit points 126
p0 p0 99.92
p1 p1 3.20e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.88
InterpolatedEfficiency120 Interpol. Efficiency 120 99.37
Efficiency Map 50: C1
Efficiency Map 75: C1
Efficiency Map 100: C1
Efficiency Map 125: C1
Efficiency Map 150: C1
Efficiency Map 200: C1
Efficiency Map 250: C1
Efficiency Distr. 50: C1
Plot
N N 4160
mu μ 99.93
sigma σ 0.36
Efficiency Distr. 75: C1
Plot
N N 4160
mu μ 99.89
sigma σ 0.46
Efficiency Distr. 100: C1
Plot
N N 4160
mu μ 99.83
sigma σ 0.60
Efficiency Distr. 125: C1
Plot
N N 4160
mu μ 99.73
sigma σ 0.76
Efficiency Distr. 150: C1
Plot
N N 4160
mu μ 99.59
sigma σ 0.95
Efficiency Distr. 200: C1
Plot
N N 4160
mu μ 99.16
sigma σ 1.44
Efficiency Distr. 250: C1
Plot
N N 4160
mu μ 98.46
sigma σ 2.05

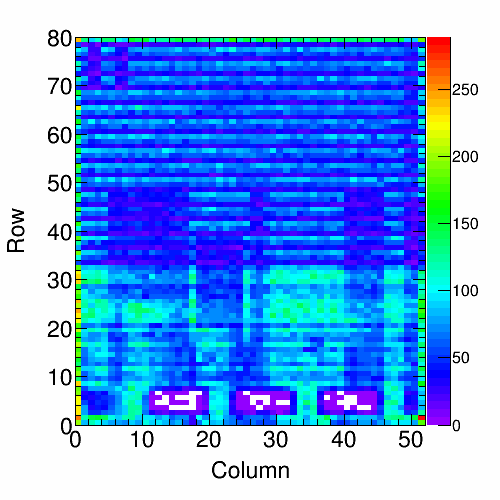

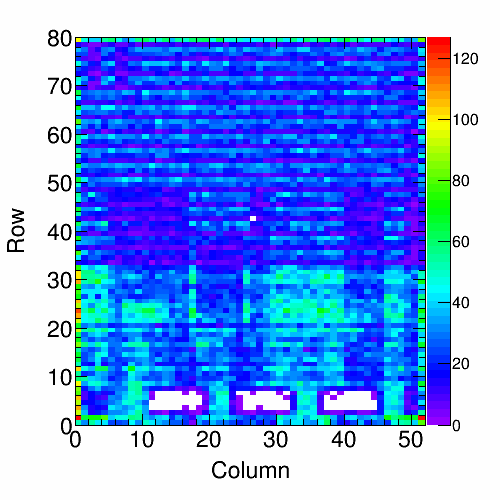

Background Map 50: C1
Plot
RealHitrate Real Hitrate 30.72 MHz/cm2

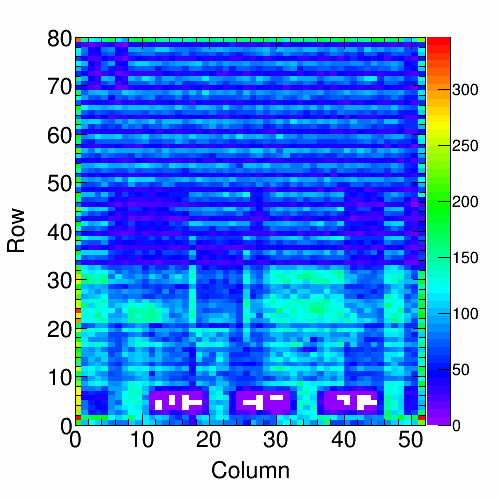

Background Map 75: C1
Plot
RealHitrate Real Hitrate 45.22 MHz/cm2

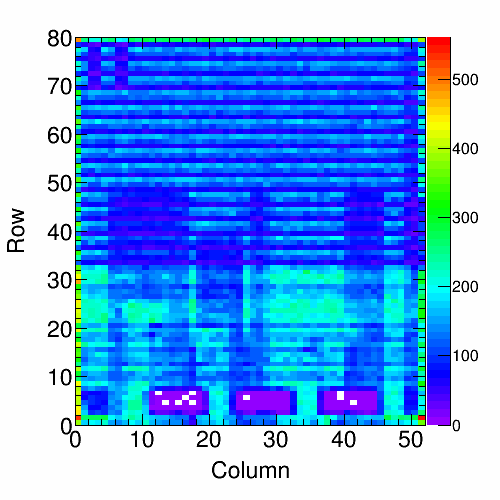

Background Map 100: C1
Plot
RealHitrate Real Hitrate 62.69 MHz/cm2
Background Map 125: C1
Plot
RealHitrate Real Hitrate 76.51 MHz/cm2
Background Map 150: C1
Plot
RealHitrate Real Hitrate 91.41 MHz/cm2
Background Map 200: C1
Plot
RealHitrate Real Hitrate 124.47 MHz/cm2
Background Map 250: C1
Plot
RealHitrate Real Hitrate 153.49 MHz/cm2
Retrim Hot Pix 0: C1
Retrim Hot Pix 150: C1
Masked Hot Pixels 150: C1
Masked Hot Pixels 50: C1

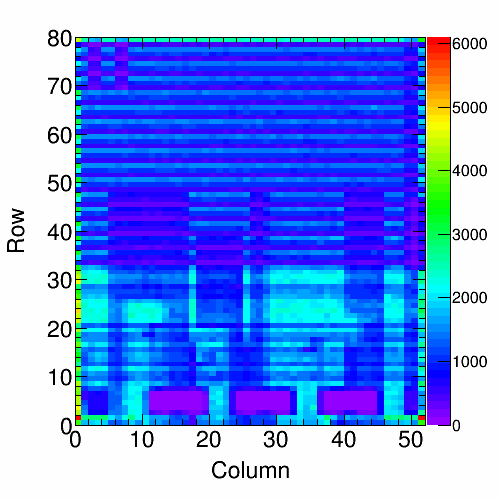

Hit Map 150: C1
Plot
RealHitrate Real Hitrate 89.48 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C1
Hit Map 50: C1
Plot
RealHitrate Real Hitrate 29.34 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C1
Col. Read. Unif. 150: C1
Plot
N N 12882627
mu μ 278242
sigma σ 66009.03
Col. Read. Unif. 50: C1
Plot
N N 4221737
mu μ 91240
sigma σ 23324.53
Read. Unif. over Time 150: C1
Plot
N N 14468584
mu μ 14674
sigma_th σ_th 121.14
Time unif. distribution 150: C1
Plot
chi2/ndf chi2/ndf 10.86
sigma σ 142.72
sigma_th σ_th 121.15
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C1
Plot
N N 4744505
mu μ 4812
sigma_th σ_th 69.37
Time unif. distribution 50: C1
Plot
chi2/ndf chi2/ndf 2.79
sigma σ 76.68
sigma_th σ_th 69.37
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C1

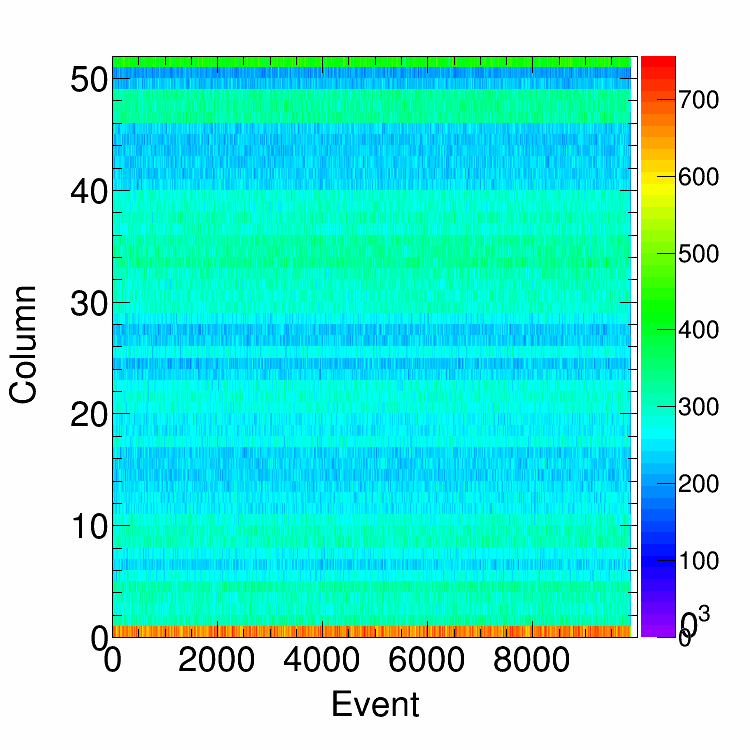

Col. Uniformity per Event: C1 150
Plot
mu μ 25.43
sigma fit error of μ 2.18
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

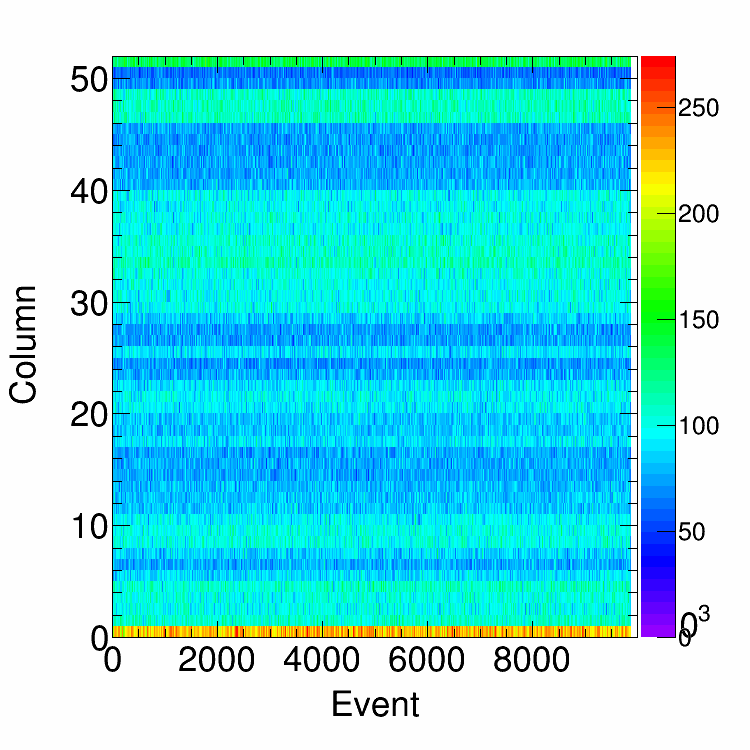

Col. Uniformity per Event: C1 50
Plot
mu μ 25.63
sigma fit error of μ 2.19
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C1 100
Plot
N N 4160
mu μ 153.79
sigma RMS 13.90
threshold thr 2009.66
fit fit Gaussian
fit_peak μ fit 153.74
fit_sigma σ fit 14.03
MeasuredHitrate Measured hitrate: 62.6
Alive Map: C1
DC Efficiency Distribution: C1
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.89
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.37
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C1
