Test Date: 2016-01-19 10:15
Analysis date: 2016-05-26 08:14
Analysis date: 2016-05-26 08:14
M2137 XRayHRQualification
Summary
| Module | Module | M2137 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 340 | |

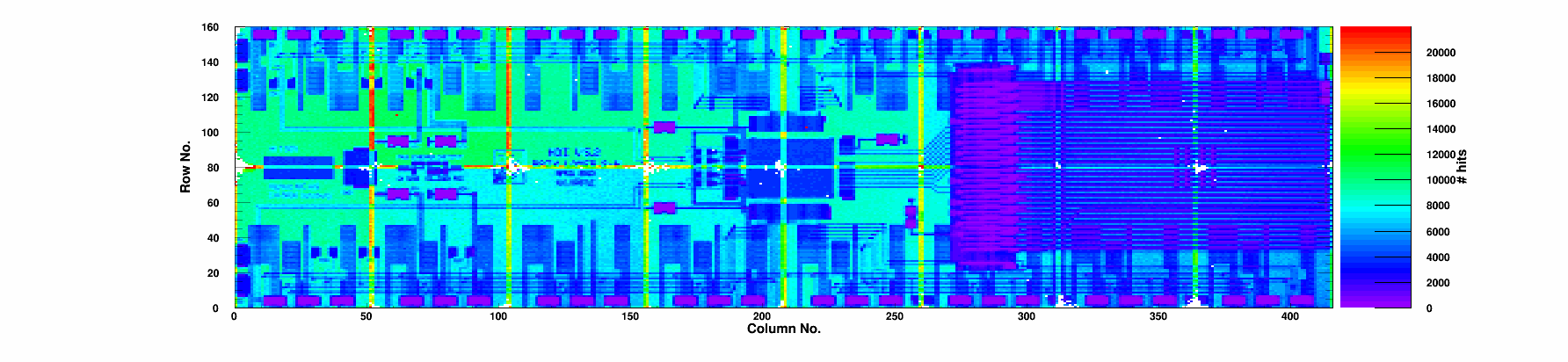

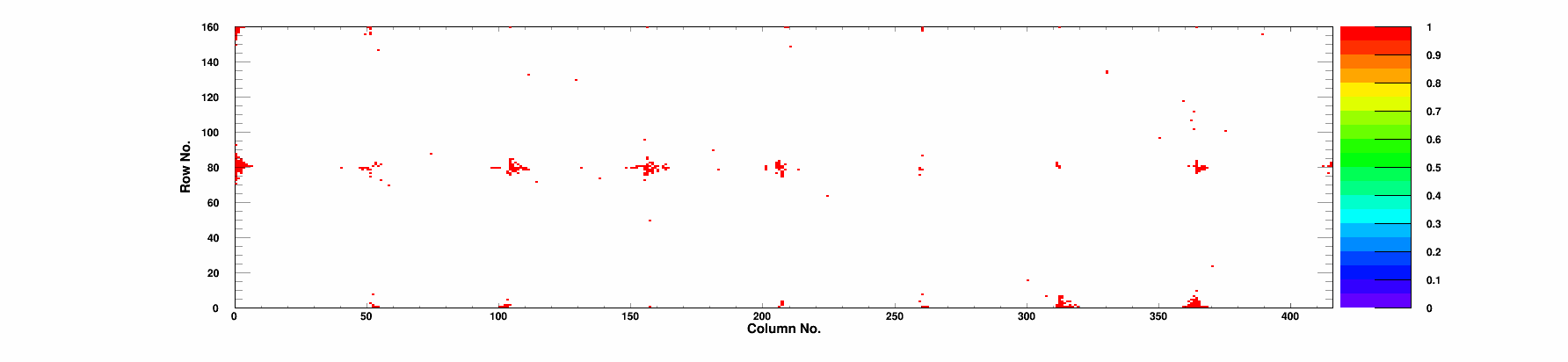

| BumpBondingDefects | Bump Bonding Defects | 330 | |
| NoisyPixels | Noisy Pixels | 4 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

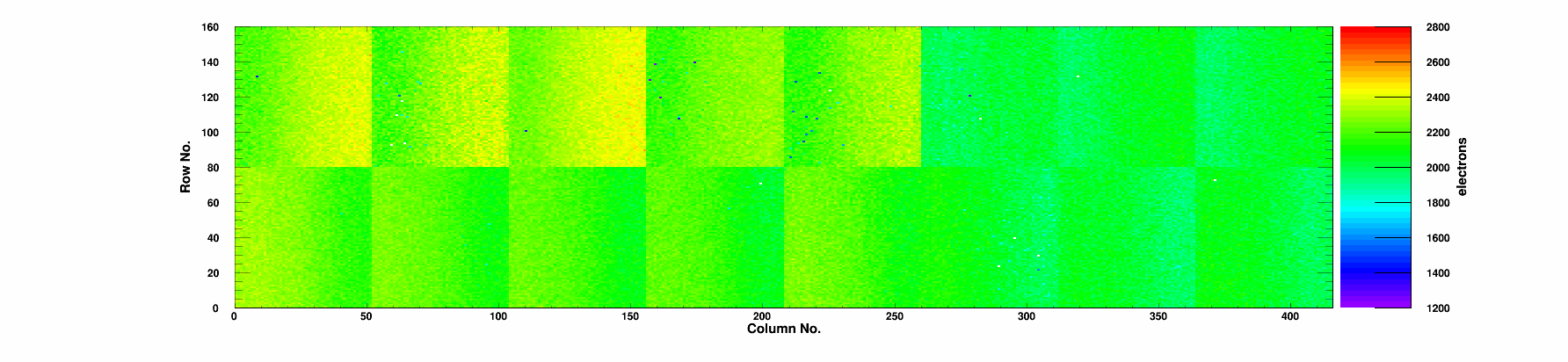

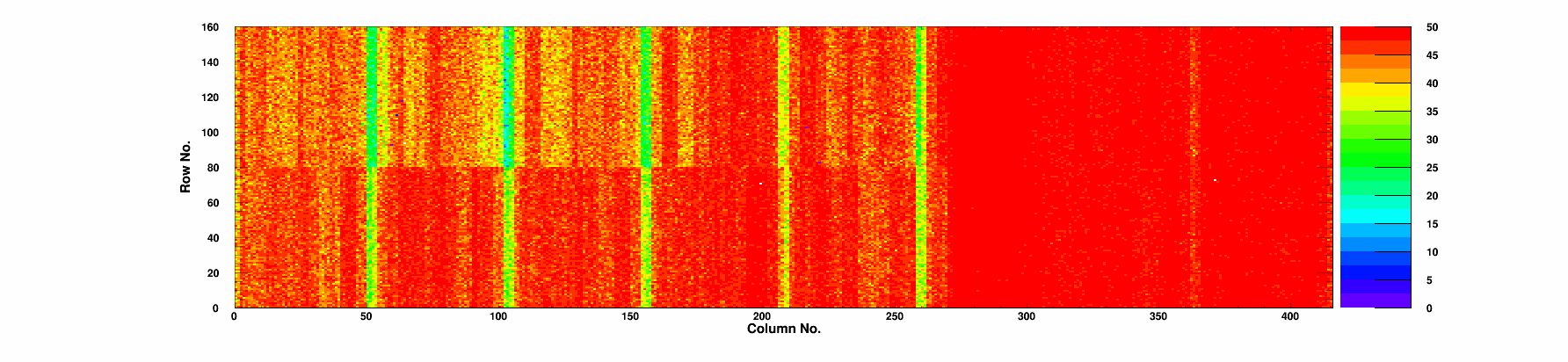

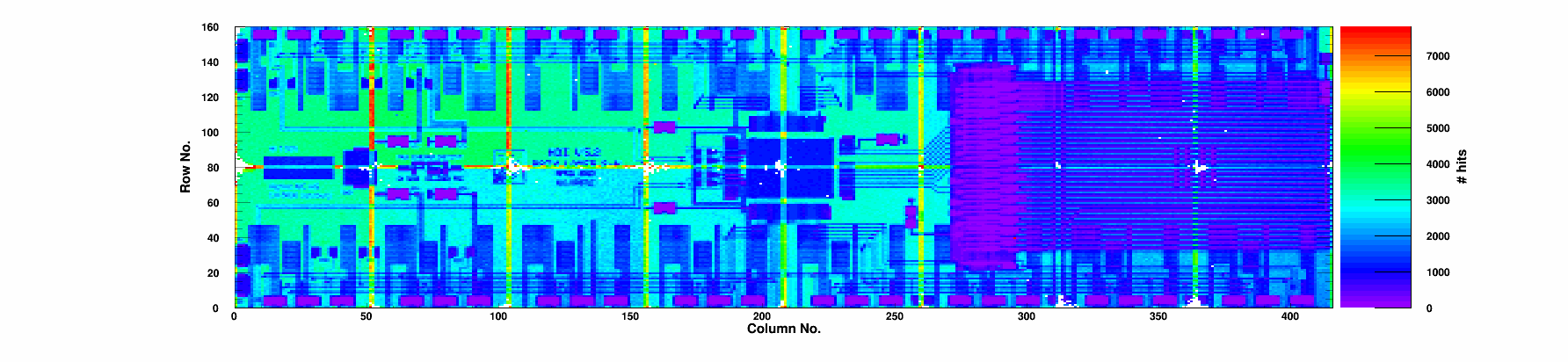

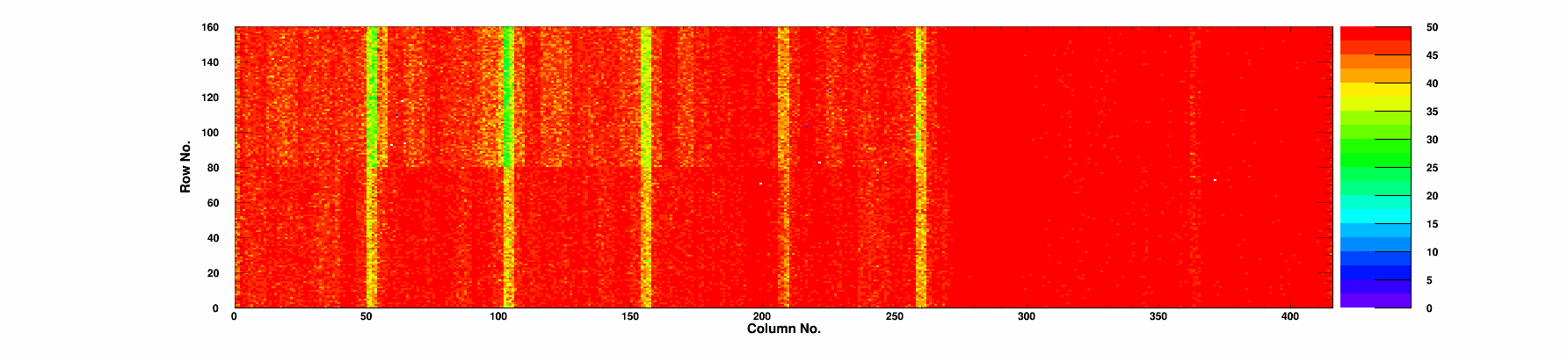

| Efficiency | Efficiency 50/120 | 99.81/99.25 | % |
| Noise | Mean Noise | 162 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
12 | 0 | 99.85 | 99.27 | 0.45 | 29.4 | 88.1 | 12 | 0/0 | 0 | 2025 | 167 | 0 |
|
Chip 1
|
A
|
11 | 0 | 99.82 | 99.05 | 0.71 | 29.2 | 88.3 | 11 | 0/0 | 0 | 2034 | 168 | 0 |
|
Chip 2
|
A
|
7 | 0 | 99.86 | 99.30 | 0.41 | 28.1 | 85.7 | 7 | 0/0 | 0 | 2010 | 169 | 0 |
|
Chip 3
|
A
|
7 | 0 | 99.64 | 99.21 | 3.46 | 57.7 | 168.8 | 4 | 0/0 | 0 | 2247 | 177 | 0 |
|
Chip 4
|
A
|
23 | 0 | 99.86 | 99.30 | 0.56 | 57.6 | 167.9 | 23 | 0/0 | 0 | 2240 | 161 | 0 |
|
Chip 5
|
A
|
19 | 0 | 99.86 | 99.31 | 0.62 | 70.6 | 202.6 | 19 | 0/0 | 0 | 2338 | 152 | 0 |
|
Chip 6
|
A
|
12 | 0 | 99.41 | 99.06 | 14.32 | 71.7 | 207.7 | 7 | 0/0 | 0 | 2212 | 193 | 2 |
|
Chip 7
|
B
|
47 | 0 | 99.84 | 99.36 | 0.63 | 67.5 | 194.1 | 47 | 0/0 | 0 | 2307 | 162 | 0 |
|
Chip 8
|
A
|
29 | 0 | 99.86 | 99.36 | 0.57 | 61.6 | 178.7 | 29 | 0/0 | 0 | 2240 | 150 | 0 |
|
Chip 9
|
A
|
20 | 0 | 99.87 | 99.21 | 1.13 | 53.0 | 154.4 | 20 | 0/0 | 0 | 2189 | 142 | 0 |
|
Chip 10
|
A
|
32 | 0 | 99.90 | 99.34 | 0.58 | 55.2 | 160.1 | 32 | 0/0 | 0 | 2166 | 141 | 0 |
|
Chip 11
|
A
|
37 | 0 | 99.87 | 99.32 | 0.52 | 49.0 | 144.3 | 36 | 0/0 | 0 | 2113 | 152 | 1 |
|
Chip 12
|
A
|
7 | 0 | 99.86 | 99.31 | 0.87 | 52.4 | 155.4 | 7 | 0/0 | 0 | 2185 | 164 | 0 |
|
Chip 13
|
A
|
9 | 0 | 99.85 | 99.30 | 0.55 | 29.1 | 89.0 | 9 | 0/0 | 0 | 2051 | 167 | 0 |
|
Chip 14
|
A
|
39 | 0 | 99.82 | 99.00 | 0.89 | 29.1 | 88.5 | 39 | 0/0 | 0 | 2019 | 164 | 0 |
|
Chip 15
|
A
|
29 | 0 | 99.86 | 99.28 | 0.66 | 30.5 | 91.6 | 28 | 0/0 | 0 | 1999 | 164 | 1 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-01-19 | |
| TestTime | Test Time | 10:15 | |
| TestDuration | Duration | 1:25:31 | |
| pXar | pXar version | prod-12 | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 25 | |
| nWarnings | # Warnings | 2 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 2 | |
| channel_2_count | Channel 2 | 1 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 1 | |
| message_readback_count | Readback start marker | 2 |
