Test Date: 2015-10-29 13:58
Analysis date: 2015-10-30 18:59
Analysis date: 2015-10-30 18:59
Chip 14
Pixel Map: C14
| NNotAlivePixels | Tot. Dead Pixels | 0 | |
| NDeadPixels | - N Dead Pixels | 0 | |
| NNoisyPixels | - N Noisy Pixels | 0 | |
| NMaskDefects | - N Mask Defects | 0 | |
| NInefficentPixels | - N Inefficent Pixels | 0 |
SCurveWidths
| N | N | 4160 | |
| mu | μ | 134.18 | |
| sigma | RMS | 15.76 | |
| NNoiseDefects | # Noise defects | 0 |
Vcal Threshold Trimmed
| N | N | 4160 | |
| mu | μ | 34.97 | |
| sigma | σ_fit | 0.88 | |
| NTrimProblems | N Trim Problems | 0 |

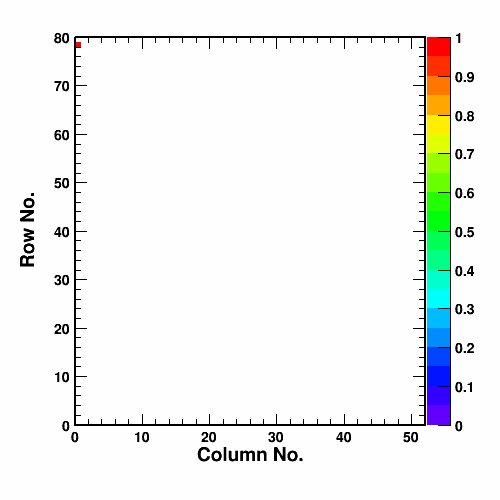

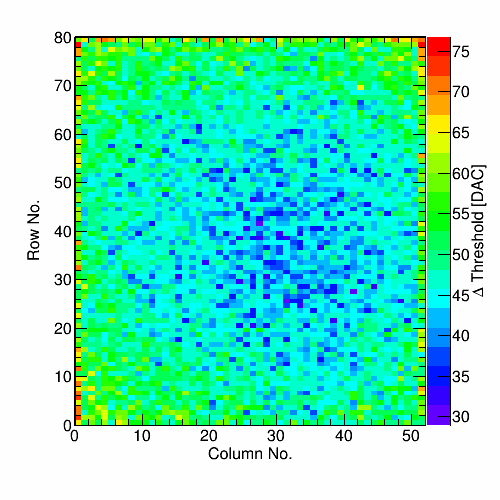

Bump Bonding: C14
| Mean | Mean | 47.6 | |
| RMS | RMS | 5.82 | |
| Threshold | Threshold | 76.69 | |
| nSigma | σ | 5.0 | |
| nBumpBondingProblems | N BumpProblems | 1.0 |
Summary
| Total | Total | 1 | |
| nDeadPixel | - Dead Pixels | 0 | |
| nMaskDefect | - Mask Defects | 0 | |
| nDeadBumps | - Dead Bumps | 1 | |
| nDeadTrimbits | - Dead Trimbits | 0 | |
| nAddressProblems | - Address Problems | 0 | |
| empty | |||
| nNoisy1Pixel | >100% efficiency in alive map | 0 | |
| nNoisy2Pixel | Noisy Pixels | 0 | |
| nThrDefect | Trim Problems | 0 | |
| nGainDefect | PH Gain defects | 0 | |
| nPedDefect | PH Pedestal defects | 0 | |
| nPar1Defect | PH Parameter1 Defects | 0 | |
| PixelDefectsGrade | Pixel Defects Grade ROC | 1 |
Address Decoding: C14

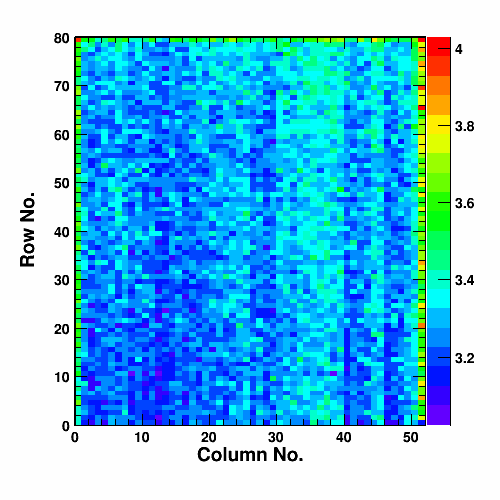

PHCalibrationGain
| N | N | 4160 | |
| mu | μ | 3.29 | |
| sigma | RMS | 0.11 | |
| NGainDefects | # Gain defects | 0 |
PHCalibrationParameter1
PHCalibrationPedestal
| N | N | 4160 | |
| mu | μ | 72.76 | |
| sigma | RMS | 20.81 | |
| mu_electrons | μ_electrons | 3637.84 | |
| sigma_electrons | σ_electrons | 1040.59 |

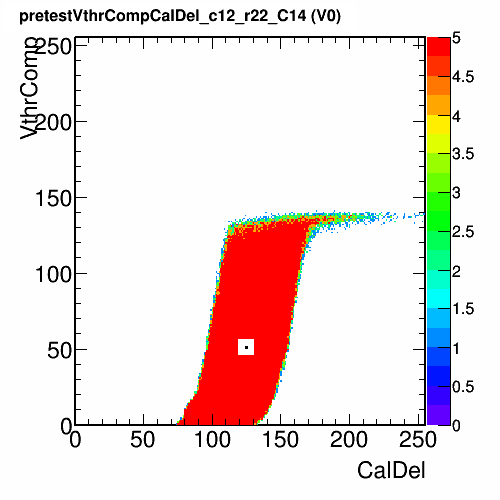

OpParameters
| vcalTrim | vcalTrim | 35 | |
| Vana | Vana | 77 | |
| CalDel | CalDel | 125 | |
| VthrComp | VthrComp | 98 | |
| Vtrim | Vtrim | 94 | |
| PHScale | PHScale | 82 | |
| PHOffset | PHOffset | 144 |

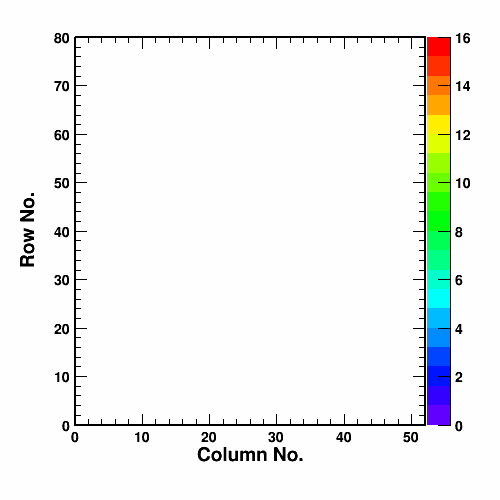

Trim Bit Problems

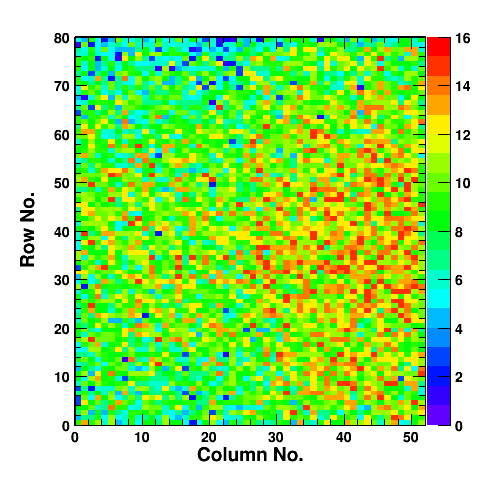

PerformanceParameters
| Noise | Mean Noise | 134.18 | e- |
| Threshold | Threshold | 1748 | e- |
| ThresholdWidth | Threshold Width | 44 | e- |
| RelativeGainWidth | RelativeGainWidth | 0.033 | |
| TrimBits_mu | TrimBits μ | 9.75 | |
| TrimBits_sigma | TrimBits RMS | 2.79 |
ReadbackCal
| par0vd | par0vd | -8.50e+00 | |
| par1vd | par1vd | 6.79e+01 | |
| par0va | par0va | -3.74e+00 | |
| par1va | par1va | 6.74e+01 | |
| par0rbia | par0rbia | 8.24e+00 | |
| par1rbia | par1rbia | 1.06e+00 | |
| par0tbia | par0tbia | 4.45e+00 | |
| par1tbia | par1tbia | 2.65e-01 | |
| par2tbia | par2tbia | -2.29e-04 |
