Test Date: 2015-06-26 09:57
Analysis date: 2015-10-28 15:43
Analysis date: 2015-10-28 15:43
Chip 1
Pixel Map: C1
| NNotAlivePixels | Tot. Dead Pixels | 4 | |
| NDeadPixels | - N Dead Pixels | 4 | |
| NNoisyPixels | - N Noisy Pixels | 0 | |
| NMaskDefects | - N Mask Defects | 0 | |
| NInefficentPixels | - N Inefficent Pixels | 0 |
SCurveWidths
| N | N | 4156 | |
| mu | μ | 138.86 | |
| sigma | RMS | 18.58 | |
| NNoiseDefects | # Noise defects | 0 |

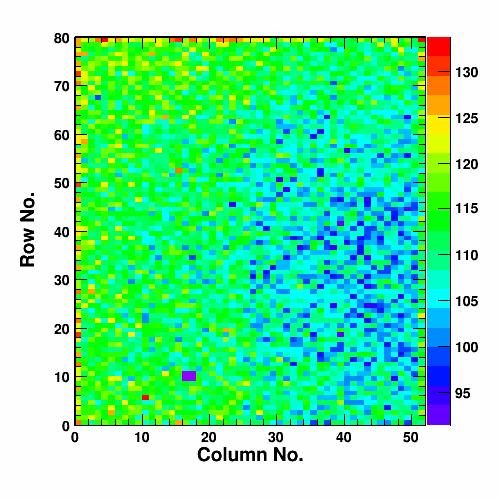

Vcal Threshold Trimmed
| N | N | 4156 | |
| mu | μ | 35.08 | |
| sigma | σ_fit | 1.16 | |
| NTrimProblems | N Trim Problems | 0 |

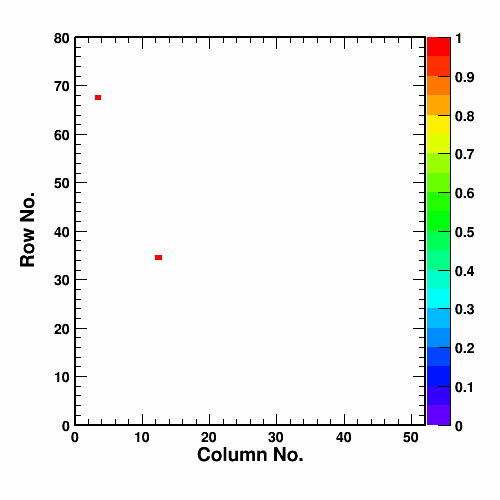

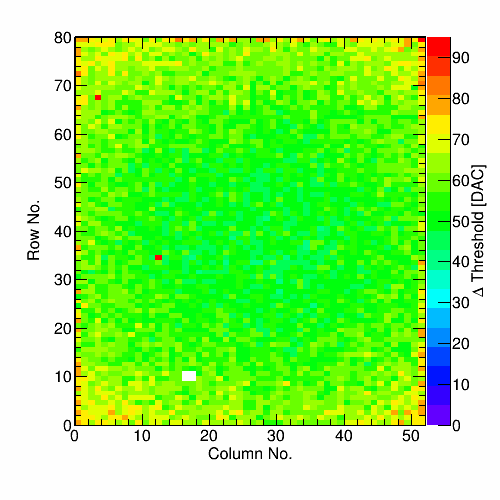

Bump Bonding: C1
| Mean | Mean | 56.92 | |
| RMS | RMS | 7.62 | |
| Threshold | Threshold | 95.0 | |
| nSigma | σ | 5.0 | |
| nBumpBondingProblems | N BumpProblems | 2.0 |
Summary
| Total | Total | 6 | |
| nDeadPixel | - Dead Pixels | 4 | |
| nMaskDefect | - Mask Defects | 0 | |
| nDeadBumps | - Dead Bumps | 2 | |
| nDeadTrimbits | - Dead Trimbits | 0 | |
| nAddressProblems | - Address Problems | 0 | |
| empty | |||
| nNoisy1Pixel | >100% efficiency in alive map | 0 | |
| nNoisy2Pixel | Noisy Pixels | 0 | |
| nThrDefect | Trim Problems | 0 | |
| nGainDefect | PH Gain defects | 0 | |
| nPedDefect | PH Pedestal defects | 0 | |
| nPar1Defect | PH Parameter1 Defects | 4 | |
| PixelDefectsGrade | Pixel Defects Grade ROC | 1 |
Address Decoding: C1

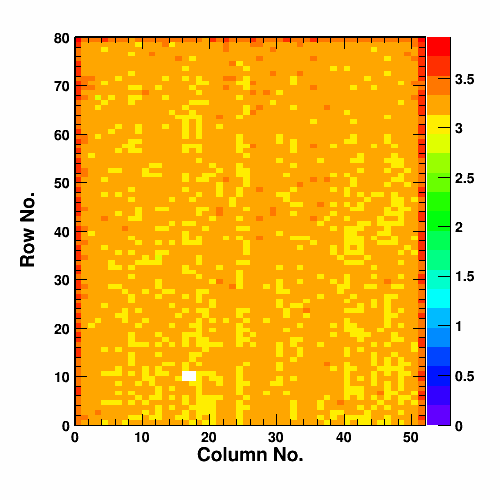

PHCalibrationGain
| N | N | 4156 | |
| mu | μ | 3.20 | |
| sigma | RMS | 0.09 | |
| NGainDefects | # Gain defects | 0 |
PHCalibrationParameter1
PHCalibrationPedestal
| N | N | 4156 | |
| mu | μ | 52.65 | |
| sigma | RMS | 23.43 | |
| mu_electrons | μ_electrons | 2632.69 | |
| sigma_electrons | σ_electrons | 1171.57 |
OpParameters
| vcalTrim | vcalTrim | 35 | |
| Vana | Vana | 81 | |
| CalDel | CalDel | 102 | |
| VthrComp | VthrComp | 103 | |
| Vtrim | Vtrim | 120 | |
| PHScale | PHScale | 62 | |
| PHOffset | PHOffset | 181 |

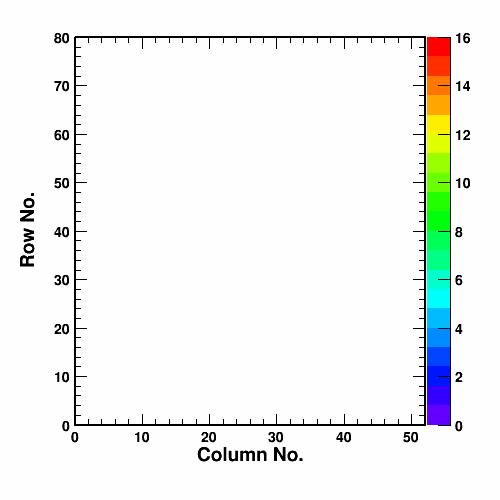

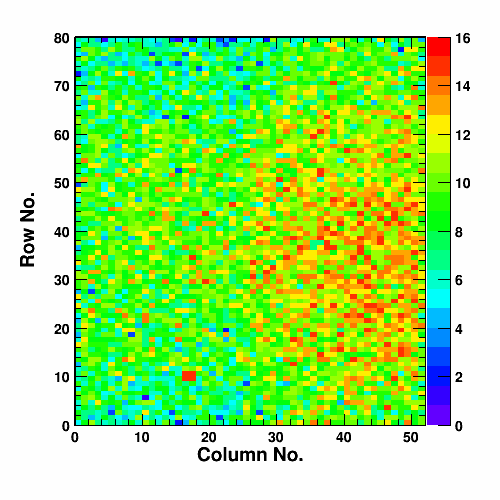

Trim Bit Problems
PerformanceParameters
| Noise | Mean Noise | 138.86 | e- |
| Threshold | Threshold | 1754 | e- |
| ThresholdWidth | Threshold Width | 58 | e- |
| RelativeGainWidth | RelativeGainWidth | 0.028 | |
| TrimBits_mu | TrimBits μ | 9.71 | |
| TrimBits_sigma | TrimBits RMS | 2.52 |
ReadbackCal
| par0vd | par0vd | 1.00e+00 | |
| par1vd | par1vd | 1.00e+00 | |
| par0va | par0va | 1.00e+00 | |
| par1va | par1va | 1.00e+00 | |
| par0rbia | par0rbia | 1.00e+00 | |
| par1rbia | par1rbia | 1.00e+00 | |
| par0tbia | par0tbia | 1.00e+00 | |
| par1tbia | par1tbia | 1.00e+00 | |
| par2tbia | par2tbia | 1.00e+00 |
