Test Date: 2016-10-10 09:55
Analysis date: 2016-10-10 11:33
X-ray Calibration - Spectrum
| Slope |
avrg Slope |
46.966875 |
|
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
| avrgSlope |
avrg Slope |
46.966875 |
|
| medianSlope |
median Slope |
46.83 |
|
| minSlope |
min Slope |
44.427 |
|
| maxSlope |
max Slope |
48.58 |
|
Offset of Spectrum Vcal Calibration
| avrgOffset |
avrg Offset |
-66.969625 |
|
| medianOffset |
median Offset |
-76.244 |
|
| minOffset |
min Offset |
-231.79 |
|
| maxOffset |
max Offset |
152.172 |
|
Chi2 of Spectrum Vcal Calibration
| avrgchi2 |
avrg chi2 |
2.9988125 |
|
| medianchi2 |
median chi2 |
0.8075 |
|
| minchi2 |
min chi2 |
0.042 |
|
| maxchi2 |
max chi2 |
12.456 |
|
Vcal Calibration Module - Spectrum
|
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
|
0
|
46.9 e- / Vcal
|
0.1 e- / Vcal
|
-27.3 e-
|
7.7 e-
|
|
1
|
48.6 e- / Vcal
|
0.2 e- / Vcal
|
-190.4 e-
|
19.9 e-
|
|
2
|
46.1 e- / Vcal
|
0.2 e- / Vcal
|
51.2 e-
|
20.0 e-
|
|
3
|
47.1 e- / Vcal
|
0.1 e- / Vcal
|
-143.1 e-
|
7.3 e-
|
|
4
|
48.5 e- / Vcal
|
0.1 e- / Vcal
|
-75.0 e-
|
6.5 e-
|
|
5
|
48.4 e- / Vcal
|
0.1 e- / Vcal
|
-15.7 e-
|
14.9 e-
|
|
6
|
46.3 e- / Vcal
|
0.1 e- / Vcal
|
-231.8 e-
|
17.4 e-
|
|
7
|
45.7 e- / Vcal
|
0.1 e- / Vcal
|
-84.1 e-
|
6.1 e-
|
|
8
|
46.7 e- / Vcal
|
0.1 e- / Vcal
|
-16.8 e-
|
16.8 e-
|
|
9
|
44.4 e- / Vcal
|
0.1 e- / Vcal
|
-77.5 e-
|
17.9 e-
|
|
10
|
47.9 e- / Vcal
|
0.1 e- / Vcal
|
-86.3 e-
|
6.5 e-
|
|
11
|
48.4 e- / Vcal
|
0.1 e- / Vcal
|
-48.7 e-
|
6.6 e-
|
|
12
|
46.7 e- / Vcal
|
0.1 e- / Vcal
|
-68.5 e-
|
6.3 e-
|
|
13
|
46.5 e- / Vcal
|
0.2 e- / Vcal
|
-83.5 e-
|
20.7 e-
|
|
14
|
47.1 e- / Vcal
|
0.2 e- / Vcal
|
-126.2 e-
|
19.2 e-
|
|
15
|
46.2 e- / Vcal
|
0.2 e- / Vcal
|
152.2 e-
|
19.8 e-
|
|
Average
|
47.0 e- / Vcal
|
|
-67.0 e-
|
|
|
Median
|
92.4 e- / Vcal
|
|
-100.8 e-
|
|
Overview
Xray Module Spectrum - Zn
Overview
Xray Module Spectrum - Mo
Overview
Xray Module Spectrum - Ag
Overview
Xray Module Spectrum - Sn
Overview

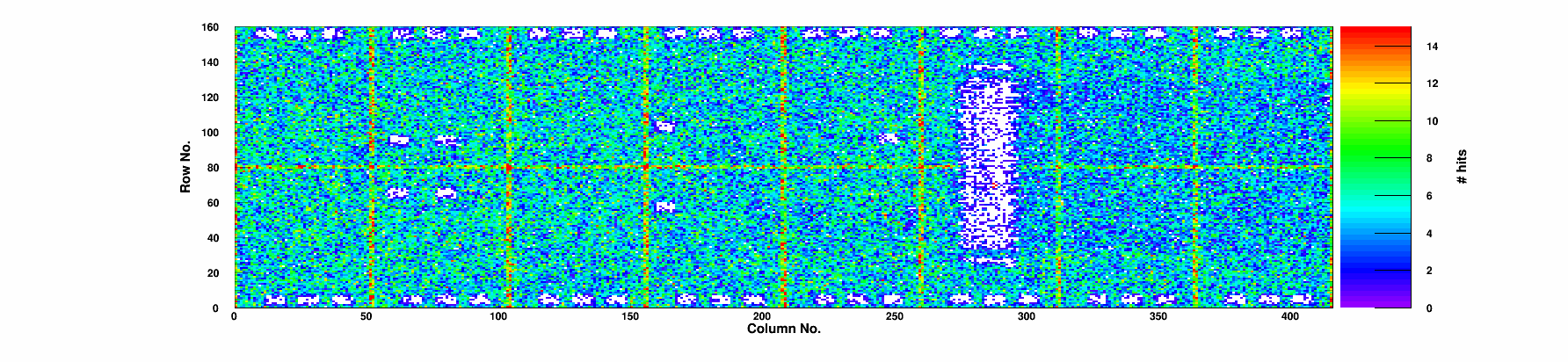

Hits distribution Zn inner/edge/corner

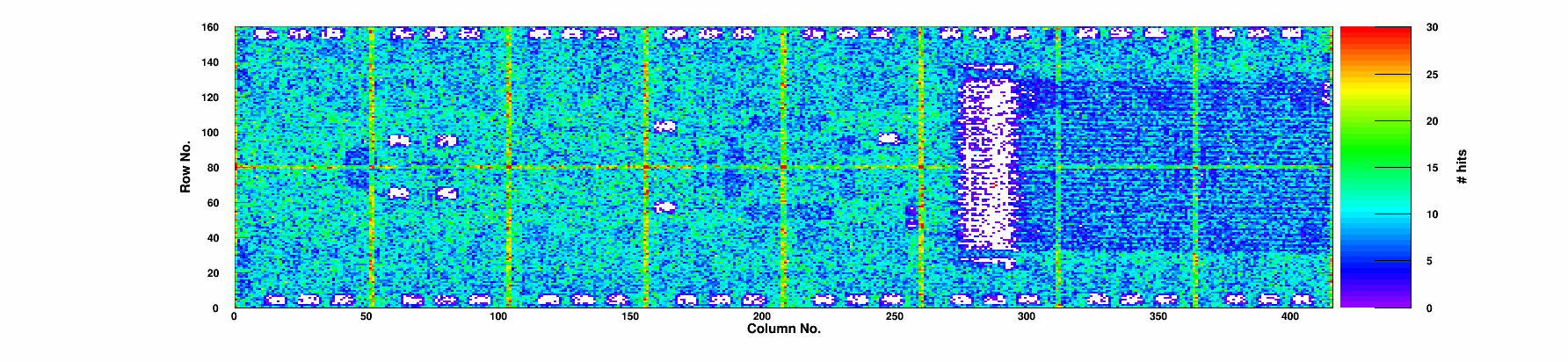

Hits distribution Mo inner/edge/corner

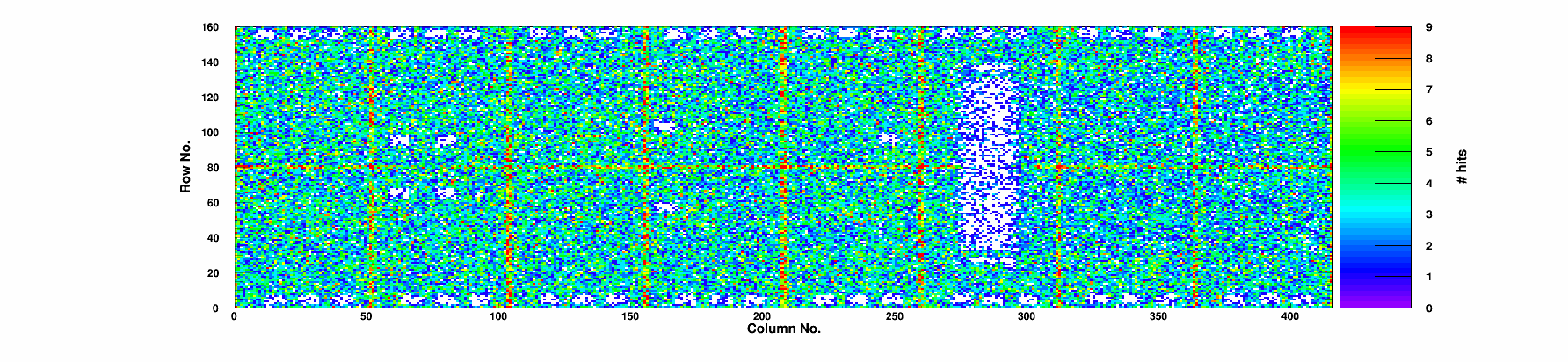

Hits distribution Ag inner/edge/corner
Hits distribution Sn inner/edge/corner
