Test Date: 2016-10-10 09:55
Analysis date: 2016-10-10 11:31
Analysis date: 2016-10-10 11:31
M2354 XRayHRQualification
Summary
| Module | Module | M2354 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 6 | |
| BumpBondingDefects | Bump Bonding Defects | 6 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.19 | % |
| Noise | Mean Noise | 163 | e- |

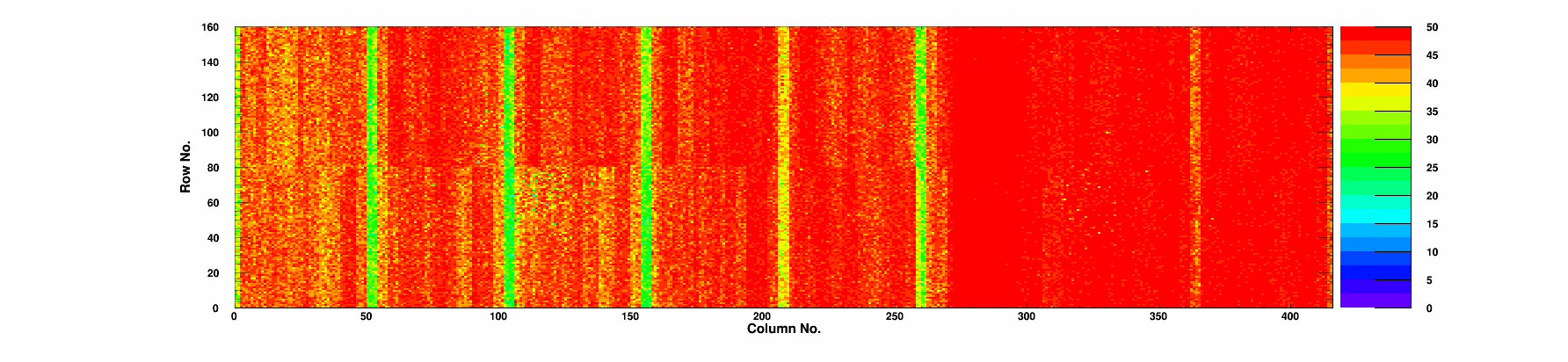

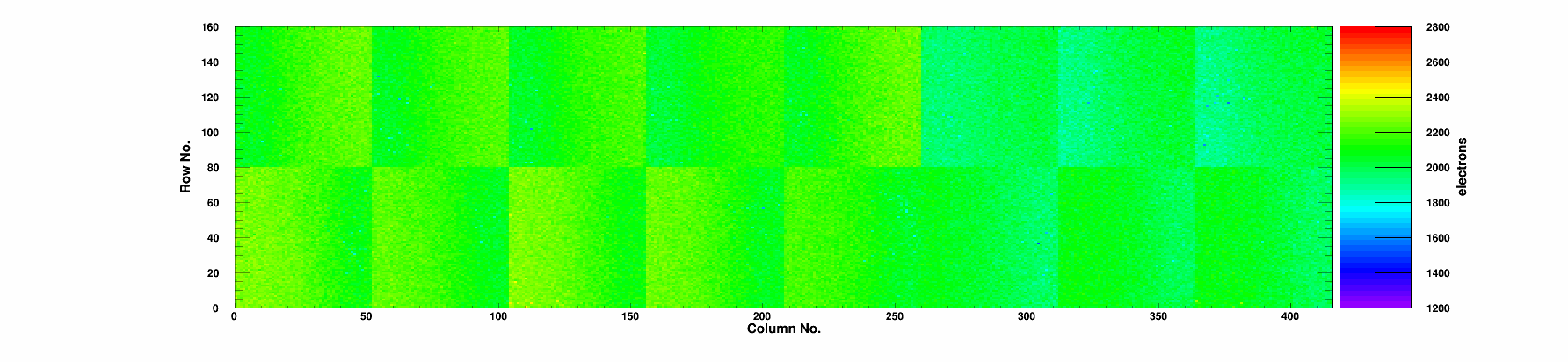

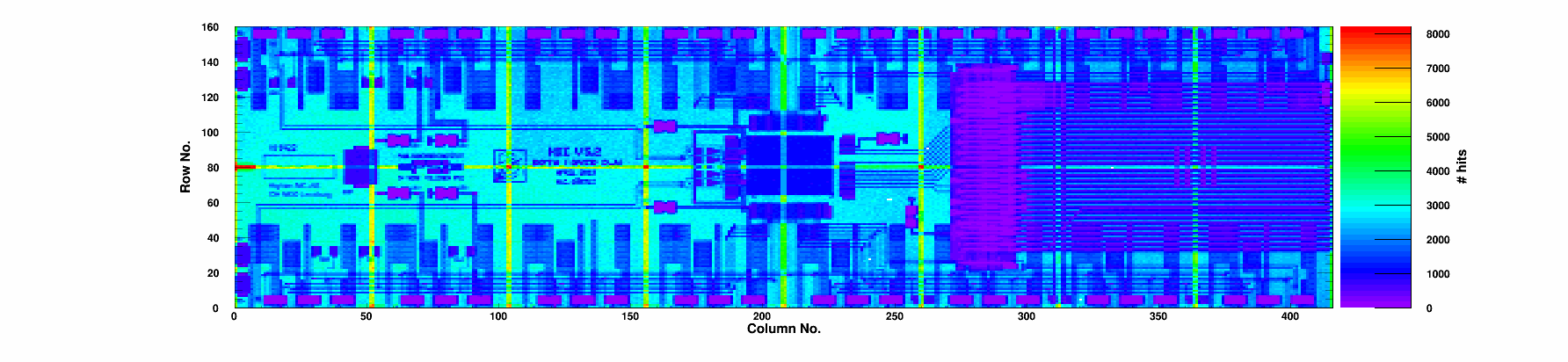

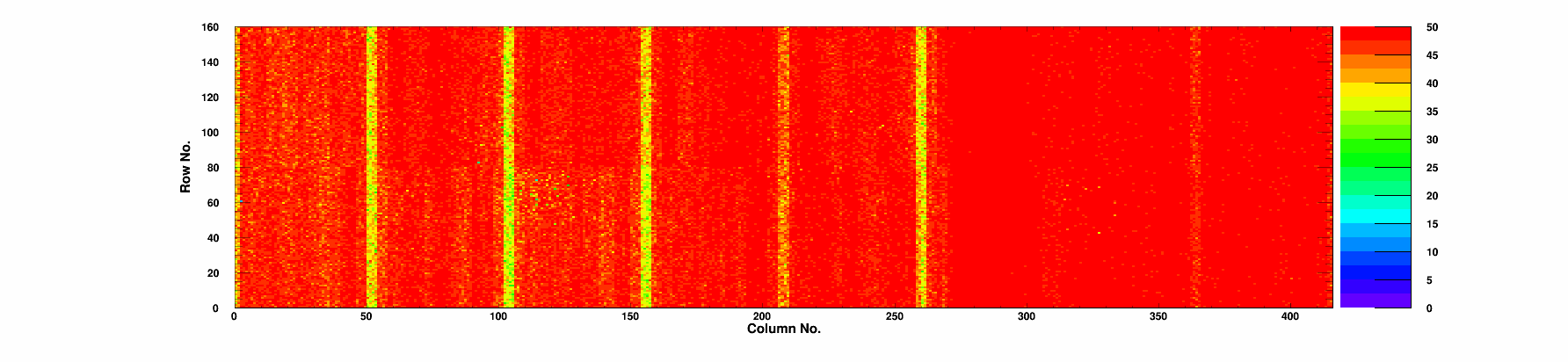

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.85 | 98.99 | 0.64 | 30.5 | 91.2 | 0 | 0/0 | 0 | 1977 | 165 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 98.96 | 0.74 | 30.7 | 92.3 | 0 | 0/0 | 0 | 1986 | 168 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.83 | 98.93 | 0.65 | 27.8 | 84.4 | 1 | 0/0 | 0 | 1981 | 166 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.27 | 0.69 | 52.4 | 153.3 | 0 | 0/0 | 0 | 2153 | 175 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.31 | 0.67 | 47.7 | 140.1 | 0 | 0/0 | 0 | 2098 | 159 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.87 | 99.31 | 0.63 | 54.6 | 159.3 | 0 | 0/0 | 0 | 2125 | 157 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.86 | 99.23 | 0.69 | 53.4 | 156.5 | 0 | 0/0 | 0 | 2139 | 155 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.84 | 99.12 | 0.76 | 58.4 | 171.0 | 0 | 0/0 | 0 | 2157 | 162 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.86 | 99.28 | 0.8 | 61.1 | 179.2 | 0 | 0/0 | 0 | 2191 | 163 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.86 | 99.28 | 0.54 | 59.1 | 173.1 | 0 | 0/0 | 0 | 2148 | 159 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.85 | 99.21 | 1.38 | 63.3 | 182.7 | 0 | 0/0 | 0 | 2188 | 156 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.30 | 0.59 | 52.9 | 156.1 | 0 | 0/0 | 0 | 2158 | 162 | 0 |
|
Chip 12
|
A
|
3 | 0 | 99.88 | 99.30 | 0.72 | 49.3 | 144.3 | 3 | 0/0 | 0 | 2128 | 161 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.06 | 0.85 | 30.6 | 92.7 | 0 | 0/0 | 0 | 2017 | 162 | 0 |
|
Chip 14
|
A
|
2 | 0 | 99.87 | 99.28 | 1.12 | 33.9 | 101.6 | 2 | 0/0 | 0 | 2040 | 165 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.86 | 99.25 | 0.48 | 35.0 | 103.3 | 0 | 0/0 | 0 | 2033 | 171 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-10 | |
| TestTime | Test Time | 09:55 | |
| TestDuration | Duration | 1:16:51 | |
| pXar | pXar version | v2.7.6+55~gafdbfd9 | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 27 | |
| nWarnings | # Warnings | 1 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 4 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 3 | |
| message_readback_count | Readback start marker | 1 |
MoReWeb-v1.0.4-4-g297680c on branch psi46master
