Test Date: 2016-04-25 11:13
Analysis date: 2016-05-26 16:19
Chip 8
X-ray Calibration - Target Zn Method Spectrum Chip C8
Plot
Center Center of Peak 54.81 ± 0.09 Vcal
TargetEnergy Energy of target Zn 8638.91 eV
TargetNElectrons Energy of target Zn 2399.7 nElectrons
Chi2PerNDF Chi^2 per NDF 7.9
Rate Rate 311.30 kHz/cm²
X-ray Calibration - Target Mo Method Spectrum Chip C8
Plot
Center Center of Peak 110.88 ± 0.08 Vcal
TargetEnergy Energy of target Mo 17479.37 eV
TargetNElectrons Energy of target Mo 4855.38 nElectrons
Chi2PerNDF Chi^2 per NDF 9.67
Rate Rate 469.90 kHz/cm²
X-ray Calibration - Target Ag Method Spectrum Chip C8
Plot
Center Center of Peak 139.59 ± 0.11 Vcal
TargetEnergy Energy of target Ag 22162.92 eV
TargetNElectrons Energy of target Ag 6156.37 nElectrons
Chi2PerNDF Chi^2 per NDF 11.65
Rate Rate 261.30 kHz/cm²
X-ray Calibration - Target Sn Method Spectrum Chip C8
Plot
Center Center of Peak 158.6 ± 0.15 Vcal
TargetEnergy Energy of target Sn 25271.36 eV
TargetNElectrons Energy of target Sn 7019.82 nElectrons
Chi2PerNDF Chi^2 per NDF 11.63
Rate Rate 174.70 kHz/cm²
X-ray Calibration - Vcal Calibration Method Spectrum Chip C8
Plot
Slope Slope 45.344 ± 0.145 nElectrons/VCal
Offset Offset -172.505 ± 18.546 nElectrons

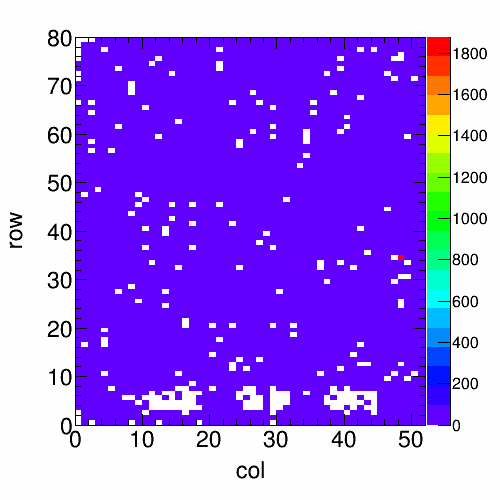

X-ray Hit Map - Target Zn Method Spectrum Chip C8
Plot
Rate Rate 311.30 kHz/cm²
NTrigs N Trig 5914676 Trigger
NHits N Hits 28724 Hits

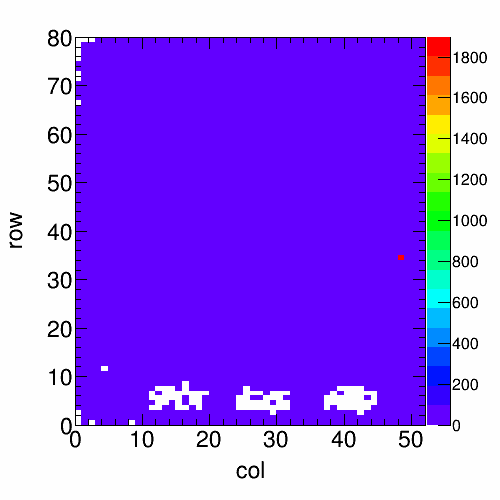

X-ray Hit Map - Target Mo Method Spectrum Chip C8
Plot
Rate Rate 469.90 kHz/cm²
NTrigs N Trig 5914603 Trigger
NHits N Hits 43354 Hits

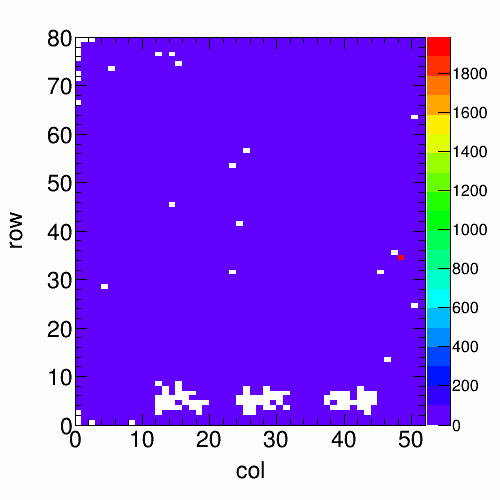

X-ray Hit Map - Target Ag Method Spectrum Chip C8
Plot
Rate Rate 261.30 kHz/cm²
NTrigs N Trig 5915030 Trigger
NHits N Hits 24115 Hits

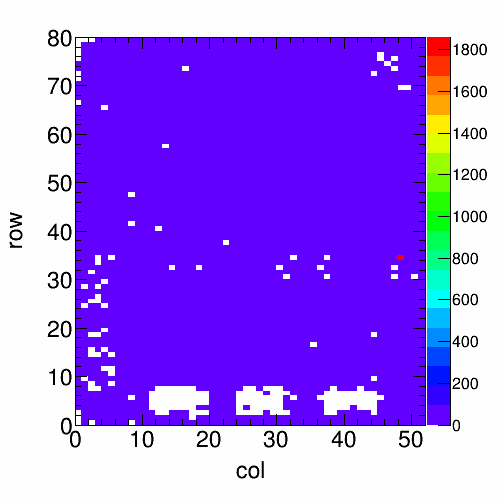

X-ray Hit Map - Target Sn Method Spectrum Chip C8
Plot
Rate Rate 174.70 kHz/cm²
NTrigs N Trig 5914572 Trigger
NHits N Hits 16117 Hits
