Test Date: 2016-04-25 11:13
Analysis date: 2016-05-26 16:19
Chip 7
X-ray Calibration - Target Zn Method Spectrum Chip C7
Plot
Center Center of Peak 50.49 ± 0.08 Vcal
TargetEnergy Energy of target Zn 8638.91 eV
TargetNElectrons Energy of target Zn 2399.7 nElectrons
Chi2PerNDF Chi^2 per NDF 1.59
Rate Rate 294.00 kHz/cm²
X-ray Calibration - Target Mo Method Spectrum Chip C7
Plot
Center Center of Peak 101.16 ± 0.07 Vcal
TargetEnergy Energy of target Mo 17479.37 eV
TargetNElectrons Energy of target Mo 4855.38 nElectrons
Chi2PerNDF Chi^2 per NDF 2.21
Rate Rate 441.60 kHz/cm²
X-ray Calibration - Target Ag Method Spectrum Chip C7
Plot
Center Center of Peak 128.68 ± 0.1 Vcal
TargetEnergy Energy of target Ag 22162.92 eV
TargetNElectrons Energy of target Ag 6156.37 nElectrons
Chi2PerNDF Chi^2 per NDF 3.83
Rate Rate 236.00 kHz/cm²
X-ray Calibration - Target Sn Method Spectrum Chip C7
Plot
Center Center of Peak 146.61 ± 0.13 Vcal
TargetEnergy Energy of target Sn 25271.36 eV
TargetNElectrons Energy of target Sn 7019.82 nElectrons
Chi2PerNDF Chi^2 per NDF 3.49
Rate Rate 149.60 kHz/cm²
X-ray Calibration - Vcal Calibration Method Spectrum Chip C7
Plot
Slope Slope 47.52 ± 0.139 nElectrons/VCal
Offset Offset 47.124 ± 16.36 nElectrons

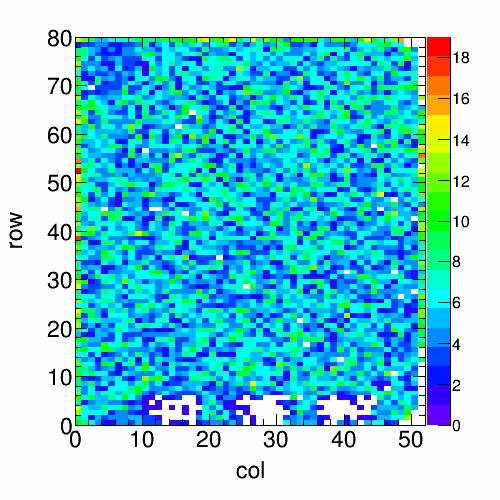

X-ray Hit Map - Target Zn Method Spectrum Chip C7
Plot
Rate Rate 294.00 kHz/cm²
NTrigs N Trig 5914676 Trigger
NHits N Hits 27123 Hits

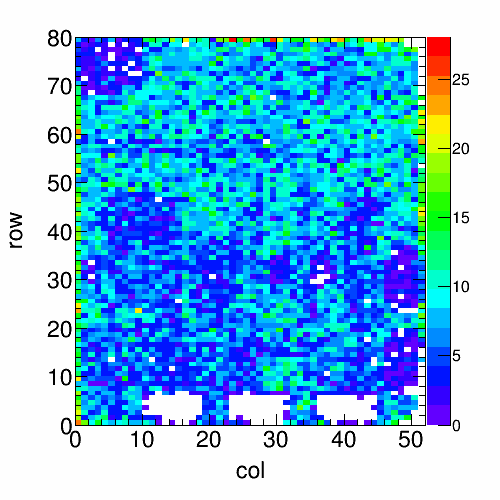

X-ray Hit Map - Target Mo Method Spectrum Chip C7
Plot
Rate Rate 441.60 kHz/cm²
NTrigs N Trig 5914603 Trigger
NHits N Hits 40742 Hits

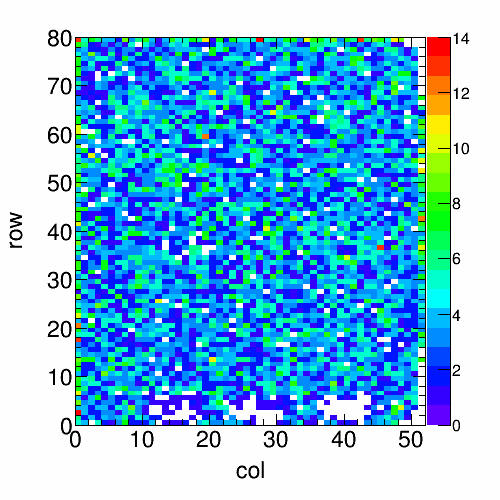

X-ray Hit Map - Target Ag Method Spectrum Chip C7
Plot
Rate Rate 236.00 kHz/cm²
NTrigs N Trig 5915030 Trigger
NHits N Hits 21780 Hits

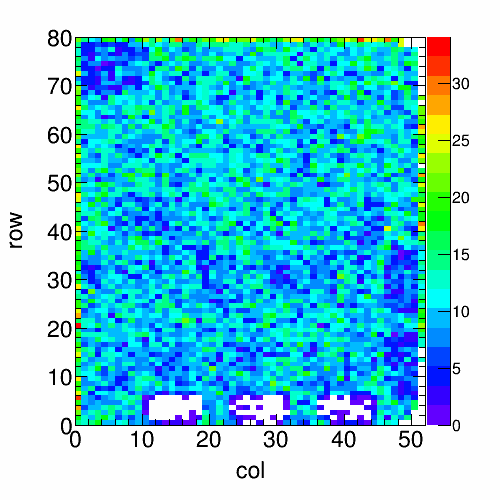

X-ray Hit Map - Target Sn Method Spectrum Chip C7
Plot
Rate Rate 149.60 kHz/cm²
NTrigs N Trig 5914572 Trigger
NHits N Hits 13799 Hits
