Test Date: 2016-04-25 11:13
Analysis date: 2016-05-26 16:19
Chip 5
X-ray Calibration - Target Zn Method Spectrum Chip C5
Plot
Center Center of Peak 56.65 ± 0.07 Vcal
TargetEnergy Energy of target Zn 8638.91 eV
TargetNElectrons Energy of target Zn 2399.7 nElectrons
Chi2PerNDF Chi^2 per NDF 1.77
Rate Rate 327.50 kHz/cm²
X-ray Calibration - Target Mo Method Spectrum Chip C5
Plot
Center Center of Peak 110.71 ± 0.07 Vcal
TargetEnergy Energy of target Mo 17479.37 eV
TargetNElectrons Energy of target Mo 4855.38 nElectrons
Chi2PerNDF Chi^2 per NDF 2.64
Rate Rate 468.50 kHz/cm²
X-ray Calibration - Target Ag Method Spectrum Chip C5
Plot
Center Center of Peak 139.45 ± 0.1 Vcal
TargetEnergy Energy of target Ag 22162.92 eV
TargetNElectrons Energy of target Ag 6156.37 nElectrons
Chi2PerNDF Chi^2 per NDF 3.94
Rate Rate 244.00 kHz/cm²
X-ray Calibration - Target Sn Method Spectrum Chip C5
Plot
Center Center of Peak 157.81 ± 0.13 Vcal
TargetEnergy Energy of target Sn 25271.36 eV
TargetNElectrons Energy of target Sn 7019.82 nElectrons
Chi2PerNDF Chi^2 per NDF 6.75
Rate Rate 152.20 kHz/cm²
X-ray Calibration - Vcal Calibration Method Spectrum Chip C5
Plot
Slope Slope 45.388 ± 0.061 nElectrons/VCal
Offset Offset -171.023 ± 6.143 nElectrons

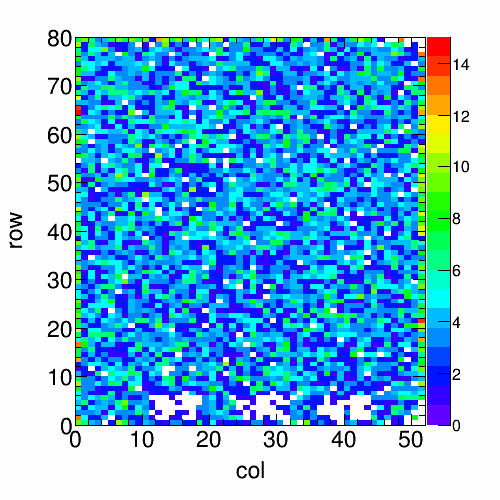

X-ray Hit Map - Target Zn Method Spectrum Chip C5
Plot
Rate Rate 327.50 kHz/cm²
NTrigs N Trig 5914676 Trigger
NHits N Hits 30218 Hits

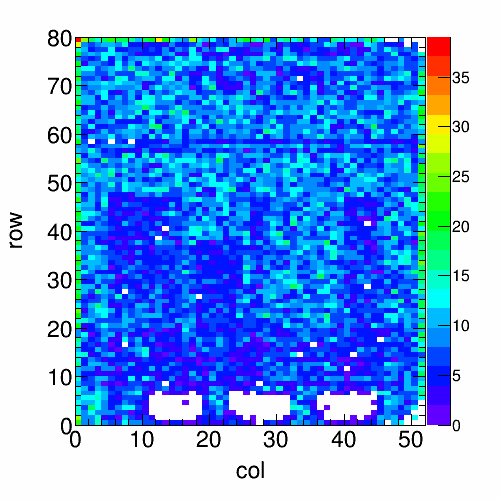

X-ray Hit Map - Target Mo Method Spectrum Chip C5
Plot
Rate Rate 468.50 kHz/cm²
NTrigs N Trig 5914603 Trigger
NHits N Hits 43223 Hits

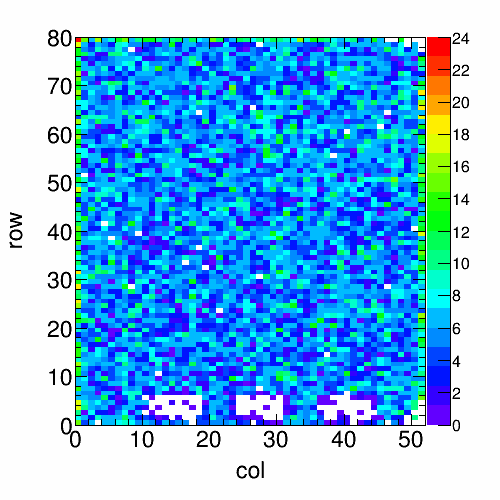

X-ray Hit Map - Target Ag Method Spectrum Chip C5
Plot
Rate Rate 244.00 kHz/cm²
NTrigs N Trig 5915030 Trigger
NHits N Hits 22516 Hits
X-ray Hit Map - Target Sn Method Spectrum Chip C5
Plot
Rate Rate 152.20 kHz/cm²
NTrigs N Trig 5914572 Trigger
NHits N Hits 14042 Hits
