Test Date: 2016-04-25 11:13
Analysis date: 2016-05-26 16:19
Chip 4
X-ray Calibration - Target Zn Method Spectrum Chip C4
Plot
Center Center of Peak 52.14 ± 0.08 Vcal
TargetEnergy Energy of target Zn 8638.91 eV
TargetNElectrons Energy of target Zn 2399.7 nElectrons
Chi2PerNDF Chi^2 per NDF 11.05
Rate Rate 304.50 kHz/cm²
X-ray Calibration - Target Mo Method Spectrum Chip C4
Plot
Center Center of Peak 105.5 ± 0.08 Vcal
TargetEnergy Energy of target Mo 17479.37 eV
TargetNElectrons Energy of target Mo 4855.38 nElectrons
Chi2PerNDF Chi^2 per NDF 14.33
Rate Rate 461.90 kHz/cm²
X-ray Calibration - Target Ag Method Spectrum Chip C4
Plot
Center Center of Peak 133.4 ± 0.1 Vcal
TargetEnergy Energy of target Ag 22162.92 eV
TargetNElectrons Energy of target Ag 6156.37 nElectrons
Chi2PerNDF Chi^2 per NDF 14.52
Rate Rate 265.00 kHz/cm²
X-ray Calibration - Target Sn Method Spectrum Chip C4
Plot
Center Center of Peak 151.85 ± 0.14 Vcal
TargetEnergy Energy of target Sn 25271.36 eV
TargetNElectrons Energy of target Sn 7019.82 nElectrons
Chi2PerNDF Chi^2 per NDF 15.45
Rate Rate 176.70 kHz/cm²
X-ray Calibration - Vcal Calibration Method Spectrum Chip C4
Plot
Slope Slope 46.677 ± 0.147 nElectrons/VCal
Offset Offset -69.319 ± 18.156 nElectrons

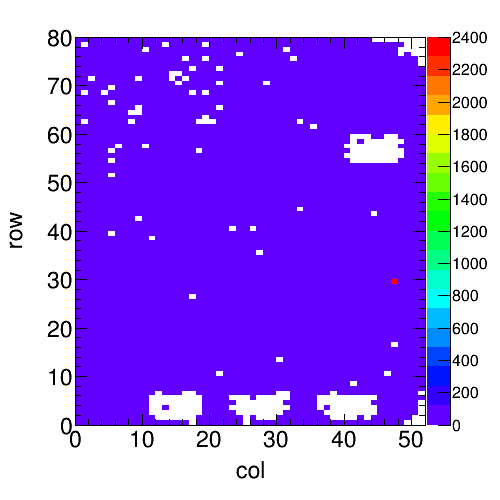

X-ray Hit Map - Target Zn Method Spectrum Chip C4
Plot
Rate Rate 304.50 kHz/cm²
NTrigs N Trig 5914676 Trigger
NHits N Hits 28099 Hits

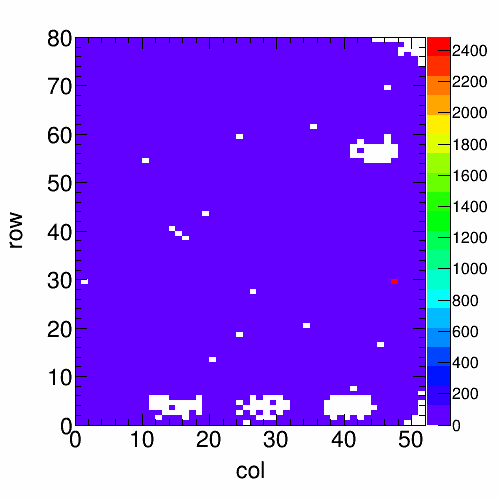

X-ray Hit Map - Target Mo Method Spectrum Chip C4
Plot
Rate Rate 461.90 kHz/cm²
NTrigs N Trig 5914603 Trigger
NHits N Hits 42620 Hits

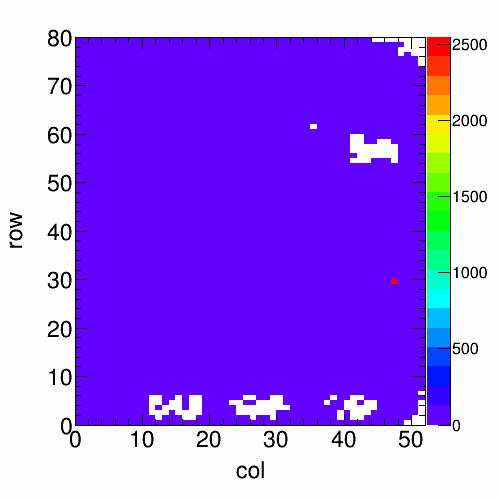

X-ray Hit Map - Target Ag Method Spectrum Chip C4
Plot
Rate Rate 265.00 kHz/cm²
NTrigs N Trig 5915030 Trigger
NHits N Hits 24453 Hits

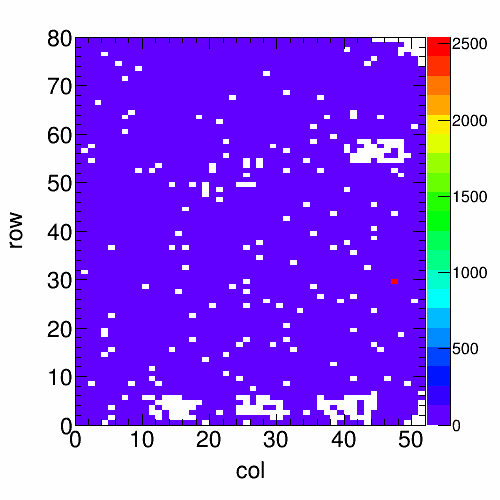

X-ray Hit Map - Target Sn Method Spectrum Chip C4
Plot
Rate Rate 176.70 kHz/cm²
NTrigs N Trig 5914572 Trigger
NHits N Hits 16304 Hits
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
