Test Date: 2016-04-25 11:13
Analysis date: 2016-05-26 16:19
Chip 3
X-ray Calibration - Target Zn Method Spectrum Chip C3
Plot
Center Center of Peak 55.58 ± 0.07 Vcal
TargetEnergy Energy of target Zn 8638.91 eV
TargetNElectrons Energy of target Zn 2399.7 nElectrons
Chi2PerNDF Chi^2 per NDF 1.66
Rate Rate 286.30 kHz/cm²
X-ray Calibration - Target Mo Method Spectrum Chip C3
Plot
Center Center of Peak 110.04 ± 0.07 Vcal
TargetEnergy Energy of target Mo 17479.37 eV
TargetNElectrons Energy of target Mo 4855.38 nElectrons
Chi2PerNDF Chi^2 per NDF 3.51
Rate Rate 444.50 kHz/cm²
X-ray Calibration - Target Ag Method Spectrum Chip C3
Plot
Center Center of Peak 138.66 ± 0.1 Vcal
TargetEnergy Energy of target Ag 22162.92 eV
TargetNElectrons Energy of target Ag 6156.37 nElectrons
Chi2PerNDF Chi^2 per NDF 4.88
Rate Rate 236.70 kHz/cm²
X-ray Calibration - Target Sn Method Spectrum Chip C3
Plot
Center Center of Peak 158.21 ± 0.13 Vcal
TargetEnergy Energy of target Sn 25271.36 eV
TargetNElectrons Energy of target Sn 7019.82 nElectrons
Chi2PerNDF Chi^2 per NDF 4.28
Rate Rate 149.20 kHz/cm²
X-ray Calibration - Vcal Calibration Method Spectrum Chip C3
Plot
Slope Slope 45.177 ± 0.061 nElectrons/VCal
Offset Offset -112.406 ± 6.041 nElectrons

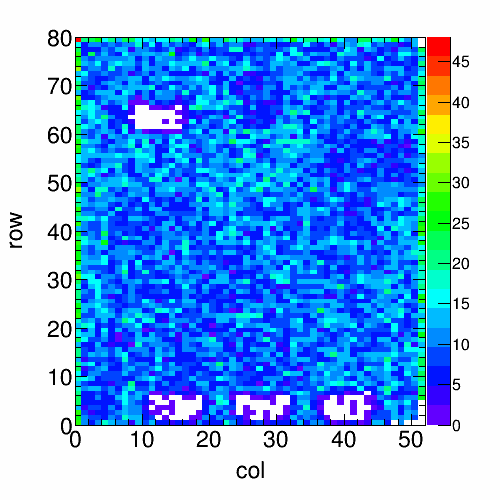

X-ray Hit Map - Target Zn Method Spectrum Chip C3
Plot
Rate Rate 286.30 kHz/cm²
NTrigs N Trig 5914676 Trigger
NHits N Hits 26415 Hits

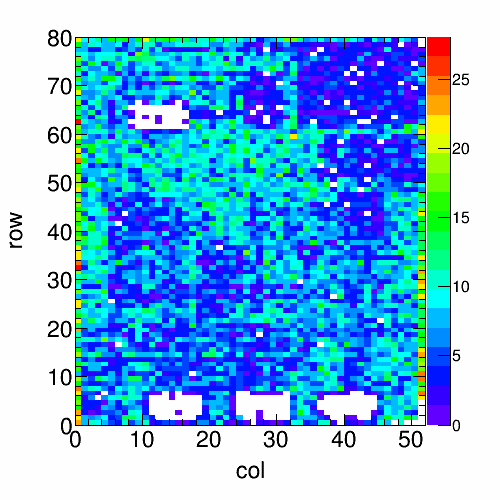

X-ray Hit Map - Target Mo Method Spectrum Chip C3
Plot
Rate Rate 444.50 kHz/cm²
NTrigs N Trig 5914603 Trigger
NHits N Hits 41012 Hits

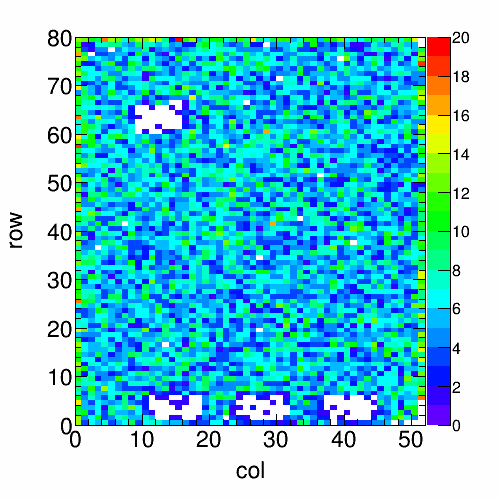

X-ray Hit Map - Target Ag Method Spectrum Chip C3
Plot
Rate Rate 236.70 kHz/cm²
NTrigs N Trig 5915030 Trigger
NHits N Hits 21839 Hits
X-ray Hit Map - Target Sn Method Spectrum Chip C3
Plot
Rate Rate 149.20 kHz/cm²
NTrigs N Trig 5914572 Trigger
NHits N Hits 13767 Hits
