Test Date: 2016-04-25 11:13
Analysis date: 2016-05-26 16:19
Chip 13
X-ray Calibration - Target Zn Method Spectrum Chip C13
Plot
Center Center of Peak 51.14 ± 0.12 Vcal
TargetEnergy Energy of target Zn 8638.91 eV
TargetNElectrons Energy of target Zn 2399.7 nElectrons
Chi2PerNDF Chi^2 per NDF 1.09
Rate Rate 168.10 kHz/cm²
X-ray Calibration - Target Mo Method Spectrum Chip C13
Plot
Center Center of Peak 99.22 ± 0.09 Vcal
TargetEnergy Energy of target Mo 17479.37 eV
TargetNElectrons Energy of target Mo 4855.38 nElectrons
Chi2PerNDF Chi^2 per NDF 2.29
Rate Rate 294.90 kHz/cm²
X-ray Calibration - Target Ag Method Spectrum Chip C13
Plot
Center Center of Peak 126.03 ± 0.13 Vcal
TargetEnergy Energy of target Ag 22162.92 eV
TargetNElectrons Energy of target Ag 6156.37 nElectrons
Chi2PerNDF Chi^2 per NDF 2.67
Rate Rate 169.20 kHz/cm²
X-ray Calibration - Target Sn Method Spectrum Chip C13
Plot
Center Center of Peak 143.94 ± 0.16 Vcal
TargetEnergy Energy of target Sn 25271.36 eV
TargetNElectrons Energy of target Sn 7019.82 nElectrons
Chi2PerNDF Chi^2 per NDF 2.44
Rate Rate 109.90 kHz/cm²
X-ray Calibration - Vcal Calibration Method Spectrum Chip C13
Plot
Slope Slope 48.433 ± 0.182 nElectrons/VCal
Offset Offset 50.214 ± 21.086 nElectrons

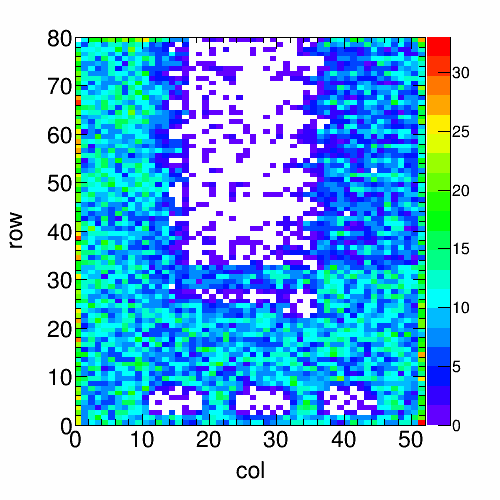

X-ray Hit Map - Target Zn Method Spectrum Chip C13
Plot
Rate Rate 168.10 kHz/cm²
NTrigs N Trig 5914676 Trigger
NHits N Hits 15509 Hits

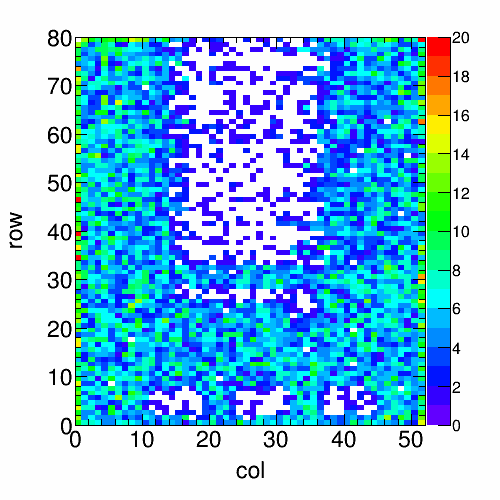

X-ray Hit Map - Target Mo Method Spectrum Chip C13
Plot
Rate Rate 294.90 kHz/cm²
NTrigs N Trig 5914603 Trigger
NHits N Hits 27206 Hits

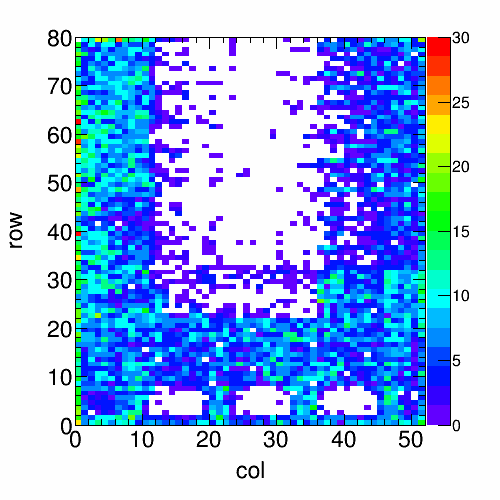

X-ray Hit Map - Target Ag Method Spectrum Chip C13
Plot
Rate Rate 169.20 kHz/cm²
NTrigs N Trig 5915030 Trigger
NHits N Hits 15615 Hits

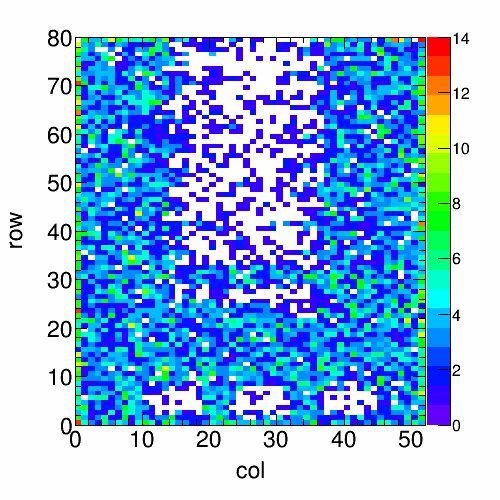

X-ray Hit Map - Target Sn Method Spectrum Chip C13
Plot
Rate Rate 109.90 kHz/cm²
NTrigs N Trig 5914572 Trigger
NHits N Hits 10144 Hits
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
