Test Date: 2016-04-25 11:13
Analysis date: 2016-05-26 16:19
Chip 12
X-ray Calibration - Target Zn Method Spectrum Chip C12
Center Center of Peak 50.58 ± 0.09 Vcal
TargetEnergy Energy of target Zn 8638.91 eV
TargetNElectrons Energy of target Zn 2399.7 nElectrons
Chi2PerNDF Chi^2 per NDF 2.31
Rate Rate 286.50 kHz/cm²
X-ray Calibration - Target Mo Method Spectrum Chip C12
Center Center of Peak 102.24 ± 0.08 Vcal
TargetEnergy Energy of target Mo 17479.37 eV
TargetNElectrons Energy of target Mo 4855.38 nElectrons
Chi2PerNDF Chi^2 per NDF 2.69
Rate Rate 446.50 kHz/cm²
X-ray Calibration - Target Ag Method Spectrum Chip C12
Center Center of Peak 130.1 ± 0.1 Vcal
TargetEnergy Energy of target Ag 22162.92 eV
TargetNElectrons Energy of target Ag 6156.37 nElectrons
Chi2PerNDF Chi^2 per NDF 4.51
Rate Rate 240.20 kHz/cm²
X-ray Calibration - Target Sn Method Spectrum Chip C12
Center Center of Peak 148.36 ± 0.14 Vcal
TargetEnergy Energy of target Sn 25271.36 eV
TargetNElectrons Energy of target Sn 7019.82 nElectrons
Chi2PerNDF Chi^2 per NDF 7.14
Rate Rate 150.70 kHz/cm²
X-ray Calibration - Vcal Calibration Method Spectrum Chip C12
Slope Slope 46.859 ± 0.148 nElectrons/VCal
Offset Offset 63.61 ± 17.83 nElectrons

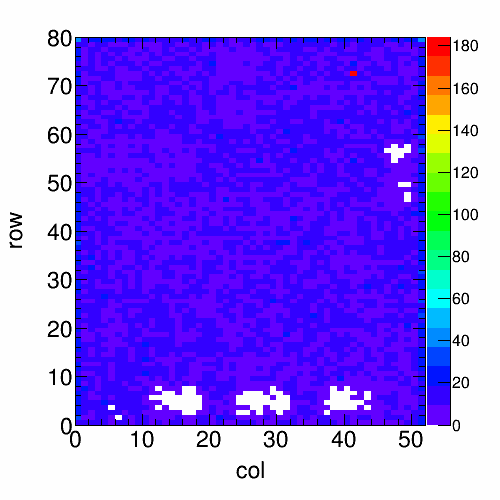

X-ray Hit Map - Target Zn Method Spectrum Chip C12
Rate Rate 286.50 kHz/cm²
NTrigs N Trig 5914676 Trigger
NHits N Hits 26439 Hits

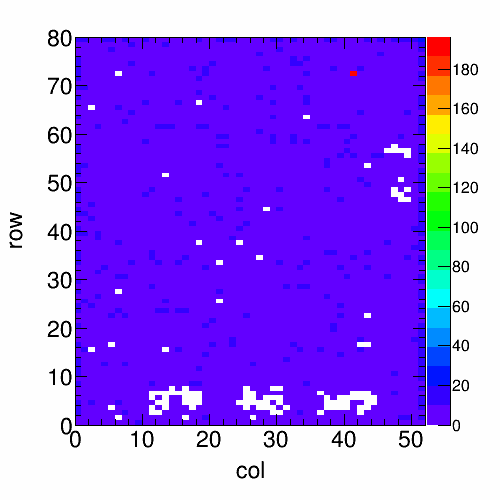

X-ray Hit Map - Target Mo Method Spectrum Chip C12
Rate Rate 446.50 kHz/cm²
NTrigs N Trig 5914603 Trigger
NHits N Hits 41200 Hits

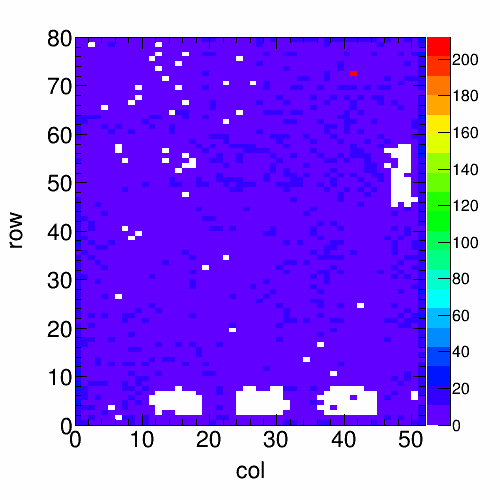

X-ray Hit Map - Target Ag Method Spectrum Chip C12
Rate Rate 240.20 kHz/cm²
NTrigs N Trig 5915030 Trigger
NHits N Hits 22165 Hits

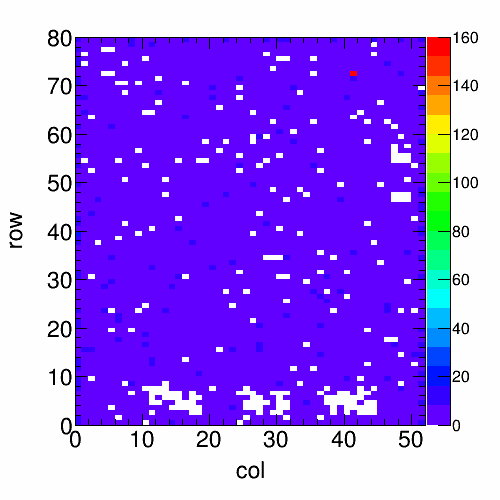

X-ray Hit Map - Target Sn Method Spectrum Chip C12
Rate Rate 150.70 kHz/cm²
NTrigs N Trig 5914572 Trigger
NHits N Hits 13904 Hits
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
