Test Date: 2016-04-25 11:13
Analysis date: 2016-05-26 16:19
Chip 11
X-ray Calibration - Target Zn Method Spectrum Chip C11
Plot
Center Center of Peak 54.7 ± 0.1 Vcal
TargetEnergy Energy of target Zn 8638.91 eV
TargetNElectrons Energy of target Zn 2399.7 nElectrons
Chi2PerNDF Chi^2 per NDF 1.32
Rate Rate 289.20 kHz/cm²
X-ray Calibration - Target Mo Method Spectrum Chip C11
Plot
Center Center of Peak 111.65 ± 0.09 Vcal
TargetEnergy Energy of target Mo 17479.37 eV
TargetNElectrons Energy of target Mo 4855.38 nElectrons
Chi2PerNDF Chi^2 per NDF 2.45
Rate Rate 445.70 kHz/cm²
X-ray Calibration - Target Ag Method Spectrum Chip C11
Plot
Center Center of Peak 142.17 ± 0.11 Vcal
TargetEnergy Energy of target Ag 22162.92 eV
TargetNElectrons Energy of target Ag 6156.37 nElectrons
Chi2PerNDF Chi^2 per NDF 3.43
Rate Rate 239.20 kHz/cm²
X-ray Calibration - Target Sn Method Spectrum Chip C11
Plot
Center Center of Peak 161.49 ± 0.15 Vcal
TargetEnergy Energy of target Sn 25271.36 eV
TargetNElectrons Energy of target Sn 7019.82 nElectrons
Chi2PerNDF Chi^2 per NDF 4.87
Rate Rate 148.40 kHz/cm²
X-ray Calibration - Vcal Calibration Method Spectrum Chip C11
Plot
Slope Slope 42.983 ± 0.071 nElectrons/VCal
Offset Offset 50.9 ± 7.581 nElectrons

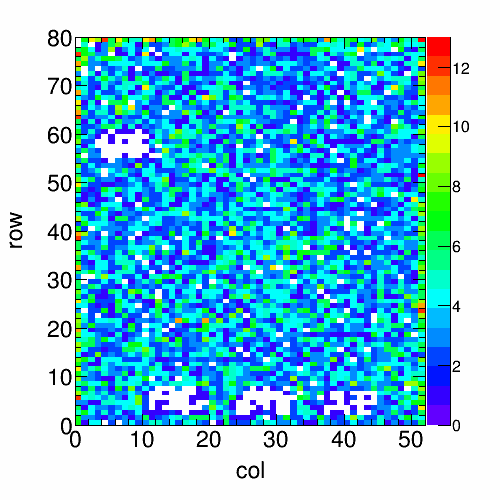

X-ray Hit Map - Target Zn Method Spectrum Chip C11
Plot
Rate Rate 289.20 kHz/cm²
NTrigs N Trig 5914676 Trigger
NHits N Hits 26680 Hits

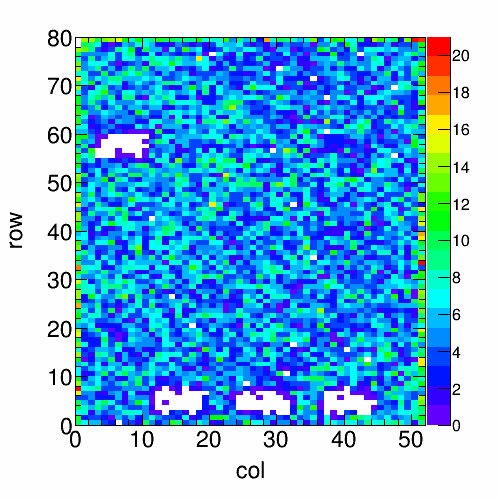

X-ray Hit Map - Target Mo Method Spectrum Chip C11
Plot
Rate Rate 445.70 kHz/cm²
NTrigs N Trig 5914603 Trigger
NHits N Hits 41125 Hits

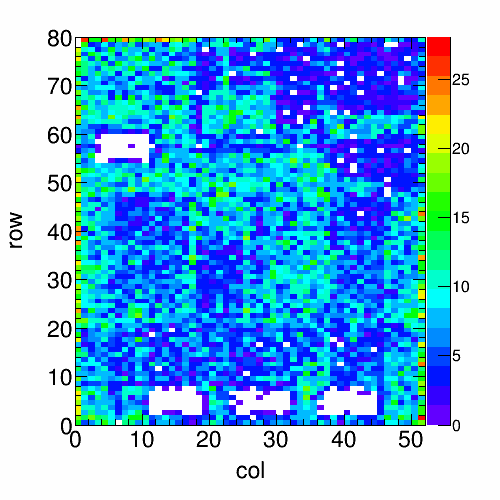

X-ray Hit Map - Target Ag Method Spectrum Chip C11
Plot
Rate Rate 239.20 kHz/cm²
NTrigs N Trig 5915030 Trigger
NHits N Hits 22070 Hits

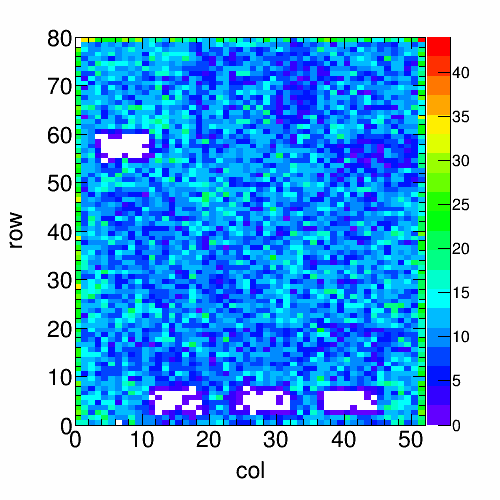

X-ray Hit Map - Target Sn Method Spectrum Chip C11
Plot
Rate Rate 148.40 kHz/cm²
NTrigs N Trig 5914572 Trigger
NHits N Hits 13689 Hits
