Test Date: 2016-04-25 11:13
Analysis date: 2016-05-26 16:19
Chip 1
X-ray Calibration - Target Zn Method Spectrum Chip C1
Plot
Center Center of Peak 50.85 ± 0.08 Vcal
TargetEnergy Energy of target Zn 8638.91 eV
TargetNElectrons Energy of target Zn 2399.7 nElectrons
Chi2PerNDF Chi^2 per NDF 1.49
Rate Rate 221.70 kHz/cm²
X-ray Calibration - Target Mo Method Spectrum Chip C1
Plot
Center Center of Peak 101.06 ± 0.07 Vcal
TargetEnergy Energy of target Mo 17479.37 eV
TargetNElectrons Energy of target Mo 4855.38 nElectrons
Chi2PerNDF Chi^2 per NDF 3.18
Rate Rate 362.90 kHz/cm²
X-ray Calibration - Target Ag Method Spectrum Chip C1
Plot
Center Center of Peak 128.04 ± 0.1 Vcal
TargetEnergy Energy of target Ag 22162.92 eV
TargetNElectrons Energy of target Ag 6156.37 nElectrons
Chi2PerNDF Chi^2 per NDF 4.62
Rate Rate 210.80 kHz/cm²
X-ray Calibration - Target Sn Method Spectrum Chip C1
Plot
Center Center of Peak 145.33 ± 0.12 Vcal
TargetEnergy Energy of target Sn 25271.36 eV
TargetNElectrons Energy of target Sn 7019.82 nElectrons
Chi2PerNDF Chi^2 per NDF 4.56
Rate Rate 137.60 kHz/cm²
X-ray Calibration - Vcal Calibration Method Spectrum Chip C1
Plot
Slope Slope 48.808 ± 0.063 nElectrons/VCal
Offset Offset -81.191 ± 6.507 nElectrons

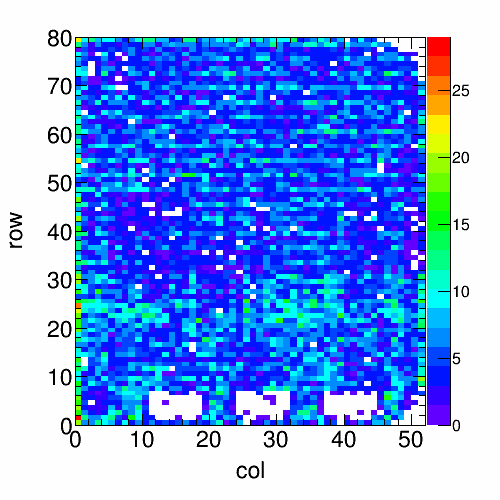

X-ray Hit Map - Target Zn Method Spectrum Chip C1
Plot
Rate Rate 221.70 kHz/cm²
NTrigs N Trig 5914676 Trigger
NHits N Hits 20458 Hits

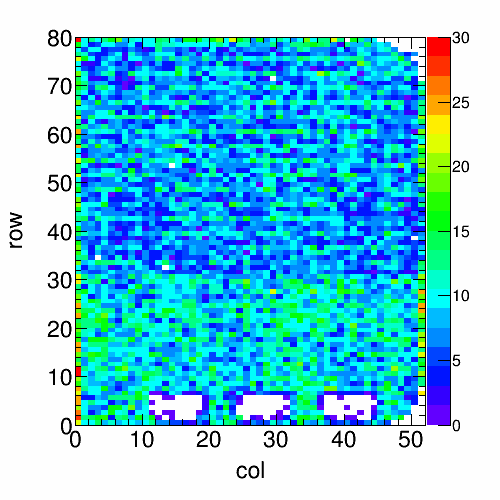

X-ray Hit Map - Target Mo Method Spectrum Chip C1
Plot
Rate Rate 362.90 kHz/cm²
NTrigs N Trig 5914603 Trigger
NHits N Hits 33481 Hits

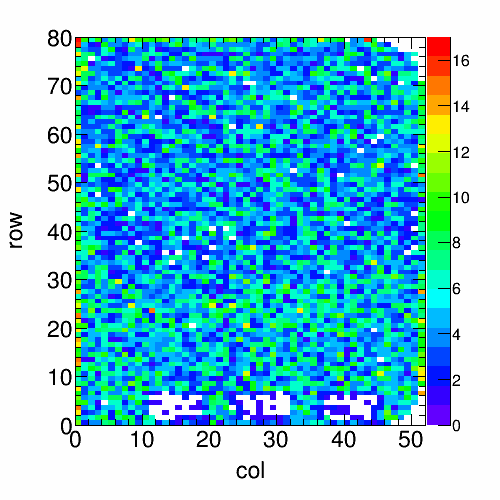

X-ray Hit Map - Target Ag Method Spectrum Chip C1
Plot
Rate Rate 210.80 kHz/cm²
NTrigs N Trig 5915030 Trigger
NHits N Hits 19456 Hits

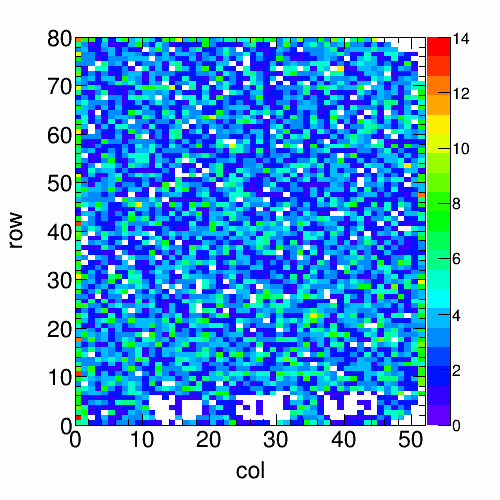

X-ray Hit Map - Target Sn Method Spectrum Chip C1
Plot
Rate Rate 137.60 kHz/cm²
NTrigs N Trig 5914572 Trigger
NHits N Hits 12695 Hits
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
