Test Date: 2016-04-25 11:13
Analysis date: 2016-05-26 16:19
Chip 0
X-ray Calibration - Target Zn Method Spectrum Chip C0
Plot
Center Center of Peak 49.15 ± 0.08 Vcal
TargetEnergy Energy of target Zn 8638.91 eV
TargetNElectrons Energy of target Zn 2399.7 nElectrons
Chi2PerNDF Chi^2 per NDF 1.34
Rate Rate 227.50 kHz/cm²
X-ray Calibration - Target Mo Method Spectrum Chip C0
Plot
Center Center of Peak 98.36 ± 0.08 Vcal
TargetEnergy Energy of target Mo 17479.37 eV
TargetNElectrons Energy of target Mo 4855.38 nElectrons
Chi2PerNDF Chi^2 per NDF 1.91
Rate Rate 365.10 kHz/cm²
X-ray Calibration - Target Ag Method Spectrum Chip C0
Plot
Center Center of Peak 125.06 ± 0.11 Vcal
TargetEnergy Energy of target Ag 22162.92 eV
TargetNElectrons Energy of target Ag 6156.37 nElectrons
Chi2PerNDF Chi^2 per NDF 3.04
Rate Rate 208.50 kHz/cm²
X-ray Calibration - Target Sn Method Spectrum Chip C0
Plot
Center Center of Peak 143.05 ± 0.13 Vcal
TargetEnergy Energy of target Sn 25271.36 eV
TargetNElectrons Energy of target Sn 7019.82 nElectrons
Chi2PerNDF Chi^2 per NDF 3.65
Rate Rate 137.10 kHz/cm²
X-ray Calibration - Vcal Calibration Method Spectrum Chip C0
Plot
Slope Slope 48.502 ± 0.155 nElectrons/VCal
Offset Offset 85.779 ± 17.967 nElectrons

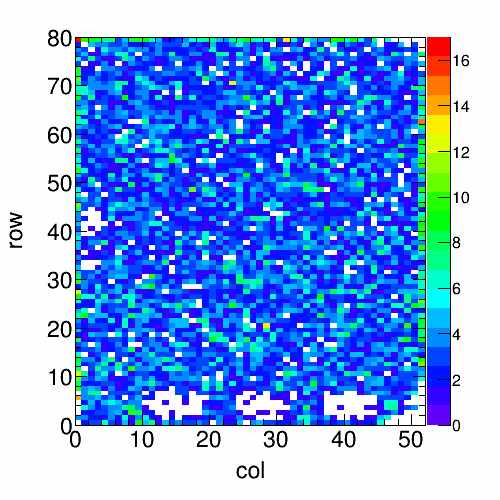

X-ray Hit Map - Target Zn Method Spectrum Chip C0
Plot
Rate Rate 227.50 kHz/cm²
NTrigs N Trig 5914676 Trigger
NHits N Hits 20991 Hits

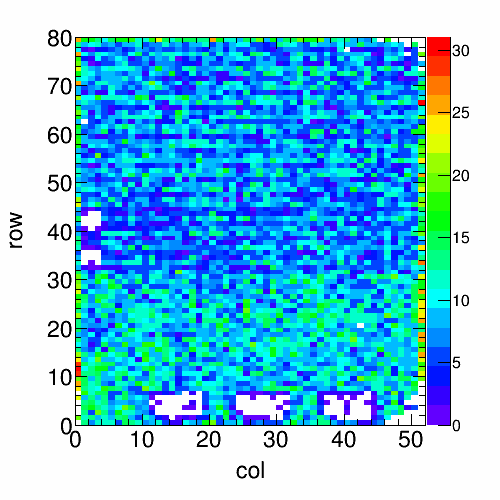

X-ray Hit Map - Target Mo Method Spectrum Chip C0
Plot
Rate Rate 365.10 kHz/cm²
NTrigs N Trig 5914603 Trigger
NHits N Hits 33690 Hits

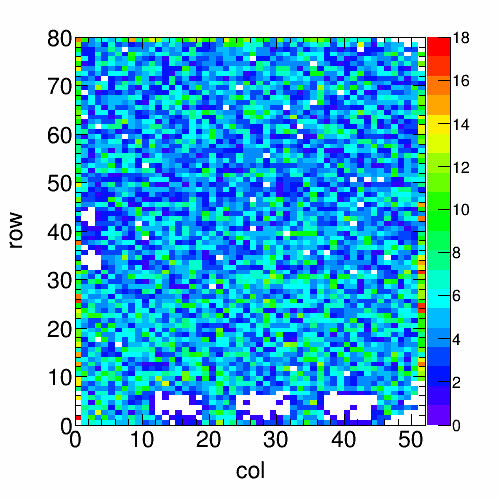

X-ray Hit Map - Target Ag Method Spectrum Chip C0
Plot
Rate Rate 208.50 kHz/cm²
NTrigs N Trig 5915030 Trigger
NHits N Hits 19237 Hits
X-ray Hit Map - Target Sn Method Spectrum Chip C0
Plot
Rate Rate 137.10 kHz/cm²
NTrigs N Trig 5914572 Trigger
NHits N Hits 12653 Hits
