Test Date: 2016-01-12 12:57
Analysis date: 2016-05-26 08:41
Analysis date: 2016-05-26 08:41
M2142 XRayHRQualification
Summary
| Module | Module | M2142 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 14/2/0 | |
| PixelDefects | Total Pixel Defects | 435 | |

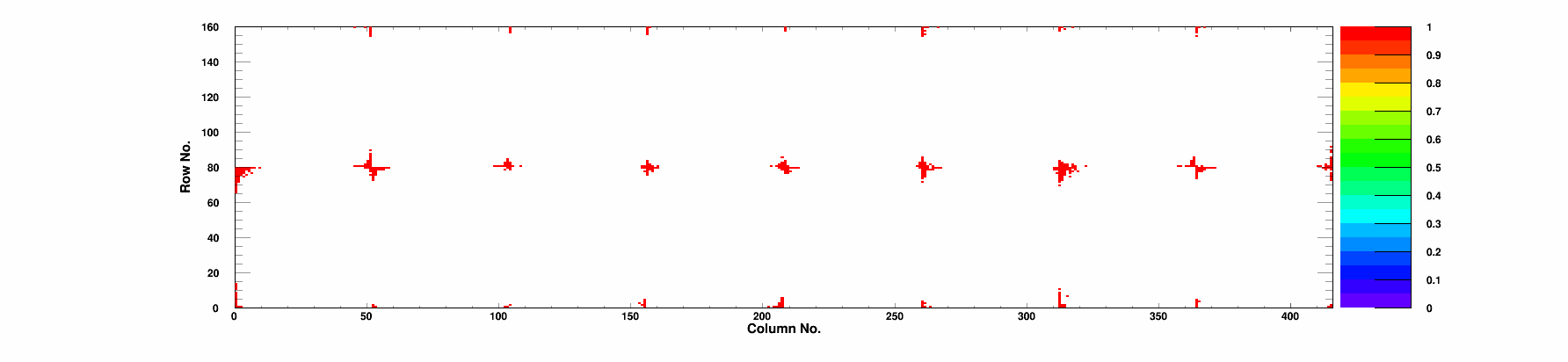

| BumpBondingDefects | Bump Bonding Defects | 435 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

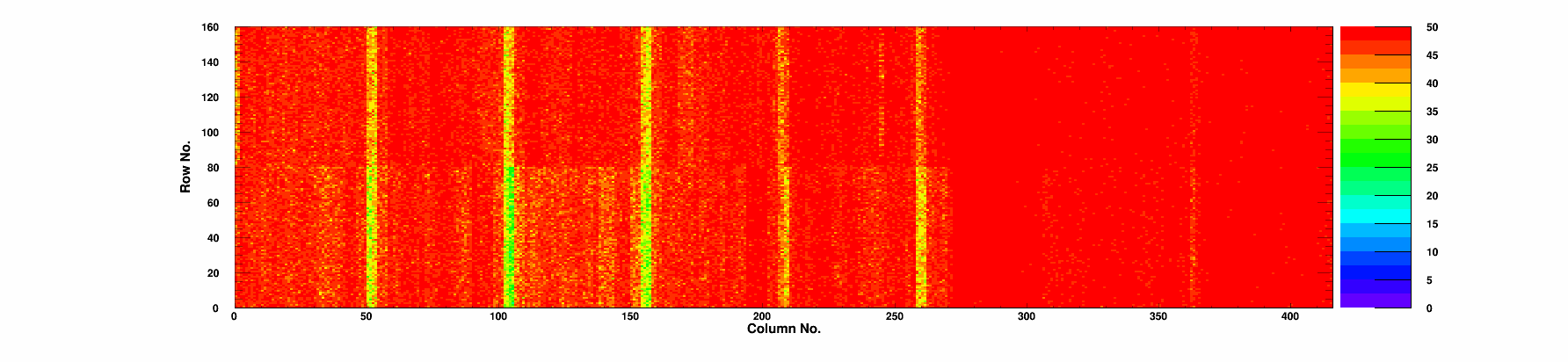

| Efficiency | Efficiency 50/120 | 99.87/99.23 | % |
| Noise | Mean Noise | 173 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
23 | 0 | 99.86 | 99.10 | 0.51 | 64.2 | 23 | 21.0 | 0/0 | 0 | 1938 | 168 | 0 |
|
Chip 1
|
A
|
35 | 0 | 99.84 | 99.05 | 0.56 | 69.2 | 35 | 22.7 | 0/0 | 0 | 1956 | 171 | 0 |
|
Chip 2
|
A
|
23 | 0 | 99.87 | 99.35 | 0.31 | 60.5 | 23 | 19.5 | 0/0 | 0 | 1922 | 168 | 0 |
|
Chip 3
|
A
|
12 | 0 | 99.90 | 99.21 | 3.43 | 109.1 | 12 | 36.8 | 0/0 | 0 | 2056 | 168 | 0 |
|
Chip 4
|
A
|
22 | 0 | 99.86 | 99.02 | 0.89 | 121.0 | 22 | 41.0 | 0/0 | 0 | 2066 | 176 | 0 |
|
Chip 5
|
A
|
11 | 0 | 99.88 | 99.37 | 0.6 | 137.5 | 11 | 47.8 | 0/0 | 0 | 2141 | 168 | 0 |
|
Chip 6
|
A
|
12 | 0 | 99.89 | 99.40 | 0.41 | 136.8 | 12 | 47.1 | 0/0 | 0 | 2106 | 173 | 0 |
|
Chip 7
|
A
|
27 | 0 | 99.89 | 99.35 | 0.58 | 143.1 | 27 | 49.6 | 0/0 | 0 | 2159 | 171 | 0 |
|
Chip 8
|
B
|
65 | 0 | 99.86 | 99.31 | 0.83 | 148.0 | 65 | 50.9 | 0/0 | 0 | 2141 | 171 | 0 |
|
Chip 9
|
A
|
28 | 0 | 99.88 | 99.36 | 0.48 | 148.1 | 28 | 51.2 | 0/0 | 0 | 2141 | 173 | 0 |
|
Chip 10
|
A
|
13 | 0 | 99.86 | 99.22 | 0.67 | 165.3 | 13 | 57.4 | 0/0 | 0 | 2134 | 180 | 0 |
|
Chip 11
|
A
|
27 | 0 | 99.88 | 99.37 | 0.6 | 144.7 | 27 | 49.3 | 0/0 | 0 | 2123 | 184 | 0 |
|
Chip 12
|
A
|
14 | 0 | 99.86 | 99.17 | 0.51 | 123.9 | 14 | 42.1 | 0/0 | 0 | 2077 | 178 | 0 |
|
Chip 13
|
A
|
34 | 0 | 99.83 | 99.05 | 0.53 | 73.5 | 34 | 24.1 | 0/0 | 0 | 1972 | 173 | 0 |
|
Chip 14
|
B
|
50 | 0 | 99.85 | 99.07 | 0.65 | 82.8 | 50 | 27.3 | 0/0 | 0 | 1987 | 184 | 0 |
|
Chip 15
|
A
|
39 | 0 | 99.88 | 99.35 | 0.36 | 75.0 | 39 | 25.0 | 0/0 | 0 | 1976 | 170 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-01-12 | |
| TestTime | Test Time | 12:57 | |
| TestDuration | Duration | 1:30:41 | |
| pXar | pXar version | prod-12 | |
| DTB_FW | DTB FW | 4.5 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
