Test Date: 2019-05-03 10:27
Analysis date: 2019-05-03 15:24
Chip 5
Grading
ROCGrade Final ROC Grade C
NumberOfHotPixels # Hot Pixels 300/100 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 300/100 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 300/100 64/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 300/100 2815/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 300/100 0/0
Efficiency Efficiency 50/120 99.89/99.8
EfficiencyFit Efficiency Fit chi2/ndf: 0.14, # points: 67
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 300/100 A/A
HitMapGrade Hit Map Grade 300/100 A/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 300/100 C/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 300/100 C/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade B
Efficiency Interpolation: C5
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.14
NumberFitPoints # fit points 67
p0 p0 99.90
p1 p1 5.79e-08
InterpolatedEfficiency50 Interpol. Efficiency 50 99.89
InterpolatedEfficiency120 Interpol. Efficiency 120 99.80
Efficiency Map 50: C5
Efficiency Map 100: C5
Efficiency Map 150: C5
Efficiency Map 200: C5
Efficiency Map 250: C5
Efficiency Map 300: C5
Efficiency Map 400: C5
Efficiency Distr. 50: C5
Plot
N N 4160
mu μ 99.92
sigma σ 0.40
Efficiency Distr. 100: C5
Plot
N N 4160
mu μ 99.84
sigma σ 0.55
Efficiency Distr. 150: C5
Plot
N N 4160
mu μ 99.76
sigma σ 0.69
Efficiency Distr. 200: C5
Plot
N N 4160
mu μ 99.66
sigma σ 0.82
Efficiency Distr. 250: C5
Plot
N N 4160
mu μ 99.53
sigma σ 0.98
Efficiency Distr. 300: C5
Plot
N N 4160
mu μ 99.45
sigma σ 1.05
Efficiency Distr. 400: C5
Plot
N N 4160
mu μ 99.27
sigma σ 1.28

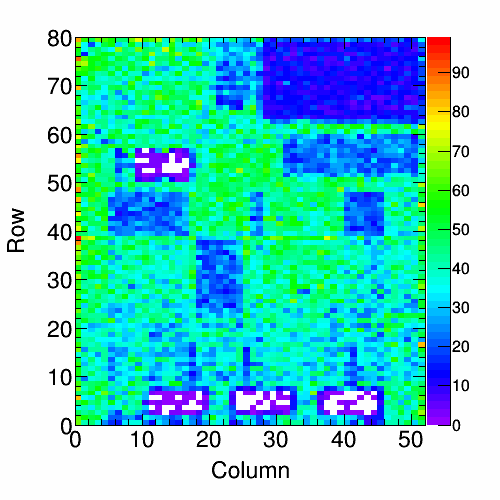

Background Map 50: C5
Plot
RealHitrate Real Hitrate 40.85 MHz/cm2

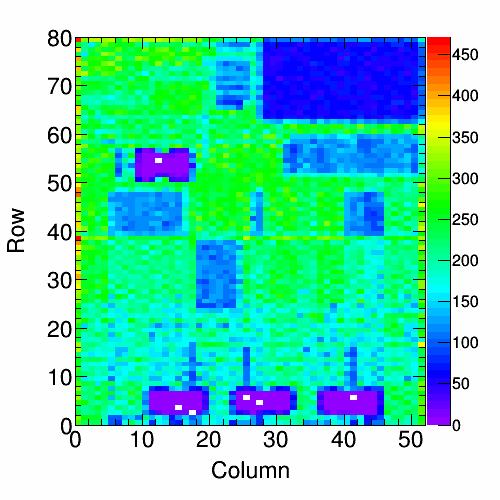

Background Map 100: C5
Plot
RealHitrate Real Hitrate 83.83 MHz/cm2
Background Map 150: C5
Plot
RealHitrate Real Hitrate 127.96 MHz/cm2
Background Map 200: C5
Plot
RealHitrate Real Hitrate 172.82 MHz/cm2
Background Map 250: C5
Plot
RealHitrate Real Hitrate 217.58 MHz/cm2
Background Map 300: C5
Plot
RealHitrate Real Hitrate 264.30 MHz/cm2

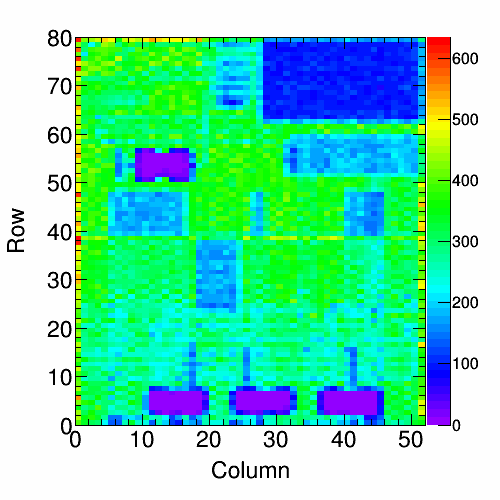

Background Map 400: C5
Plot
RealHitrate Real Hitrate 317.40 MHz/cm2
Retrim Hot Pix 150: C5
Retrim Hot Pix 50: C5
Masked Hot Pixels 300: C5
Masked Hot Pixels 100: C5
Hit Map 300: C5
Plot
RealHitrate Real Hitrate 246.01 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 300: C5
Hit Map 100: C5
Plot
RealHitrate Real Hitrate 81.04 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 100: C5
Col. Read. Unif. 300: C5
Plot
N N 7130821
mu μ 152974
sigma σ 29631.10
Col. Read. Unif. 100: C5
Plot
N N 2353097
mu μ 50404
sigma σ 9430.18
Read. Unif. over Time 300: C5
Plot
N N 7954665
mu μ 8068
sigma_th σ_th 89.82
Time unif. distribution 300: C5
Plot
chi2/ndf chi2/ndf 109.45
sigma σ 1981.68
sigma_th σ_th 89.83
expectation Red curve (expected) Poisson
Read. Unif. over Time 100: C5
Plot
N N 2620986
mu μ 2658
sigma_th σ_th 51.56
Time unif. distribution 100: C5
Plot
chi2/ndf chi2/ndf 2.46
sigma σ 54.16
sigma_th σ_th 51.56
expectation Red curve (expected) Poisson

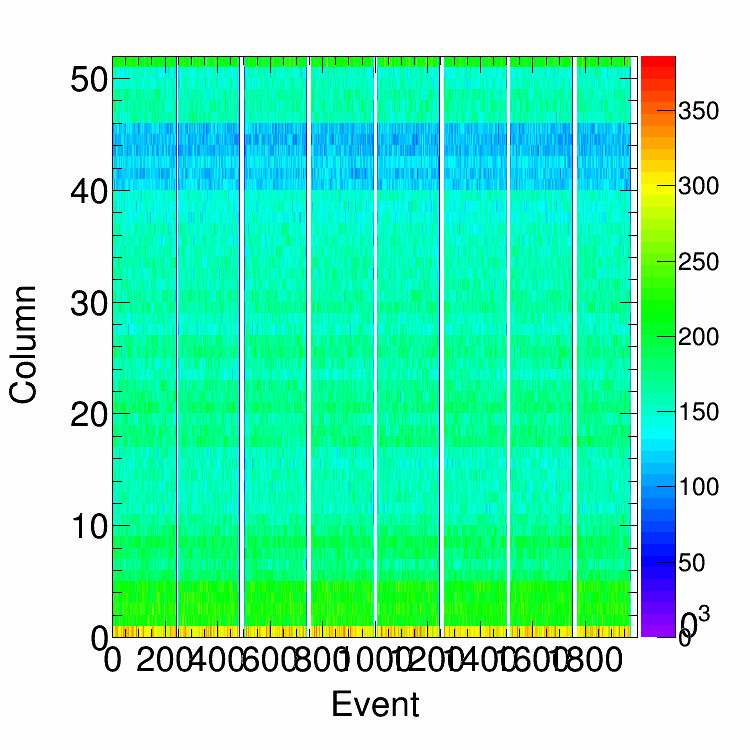

Col. Uniformity Ratio: C5
Col. Uniformity per Event: C5 300
Plot
mu μ 24.41
sigma fit error of μ 2.16
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 2815

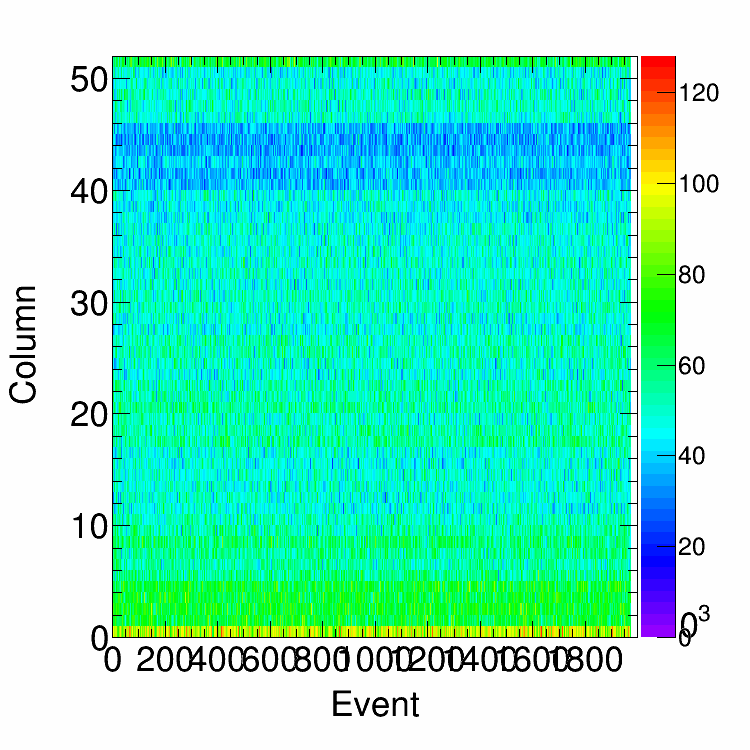

Col. Uniformity per Event: C5 100
Plot
mu μ 24.63
sigma fit error of μ 2.14
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C5 250
Plot
N N 3954
mu μ 303.50
sigma RMS 119.76
threshold thr 1024.63
fit fit Gaussian
fit_peak μ fit 286.74
fit_sigma σ fit 74.58
MeasuredHitrate Measured hitrate: 74.4
under <= 153.00
over >= 53.00
Alive Map: C5
DC Efficiency Distribution: C5
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.90
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.80
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C5
MoReWeb-v1.1.0 on branch AnalyzeNewXPixelAlive
