Test Date: 2019-05-03 10:27
Analysis date: 2019-05-03 15:24
Chip 14
Grading
ROCGrade Final ROC Grade C
NumberOfHotPixels # Hot Pixels 300/100 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 300/100 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 300/100 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 300/100 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 300/100 0/0
Efficiency Efficiency 50/120 99.91/99.79
EfficiencyFit Efficiency Fit chi2/ndf: 0.22, # points: 60
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 300/100 A/A
HitMapGrade Hit Map Grade 300/100 A/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 300/100 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 300/100 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C14
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.22
NumberFitPoints # fit points 60
p0 p0 99.91
p1 p1 7.08e-08
InterpolatedEfficiency50 Interpol. Efficiency 50 99.91
InterpolatedEfficiency120 Interpol. Efficiency 120 99.79

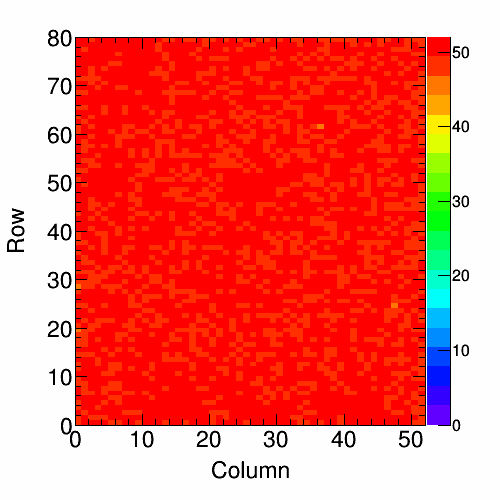

Efficiency Map 50: C14
Efficiency Map 100: C14
Efficiency Map 150: C14
Efficiency Map 200: C14
Efficiency Map 250: C14
Efficiency Map 300: C14
Efficiency Map 400: C14
Efficiency Distr. 50: C14
Plot
N N 4160
mu μ 99.92
sigma σ 0.38
Efficiency Distr. 100: C14
Plot
N N 4160
mu μ 99.85
sigma σ 0.55
Efficiency Distr. 150: C14
Plot
N N 4160
mu μ 99.74
sigma σ 0.74
Efficiency Distr. 200: C14
Plot
N N 4160
mu μ 99.64
sigma σ 0.85
Efficiency Distr. 250: C14
Plot
N N 4160
mu μ 99.52
sigma σ 0.97
Efficiency Distr. 300: C14
Plot
N N 4160
mu μ 99.37
sigma σ 1.13
Efficiency Distr. 400: C14
Plot
N N 4160
mu μ 99.25
sigma σ 1.26

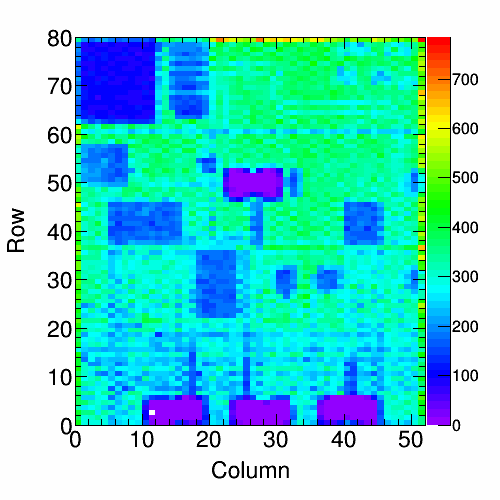

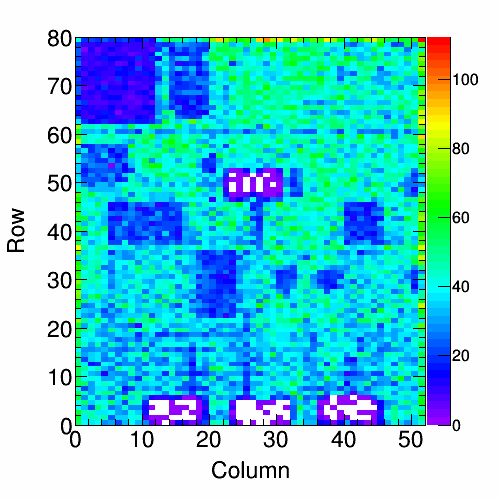

Background Map 50: C14
Plot
RealHitrate Real Hitrate 42.37 MHz/cm2

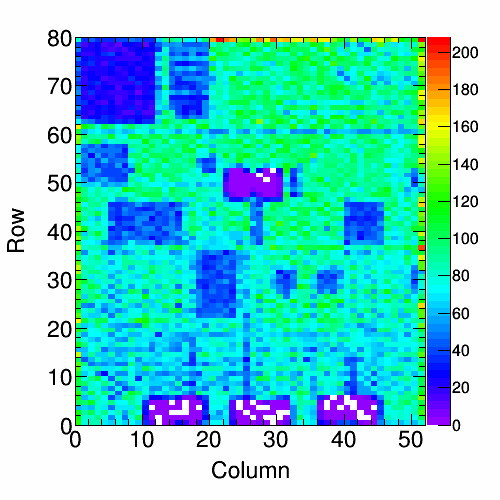

Background Map 100: C14
Plot
RealHitrate Real Hitrate 86.99 MHz/cm2

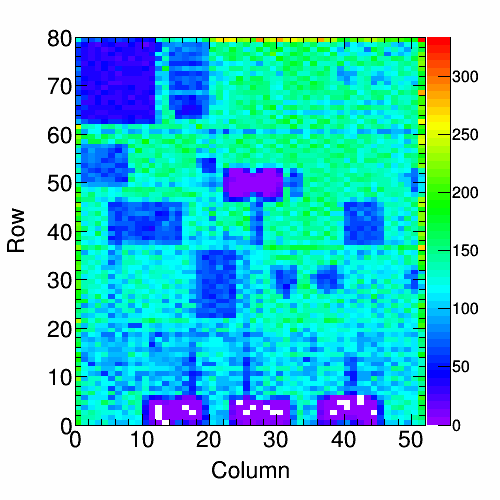

Background Map 150: C14
Plot
RealHitrate Real Hitrate 133.27 MHz/cm2
Background Map 200: C14
Plot
RealHitrate Real Hitrate 180.06 MHz/cm2
Background Map 250: C14
Plot
RealHitrate Real Hitrate 229.06 MHz/cm2
Background Map 300: C14
Plot
RealHitrate Real Hitrate 276.77 MHz/cm2
Background Map 400: C14
Plot
RealHitrate Real Hitrate 331.90 MHz/cm2
Retrim Hot Pix 150: C14
Retrim Hot Pix 50: C14
Masked Hot Pixels 300: C14
Masked Hot Pixels 100: C14

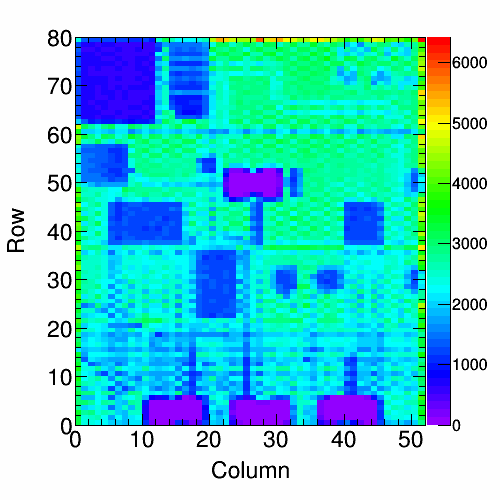

Hit Map 300: C14
Plot
RealHitrate Real Hitrate 273.40 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 300: C14

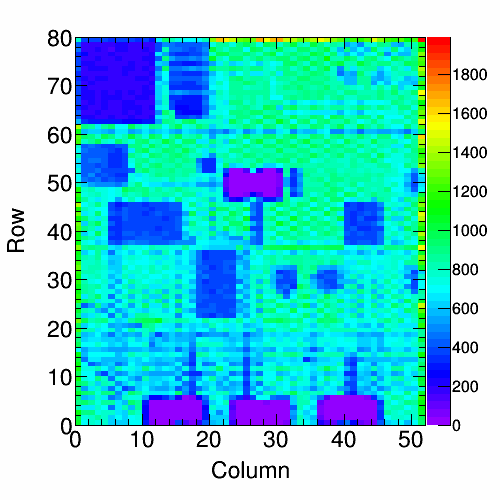

Hit Map 100: C14
Plot
RealHitrate Real Hitrate 84.25 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 100: C14
Col. Read. Unif. 300: C14
Plot
N N 7963578
mu μ 170011
sigma σ 29534.71
Col. Read. Unif. 100: C14
Plot
N N 2456798
mu μ 52401
sigma σ 8804.04
Read. Unif. over Time 300: C14
Plot
N N 8840572
mu μ 8966
sigma_th σ_th 94.69
Time unif. distribution 300: C14
Plot
chi2/ndf chi2/ndf 5.04
sigma σ 109.17
sigma_th σ_th 94.71
expectation Red curve (expected) Poisson
Read. Unif. over Time 100: C14
Plot
N N 2724861
mu μ 2764
sigma_th σ_th 52.57
Time unif. distribution 100: C14
Plot
chi2/ndf chi2/ndf 2.32
sigma σ 58.84
sigma_th σ_th 52.57
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C14

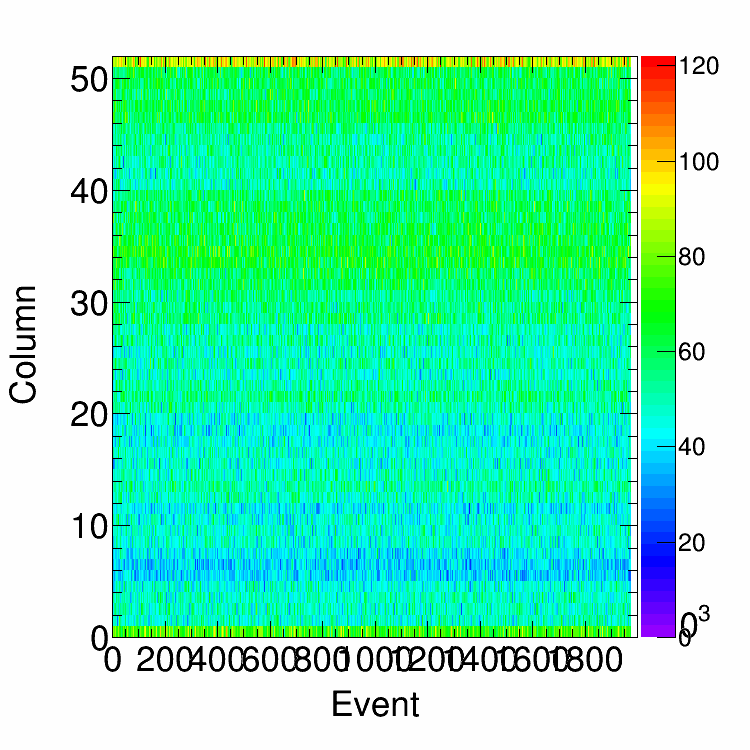

Col. Uniformity per Event: C14 300
Plot
mu μ 27.64
sigma fit error of μ 2.13
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C14 100
Plot
mu μ 28.03
sigma fit error of μ 2.14
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C14 250
Plot
N N 3954
mu μ 292.88
sigma RMS 124.43
threshold thr 893.04
fit fit Gaussian
fit_peak μ fit 279.79
fit_sigma σ fit 76.70
MeasuredHitrate Measured hitrate: 74.4
under <= 149.00
over >= 57.00
Alive Map: C14
DC Efficiency Distribution: C14
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.91
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.79
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C14
