Test Date: 2015-11-04 10:51
Analysis date: 2015-11-23 15:53
X-ray Calibration - Spectrum
| Slope |
avrg Slope |
45.0936875 |
|
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
| avrgSlope |
avrg Slope |
45.0936875 |
|
| medianSlope |
median Slope |
44.7445 |
|
| minSlope |
min Slope |
41.48 |
|
| maxSlope |
max Slope |
47.689 |
|
Offset of Spectrum Vcal Calibration
| avrgOffset |
avrg Offset |
-111.714875 |
|
| medianOffset |
median Offset |
-115.204 |
|
| minOffset |
min Offset |
-356.082 |
|
| maxOffset |
max Offset |
115.965 |
|
Chi2 of Spectrum Vcal Calibration
| avrgchi2 |
avrg chi2 |
2.0445625 |
|
| medianchi2 |
median chi2 |
0.925 |
|
| minchi2 |
min chi2 |
0.093 |
|
| maxchi2 |
max chi2 |
11.192 |
|
Vcal Calibration Module - Spectrum
|
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
|
0
|
47.7 e- / Vcal
|
0.2 e- / Vcal
|
-174.9 e-
|
20.4 e-
|
|
1
|
44.4 e- / Vcal
|
0.1 e- / Vcal
|
-90.2 e-
|
8.2 e-
|
|
2
|
41.5 e- / Vcal
|
0.2 e- / Vcal
|
-82.8 e-
|
24.4 e-
|
|
3
|
44.4 e- / Vcal
|
0.2 e- / Vcal
|
-188.9 e-
|
20.5 e-
|
|
4
|
44.8 e- / Vcal
|
0.1 e- / Vcal
|
-247.0 e-
|
14.1 e-
|
|
5
|
46.1 e- / Vcal
|
0.1 e- / Vcal
|
-245.6 e-
|
19.1 e-
|
|
6
|
44.7 e- / Vcal
|
0.1 e- / Vcal
|
-180.3 e-
|
18.9 e-
|
|
7
|
45.7 e- / Vcal
|
0.1 e- / Vcal
|
20.7 e-
|
8.2 e-
|
|
8
|
46.8 e- / Vcal
|
0.2 e- / Vcal
|
-13.7 e-
|
19.9 e-
|
|
9
|
43.9 e- / Vcal
|
0.1 e- / Vcal
|
116.0 e-
|
18.8 e-
|
|
10
|
44.4 e- / Vcal
|
0.2 e- / Vcal
|
-191.0 e-
|
20.0 e-
|
|
11
|
46.3 e- / Vcal
|
0.2 e- / Vcal
|
-89.2 e-
|
21.1 e-
|
|
12
|
44.2 e- / Vcal
|
0.1 e- / Vcal
|
94.8 e-
|
10.0 e-
|
|
13
|
46.6 e- / Vcal
|
0.1 e- / Vcal
|
-140.2 e-
|
15.9 e-
|
|
14
|
47.3 e- / Vcal
|
0.2 e- / Vcal
|
-356.1 e-
|
27.2 e-
|
|
15
|
42.8 e- / Vcal
|
0.1 e- / Vcal
|
-19.0 e-
|
10.6 e-
|
|
Average
|
45.1 e- / Vcal
|
|
-111.7 e-
|
|
|
Median
|
44.8 e- / Vcal
|
|
-90.2 e-
|
|
Overview
Xray Module Spectrum - Zn
Overview
Xray Module Spectrum - Mo
Overview
Xray Module Spectrum - Ag
Overview
Xray Module Spectrum - Sn
Overview

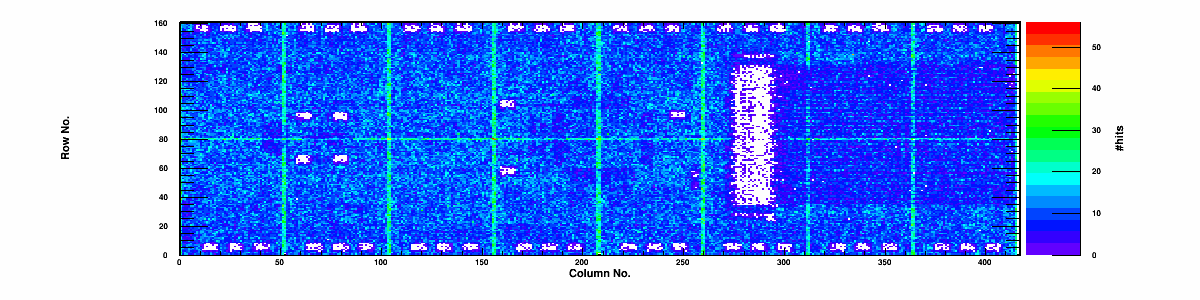

Hits distribution Zn inner/edge/corner

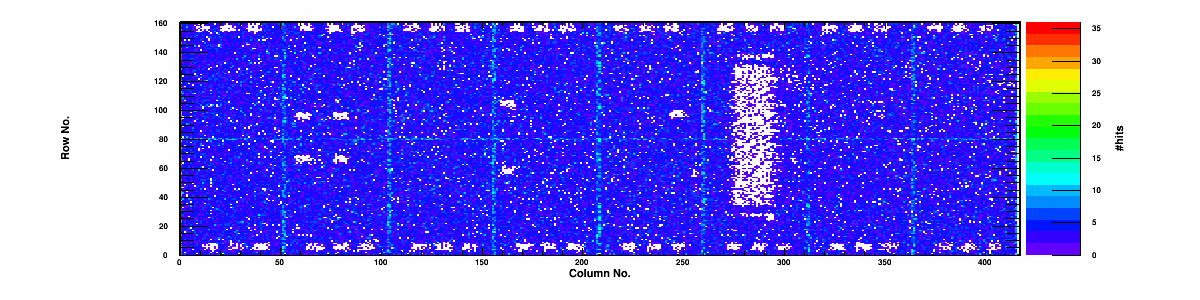

Hits distribution Mo inner/edge/corner

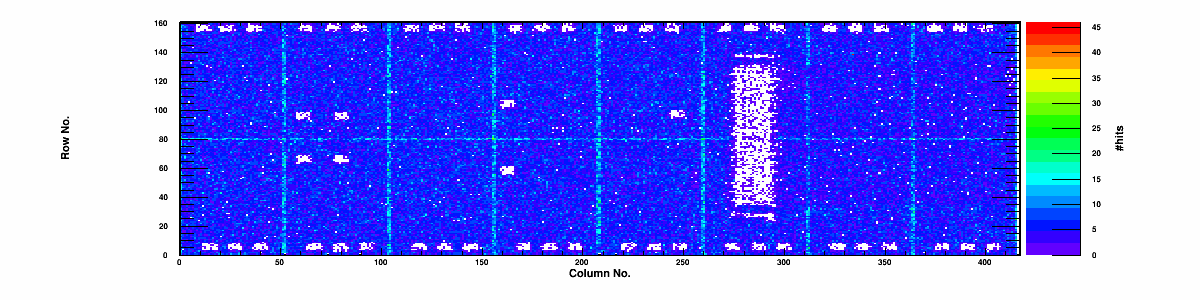

Hits distribution Ag inner/edge/corner

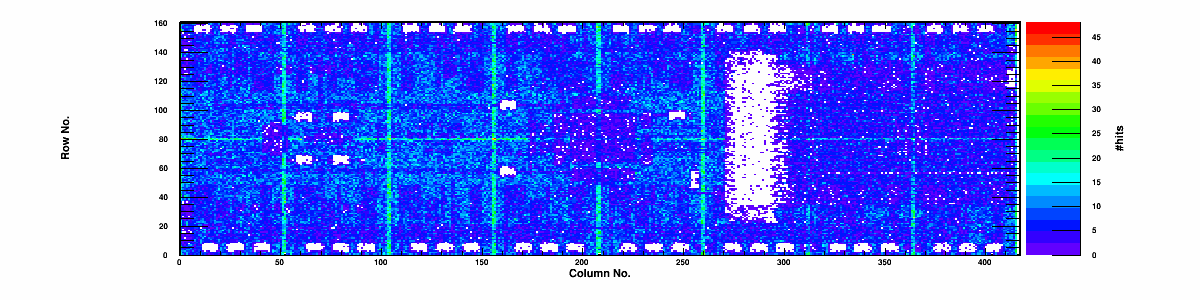

Hits distribution Sn inner/edge/corner
