Test Date: 2016-08-18 11:13
Analysis date: 2016-08-18 13:31
X-ray Calibration - Spectrum
| Slope |
avrg Slope |
47.2949375 |
|
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
| avrgSlope |
avrg Slope |
47.2949375 |
|
| medianSlope |
median Slope |
46.9835 |
|
| minSlope |
min Slope |
44.418 |
|
| maxSlope |
max Slope |
51.438 |
|
Offset of Spectrum Vcal Calibration
| avrgOffset |
avrg Offset |
-64.7743125 |
|
| medianOffset |
median Offset |
-56.9135 |
|
| minOffset |
min Offset |
-229.608 |
|
| maxOffset |
max Offset |
115.322 |
|
Chi2 of Spectrum Vcal Calibration
| avrgchi2 |
avrg chi2 |
2.31525 |
|
| medianchi2 |
median chi2 |
0.9085 |
|
| minchi2 |
min chi2 |
0.046 |
|
| maxchi2 |
max chi2 |
11.542 |
|
Vcal Calibration Module - Spectrum
|
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
|
0
|
45.8 e- / Vcal
|
0.2 e- / Vcal
|
-81.5 e-
|
19.8 e-
|
|
1
|
47.4 e- / Vcal
|
0.2 e- / Vcal
|
-176.5 e-
|
20.8 e-
|
|
2
|
49.1 e- / Vcal
|
0.2 e- / Vcal
|
2.9 e-
|
22.9 e-
|
|
3
|
48.3 e- / Vcal
|
0.1 e- / Vcal
|
-33.5 e-
|
9.4 e-
|
|
4
|
46.3 e- / Vcal
|
0.1 e- / Vcal
|
-104.2 e-
|
9.8 e-
|
|
5
|
44.4 e- / Vcal
|
0.1 e- / Vcal
|
-229.6 e-
|
10.3 e-
|
|
6
|
46.3 e- / Vcal
|
0.1 e- / Vcal
|
-60.0 e-
|
18.1 e-
|
|
7
|
46.6 e- / Vcal
|
0.1 e- / Vcal
|
21.6 e-
|
10.9 e-
|
|
8
|
45.4 e- / Vcal
|
0.1 e- / Vcal
|
-41.7 e-
|
12.9 e-
|
|
9
|
45.8 e- / Vcal
|
0.2 e- / Vcal
|
-63.0 e-
|
20.1 e-
|
|
10
|
45.7 e- / Vcal
|
0.1 e- / Vcal
|
-32.1 e-
|
8.0 e-
|
|
11
|
50.1 e- / Vcal
|
0.2 e- / Vcal
|
115.3 e-
|
18.9 e-
|
|
12
|
51.4 e- / Vcal
|
0.2 e- / Vcal
|
-53.9 e-
|
18.5 e-
|
|
13
|
48.4 e- / Vcal
|
0.2 e- / Vcal
|
-194.8 e-
|
17.7 e-
|
|
14
|
47.8 e- / Vcal
|
0.1 e- / Vcal
|
-81.4 e-
|
10.9 e-
|
|
15
|
47.9 e- / Vcal
|
0.1 e- / Vcal
|
-24.0 e-
|
11.9 e-
|
|
Average
|
47.3 e- / Vcal
|
|
-64.8 e-
|
|
|
Median
|
91.9 e- / Vcal
|
|
-20.1 e-
|
|
Overview

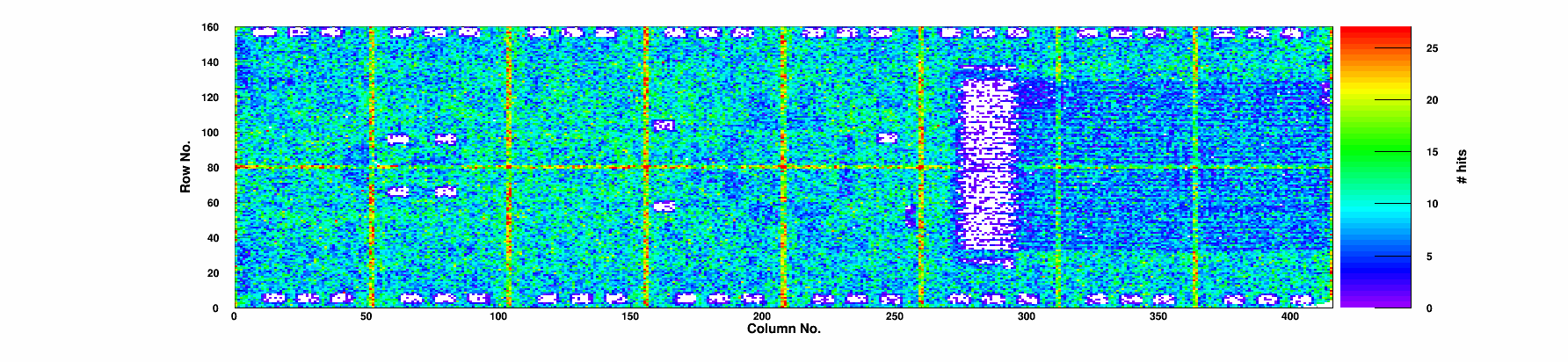

Xray Module Spectrum - Zn
Overview

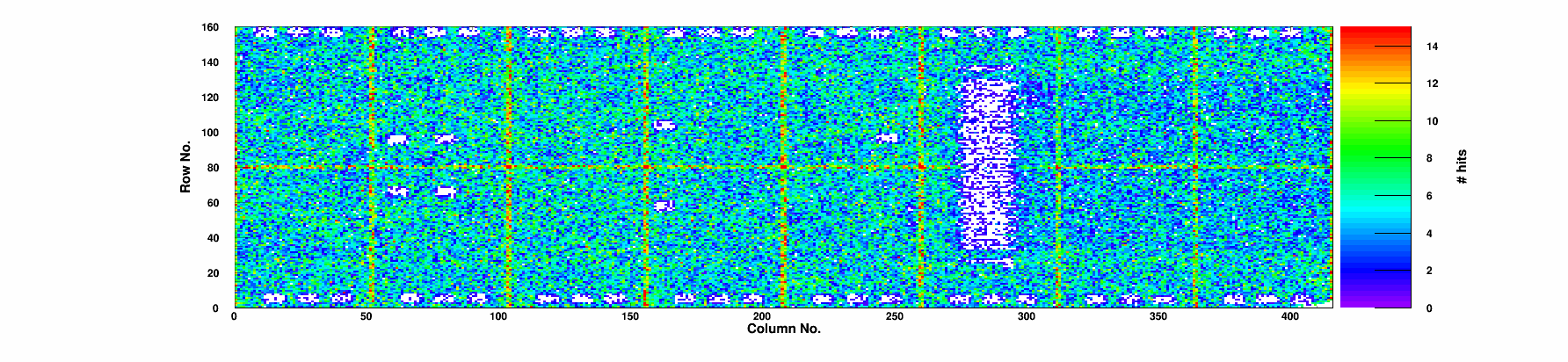

Xray Module Spectrum - Mo
Overview
Xray Module Spectrum - Ag
Overview
Xray Module Spectrum - Sn
Overview
Hits distribution Zn inner/edge/corner
Hits distribution Mo inner/edge/corner
Hits distribution Ag inner/edge/corner
Hits distribution Sn inner/edge/corner
