Test Date: 2015-03-24 20:03
R0304 ModuleFullTestPyxar_m20_1
_
Summary 1
| Module | Module | R0304 | |
| Grade | Grade | A | |
| PixelDefects | Pixel Defects - A/B/C | 14 - 1/0/0 | |
| DeadPixels | Dead Pixels | 4 | |
| AddressProblems | Address Problems | 0 | |
| ThresholdDefects | Threshold Defects | 9 | |
| MaskDefects | Mask Defects | 0 | |

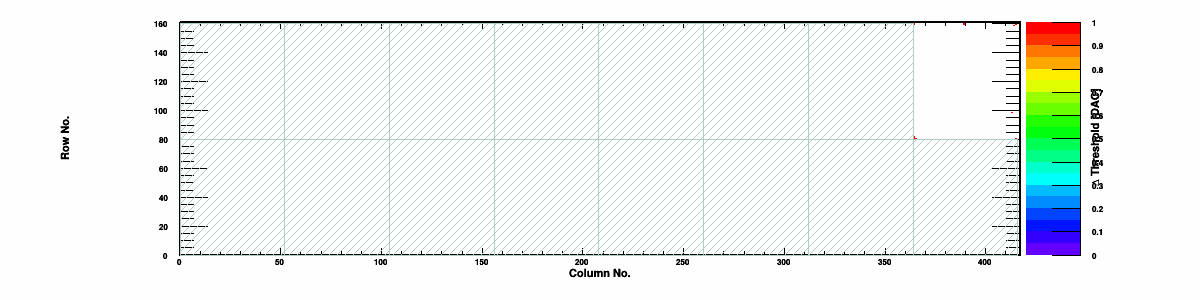

| DeadBumps | Dead Bumps | 8 | |
| NoisyPixels | Noisy Pixels | 0 | |
| TrimProblems | Trim Problems | 9 | |
| PHGainDefects | PH Gain Defects | 0 | |
| PHPedestalDefects | PH Pedestal Defects | 0 | |
| PHPar1Defects | PH Parameter1 Defects | 0 |
Summary 2
| TestDate | Test Date | 2015-03-24 | |
| TestTime | Test Time | 20:03 | |
| TempC | Temparature | -20 | °C |
| TrimPHCal | Trim / phCal | yes / yes | |
| TermCycl | Term. Cycl. | yes | |
| TBM1 | TBM1 | ok | |
| TBM2 | TBM2 | ok |
Summary 3
| Noise | Noise | 88.86 | e |
| NoiseROCs | Noise grades | 1/0/0 | |

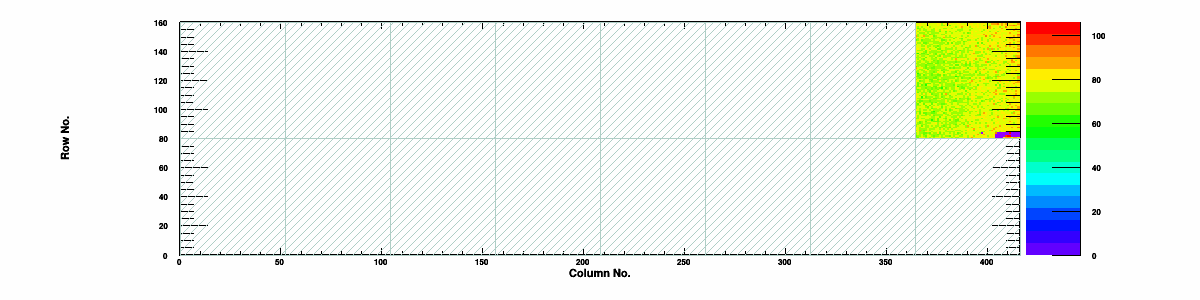

| VcalThrWidth | Vcal Thr. Width | 97.50 | e |
| VcalThrWidthROCs | Vcal Thr. W. grades | 1/0/0 | |
| RelGainWidth | Rel. Gain Width | 0.09 | % |
| RelGainWidthROCs | Rel. Gain W. grades | 1/0/0 | |
| PedestalSpread | Pedestal Spread | 2122.00 | e |
| PedestalSpreadROCs | Ped. Spread grades | 1/0/0 | |
| Parameter1 | Parameter1 | 1.06 | |
| Parameter1ROCs | Par1 grades | 1/0/0 | |
| CurrentAtVoltage150V | I_rec(150 V) @ 17°C | 0.00 | μA |
| CurrentAtVoltage150V_ORIG | I_orig(150V) @ -20.0 °C | 15.63 | μA |
| CurrentVariation | I(150 V) / I(100 V) | 1.34 |
IVCurve
| CurrentAtVoltage150V | I_orig(150V) @ -20.0 °C | 15.63 | μA |
| Variation | I(150 V) / I(100 V) | 1.34 | |
| recalculatedCurrentVariation | I_rec(150 V) / I_rec(100 V) | 0.00 |
Temperature
Summary ROCs
| ROC | Total | Dead | Mask | Bumps | Trim(Bits) | Address | Noise | Thresh | Gain | Ped | Par1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Chip 0 | 14 | 4 | 0 | 8 | 2 | 0 | 0 | 9 | 0 | 0 | 0 |
